High-Voltage AC vs Low-Voltage DC LED Strips: Safety, Run Length, Installation and Project Cost

High-voltage AC LED strips are usually better for long, continuous runs where reducing power supplies and feed points is more important than short cutting intervals or touch safety.

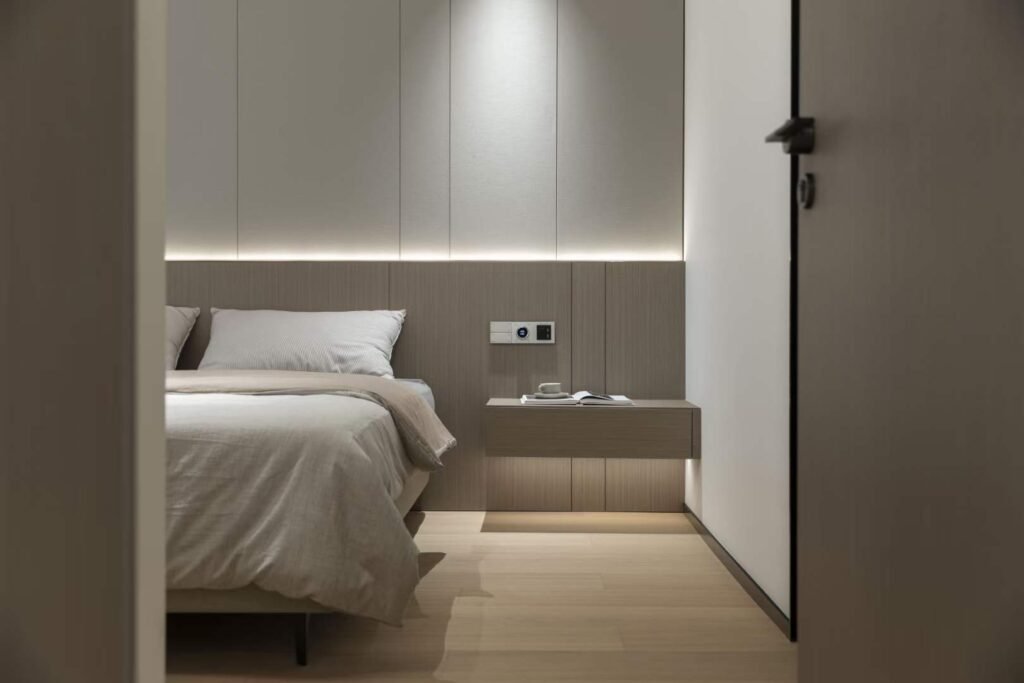

Low-voltage DC LED strips are usually better for furniture, cabinets, detailed architectural lighting, wet or accessible locations, complex dimming systems and projects requiring precise lengths.

The most important difference is not brightness or energy consumption. It is the electrical architecture:

High-voltage AC reduces current and simplifies long-distance power distribution, but increases shock risk and termination requirements. Low-voltage DC improves installation flexibility and accessibility, but requires drivers, heavier low-voltage wiring and more power-feed planning.

Neither system is universally cheaper, safer or more efficient.

AC vs DC LED Strip: Quick Comparison

First: High Voltage Does Not Mean Higher Power Consumption

A common misconception is that a 230V strip consumes more electricity than a 24V strip simply because its voltage is higher.

Power is calculated as:

Power = voltage × current

For the same 100W lighting load:

Higher voltage reduces current for the same nominal power.

It does not automatically reduce the watts consumed by the LEDs.

A 10W/m AC strip and a 10W/m DC strip both have a nominal input of 10W per meter. Their actual efficiency depends on the LEDs, resistors, current regulation, rectification, operating temperature, power factor and optical construction.

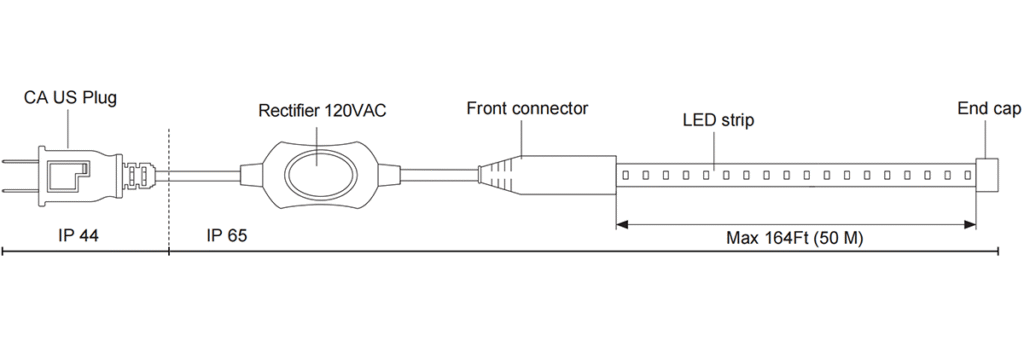

What Is a High-Voltage AC LED Strip?

A high-voltage AC LED strip operates from mains-level voltage, commonly:

• 110V
• 120V
• 220-240V

These products are often called:

• High-voltage LED strip
• Mains-voltage LED strip
• Driverless AC LED strip
• Direct-to-mains LED strip
• 110V or 220V LED tape

The strip normally contains or uses:

• Rectification
• Current-limiting components
• Series LED circuits
• Surge-control components
• A mains-rated power connector
• Insulated housing
• End caps
• Mechanical and electrical seals

Xmart’s driverless AC LED strip range is designed for long continuous lighting where reducing external power supplies and feed points can simplify the project.

“Driverless” Does Not Mean There Are No Electronics

LEDs cannot simply be connected to alternating current without a suitable electrical circuit.

A so-called driverless strip still requires a method to:

• Rectify the AC waveform
• Limit LED current
• Protect LED strings
• Manage reverse voltage
• Handle mains transients
• Connect safely to the electrical supply

“Driverless” normally means that there is no separate bulky AC-to-low-voltage DC power supply.

It does not mean:

• No rectifier
• No current-regulation circuit
• No surge risk
• No flicker risk
• No safety components
• No certification requirement

For buyer specifications, “integrated AC drive architecture” is often more accurate than “no driver.”

What Is a Low-Voltage DC LED Strip?

A low-voltage strip operates from a DC supply, commonly:

• 5V
• 12V
• 24V
• 36V
• 48V DC

The system normally includes:

1. AC mains input
2. AC-to-DC power supply
3. Optional dimmer or controller
4. Low-voltage cable
5. LED strip
6. Connectors and power-injection points

The LED strip operates at lower voltage, but the power supply still connects to mains electricity.

Low voltage therefore moves the mains-voltage boundary away from the strip. It does not remove mains power from the complete installation.

Safety: AC and DC Are Not Equivalent

High-voltage AC strip

A 110V or 230V strip operates at a potentially lethal voltage.

Important risks include:

• Direct contact with live conductors
• Damaged insulation
• Poorly sealed cut ends
• Incorrect connectors
• Water ingress
• Unprotected cable entry
• Field-cut sections with inadequate end caps
• Mismatched voltage
• Unsafe plug modifications

High-voltage strip should normally be installed, modified and tested by qualified personnel according to local electrical rules.

Low-voltage DC strip

A 12V or 24V strip presents a lower shock risk at the strip itself.

However, low voltage does not automatically mean:

• SELV
• PELV
• Class 2
• Touch-safe under every condition
• Suitable for pools
• Suitable for wet areas
• Safe from fire risk

The classification depends on the power supply, isolation, power limits, grounding and applicable standards.

A powerful 24V supply can deliver enough current to overheat wires, connectors and PCB traces during a short circuit.

Class 2 is not another word for 24V

In North America, a Class 2 lighting system must meet applicable voltage and power limitations and use an appropriate power source.

A generic 24V power supply is not automatically a Class 2 supply.

UL identifies UL 2108 as a standard for low-voltage lighting systems and UL 8750 as a standard for LED equipment used in lighting products. See UL’s lighting safety guidance.

European Voltage Classification

The EU Low Voltage Directive applies to electrical equipment designed for use between:

• 50V and 1,000V AC
• 75V and 1,500V DC

Therefore:

• A 110V or 230V AC strip is within the LVD voltage range.
• A 12V, 24V, 36V or 48V DC strip is below the LVD’s 75V DC lower boundary.
• The mains-powered driver used by a DC system can still fall within LVD scope.

See the official scope of Directive 2014/35/EU.

Being below the LVD boundary does not mean the DC strip has no EU compliance requirements. RoHS, EMC, general safety or other requirements may still apply depending on how the product is placed on the market.

Wet Locations Change the Decision

Water reduces skin resistance and increases electrical risk.

For wet, accessible or conductive locations, do not select a voltage from the IP rating alone.

The design must consider:

• Local electrical zones
• Permitted voltage
• Isolation
• Ground-fault protection
• Driver location
• Cable entry
• Connector position
• Maintenance access
• Corrosion
• Water chemistry
• Condensation

OSHA notes that GFCI protection can quickly interrupt ground-fault current, but it does not protect against every form of direct line contact. See OSHA’s GFCI guidance.

A GFCI or RCD is an additional protective measure. It does not turn an exposed 120V or 230V conductor into a safe conductor.

For pools, spas, fountains and similar locations, low-voltage isolated systems are generally the appropriate starting point, subject to local regulations and the complete product approval.

Why High-Voltage AC Strips Run Farther

The main reason is lower current.

Resistive power loss is related to:

Power loss = current² × resistance

If current is reduced by half, resistive loss becomes approximately one-quarter for the same resistance.

Consider a 50m installation at 10W/m:

Total nominal power = 50m × 10W/m = 500W

Approximate current:

A standard 24V strip cannot normally carry 20.8A through one small PCB feed. The installation must be divided into shorter branches with multiple feeds and appropriate drivers.

A high-voltage strip can carry the equivalent power at much lower current, allowing longer continuous runs.

Long Run Does Not Mean Zero Voltage Drop

All conductors have resistance.

High-voltage strip still experiences:

• Conductor loss
• Component loss
• End-of-run variation
• Temperature rise
• Power-factor effects
• Voltage fluctuation
• Connector loss

The percentage voltage drop may be smaller because the system voltage is higher, but it is not zero.

A professional long-run specification should define:

• Maximum powered length
• Test voltage
• Watts per meter
• Beginning current
• End voltage
• Beginning and end brightness
• Ambient temperature
• Stabilization time
• Acceptable brightness difference

Do not accept “50m with no voltage drop” as a complete test result.

48V DC Changes the Comparison

The choice is not limited to 24V DC or mains-voltage AC.

A 36V or 48V DC strip can provide a middle option:

• Lower current than 12V or 24V
• Longer runs
• External isolated power supply
• More flexible dimming
• Lower voltage at the strip
• Shorter cut intervals than many AC strips
• Easier integration with controls

Xmart’s 36V and 48V long-run LED strip systems are intended for projects where standard 24V runs require too many feed points but line-voltage strip is undesirable.

This is especially relevant for:

• Hotels
• Long corridors
• Architectural coves
• Commercial façades

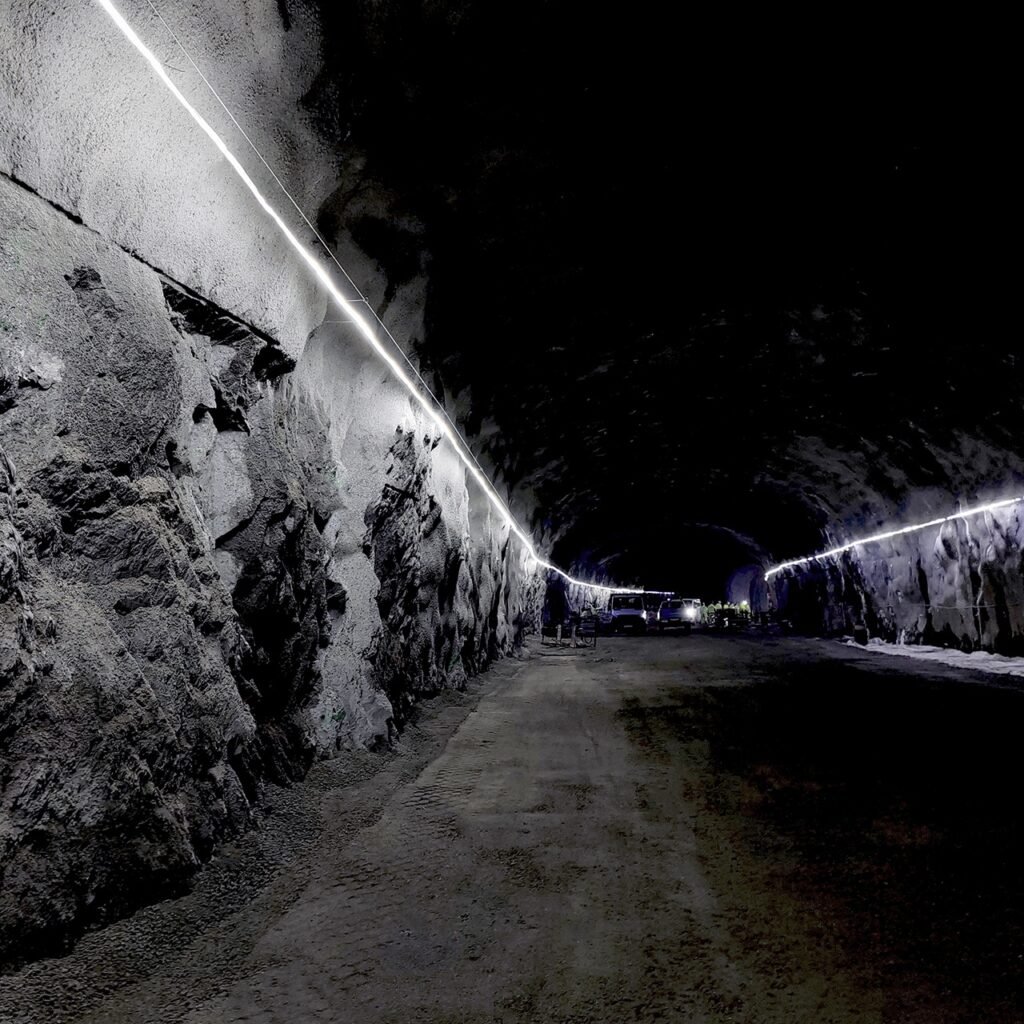

• Tunnels
• Mining routes
• Large retail spaces

The best long-run comparison is often:

Standard 24V vs current-regulated 48V vs high-voltage AC

—not simply 24V vs 230V.

Cut Length and Design Precision

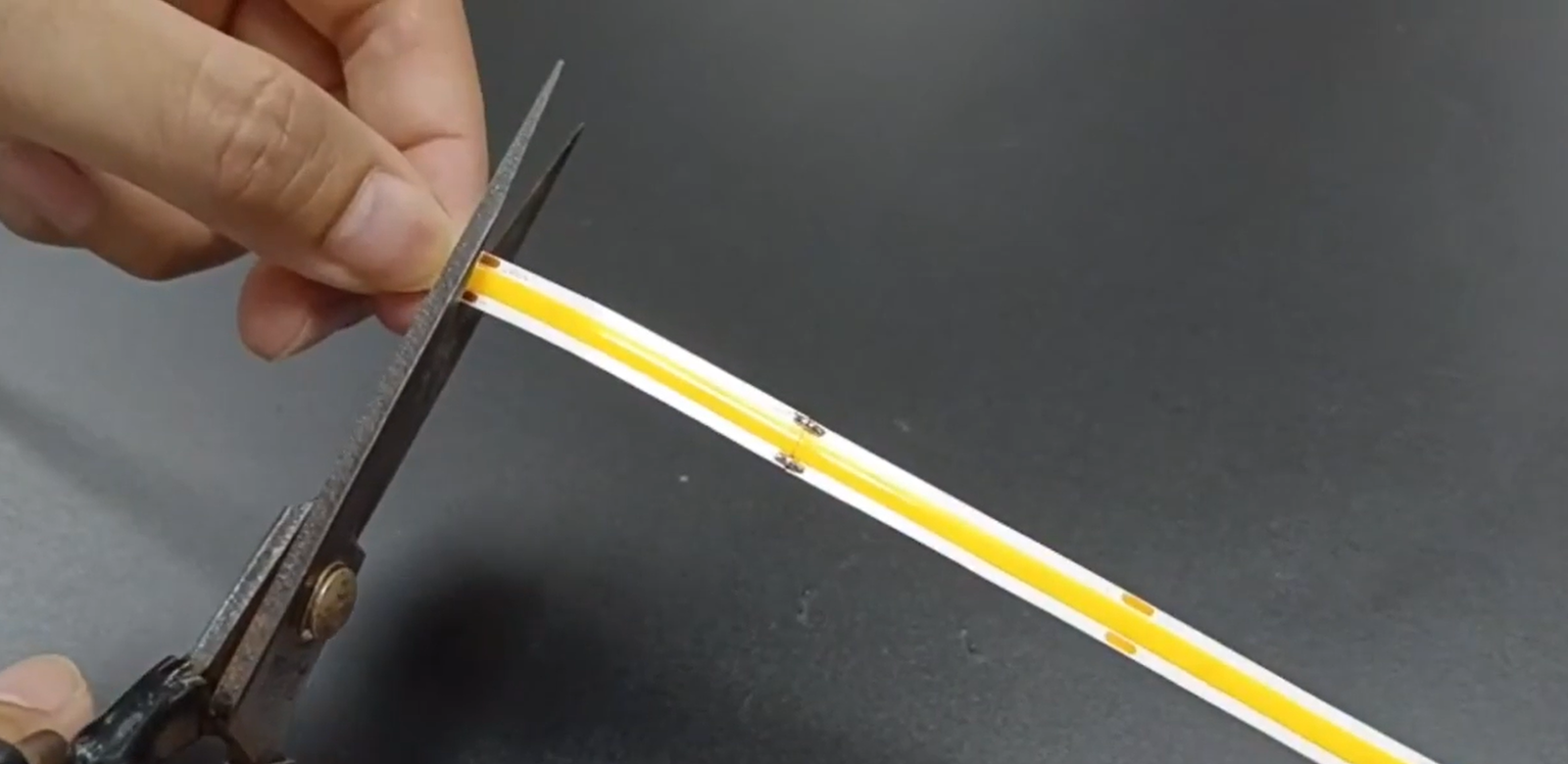

Low-voltage DC strip

DC strip typically offers shorter cutting intervals because fewer LEDs are connected within each electrical segment.

Depending on the circuit, cut lengths may range from a few millimeters to 100mm or more.

This makes DC strip suitable for:

• Cabinets
• Shelves
• Furniture
• Display cases
• Small coves
• Short profiles
• Detailed architectural dimensions

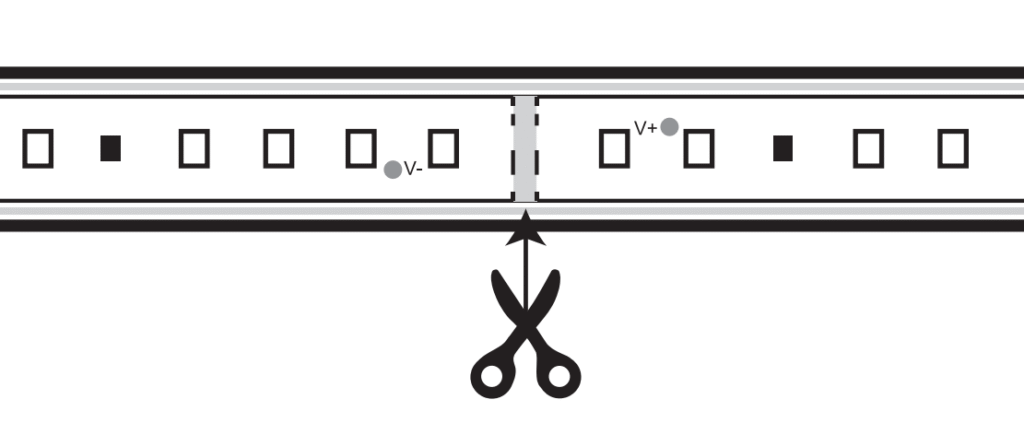

High-voltage AC strip

AC strip generally connects more LEDs in series to operate from the higher voltage.

Traditional products may use cut intervals such as:

• 0.5m
• 1m

Some newer circuit designs offer shorter intervals, but the specific value must be confirmed from the actual model and certification file.

Why cut length affects project cost

If the required line is 3.7m and the AC strip cuts every 1m, the installer may have to choose between:

• Ending at 3m
• Extending to 4m
• Redesigning the detail
• Hiding an unlit or excess section

A 24V strip with a 50mm cut interval can fit the space much more accurately.

A cheaper strip can become more expensive when it cannot match the architecture.

Installation Comparison

High-voltage AC installation requires

• Correct regional voltage
• Mains-rated plug or junction
• Compatible rectifier or power entry
• Approved connector
• Approved end cap
• Mechanical strain relief
• Correct fuse or circuit protection
• Ground-fault protection where required
• Suitable insulation
• Controlled field cutting
• Qualified installation
• Safe isolation for maintenance

Low-voltage DC installation requires

• Correct constant-voltage driver
• Driver access and ventilation
• Cable-size calculation
• Controller capacity
• Power-injection planning
• Multiple branches where required
• Correct polarity
• Low-voltage connector ratings
• Fusing for high-current branches
• Voltage-drop verification

High-voltage AC can reduce the number of components, but every connection carries greater electrical consequence.

Low-voltage DC uses more components, but the strip-side installation is generally easier to handle and divide into zones.

High Voltage Is Not Automatically Easier to Install

A 50m AC reel may appear simpler because it needs only one power entry.

But the complete installation may still require:

• Protected junction boxes
• Qualified labor
• Mains-rated cable
• Isolation points
• Factory-sealed custom lengths
• Specialized repair kits
• Electrical inspection
• Access restrictions
• Replacement planning

If the project contains many corners, branches or exact cut lengths, DC can be faster even though it uses more power supplies.

The shape of the project matters as much as its total length.

Dimming and Control

Low-voltage DC systems

DC strips are widely compatible with:

• PWM
• 0–10V
• DALI
• DMX512
• KNX
• Casambi
• Zigbee
• Bluetooth
• Wi-Fi
• Matter-compatible controllers

The building-control protocol may operate the driver or controller, which then provides the appropriate DC output to the strip.

High-voltage AC systems

AC strips may support:

• TRIAC or phase-cut dimming
• Specialized DALI interfaces
• 0–10V-controlled devices
• Proprietary dimmers

Compatibility must be verified for the exact circuit.

A product being connected to AC does not automatically make it compatible with a standard wall dimmer.

Test:

• Minimum load
• Maximum load
• Minimum brightness
• Flicker
• Audible noise
• Restart behavior
• Pop-on and dropout
• Full-length operation

Flicker: AC Can Have a Hidden Disadvantage

A basic AC LED circuit may follow the rectified mains waveform.

Depending on the design:

• 50Hz mains can produce modulation at 100Hz after full-wave rectification.
• 60Hz mains can produce modulation at 120Hz.

Improved circuits can reduce this modulation, so high-voltage AC strip should not automatically be described as flickering.

But it should be tested.

DOE research notes that early or low-cost AC LED products can produce noticeable modulation related to rectified mains power. See the DOE review of temporal light modulation.

Request these values

For offices, hotels, retail, schools, machinery areas or camera-sensitive projects, request:

• Optical waveform
• Modulation frequency
• Modulation depth
• PstLM
• SVM
• Performance at full output
• Performance when dimmed
• Camera test where relevant

A smartphone video is useful for screening but not for certification.

Power Factor, Harmonics and Surge

These factors become more important when many meters of AC strip are connected directly to the electrical supply.

Power factor

At the same real power, poor power factor can increase RMS current and electrical-system loading.

The simple calculation of watts divided by voltage may not equal the actual RMS input current of a nonlinear AC product.

Harmonic current

Rectifiers and switching circuits can distort the input-current waveform. Large installations should consider applicable EMC and power-quality requirements.

Surge

Outdoor façades, long cable routes and industrial sites can be exposed to switching or lightning-related transients.

A high-voltage strip’s integrated electronics must be evaluated for the expected surge environment.

DC systems have a different boundary

In a DC system, much of the power-factor, harmonic and surge performance is handled by the external driver.

This allows the designer to select a driver according to:

• Input range
• Surge rating
• Power factor
• Harmonic performance
• Dimming
• Protection
• Warranty
• Replacement strategy

AC strip integrates more of that electrical behavior into the product itself.

Is High Voltage Brighter or More Efficient?

Not automatically.

Brightness depends on:

• Lumens per meter
• Watts per meter
• LED efficacy
• Optical construction
• Operating temperature
• Voltage regulation
• End-of-run performance

Efficiency should be compared using:

Luminous efficacy = stabilized lumens per meter ÷ actual watts per meter

For AC products, measure true input power with an appropriate power analyzer. Do not calculate watts using voltage multiplied by a simple current reading without considering power factor and waveform.

Low-voltage strips are not inherently dimmer, and high-voltage strips are not inherently brighter.

Heat and Fire Risk

At the same useful light output, neither voltage category automatically runs cooler.

Temperature depends on:

• Actual watts per meter
• LED efficacy
• Circuit losses
• PCB or conductor construction
• Encapsulation
• Mounting surface
• Ambient temperature
• Profile
• Airflow
• Installation duration

Higher voltage reduces resistive distribution loss by reducing current. It does not remove the heat generated by the LEDs and current-control components.

Low-voltage fire risks

• Overloaded power supplies
• Undersized wires
• Overloaded connectors
• Unfused high-current branches
• Short circuits
• Poor ventilation
• Strip powered while coiled

High-voltage fire and shock risks

• Damaged insulation
• Poor terminations
• Water ingress
• Incorrect end caps
• Excessive run length
• Mismatched voltage
• Inadequate surge protection
• Unapproved field repairs
• Incorrect circuit protection

Waterproof Does Not Mean Electrically Safe

An IP rating describes protection against dust and water under defined test conditions.

It does not prove:

• Touch safety
• Electrical-zone compliance
• Chlorine resistance
• Salt resistance
• UV resistance
• Cable-entry reliability
• Long-term outdoor aging
• Safe field-cut joints

This distinction is especially important for high-voltage AC strip.

Every:

• Power entry
• End cap
• Intermediate joint
• Cable transition
• Repair point

must maintain both electrical insulation and environmental protection.

For outdoor projects, factory-prepared and factory-sealed lengths are generally more controllable than improvised field terminations.

Reliability and Maintenance

High-voltage AC advantages

• Fewer external power supplies
• Fewer feed points
• Less low-voltage cable
• Long continuous runs
• Simpler large-scale material layout

High-voltage AC maintenance risks

• Mains isolation required
• Specialized connectors and seals
• Longer cut sections
• Less flexible local repair
• Greater consequence of insulation damage
• Replacement product must match regional voltage

Low-voltage DC advantages

• Safer strip-side maintenance
• Smaller replaceable zones
• More precise cuts
• Easy control integration
• Driver can be replaced separately
• Flexible zoning

Low-voltage DC maintenance risks

• More drivers
• More feed points
• More connectors
• More possible failure locations
• Difficult driver access
• More voltage-drop-related faults

The better architecture is the one that minimizes lifecycle risk for the specific project—not merely the number of components.

Project Cost: Compare the Complete System

Do not compare only price per meter.

Use:

Total project cost = strip + power supplies + control + cable + connectors + protection + labor + testing + maintenance access + expected replacement

High-voltage AC cost items

• AC strip
• Power entry
• Plug or junction box
• Circuit protection
• GFCI/RCD where required
• Mains-rated connectors
• End caps
• Factory sealing
• Qualified installation
• Inspection
• Maintenance isolation

Low-voltage DC cost items

• DC strip
• Power supplies
• Controllers
• Low-voltage cable
• Power injection
• Distribution boxes
• Fuses
• Connectors
• Driver access
• Additional installation labor

Three Project Cost Examples

Project 1: Eight meters of kitchen cabinets

Requirements:

• Multiple cabinet sections
• Many cable gaps
• Exact lengths
• Accessible lighting
• Low-level dimming

Best starting point: 24V DC

Why:

• Short cut intervals
• Safer accessible voltage
• Easier zoning
• Better dimming flexibility
• AC’s long-run advantage provides little value

Project 2: Fifty-meter building outline

Requirements:

• Mostly continuous line
• Few corners
• Limited power-supply locations
• Outdoor construction
• Qualified electrical installation

Best starting point: High-voltage AC or engineered 48V DC comparison

High-voltage AC may reduce:

• Drivers
• Feed points
• Low-voltage cable
• Distribution boxes

But 48V DC may be preferred if:

• Safer maintenance is required.
• Advanced dimming is needed.
• Mains voltage is not permitted along the line.
• The project requires more precise cutting.

Project 3: Eighty-meter tunnel route

Requirements:

• Continuous visibility
• Harsh environment
• Maintenance isolation
• Long cable routes
• Industrial compliance

Best starting point: Engineered 48V DC or certified high-voltage system

The final decision depends on:

• Permitted voltage
• Emergency-lighting strategy
• Cable protection
• Feed accessibility
• Required redundancy
• Certification
• Maintenance procedure

Maximum run length alone should not decide the system.

Cost Comparison Worksheet

Before choosing, calculate:

The cheapest strip can produce the most expensive installation.

When Should You Choose High-Voltage AC Strip?

Choose high-voltage AC as a starting point when:

• Runs are long and continuous.
• Few precise cuts are required.
• Power-supply locations are limited.
• Qualified installation is available.
• Mains voltage is permitted in the installation zone.
• The product has market-appropriate certification.
• Connectors and end caps can be controlled.
• Advanced pixel or multichannel control is not required.
• The long-run saving exceeds the additional safety cost.

Typical applications include:

• Building outlines
• Long façades
• Signage
• Large commercial contours
• Long corridors
• Landscape boundaries
• Temporary decorative structures, where specifically approved

Xmart supplies 110V/230V high-voltage LED strip systems with market-specific voltage, plug, connector and sealing options. The selected configuration must match the destination market and covered certification.

When Should You Choose Low-Voltage DC Strip?

Choose low-voltage DC when:

• The strip is accessible.
• Precise cutting is important.
• The application involves furniture.
• Wet-area rules favor isolated low voltage.
• DALI, 0–10V, PWM or smart control is required.
• Several lighting zones are needed.
• Drivers can remain accessible.
• Local section replacement is important.
• Run lengths are short or medium.
• The project uses RGBW, RGBCCT or addressable effects.

Typical applications include:

• Cabinets
• Shelves
• Furniture
• Retail displays
• Hotel rooms
• Residential coves
• Mirrors
• Museums
• Smart-home lighting
• Detailed architectural profiles

When Should You Choose 48V DC?

Choose 48V DC when:

• Standard 24V requires too many feeds.
• Mains voltage along the strip is undesirable.
• Advanced low-voltage control is required.
• Runs are long but not suitable for AC strip.
• The project needs a balance of safety and distance.
• Maintenance teams prefer isolated DC systems.

48V DC is not automatically SELV, Class 2 or suitable for every wet location. The power source and complete system still have to meet applicable requirements.

What Buyers Should Request

For high-voltage AC strip, request:

• Exact input voltage and frequency
• Rated watts per meter
• True input current
• Power factor
• Maximum run length
• Cut length
• Surge data
• Flicker data
• Dimming method
• Connector and end-cap instructions
• IP test report
• Product-level certification
• Regional plug or junction configuration
• Replacement procedure

For low-voltage DC strip, request:

• Rated DC voltage
• Actual watts per meter
• Maximum run length
• Voltage-drop data
• Feed method
• PCB width and copper specification
• Required driver type
• Driver loading
• Dimming compatibility
• Connector current rating
• Branch-fusing requirements
• IP construction

For certification distinctions, see Xmart’s guide to UL, ETL, CE, CB and RoHS for LED strips.

How Xmart Evaluates AC vs DC Projects

Xmart does not select voltage only from the requested length.

The project should first define:

1. Destination market
2. Installation environment
3. Total length
4. Longest continuous section
5. Required cut accuracy
6. Available power locations
7. Dimming and control
8. Accessibility
9. IP requirement
10. Maintenance method
11. Certification requirement
12. Target installed cost

Xmart can then compare:

• Standard 12V/24V DC
• Current-regulated 24V
• 36V/48V long-run DC
• 110V/120V AC
• 220V/230V/240V AC

The engineering team can develop the product and connection specification, while Xmart’s Vietnam manufacturing base supports factory-prepared lengths, plugs, connectors, end caps, labels and project packaging.

Certification must be confirmed for the exact model and destination market rather than inferred from the company’s overall certificate portfolio.

Frequently Asked Questions

Are high-voltage LED strips dangerous?

They operate at potentially lethal mains voltage. Safe use depends on certified construction, correct installation, insulation, protection, connectors, end caps and maintenance procedures.

Are 24V LED strips completely safe?

They present a lower shock risk at the strip, but high-current faults can still cause overheating or fire. The mains-powered driver also remains part of the system.

Is a 24V LED strip automatically Class 2?

No. Class 2 status depends on the power source, voltage, power limits and evaluated system—not the voltage label alone.

Do AC LED strips need a driver?

They usually do not require an external low-voltage driver, but they still use rectification and current-control electronics.

Can one AC strip work on both 110V and 230V?

Only if the specific product is designed, rated and certified for that input range. Never connect a 110V-only strip to 230V.

Do AC LED strips flicker?

Some designs can show mains-related temporal light modulation. Improved circuits can reduce it, so test the actual product.

Are high-voltage strips brighter?

Not automatically. Compare stabilized lumens per meter and luminous efficacy.

Do high-voltage strips use more electricity?

Not because of voltage alone. Compare actual watts per meter and system efficiency.

How far can an AC LED strip run?

Some products support 30m, 50m or more from one power entry. The value depends on voltage, wattage, conductor design and certification.

How far can a 24V strip run?

There is no universal distance. It depends on watts per meter, PCB resistance, allowable voltage drop and feed method.

Is 48V better than 230V?

48V provides a middle option with lower current than 24V and lower strip-side voltage than mains AC. The best choice depends on run length, controls, safety and cost.

Can high-voltage strip be used outdoors?

Only when the complete product, power entry, end cap and connections are approved for the environment. An IP rating alone does not settle electrical suitability.

Which strip is cheaper?

AC is often cheaper for long, simple runs. DC is often cheaper for short, complex or precisely cut installations. Calculate total installed cost.

Final Verdict

Choose high-voltage AC LED strip when the project has long, simple, continuous runs and the reduction in drivers, cable and feed points justifies the additional safety and installation controls.

Choose low-voltage DC LED strip when safety at the light source, precise cutting, flexible controls and detailed installation are more important than maximum single-feed distance.

Choose 36V or 48V DC when standard 24V is too difficult to distribute but mains voltage is not the preferred solution.

The right question is not:

Which voltage is better?

It is:

Which electrical architecture delivers the required run length, safety, control, maintenance and installed cost for this specific project?

To compare AC, 24V DC and 48V DC for a project, provide:

• Destination country
• Total length
• Longest continuous run
• Watts or lumens per meter
• Cut-length requirement
• Indoor or outdoor location
• Driver locations
• Dimming protocol
• IP requirement
• Certification requirement
• Target quantity

Send your AC or DC LED strip project to Xmart.
