High-Efficiency LED Strip Manufacturer for Commercial Lighting
- Lumen up to 200 LM/W
- Meet the regulation of Erp in EU
- Ra80 and Ra90 high-efficacy platform options
- OEM/ODM configuration and private-label packaging support
High Efficiency LED Strip Manufacturer in Vietnam
Xmart supports OEM/ODM high-efficiency LED strip programs for lighting brands, distributors and fixture manufacturers. Engineering and rapid prototyping may be supported in China, while qualified production, assembly, testing, packaging and export coordination may be arranged in Vietnam.
The final efficacy target, approved model, certification coverage and manufacturing route are confirmed before sampling and quotation.

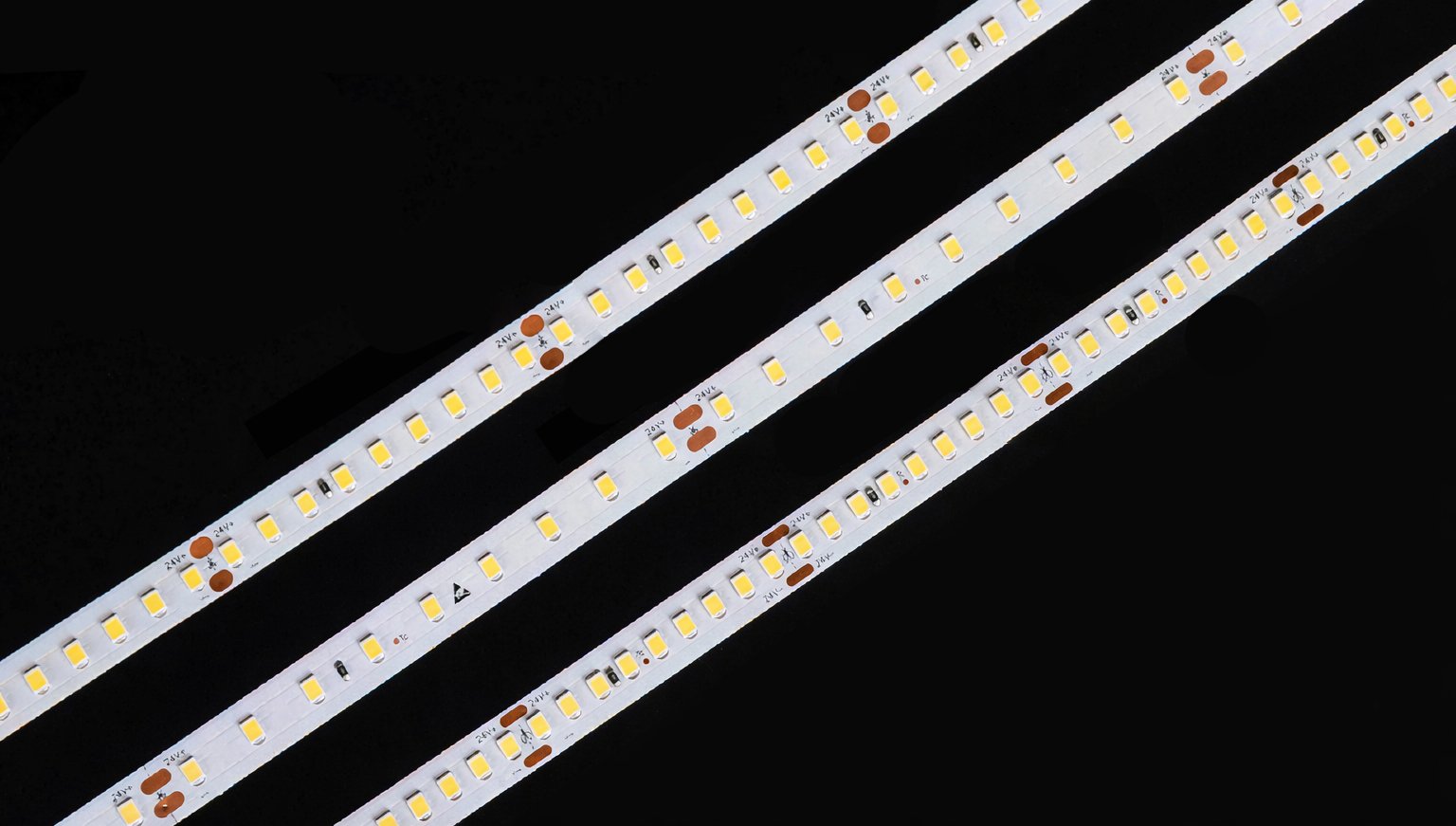

High Lumen LED Strips: Commercial Efficiency & Specs
High lumen LED strips are engineered to maximize visible light output (lm/W) while maintaining strict energy efficiency. For commercial and architectural lighting projects, this design achieves superior luminous efficacy without proportionally increasing power consumption, directly lowering long-term operational costs for facilities.
The technical architecture relies on large-chip SMD2835 LEDs, optimized resistor configurations, and thickened PCB copper layers for advanced thermal dissipation. Manufactured in our Vietnam facility to ensure global supply chain stability, and fully compliant with UL, ETL, CE, and RoHS standards, these strips provide a reliable, high-visibility solution for wholesale distribution and OEM/ODM applications.
When Should Buyers Specify High-Efficiency LED Strip?
High-efficiency LED strip should be specified when a commercial lighting project must achieve a defined light output within a limited power budget. The practical benefit is not simply a higher lm/W number: the selected strip must also meet the required CRI, CCT, output per length, thermal limits, voltage-drop limits, IP construction and certification scope.
Power-Limited Fixtures
At the same required light output, a higher-efficacy model may reduce LED strip input power and connected load.
Compare models at the same CCT, CRI, IP construction and operating condition. Include driver losses when evaluating the complete lighting system.
Thermally Constrained Profiles
At an equivalent delivered light output, lower strip power may reduce the thermal load that must be managed by the fixture.
Test the selected LED strip in the intended aluminum profile, diffuser, ambient temperature and installation orientation. Do not infer operating temperature from lm/W alone.
Commercial Retrofit Projects
A high-efficacy LED strip may help a retrofit project work within an existing power allowance or driver capacity while meeting the required illumination target.
Confirm system voltage, driver loading, dimming compatibility, wiring, maximum run length, voltage drop and required light output at the installation surface.
OEM/ODM Fixture Programs
Lighting brands and fixture manufacturers can define target lm/W and lm/m or lm/ft together with color, electrical, mechanical and packaging requirements.
Approve the exact model, measured data, performance tolerance, sample, certification coverage and manufacturing route before mass production.
Does Higher lm/W Always Mean a Better LED Strip?
No. A higher efficacy value does not by itself guarantee higher light output, better color quality, lower operating temperature, longer lifetime or lower project cost. Buyers should compare candidate models under equivalent test and installation conditions and select the option that meets the complete fixture specification.
A lower-efficacy model may still be the better choice when the project prioritizes higher CRI, a specific CCT, a particular PCB format, established certification coverage or compatibility with an existing fixture.
Application Scenarios

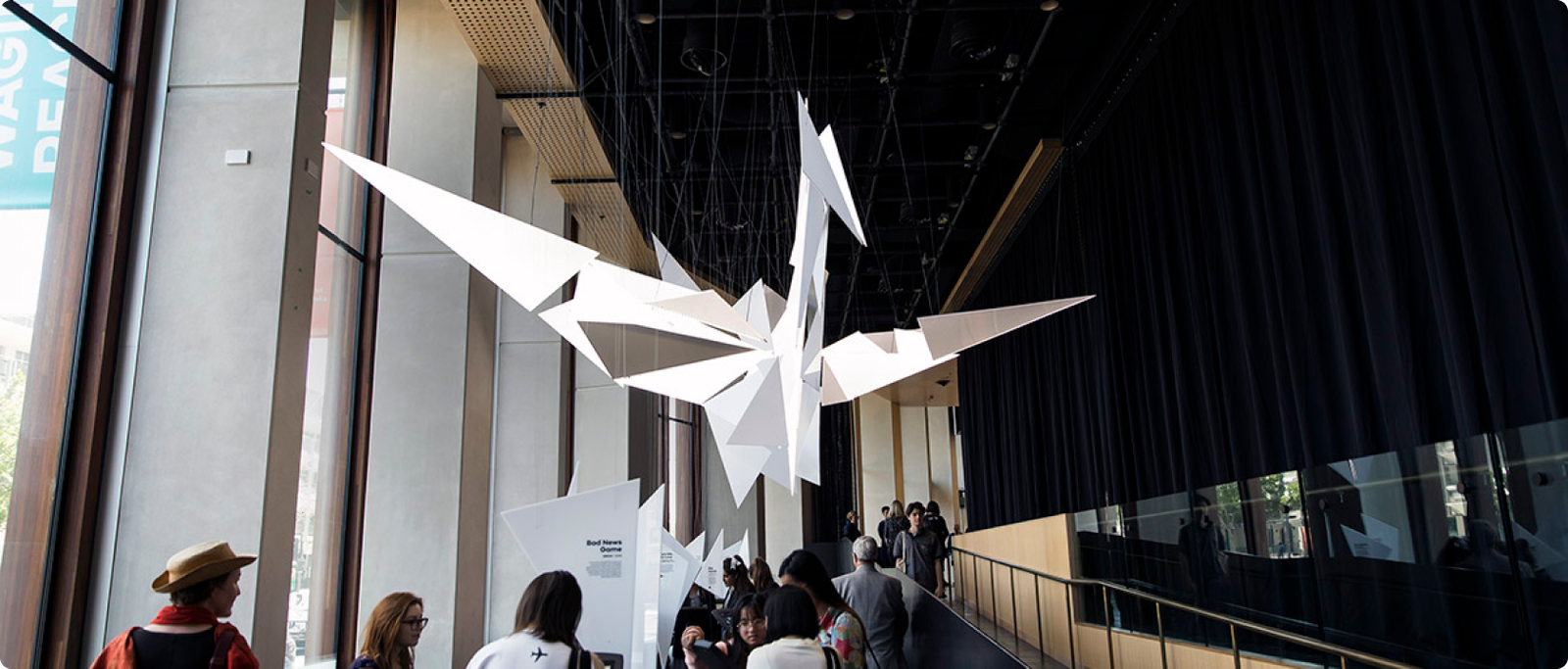

Retail Display
Commercial Interior
Clothes Shop

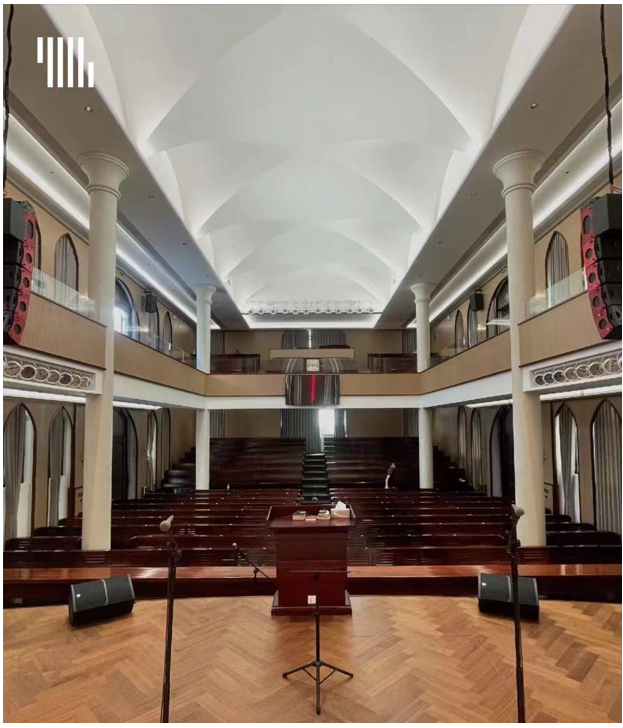

Western Church

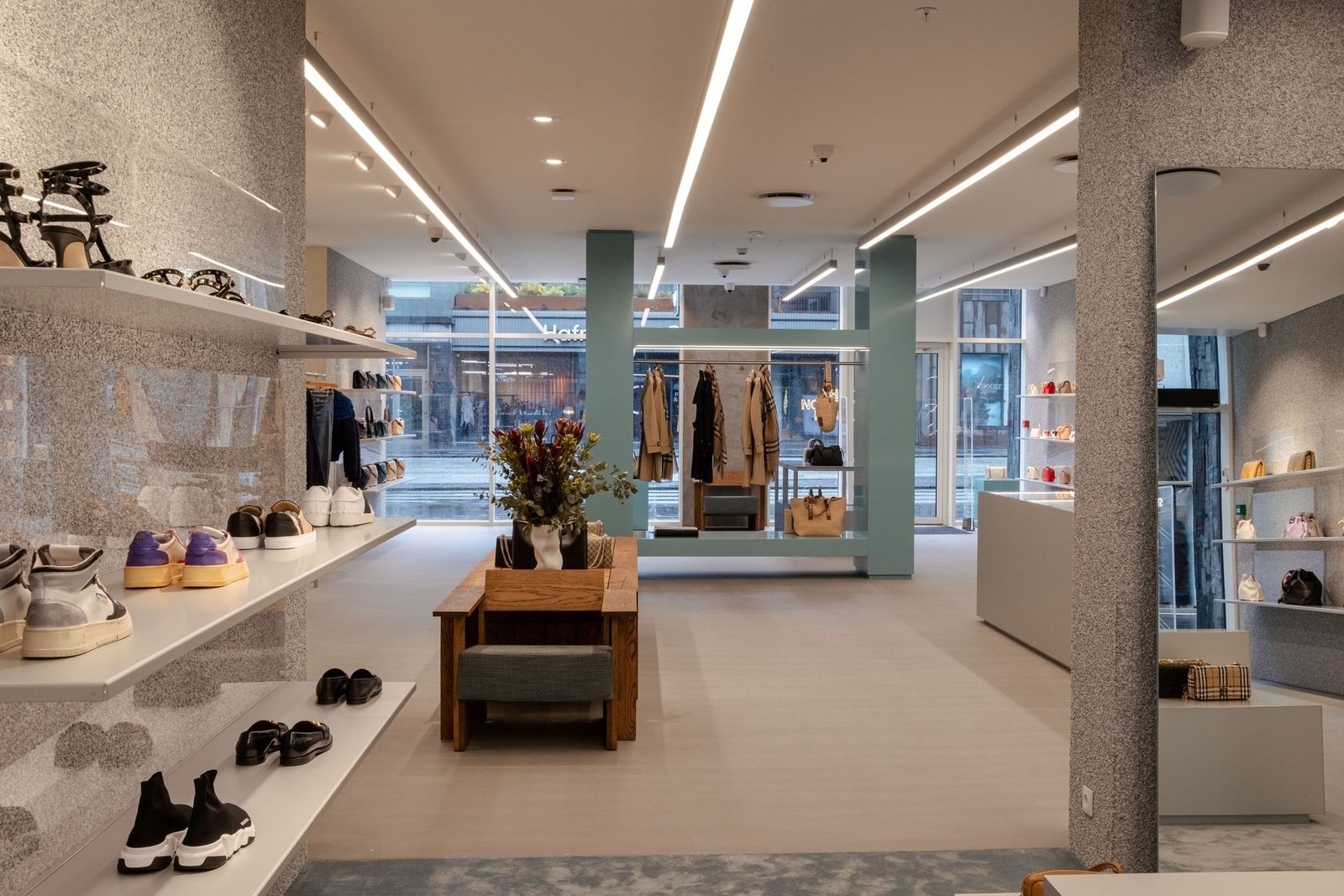

Scandinavia's Favourite Store
Futuristic Tokyo store
Quick Series Overview
Luminous Efficiency
150 / 170 / 200 lm/W
CRI Options
CRI80 / CRI90
Wattage Range
4.5W/m - 21W/m
LED Density
64 - 160 LEDs/m
Voltage
24V DC
PCB Width
8mm / 10mm
Warranty
3 - 5 Years
Support
OEM / Custom
Ra80 High-Efficacy LED Strip — Up to 200 lm/W
This platform prioritizes luminous efficacy for projects using Ra80 configurations. The published efficacy applies only to selected models and specified test conditions.
Specification Download
- 90 LEDs/m 4.8W/m Download PDF
- 144 LEDs/m 9.6W/m Download PDF
- 180 LEDs/m 9.6W/m Download PDF
Test Report Download
- IES Files & Test Reports Download ZIP

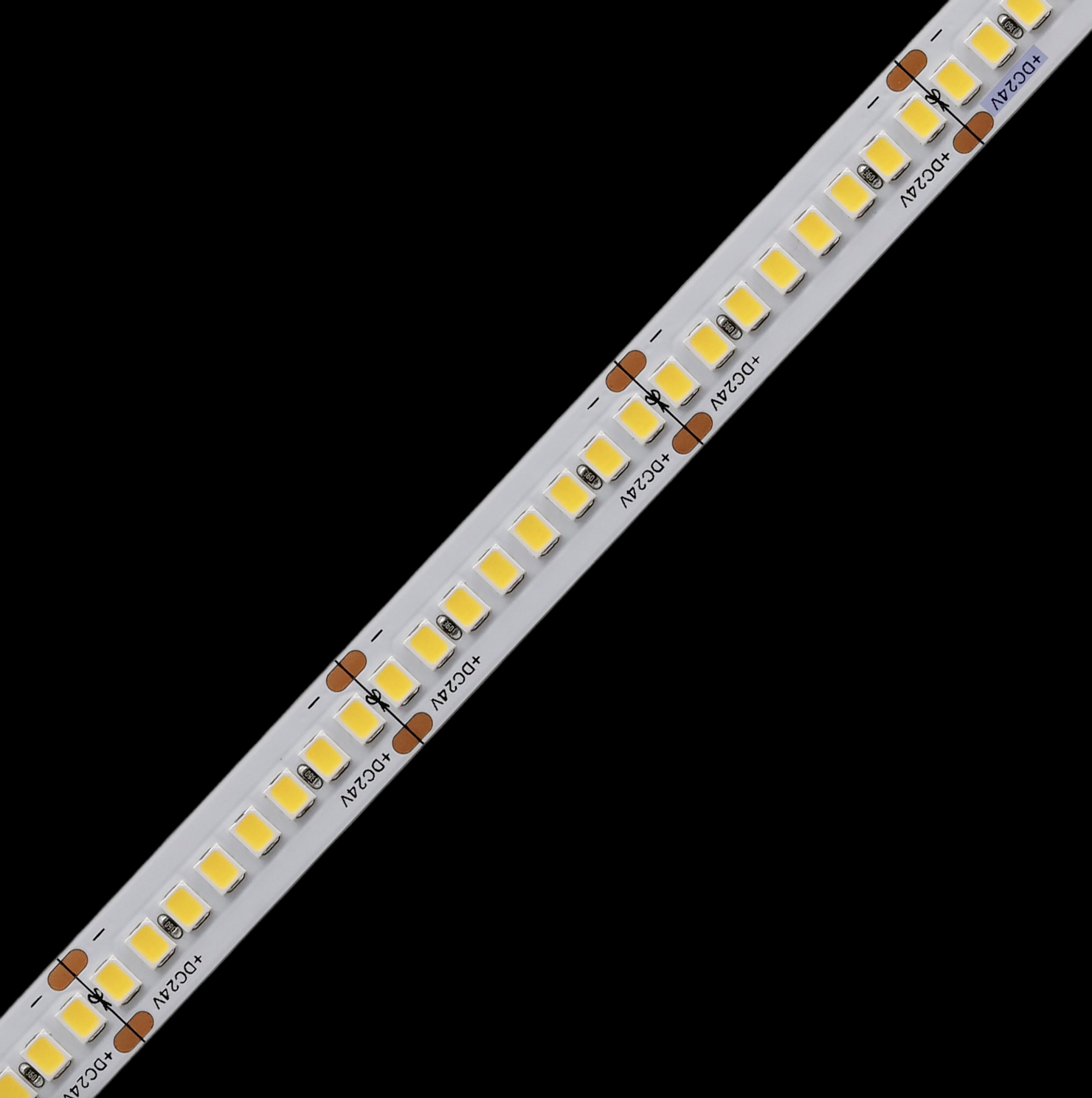

Ra90 High-Efficacy LED Strip — Up to 170 lm/W
This platform is intended for projects that require higher color rendering while maintaining an elevated efficacy target. Actual output and efficacy vary by CCT, power and configuration.
Specification Download
- 64 LEDs/m 4.8W/m Download PDF
- 128 LEDs/m 7.2W/m Download PDF
- 160 LEDs/m 14.4W/m Download PDF
Test Report Download
- IES Files & Test Reports Download ZIP

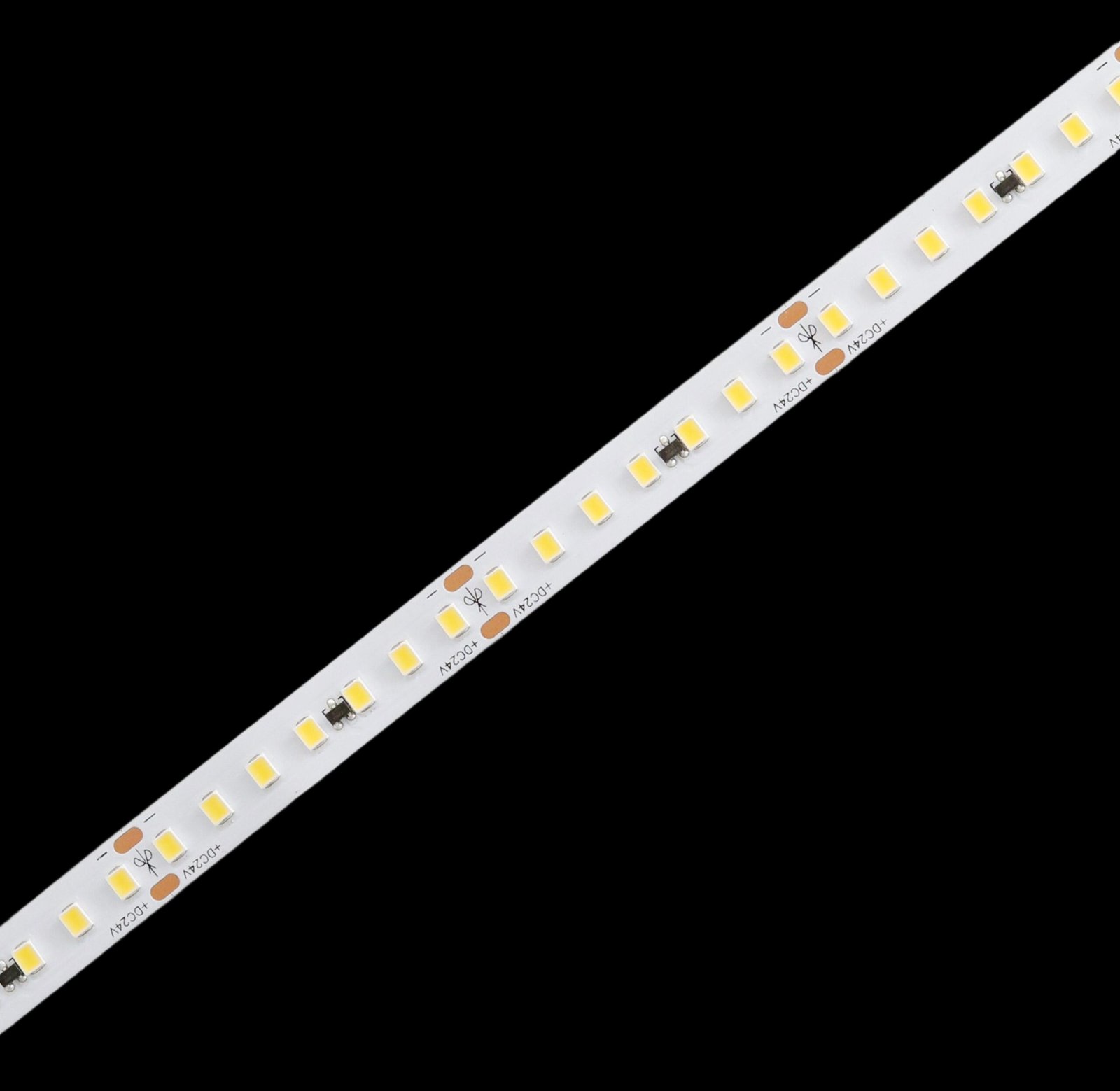

Ra80 High-Efficacy LED Strip — Up to 150 lm/W
This platform provides an additional high-efficacy option for projects requiring different combinations of power, density, PCB width and output.
Specification Download
- 70 LEDs/m 4.8W/m Download PDF
- 140 LEDs/m 7.2W/m Download PDF
- 168 LEDs/m 12W/m Download PDF
- 196 LEDs/m 14.4W/m Download PDF
Test Report Download
- IES Files & Test Reports Download ZIP
Product Testing
Integrating Sphere
IES Laboratory
TempHumi Test
UV Weathering
Salt Spray Chamber
IPX3-6 Waterproof
Tensile Testing
Vibration Testing
Certified Quality Standards
Custom My High Lumen LED Strip
Optimized SMD2835 platform specifically selected for high lumen output and thermal stability.
We utilize top-tier LED chips from Epistar, Sanan, and other leading brands per customer requirement.
Available in CRI>80 for maximum efficiency, or CRI>90 for high color fidelity applications.
Standard 8mm or 10mm widths with 2oz or 3oz copper for enhanced heat dissipation.
Original 3M 300LSE, VHB, or thermal conductive tape options available.
Standard 5M/roll. Custom lengths up to 10M or 20M per roll available upon request.
Options ranging from 64 LEDs/m to high-density 160 LEDs/m for dot-free illumination.
Standard 24V DC for stable performance over longer runs with minimal voltage drop.
Customizable from 4.5W/m up to 21W/m depending on the required lumen output.
IP20 (Bare Board), IP52 (Silicone Coating), IP65 (Silicone Tube), IP67 (Extrusion).
Custom brand labels on the reel, anti-static bag, and outer carton.
Standard anti-static bag packaging. Custom blister packs or retail boxes available for volume orders.
Custom My IP
Engineered protection levels for every environment. Select the optimal ingress protection for your specific project requirements.
Indoor dry
Ideal for aluminum profile installations. Features maximum bare-board heat dissipation for high-lumen output and uncompromised color consistency. Recommended for architectural cove lighting and indoor retail displays.
Damp locations
Precision surface nano-coating or light silicone layer protects against dust ingress and accidental splashes without altering the LED's color temperature (CCT). Perfect for bathrooms, kitchens, and covered patios.
Splash proof
Hollow silicone extrusion provides excellent flexibility and robust protection against low-pressure water jets from any direction. An industry standard for demanding damp environments requiring easy maintenance.
Damp Locations
Utilizes industrial-grade, ultra-thin heat shrink tubing. Maintains a remarkably slim strip profile while offering robust moisture resistance, ideal for tight installation spaces and custom aluminum extrusions.
Outdoor rain
Fully sealed silicone casing designed to withstand temporary immersion in water. The go-to standard for reliable, long-term outdoor architectural, landscape, and heavy-duty commercial lighting.
Outdoor areas
Solid core silicone extrusion engineered for extreme durability. Delivers high impact resistance (IK rating compatible) and superior thermal management in harsh, fluctuating environmental conditions.
Submersible
Fully encapsulated in premium PU or Silicone. Engineered for continuous underwater operation, making it the ultimate solution for swimming pools, fountains, and submerged water features.
High Lumen Driver / Dimming Support
Controller
Stanadard controller for dimming
Dimming Remote Controller
Confirm the driver and dimming protocol as a complete system.
Constant Voltage LED Driver
Match input voltage, connected load, derating and installation environment.
Common Failures We Prevent
LEDs or component defect
PCB damage
LEDs broken

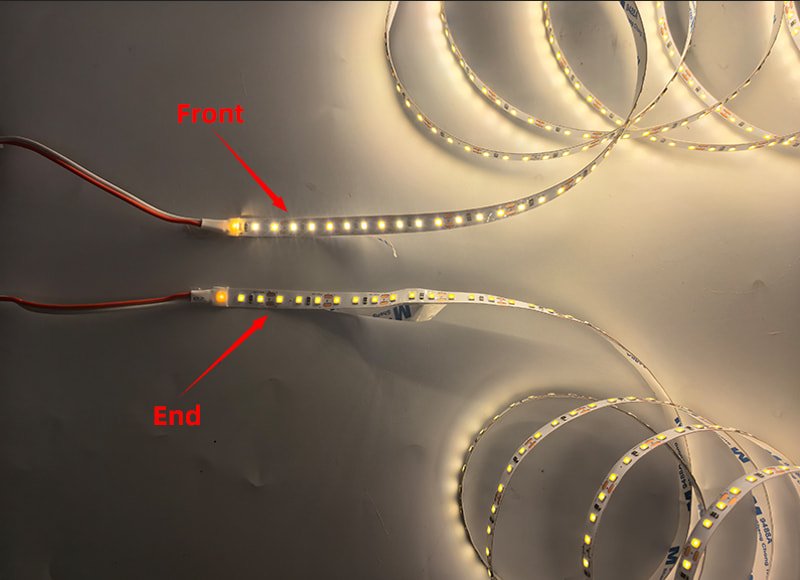

Voltage Drop
Connection Diagram
Looking for a more reliable High Lumen LED Strip supply partner?
Connect with our engineering team to discuss your project requirements, request full specifications, or get a custom quote.
