Professional
LED Strip Connectors
Solderless Connector Solutions for Fast, Clean and Reliable LED Strip Installation.
Engineered for COB, SMD, Single Color, CCT, RGB, RGBW, and RGB+CCT LED strips. Covering comprehensive non-waterproof and IP65 waterproof applications for seamless project execution.
Solderless
Fast Installation

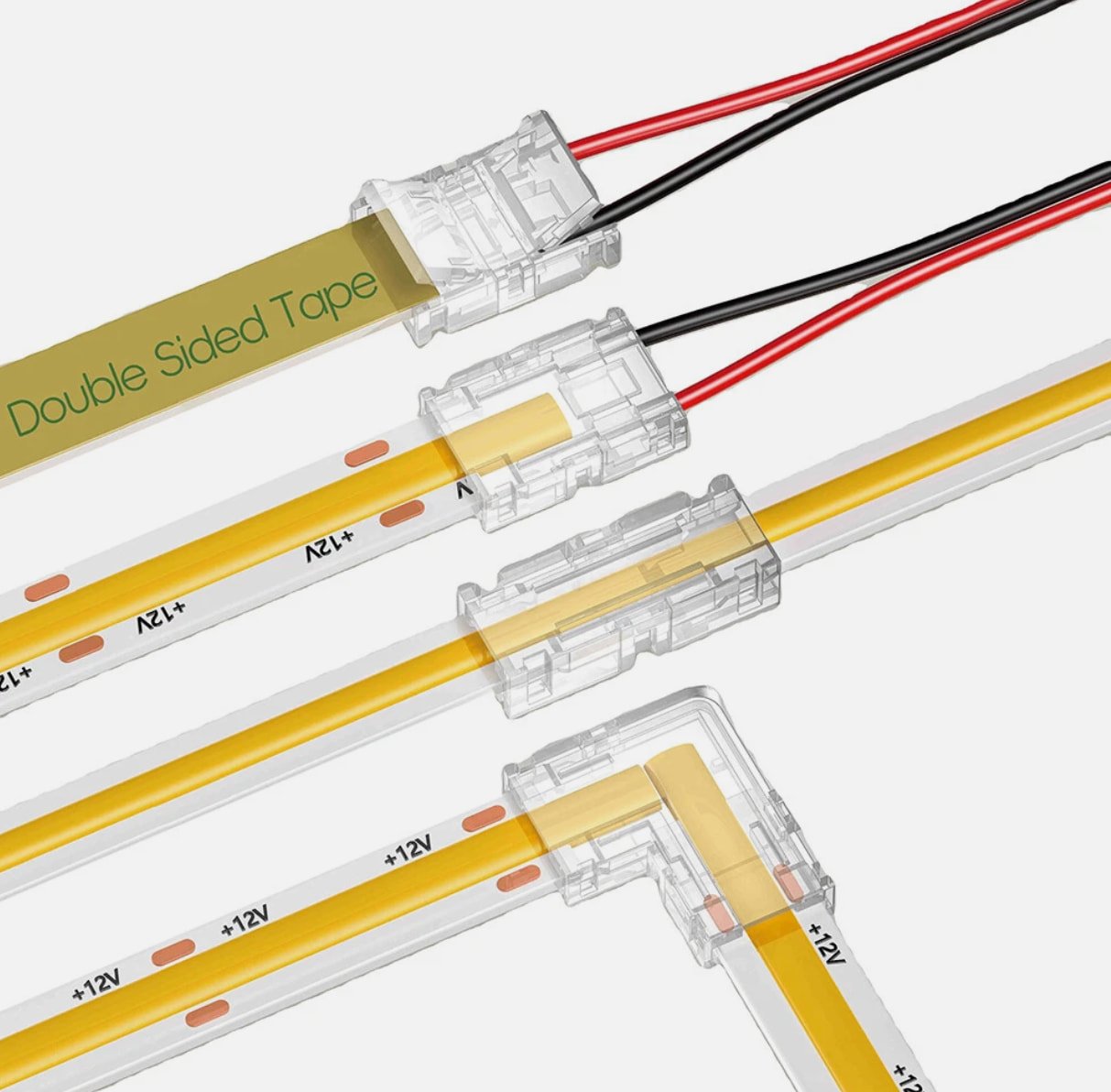

What Is an LED Strip Connector?
An LED Strip Connector is a professional, solderless terminal block designed for rapid wiring, splicing, extending, and bridging of LED tapes. It eliminates the need for complex soldering processes, making on-site installation, maintenance, and testing significantly faster and more reliable, especially for large-scale architectural lighting projects.
Faster Installation
Reduce labor time by up to 70%. Snap and lock mechanism allows for instant connections on site.
No Soldering Needed
Perfect for installers without soldering skills. Eliminates the risk of cold solder joints and PCB damage.
Easier Maintenance
Simply unclasp to replace a faulty strip section. No need to desolder and resolder in tight spaces.
Better for Project Use
Standardized connections ensure uniform electrical performance and cleaner aesthetics across large installations.
How to Choose the Right LED Connector
Confirm Strip Type
- Universal
- COB
- SMD
- High-Density
Confirm Function
- Strip to Wire
- Strip to Strip (w/ Wire)
- Strip to Strip
- L / R / T / Cross / DC
Confirm Pin & Width
- 2Pin / 3Pin / 4Pin
- 5Pin / 6Pin
- 8mm Width
- 10mm / 12mm Width
Confirm IP Rating
- Non-Waterproof (IP20)
- IP65 Waterproof
Next-Gen Fast Connectors
Streamline your assembly process with our precision-engineered connector series. Designed for seamless OEM/ODM manufacturing, ensuring reliable, tool-free connections for any project environment.

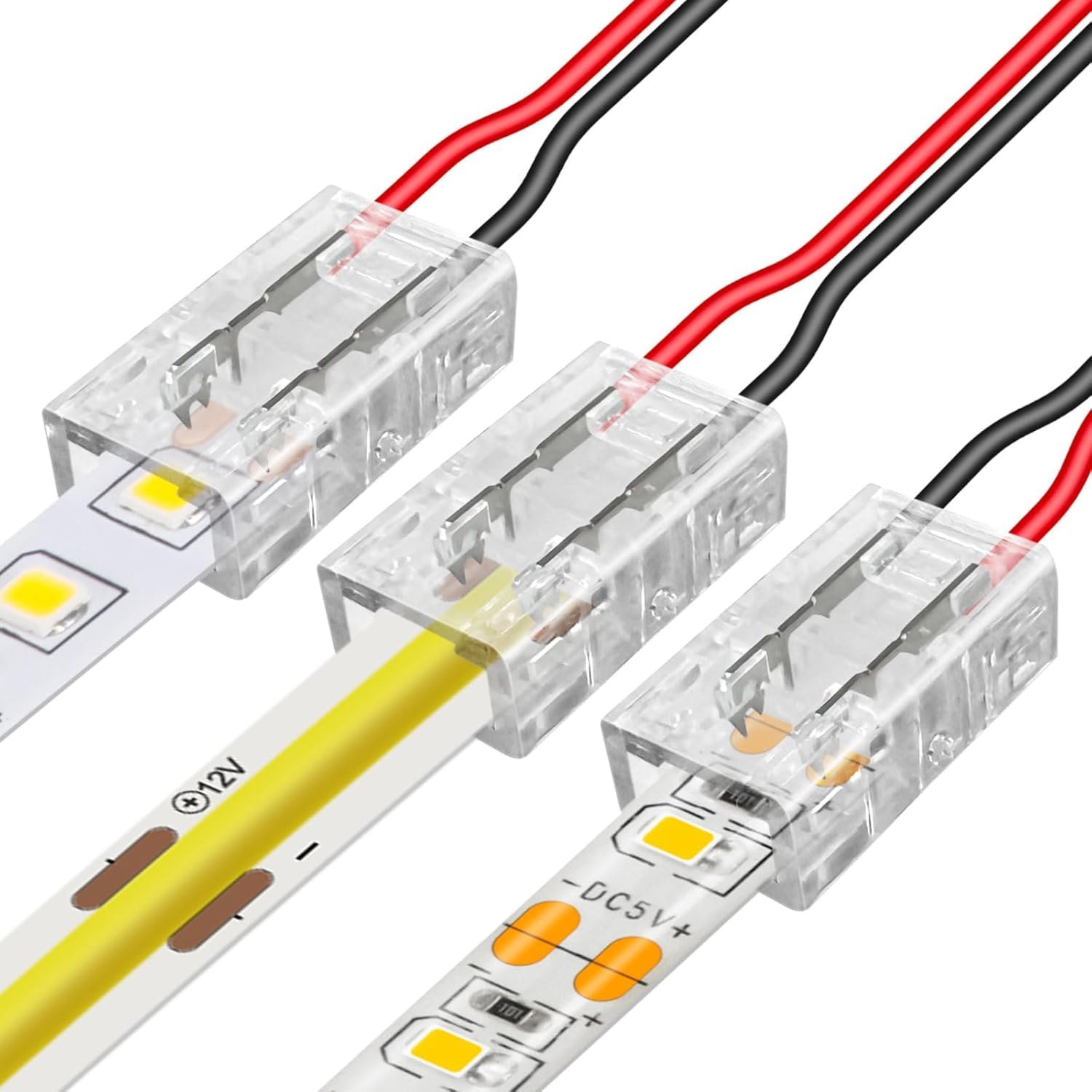

IP20 Fast Connector
Engineered for rapid, tool-free assembly in dry environments. Perfect for high-volume manufacturing and commercial indoor lighting projects, reducing installation time by up to 60%.
Supported Configurations
-
Strip to Wire Direct integration to power wires, drivers, or controllers.
-
Strip to Strip with Wire Flexible jumper for navigating corners and bypassing obstacles.
-
Strip to Strip Seamless end-to-end splicing to extend continuous tape length.

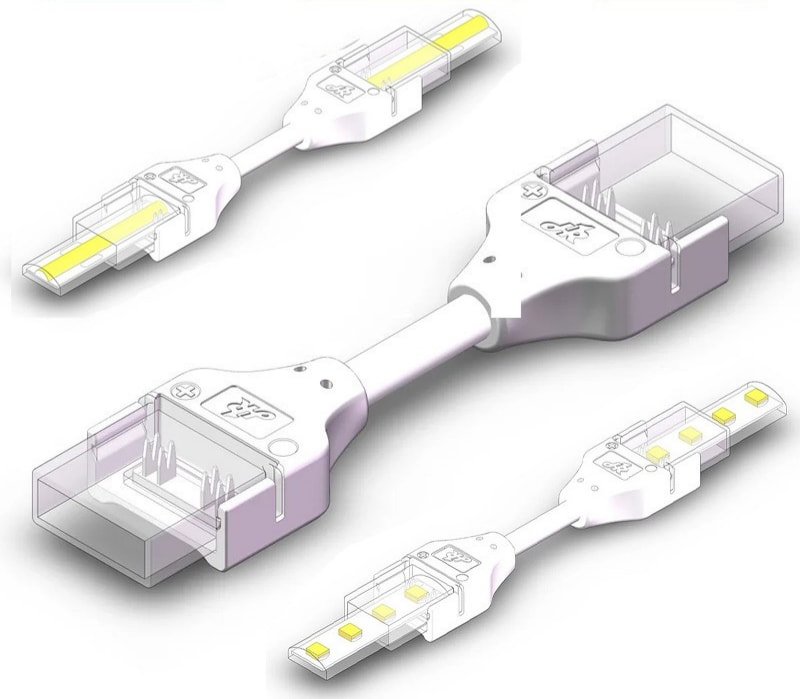

IP65 Fast Connector
Robust, pierce-to-contact design with integrated silicone sealing. Engineered to maintain structural integrity and prevent moisture ingress in demanding outdoor or industrial environments.
Supported Configurations
-

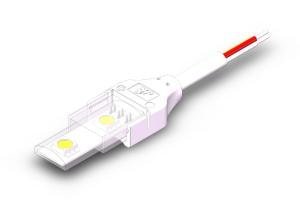

Waterproof Strip to Wire Secure, sealed power connection for exterior drivers.
-

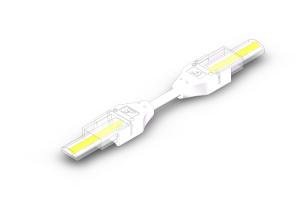

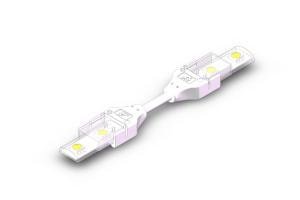

Waterproof Strip to Strip with Wire Weather-resistant jumper for complex architectural routing.
-
Waterproof Strip to Strip Direct IP65-rated splicing for continuous outdoor runs.
Need Custom Connector Solutions?
Our Vietnam factory provides full OEM/ODM support with UL, ETL, and CE certifications.
Non-Waterproof Connector Series
Our complete lineup of 10 distinct non-waterproof series. Designed for indoor IP20 bare board and silicone-coated strips.

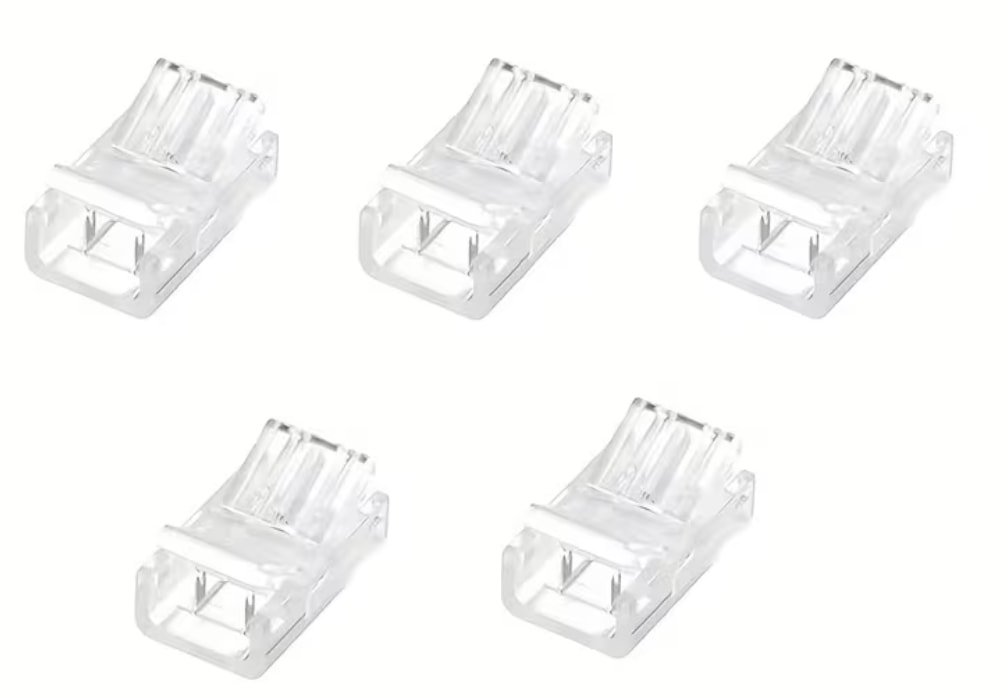

1. Strip to Wire Without wire Series
Board-to-wire connector without pre-attached cables. Allows custom wire length insertion.

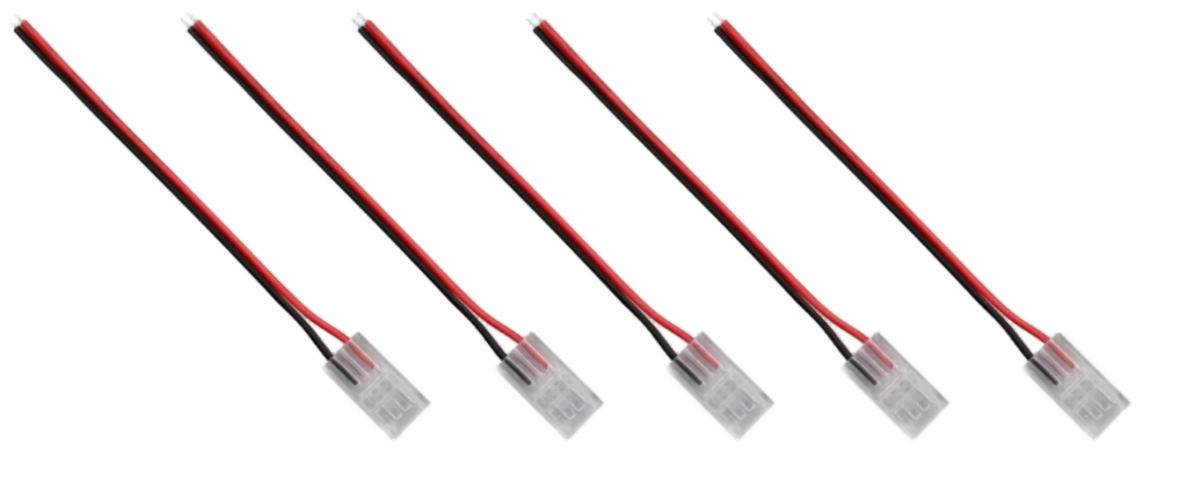

2. Strip to Wire with 10cm Wire Series
Pre-wired single head connector. Ready to splice into power supplies or controllers.

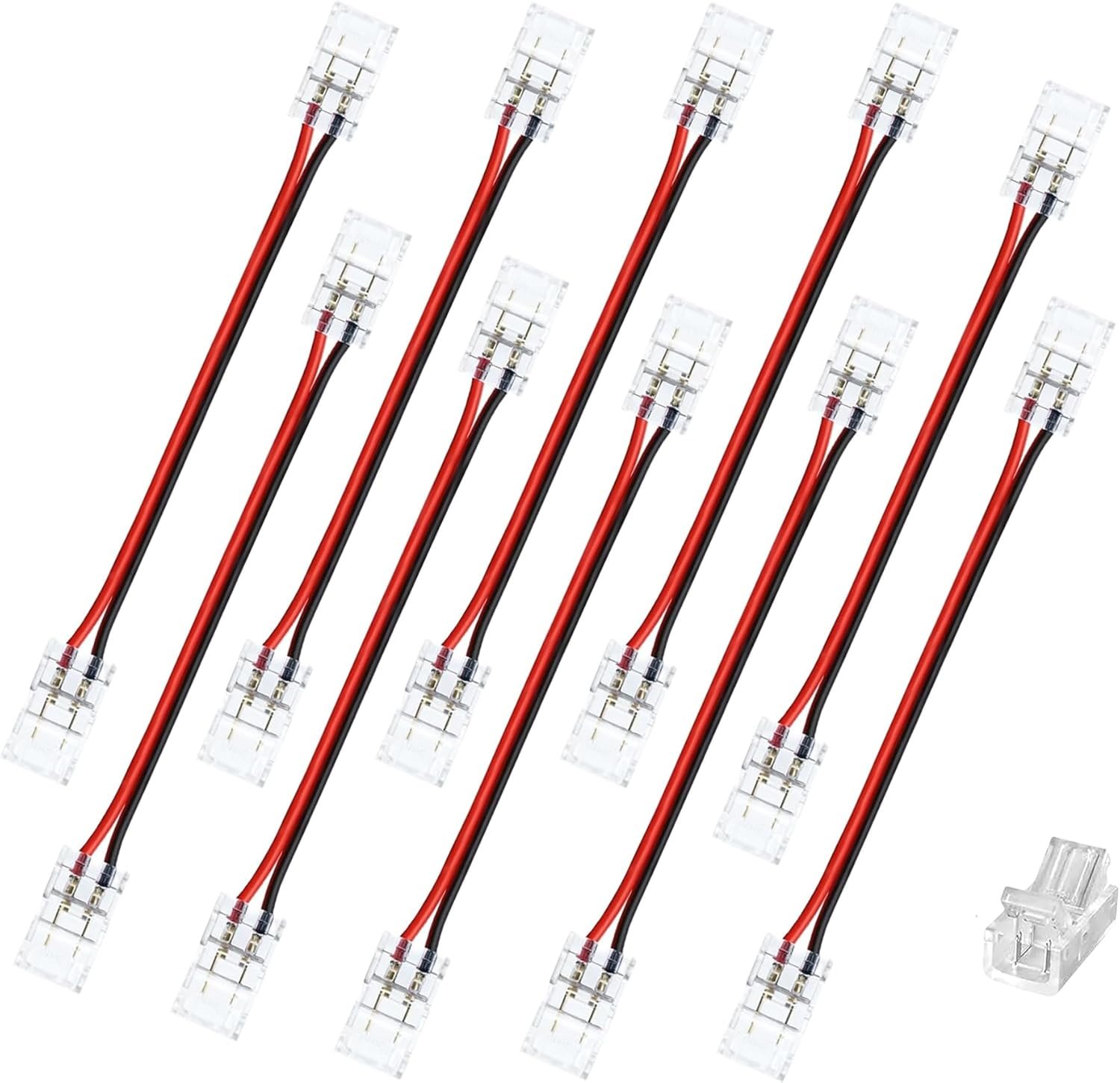

3. Strip to Strip with 10cm Wire Series
Double-ended jumper cable. Perfect for turning corners or bridging gaps between strips.

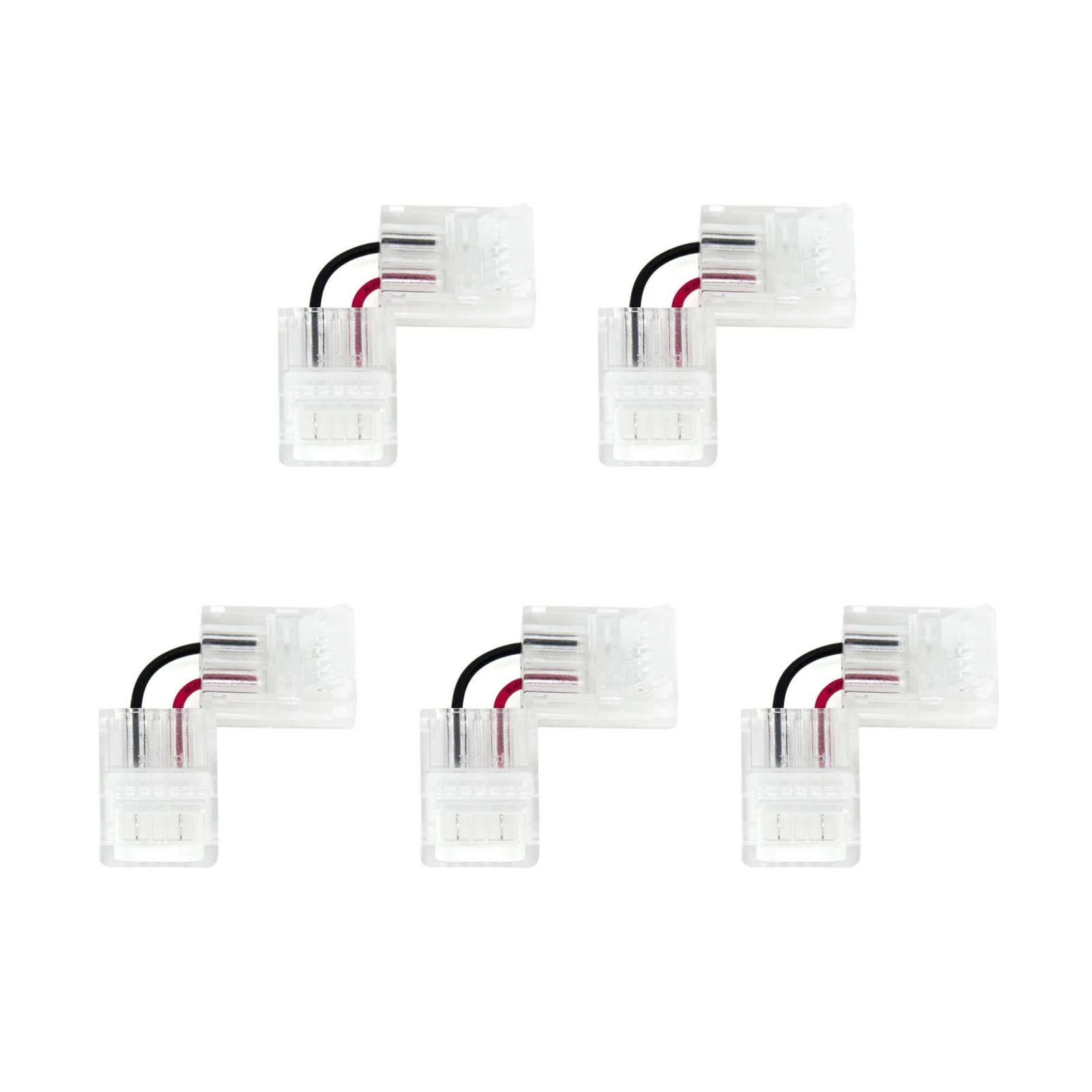

4. Outer Corner with Wire Series
L-shaped conversion connector for clean 90-degree corner installations without bending the strip.

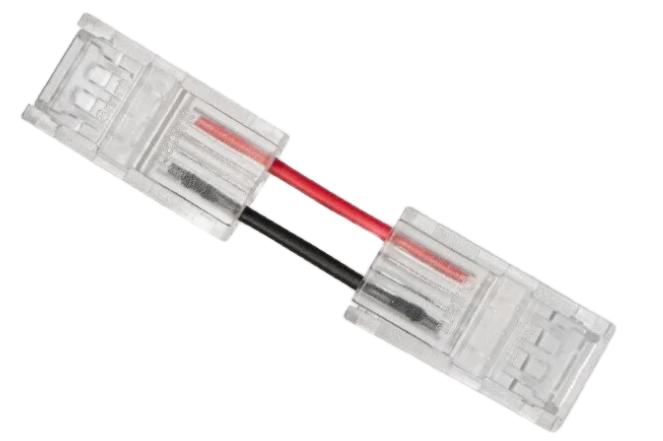

5. Inner corner with 2cm wire (R) Series
R-type structural connector for specific routing requirements in complex lighting layouts.

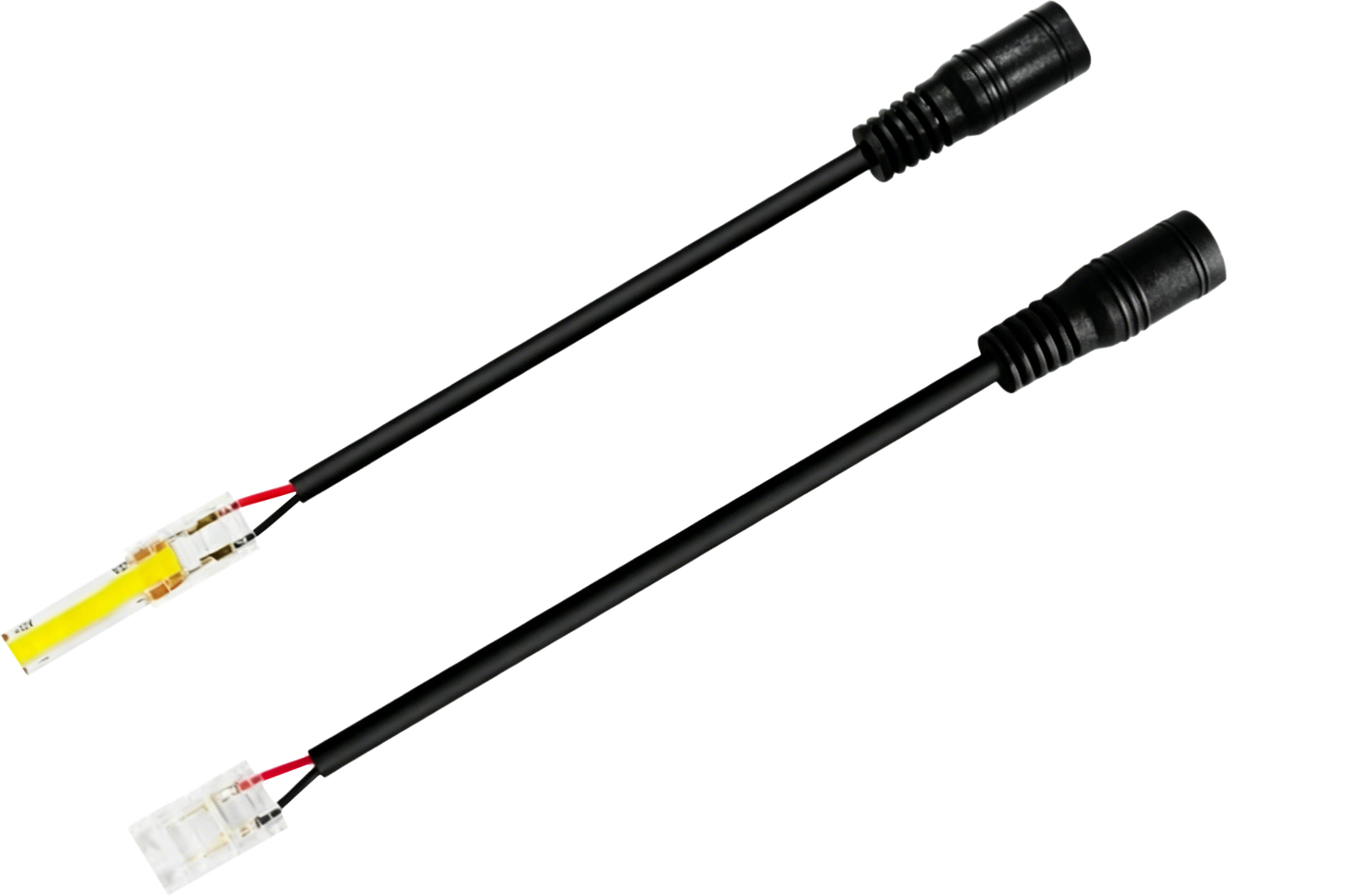

6. Strip to DC / DuPont Wire Series
Integrated with DC jacks or DuPont terminals for direct plug-and-play into power adapters or smart controllers.

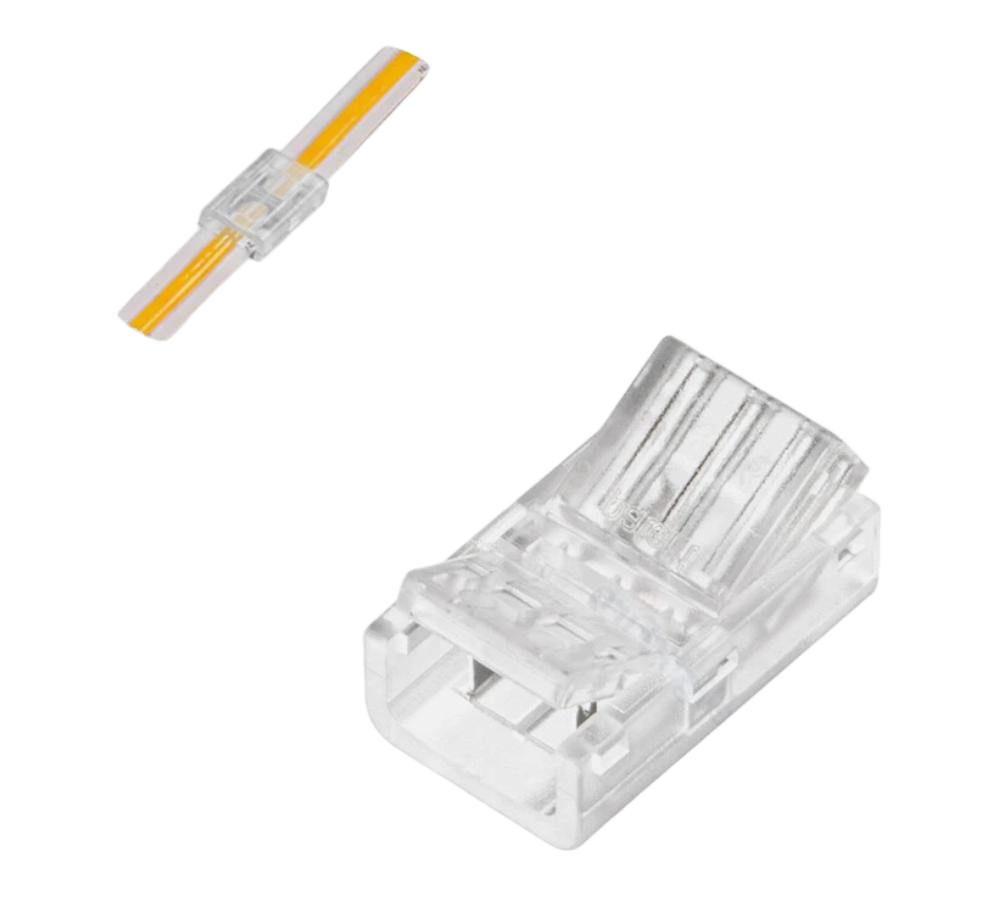

7. Middle Connector Without Wire Series
Direct board-to-board (strip-to-strip) invisible splice. Creates a seamless continuous lighting effect.

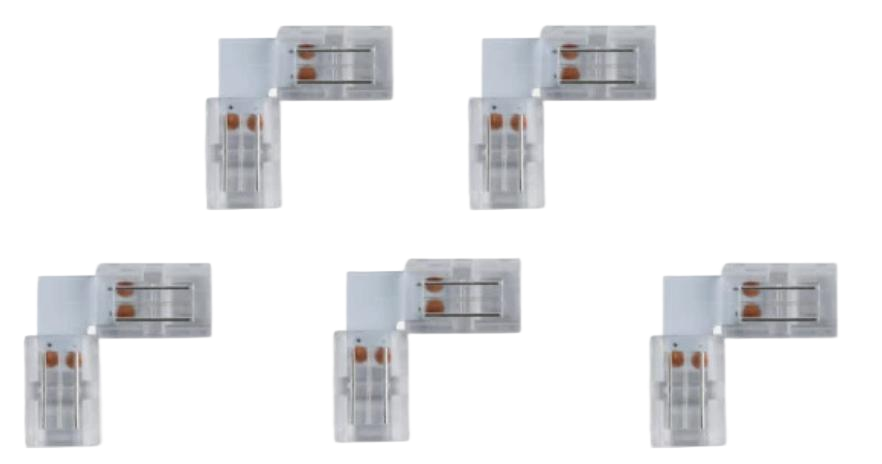

8. L Type Connector with FPC Series
Rigid L-shape PCB connector for sharp 90-degree corners. Ensures stable connection without wire fatigue.

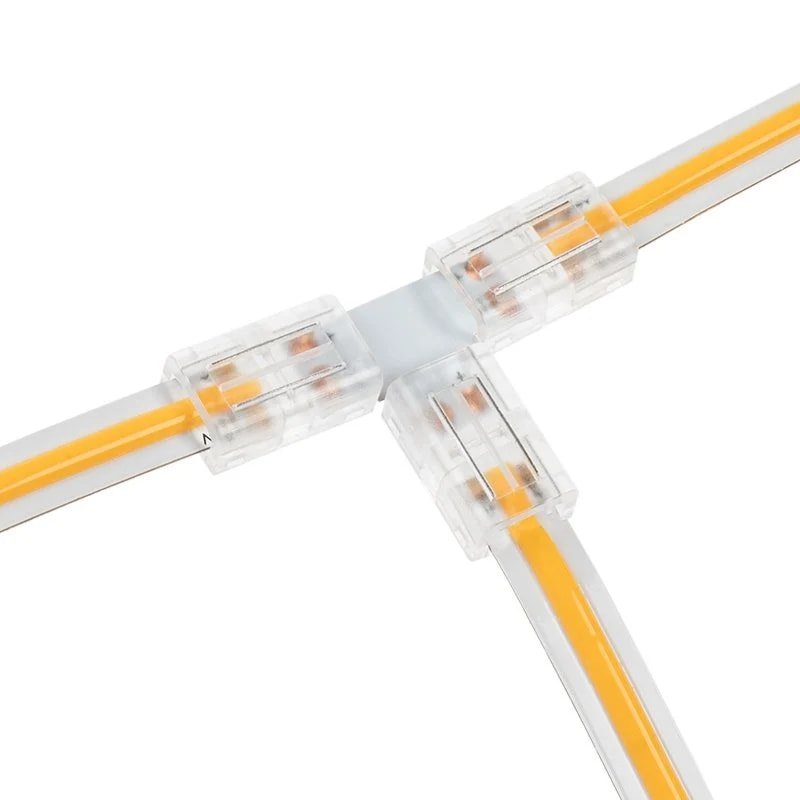

9. T-type Connector Series
Rigid T-shape splitter connector. Ideal for branching one power line into two perpendicular strip runs.

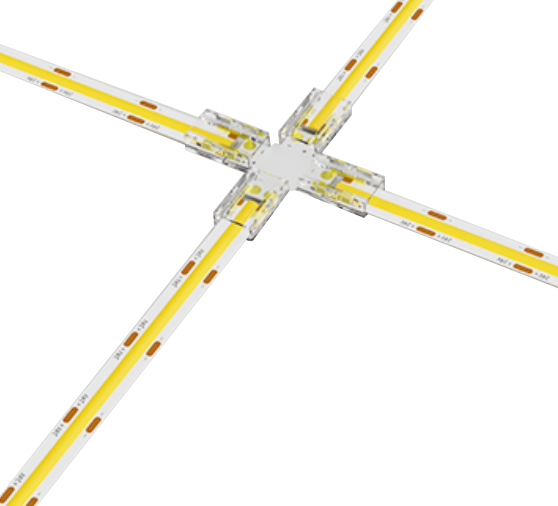

10. Across (+) Connector Series
Rigid Cross (+) shape connector. Enables a four-way split from a central power injection point.
Waterproof IP65 Connector Series
Engineered specifically for IP65 silicone tube or PU coated LED strips. Featuring piercing contact technology to ensure waterproof integrity without stripping the coating. Categorized by 3 core functions.

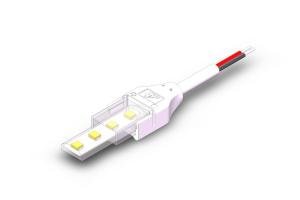

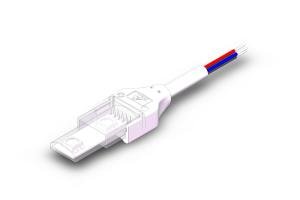

1. Strip to Wire Series
- HR-IP-SC-2PIN-8MM-B
- HR-IP-SC-2PIN-10MM-B
- HR-IP-COB-3PIN-10MM-B
- HR-IP-COB-4PIN-10MM-B
- HR-IP-SMD-2PIN-10MM-B
- HR-IP-SMD-3PIN-10MM-B
- HR-IP-SMD-4PIN-10MM-B
- HR-IP-SMD-5PIN-12MM-B
- HR-IP-SMD-6PIN-12MM-B

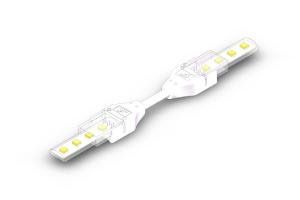

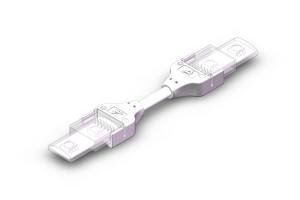

2. Strip to Strip with Wire Series
- HR-IP-SC-2PIN-8MM-C
- HR-IP-SC-2PIN-10MM-C
- HR-IP-COB-3PIN-10MM-C
- HR-IP-COB-4PIN-10MM-C
- HR-IP-SMD-2PIN-10MM-C
- HR-IP-SMD-3PIN-10MM-C
- HR-IP-SMD-4PIN-10MM-C
- HR-IP-SMD-5PIN-12MM-C
- HR-IP-SMD-6PIN-12MM-C

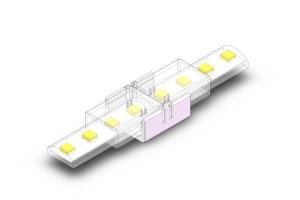

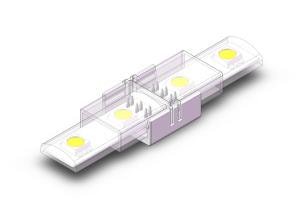

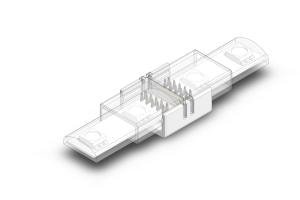

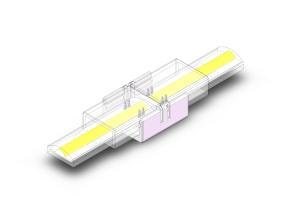

3. Strip to Strip Series
- HR-IP-SC-2PIN-8MM-A
- HR-IP-COB-2PIN-10MM-A
- HR-IP-COB-4PIN-10MM-A
- HR-IP-SMD-2PIN-10MM-A
- HR-IP-SMD-3PIN-10MM-A
- HR-IP-SMD-4PIN-10MM-A
- HR-IP-SMD-5PIN-12MM-A
- HR-IP-SMD-6PIN-12MM-A
Professional Installation Guide
Standardized procedures for seamless LED strip connector assembly, ensuring robust performance for commercial and industrial lighting projects.
Crucial Step
The LED strip must be inserted fully into the bottom slot. Ensure the copper contact pads are perfectly aligned with the connector pins.
Failure to press down completely will result in poor conductivity.
Step-by-Step Procedure

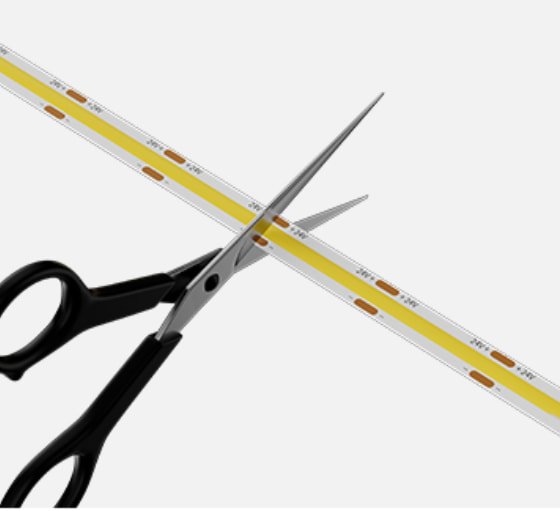

Prepare/Cut LED Strip
Cut the LED strip cleanly along the marked cutting line.

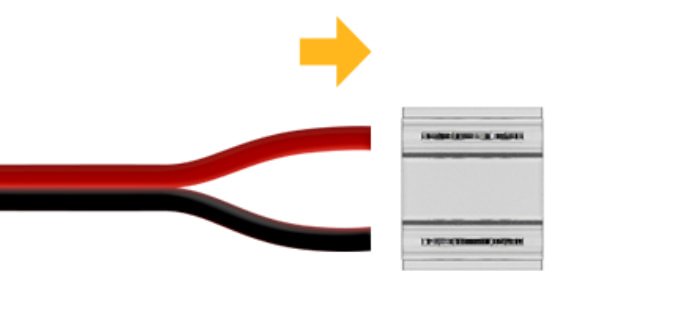

Insert Wires
Insert the positive and negative wires into the correct wire ports.

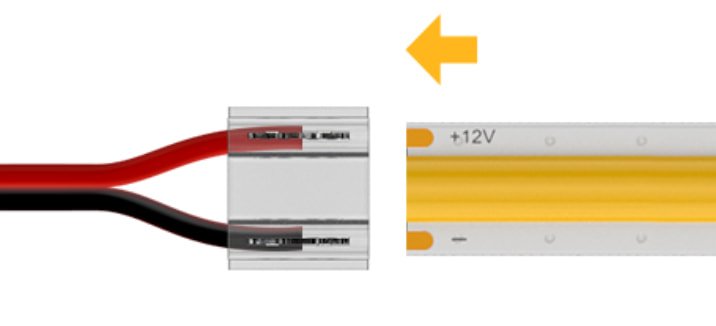

Insert LED Strip
Slide the LED strip into the connector, aligning the pads with the contacts.

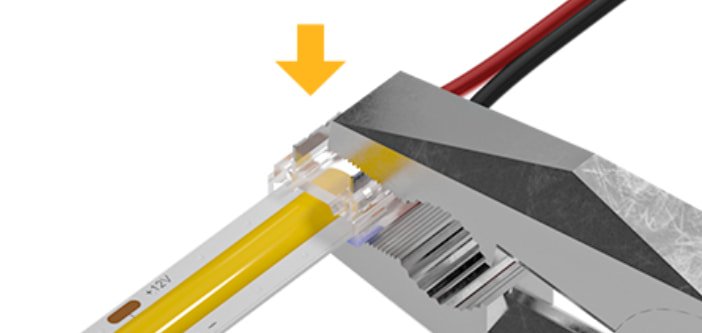

Lock Connection
Press the cover down firmly to secure and lock the connection.
Connector vs. Soldering
| Comparison Dimension | Solderless Connector | Traditional Soldering |
|---|---|---|
| Installation Speed | Extremely Fast (Seconds) | Slow (Requires heating & prep) |
| Ease of Use | Plug & Play | Requires flux, tin, and steady hands |
| Maintenance | Easy to unclasp and replace | Requires desoldering equipment |
| Skill Requirement | Zero (DIY Friendly) | High (Professional Installer) |
| On-Site Replacement | Highly Convenient | Difficult (Especially on ceilings/corners) |
| Stability in Harsh Conditions | Good (Standard environments) | Superior (Extreme vibration/temp) |
* While soldering offers ultimate stability in extreme industrial environments, connectors provide unmatched efficiency and convenience for 95% of commercial and residential projects.
Why Choose Xmart Connectors?
Complete Category System
One-stop procurement for all pin counts, widths, and structural shapes.
Universal Compatibility
Flawless support for COB, SMD, waterproof (IP65), and non-waterproof strips.
OEM / ODM Support
Custom wire lengths, specific terminal types, and packaging solutions available.
Fast Sample Response
Quick prototyping and sample delivery to keep your project timeline on track.
System Integration
Better matching with our proprietary LED strips, drivers, and controllers.
B2B Optimized
Designed specifically to meet the strict demands of project contractors and distributors.
