Side Emitting
LED Strip
Shaped diodes that shine sideways instead of upwards. The ultimate linear lighting solution ideal for signage lettering, edge highlighting, and architectural outlines.
- Side-view emitting for edges and signage
- Single Color, RGB, RGBW and COB options
- 8mm / 10mm widths available
- IP20 / IP65 / IP67 waterproof options
- OEM / ODM supported for global projects
Your Manufacturing Partner for Side Emitting Projects
As a dedicated manufacturing facility in Vietnam, Xmart specializes in the development and mass production of side view / side emitting LED strips. Our production lines are optimized for high-volume, consistent output required by international distributors and project contractors.
Engineered specifically for signage, advertising, edge highlighting, and contour lighting projects, our side emitting series guarantees uniform light distribution. We offer comprehensive OEM and ODM services, ensuring your brand receives tailored lighting solutions with reliable waterproof structures and guaranteed project delivery timelines for long-term bulk procurement.
What Is a
Side Emitting LED Strip?
Also known as the Side View LED Strip, this highly specialized linear lighting features meticulously engineered diodes mounted to emit light laterally. This structural innovation creates a perfectly visible, glare-free luminous boundary—ideal for precision signage lettering, edge highlighting, and intricate contour displays.
Glare-Free Edge Lighting
Optimized lateral emission for premium advertising displays.
Global Certifications
UL, ETL, CE, CB, and RoHS compliant for international deployment.
Vietnam Factory Direct
Manufactured in Pho Yen City, Thai Nguyen Province.
OEM / ODM Solutions
Fully customizable specifications for scale projects.
Xmart Lighting
High-Density Side View
Strategic Advantages
Side-Facing Light Output
Specialized diode orientation directs 100% of the light laterally for precise edge illumination.
Better for Signage Lettering
Easily navigates tight curves and complex channel letter structures without light loss.
Ideal for Edge Highlighting
Creates clean, continuous luminous borders for glass, acrylic, and architectural features.
Single Color to RGBW Coverage
Comprehensive spectrum options from static white to dynamic color-changing capabilities.
Waterproof Options Available
IP65 and IP67 ratings utilizing advanced extrusion technology for outdoor durability.
OEM / ODM Flexibility
Custom PCB widths, LED densities, and cut lengths designed for specific project requirements.
Application Scenarios

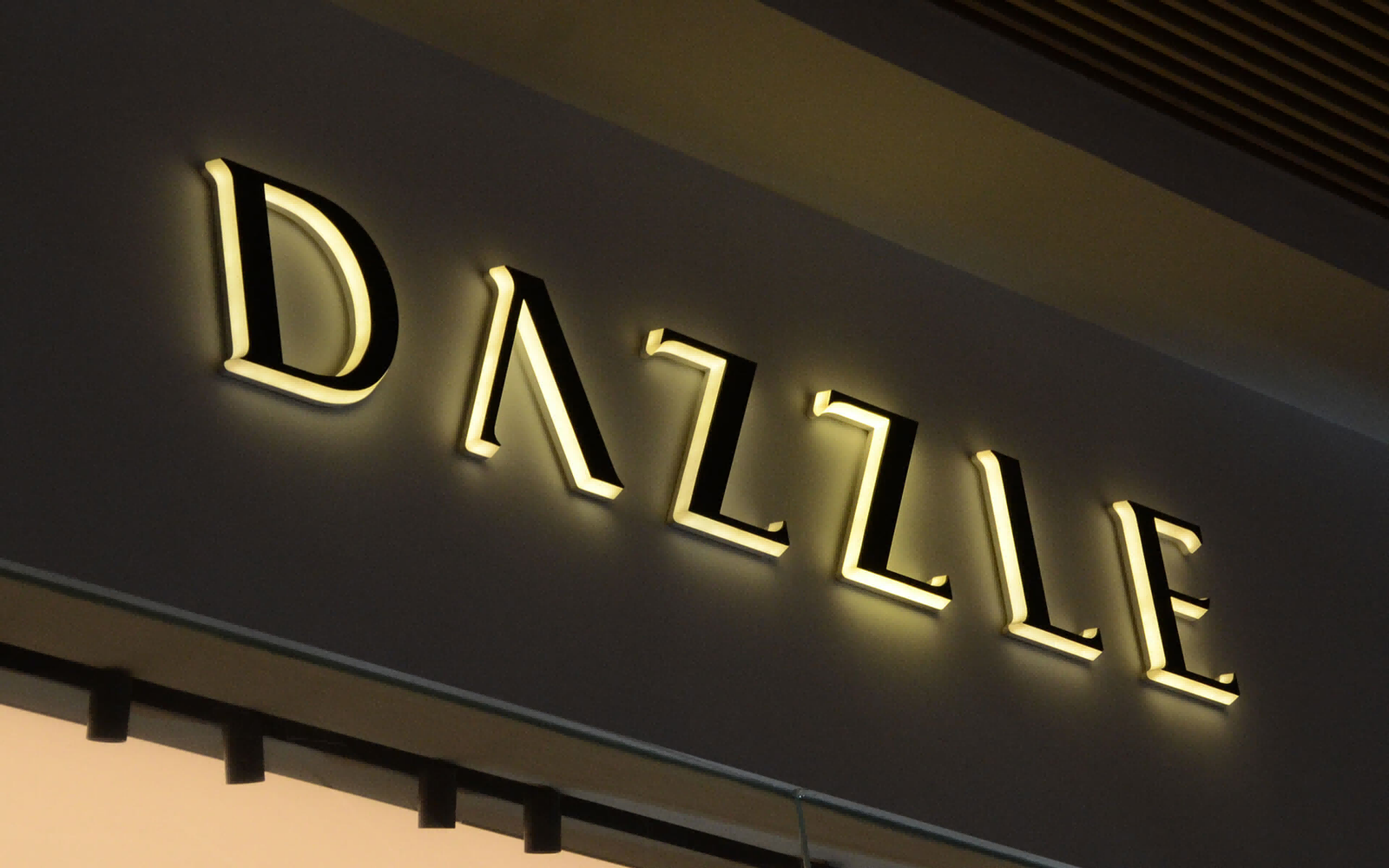

Signage Lettering

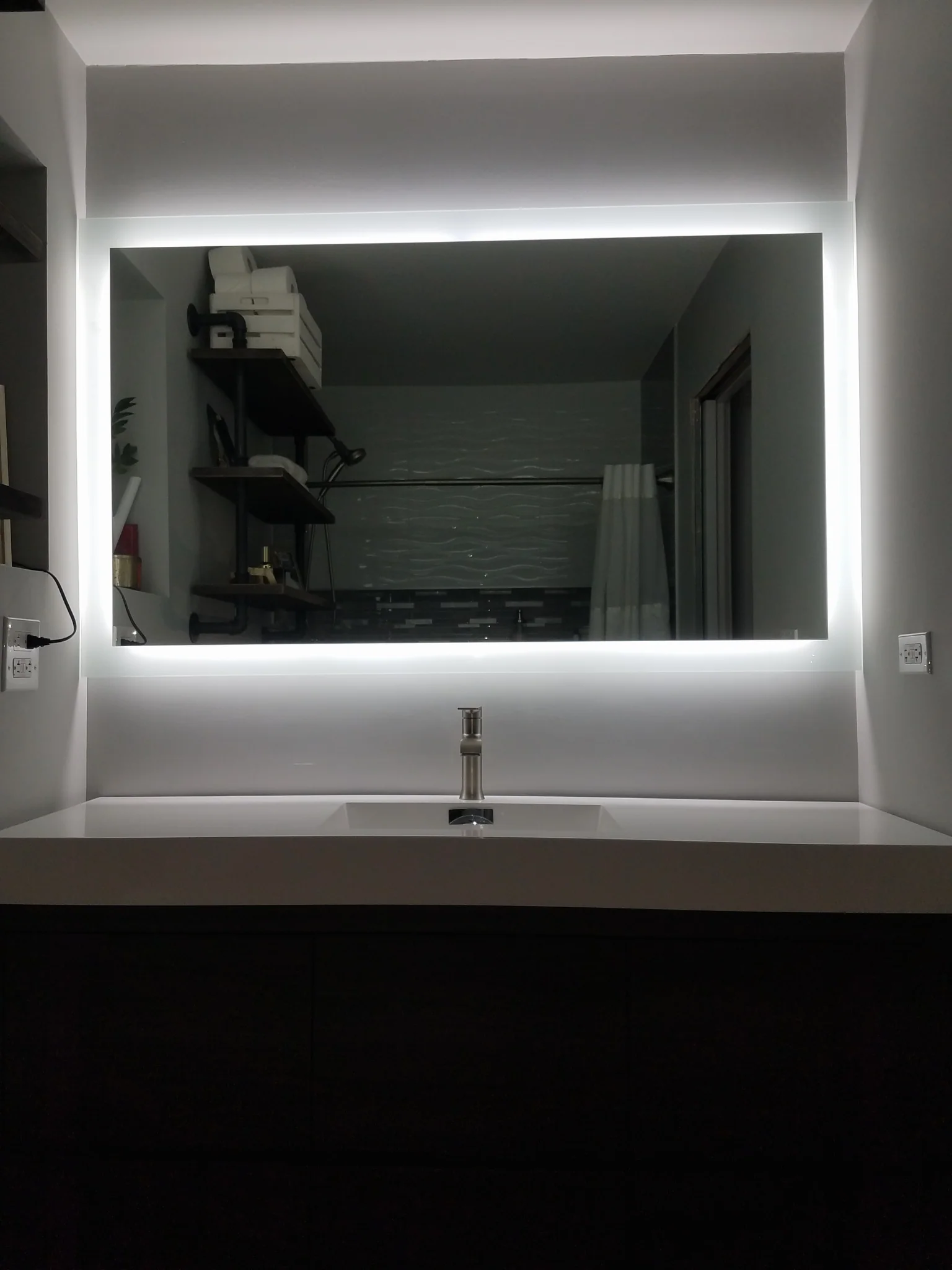

LED Mirror

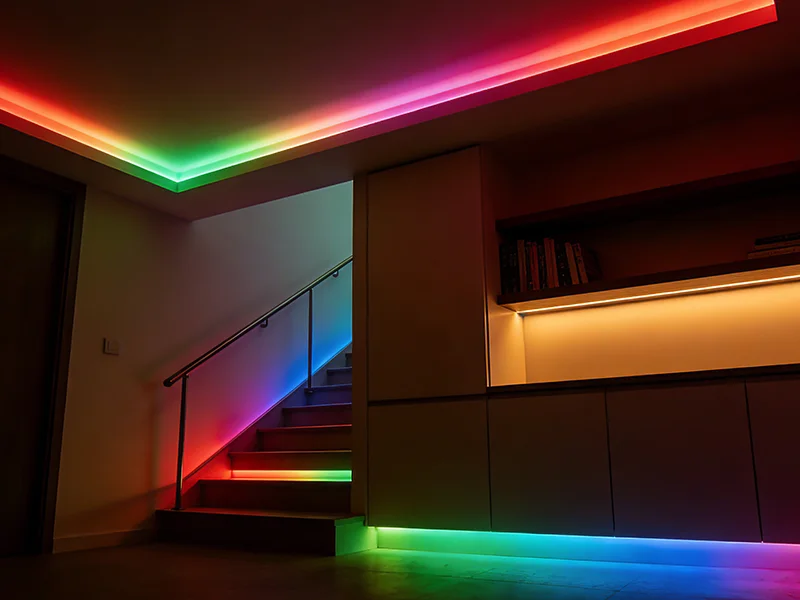

Decorative Lighting

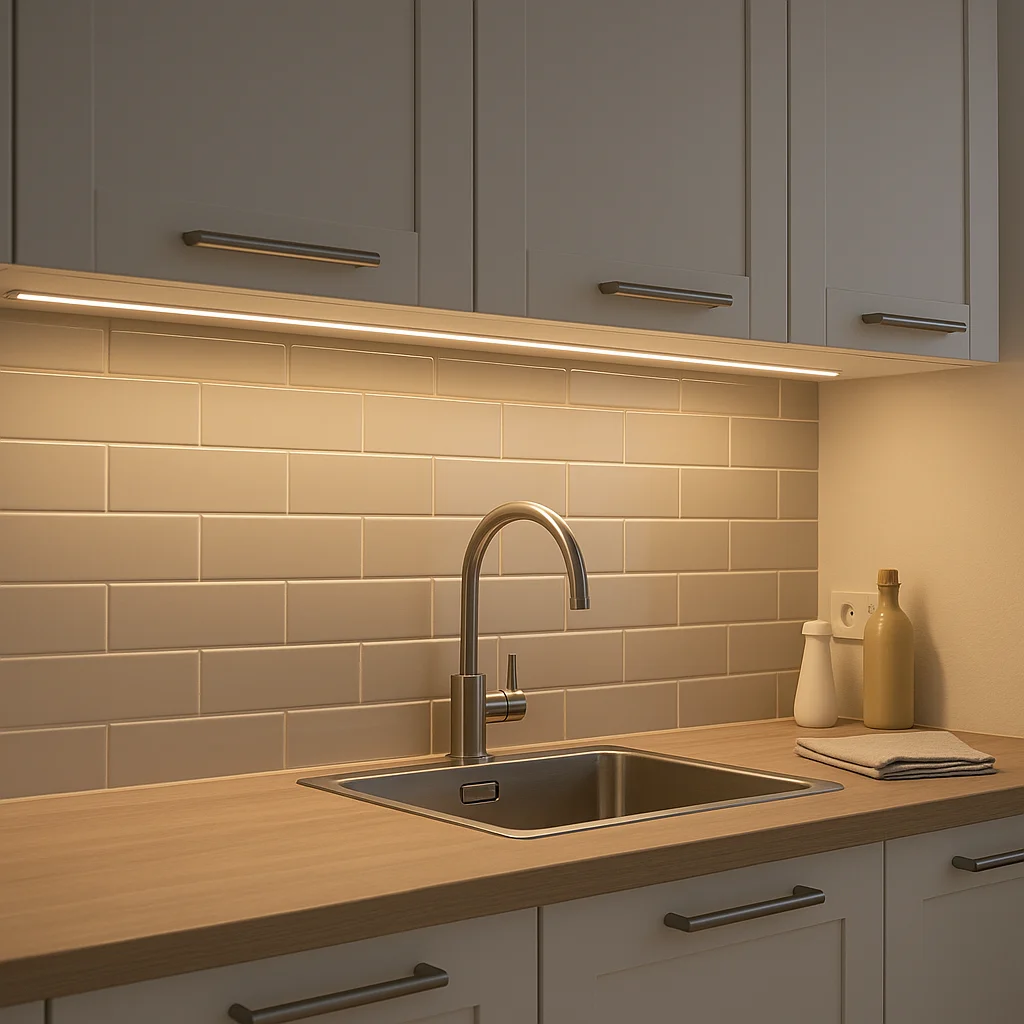

Cabinet Lighting
Edge Lighting
Cove Lighting
Quick Series Overview

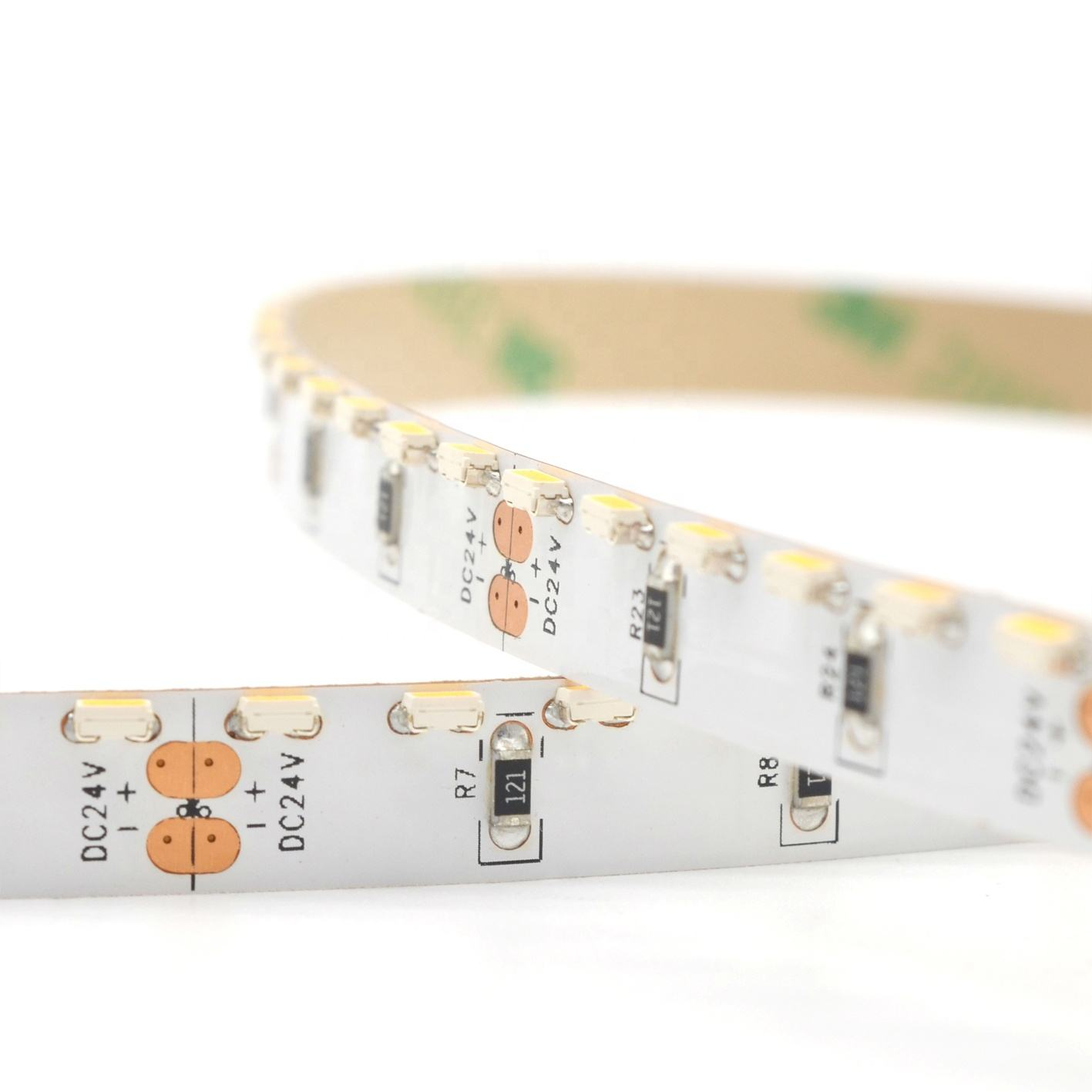

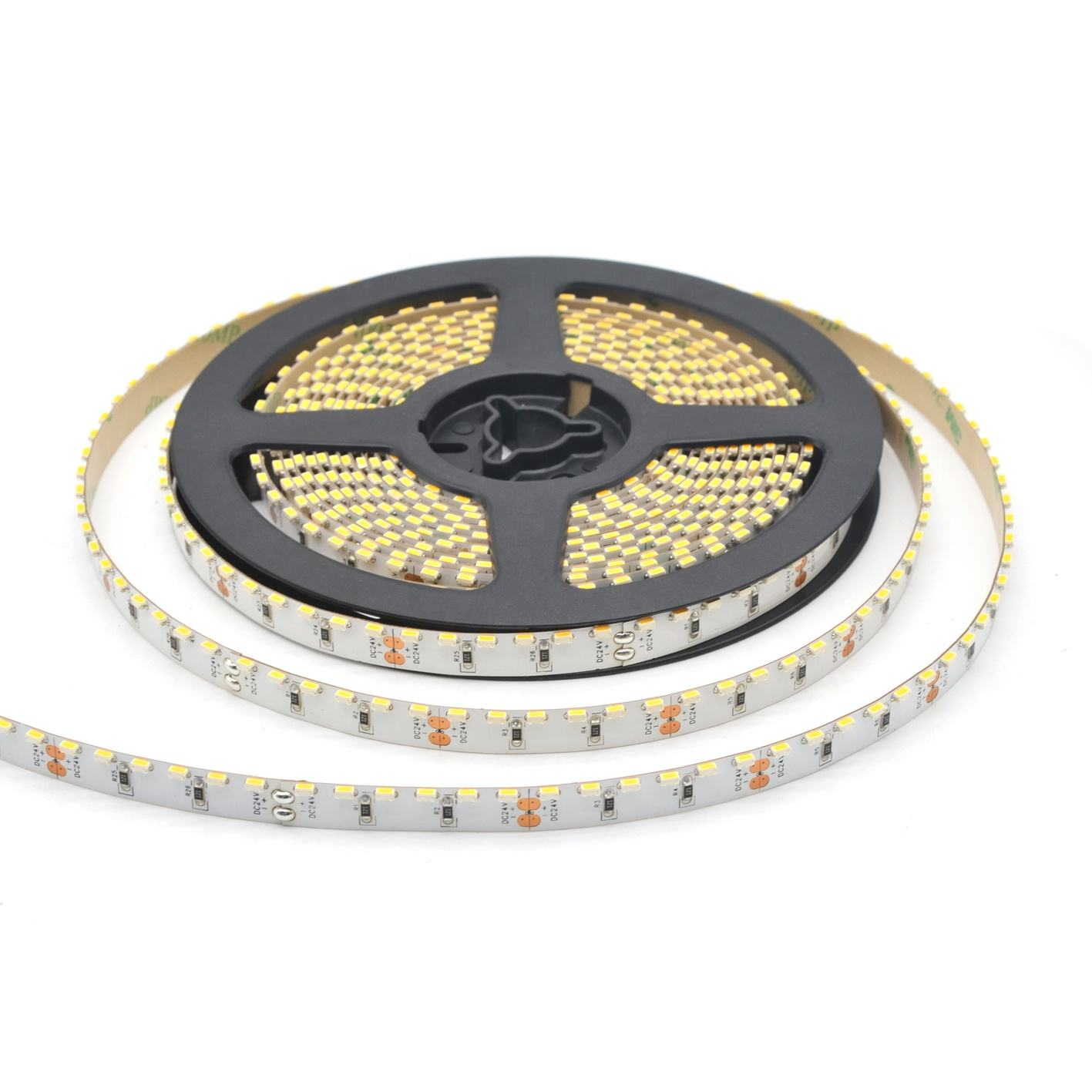

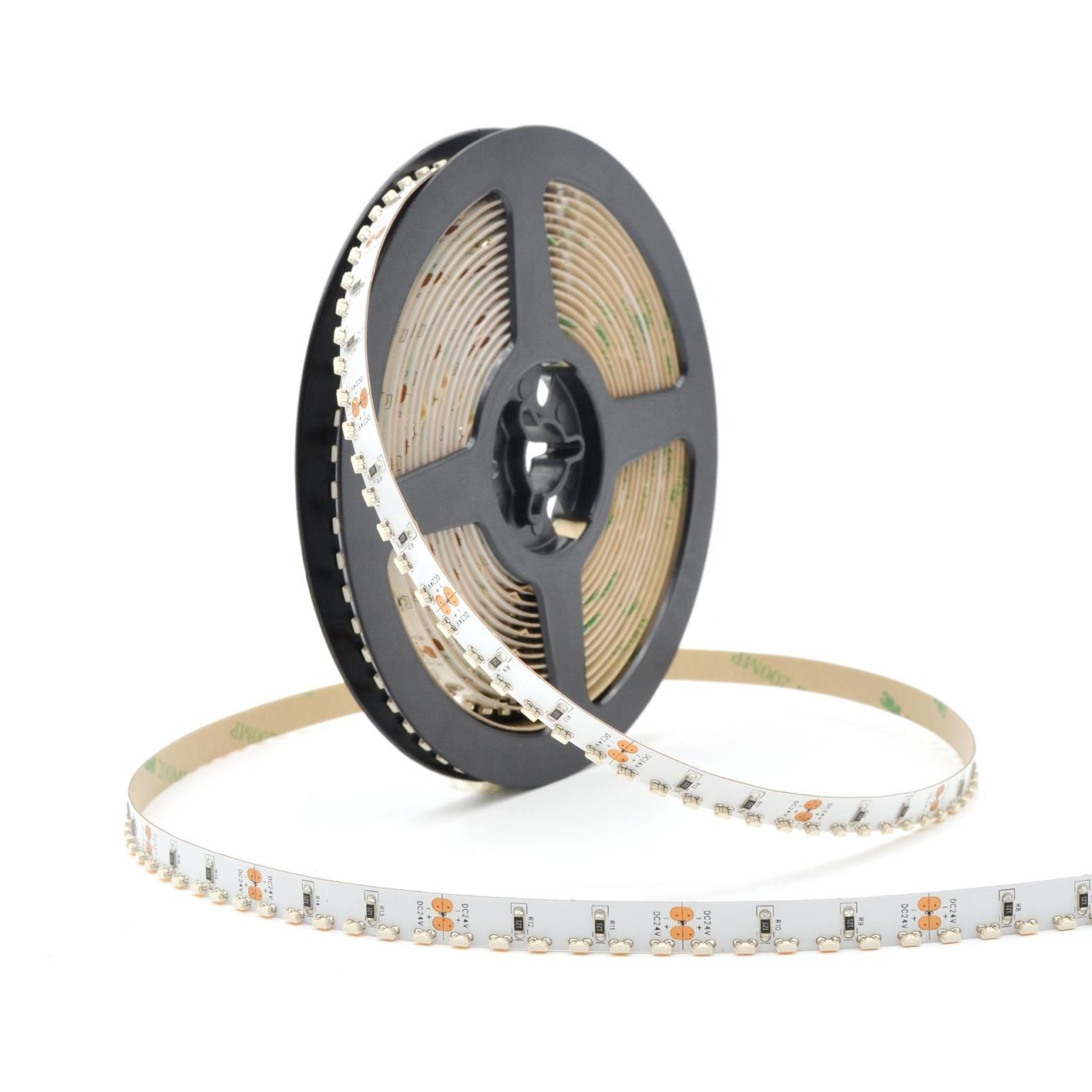

Single Color Side Emitting LED Strip
Featuring SMD3014 diodes engineered for lateral light emission. This single-color series is the industry standard for signage, edge, and contour lighting. Available in multiple densities (60 / 84 / 120 / 156 LEDs/m) and PCB widths (8mm / 10mm) to precisely match your brightness requirements. Choose from IP20, IP65, or IP67 ratings for versatile indoor or outdoor deployment.

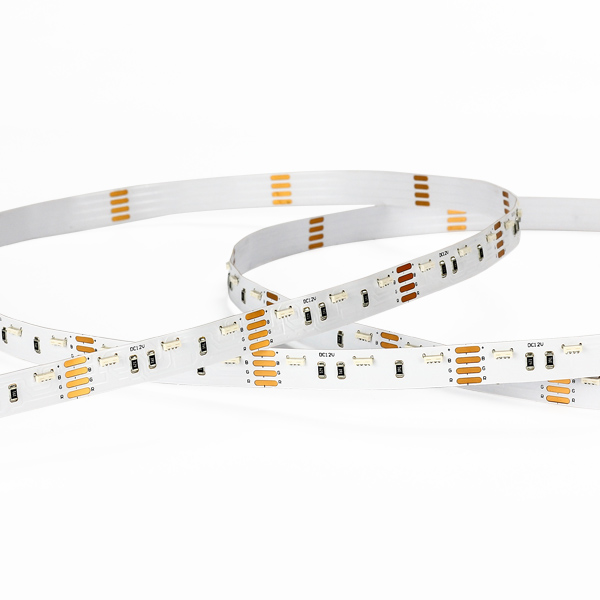

Back to IndexRGB Side Emitting LED Strip
Utilizing SMD020 side emitting diodes, our RGB color-changing LED strip delivers dynamic, vibrant lateral illumination. Perfectly suited for advertising displays and colorful outline expressions where standard top-emitting RGB strips cannot achieve the desired edge effect. Seamlessly integrates with standard RGB controllers for complete color management.
Back to Index

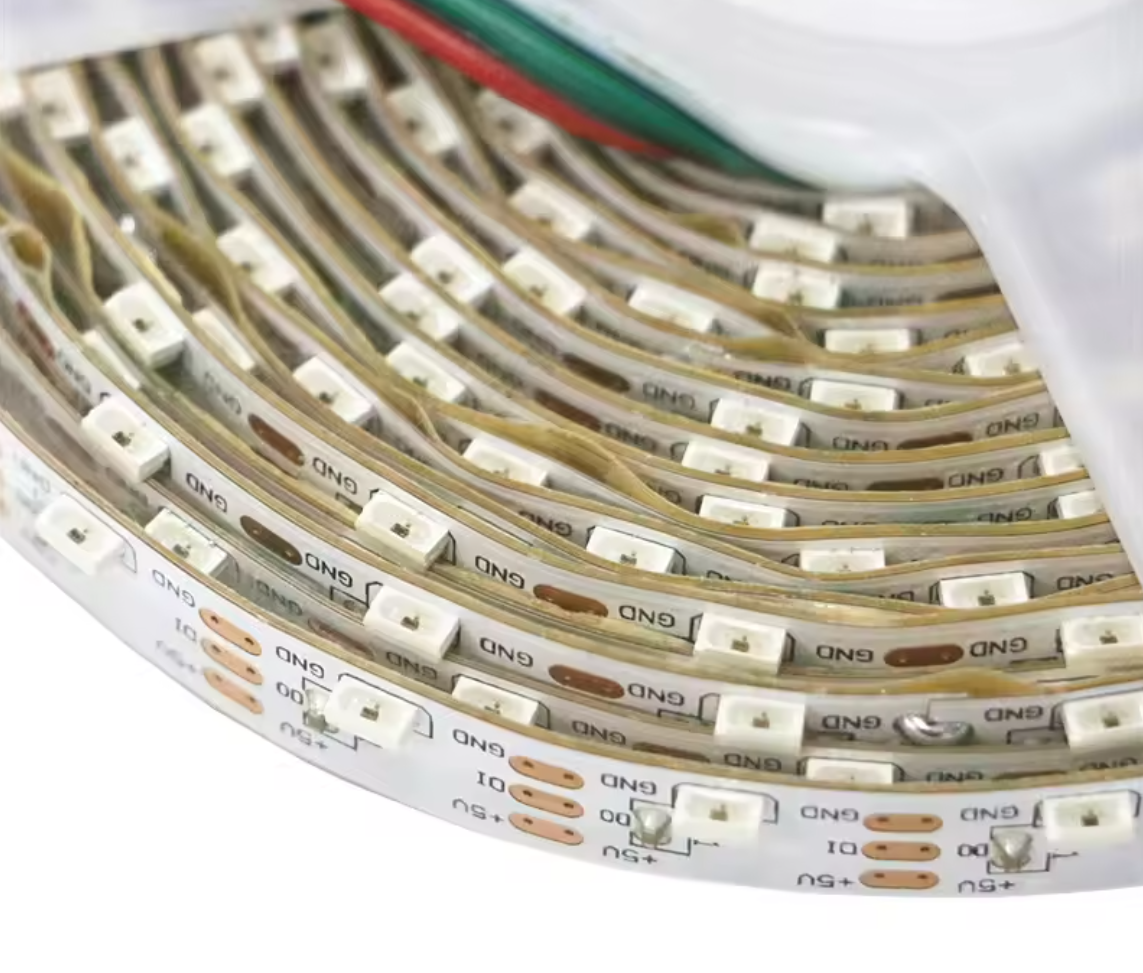

RGB SPI Side Emitting LED Strip
Combining SMD3014 and SMD020 technologies, this series offers an innovative RGB-SPI side emitting LED strip featuring an independent white diode alongside RGB capabilities. This structure is ideal for premium signage and detailed edge projects that demand vibrant colors and pure, dedicated white light, free from color mixing artifacts.

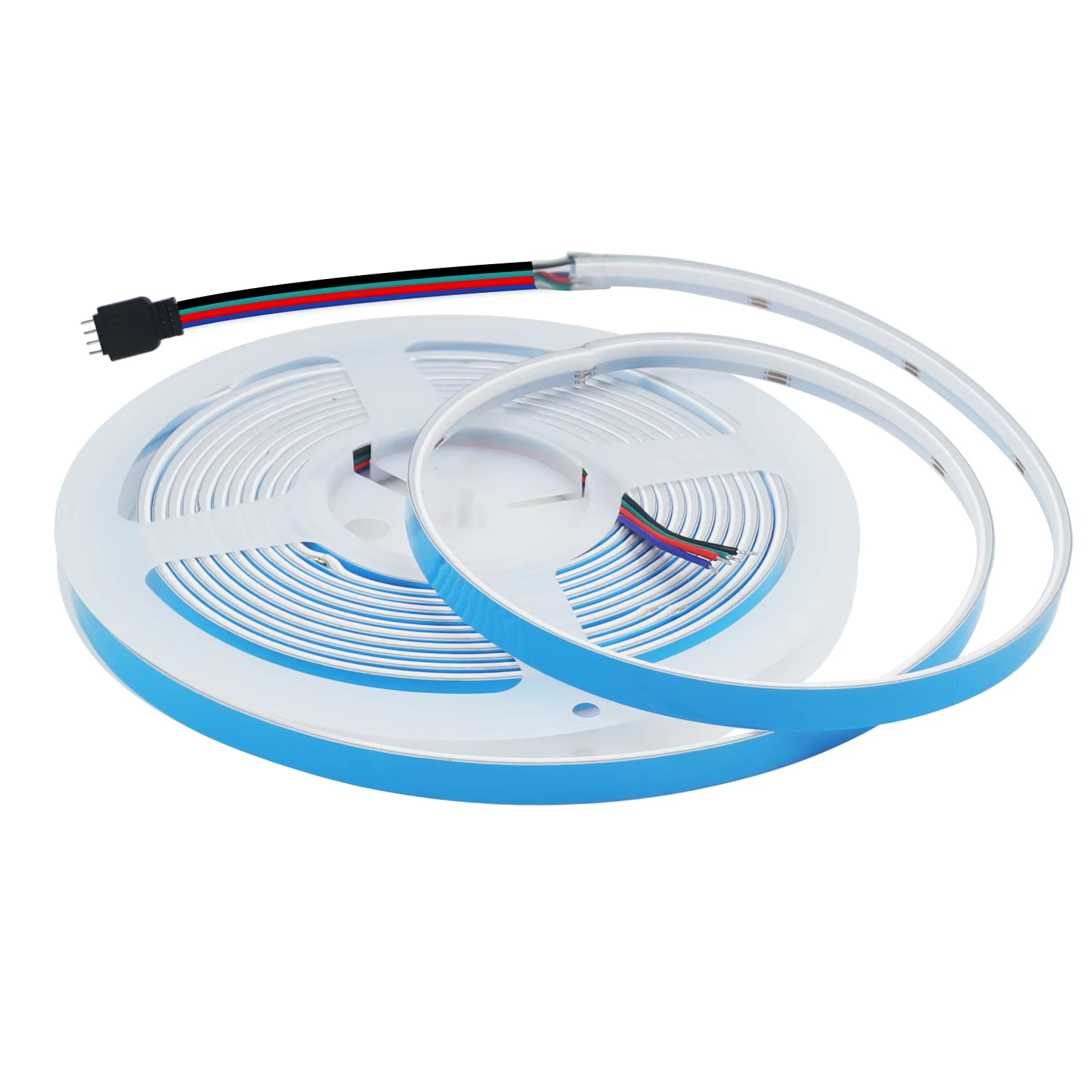

Back to IndexCOB Side Emitting LED Strip
The pinnacle of lateral linear lighting. Our COB (Chip on Board) side emitting LED strip delivers a completely dotless, continuous luminous boundary with zero hot spots. Designed for premium architectural edge lighting and highly visible light band projects where absolute light uniformity is non-negotiable.
Back to Index
Product Video
See the side-emitting effect in action. Understand how the lateral light distribution creates flawless edges and contours.
Rigorous Product Testing
Every batch of our side emitting LED strips undergoes stringent laboratory testing to ensure optical consistency, structural integrity, and long-term reliability.
Global Certifications
Why Choose Our Side Emitting Series
Optimized for Signage
Engineered specifically for outline lighting and edge highlighting. The side-emitting structure ensures maximum visibility along the edge without light spillage.
Comprehensive Coverage
From standard Single Color to advanced RGB, RGBW, and entirely dotless COB options. We provide the full spectrum of side-view solutions.
Built for Bulk & OEM
Designed for long-term cooperation. We offer extensive OEM/ODM support, custom waterproof ratings, and scalable production for large-volume procurement.

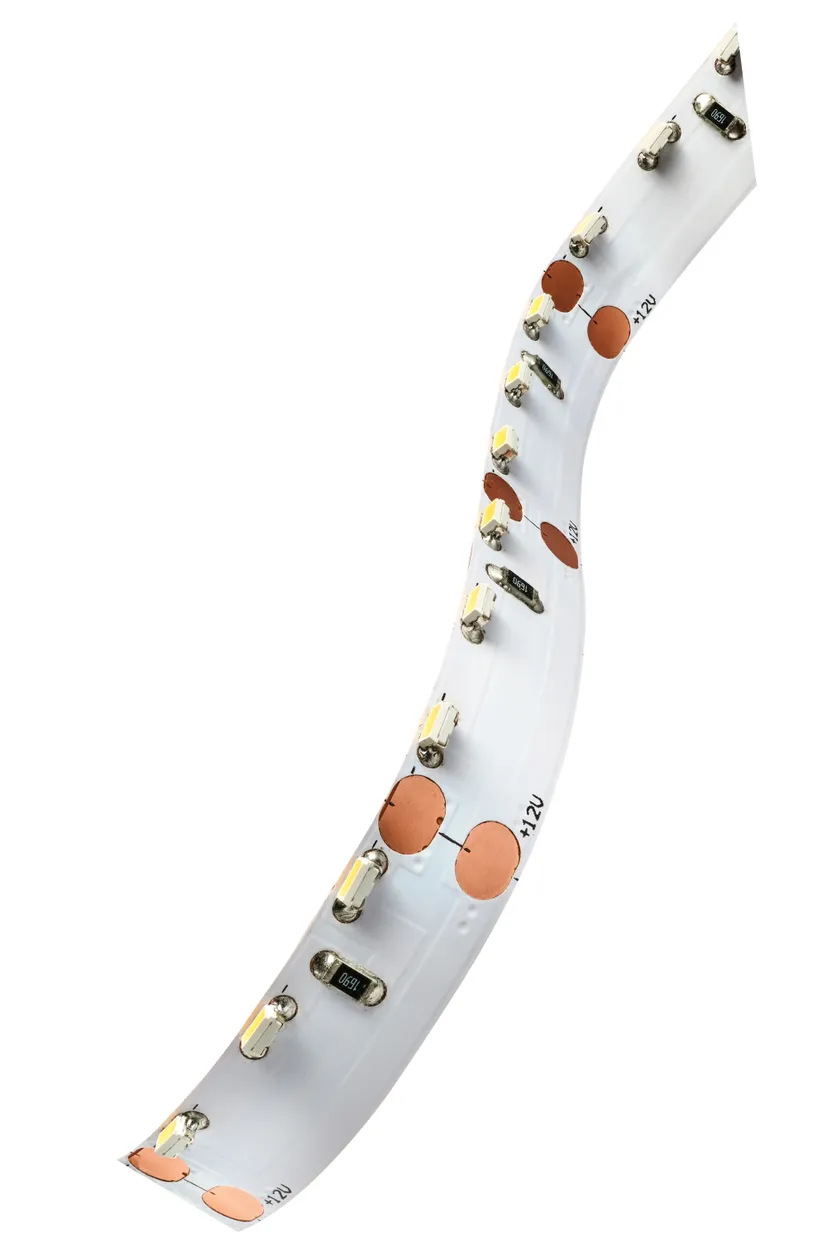

What is the difference between
Side-Emitting and Standard LED Strips?
Choosing the right lighting orientation is crucial for your project's success. While both offer exceptional efficiency, their distinct light projection angles serve entirely different structural and aesthetic purposes.
Precision engineered for complex contours and hidden edge lighting.
Direction of Light
Emit light perpendicular to the strip (parallel to the PCB). This unique angle makes them perfect for illuminating the exact edge they are mounted on, acting as a hidden light source.
Project light directly outward from the surface they are mounted on, providing a traditional, wide-angle forward illumination.
Best Application
- Sign lettering & channel letters
- Thin crevices & narrow gaps
- Edge highlighting for glass/acrylic
- Curved contouring
- Under-cabinet task lighting
- Architectural cove lighting
- Bright, general accent lighting
- Surface-mounted profiles
Flexibility & Profile
Side-emitting strips are engineered to be exceptionally slim, often featuring a 5mm to 8mm PCB. This narrow profile grants them superior bending flexibility, allowing them to trace complex, curved shapes seamlessly without stressing the diodes.
In contrast, Standard strips vary in width and rigidity depending on the SMD size used (e.g., 5050 vs 2835), generally offering less lateral flexibility compared to their side-emitting counterparts.
Require tailored LED specifications for your next project?
Direct from our Vietnam Factory (Pho Yen City, Thai Nguyen Province). We provide comprehensive OEM/ODM services backed by UL, ETL, CE, CB, and RoHS certifications.
Custom My Side Emitting LED Strip
Select from Single Color (2700K-6500K, Red, Green, Blue, etc.), RGB, RGBW, or COB side emitting options based on your project's visual requirements.
Customize the number of LEDs per meter (e.g., 60, 84, 120, 156 LEDs/m) to balance brightness and power consumption while achieving the desired uniformity.
Choose between standard 8mm or 10mm PCB widths to fit perfectly into your specific aluminum profiles or channel letter housings.
We can design specific cutting intervals (e.g., every 3 LEDs or 6 LEDs) to ensure precise fitting for intricate signage shapes.
Available in DC12V or DC24V. 24V is recommended for longer runs to minimize voltage drop and maintain consistent edge brightness.
Ensure compatibility with your preferred control systems, including standard dimmers, DMX512, Dali, or smart PWM controllers for RGB/RGBW.
Specify wire length, wire gauge (AWG), and connector types (bare wire, DC barrel, waterproof connectors) pre-soldered for rapid installation.
Full white-label services. We can print your company logo on the PCB, customize the reel labels, and design bespoke anti-static packaging bags.
Custom My IP Protection
Bare board with 3M adhesive backing. Ideal for indoor signage, display cabinets, and enclosed channel letters where moisture is not a concern.
Protected against dust and low-pressure water jets. Suitable for damp indoor areas or semi-exposed outdoor edge highlighting applications.
Fully encased in UV-resistant silicone. Designed for harsh outdoor environments, architectural outlines, and exterior advertising displays.
Driver & Installation Support
LED Power Supply
High-efficiency, flicker-free drivers (Mean Well, etc.) optimized for 12V/24V constant voltage side emitting strips.
Controller
Precision control systems for dynamic color changing, dimming, and scene setting for advertising and outlines.
Remote Controller
Wireless devices using radio waves to operate electronics without needing direct line-of-sight.
Common Failures to Avoid

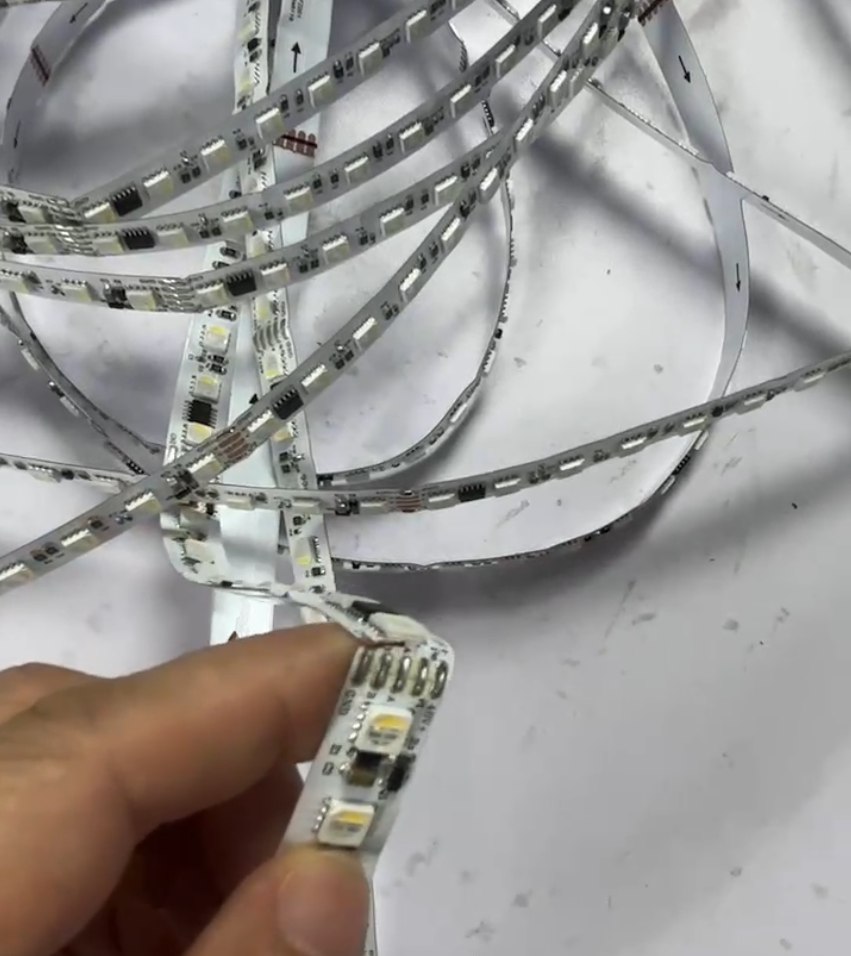

Wrong Bending Direction
Dead LED
LED Broken
Side Emitting Connection Diagram & Advanced Wiring
Professional horizontal wiring guides for optimal performance, ensuring seamless integration for commercial and industrial lighting projects. Engineered by Xmart Vietnam Factory.
1. Single Color Connection
Standard 2-pin connection for monochrome illumination.
Illustrating standard driver connection, strip orientation, and side-light edge routing logic for optimal performance.
2. RGB Connection
4-pin connection for dynamic color mixing.
Detailed wiring logic for RGB controllers and amplifiers. Ensures synchronized color changing across extended runs without voltage drop, engineered for large-scale architectural integrations.
3. RGB-SPI Addressable Connection
Data-driven connection for pixel-level control and animations.
Advanced schematic for IC-based addressable strips. Highlights data line routing, power injection points, and controller integration for complex lighting animations and smart building systems.
Need Technical Support for Your Project Layout?
Our engineering team at the Xmart Vietnam Factory is ready to assist with custom wiring schematics, product selection, and large-scale deployment strategies.
Frequently Asked Questions
A side emitting LED strip features diodes that are mounted to shine light sideways (parallel to the PCB) instead of upwards. This creates a distinct lateral light beam, making it perfect for edge lighting.
They are primarily used for advertising logo lighting, signage lettering, outline objects, edge highlighting for glass or acrylic, and architectural contour lighting where a visible edge of light is desired.
We provide a standard 5 years warranty for our professional-grade side emitting LED strip series, ensuring long-term reliability for your projects.
We offer IP20 (non-waterproof) for indoor use, IP65 (silicone tube/coating) for damp locations, and IP67 (silicone extrusion) for outdoor and wet environments.
Yes, we can provide free samples for testing and evaluation. Customers are only required to cover the shipping costs.
Looking for a more reliable Side Emitting LED Strip supply partner?
Connect with our engineering team to discuss your signage, outline, or edge lighting project requirements. We offer rapid prototyping and bulk manufacturing from our Vietnam facility.
