LED Neon
Flex
The safer, more flexible alternative to traditional glass neon. Engineered with premium silicone and PU materials for seamless vertical, horizontal, 3D, and 360° bending. Built for signage, architectural contours, and demanding underwater linear lighting projects.
- Safer alternative to glass neon
- Silicone and PU material options
- Indoor, outdoor and underwater solutions
- OEM / ODM customization supported
LED Neon Flex Supplier & Manufacturer in Vietnam
At Xmart, we provide end-to-end support for Neon Flex series development and mass production. Operating from our advanced Vietnam factory, we deliver scalable, high-yield manufacturing tailored to your exact specifications.
Material Expertise
Comprehensive processing capabilities for both premium silicone and PU neon.
Environment Ready
Engineered for indoor, outdoor (IP67), and underwater (IP68) applications.
OEM / ODM Support
Custom bending directions, IP ratings, accessories, and mounting solutions.
Bulk Procurement
Stable supply chain and competitive pricing for long-term project partnerships.

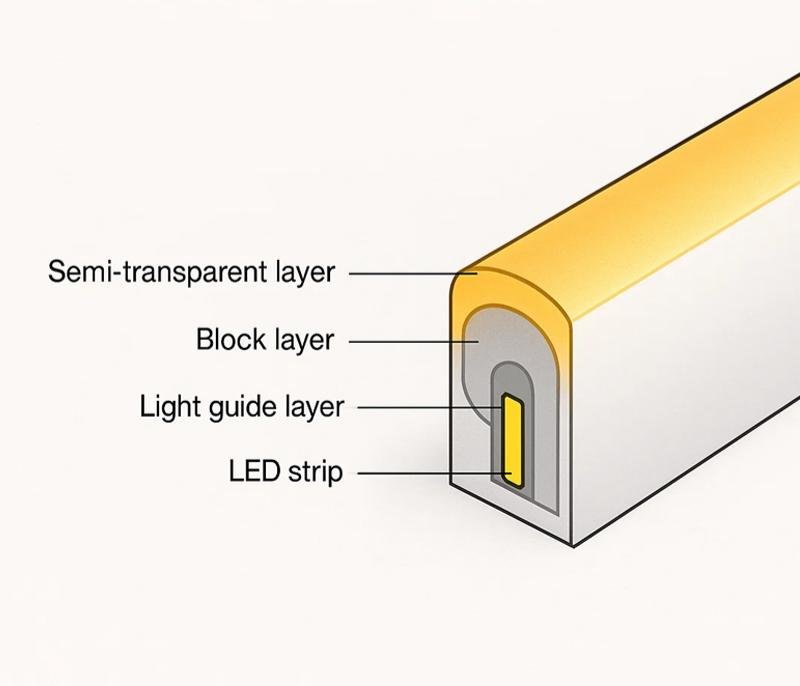

What Is
LED Neon Flex?
A revolutionary flexible linear lighting solution engineered for modern architecture. By encapsulating a high-density LED core within premium optical-grade silicone or PU, it delivers the continuous, dot-free brilliance of traditional glass neon—completely eliminating fragility and high-voltage hazards.
Built for extreme versatility and precision. Our silicone variants provide robust IP67 protection for demanding outdoor facades, while our advanced PU neon achieves IP68 ratings for permanent underwater deployment. Lighter, safer, and infinitely more durable.
Silicone Neon vs PU Neon
Understanding the core material differences ensures optimal performance and longevity for your specific project environment.
Silicone Neon Flex
- ✓ Typically rated IP67
- ✓ Excellent thermal stability and weather resistance
- ✓ Used primarily for indoor and outdoor applications
- ✓ Ideal for decorative lighting, building outlines, and city night scene lighting
PU Neon Flex
- ✓ Typically rated IP68
- ✓ Highly UV resistant and saltwater resistant
- ✓ Designed specifically for prolonged submersion
- ✓ Used extensively for underwater decorative lighting and marine environments
Why Choose LED Neon Flex?
Safer Than Glass Neon
Operates on low voltage (12V/24V) and is shatterproof, eliminating the fire hazards and fragility associated with traditional glass.
Flexible and Bendable
Available in vertical, horizontal, 3D, and 360° bending profiles to conform to any architectural curve or complex signage.
Indoor to Outdoor Coverage
UV and weather-resistant silicone construction ensures long-lasting performance in harsh outdoor environments.
Optional Underwater Use
PU material variants offer true IP68 protection, making them perfectly safe for continuous submersion in pools and fountains.
Uniform Linear Light Output
Advanced extrusion technology and high-density LEDs guarantee a perfectly smooth, dot-free illumination across the entire run.
Easy Installation
A comprehensive ecosystem of mounting clips, straight channels, and bendable channels ensures rapid, secure deployment.
Application Scenarios

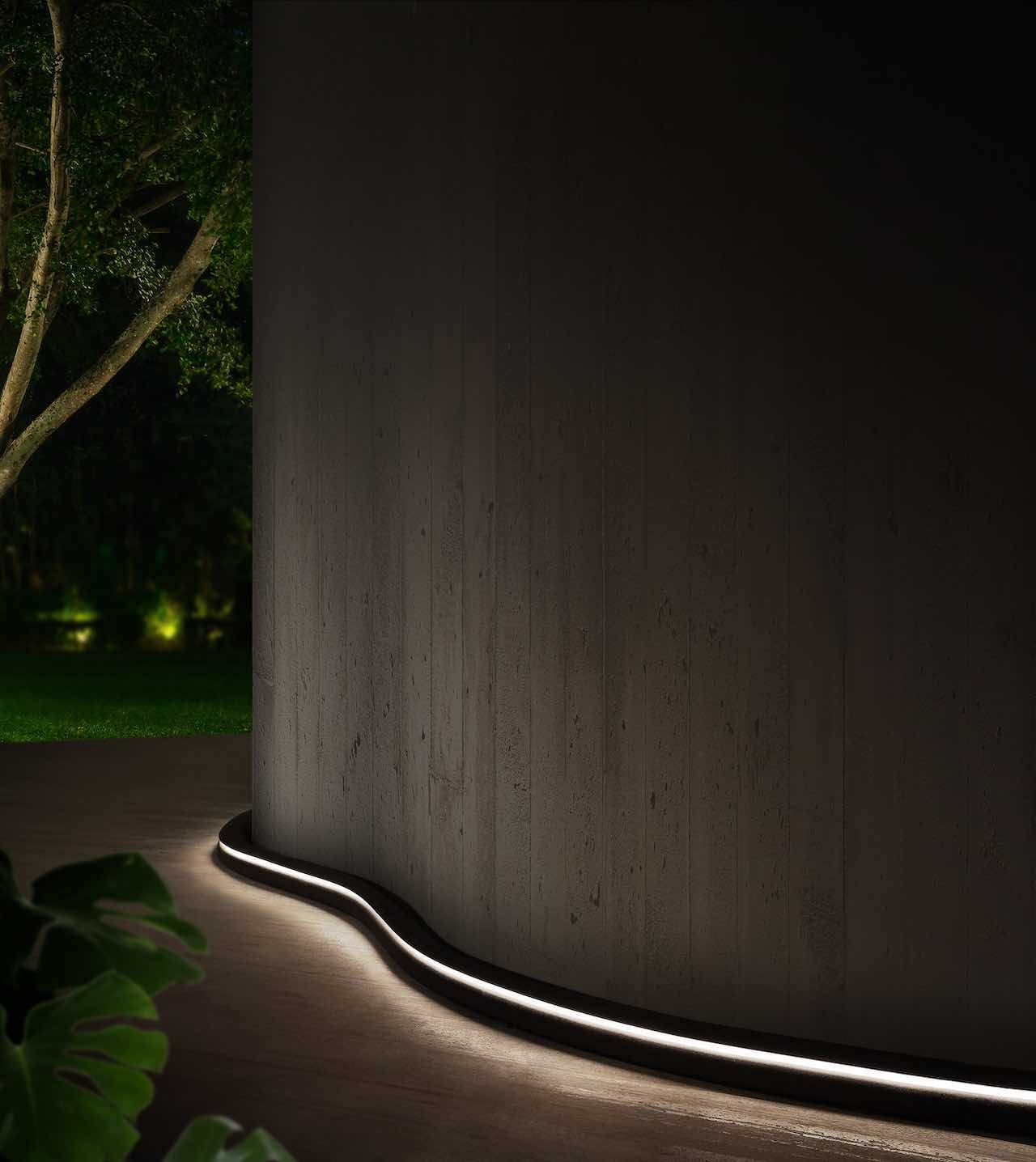

Landscape Lighting

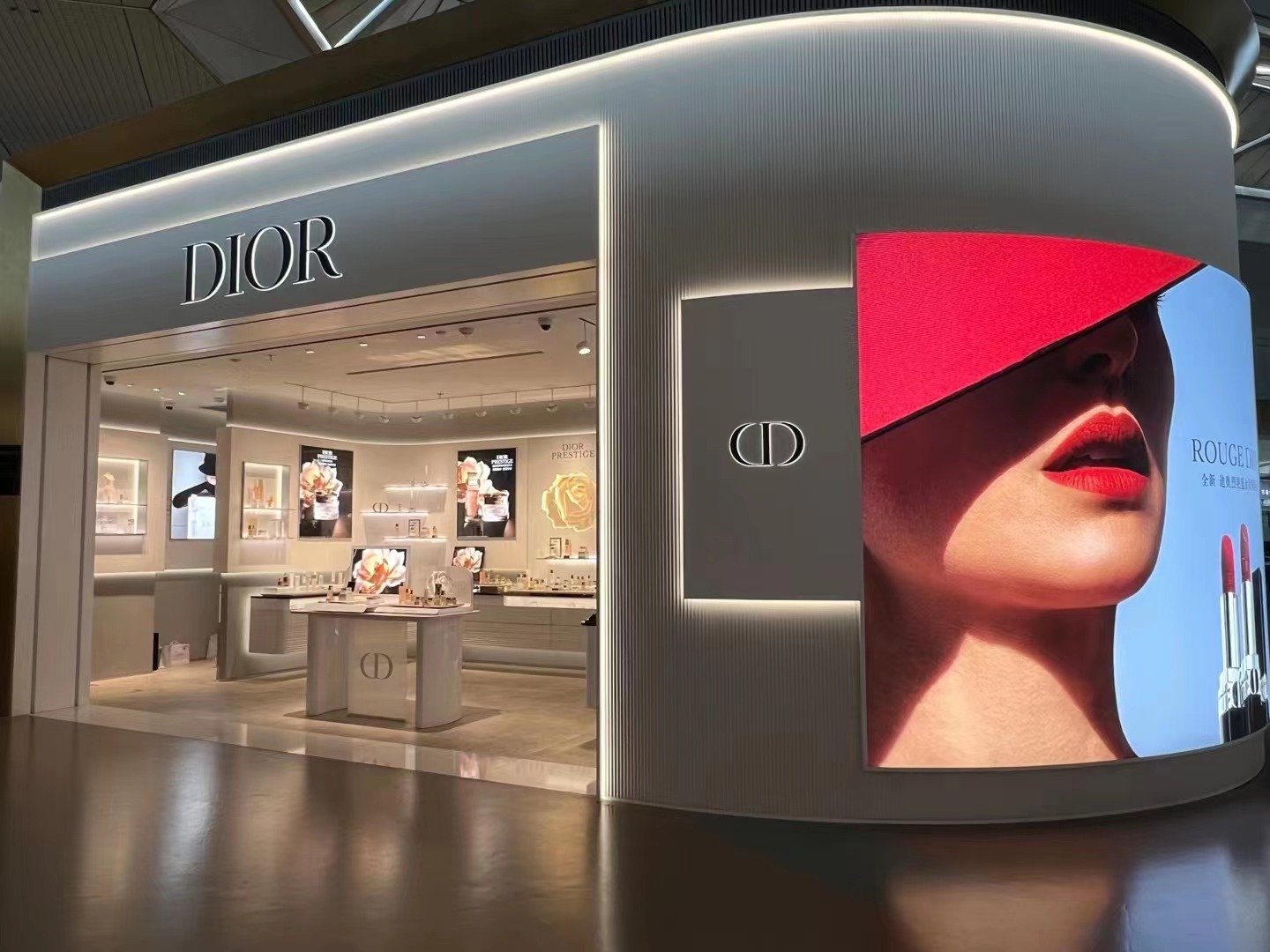

Building Facades

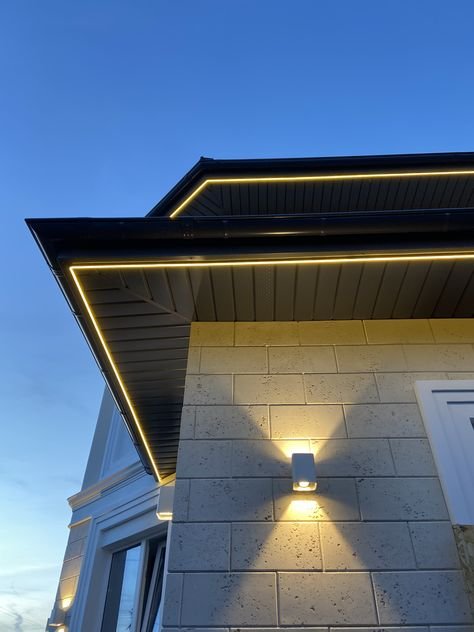

Cove Lighting

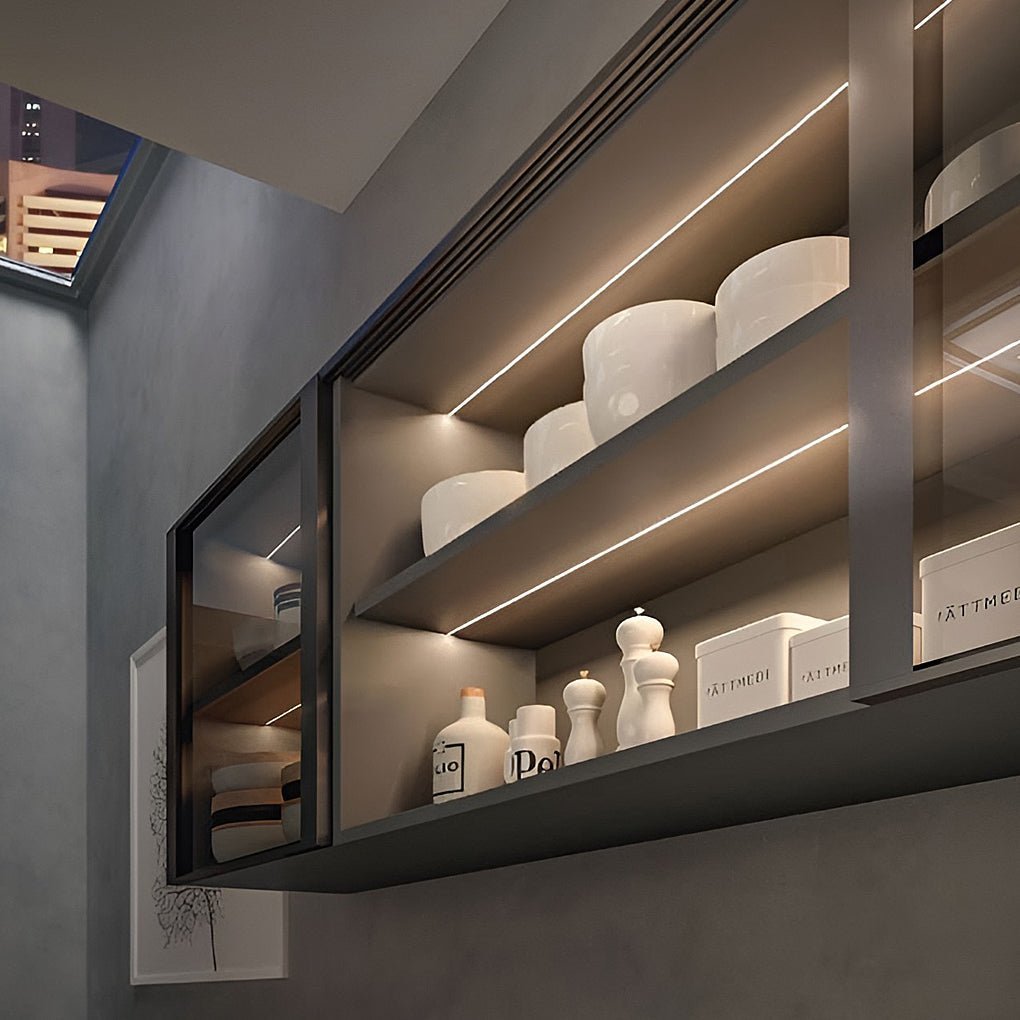

Retail Displays

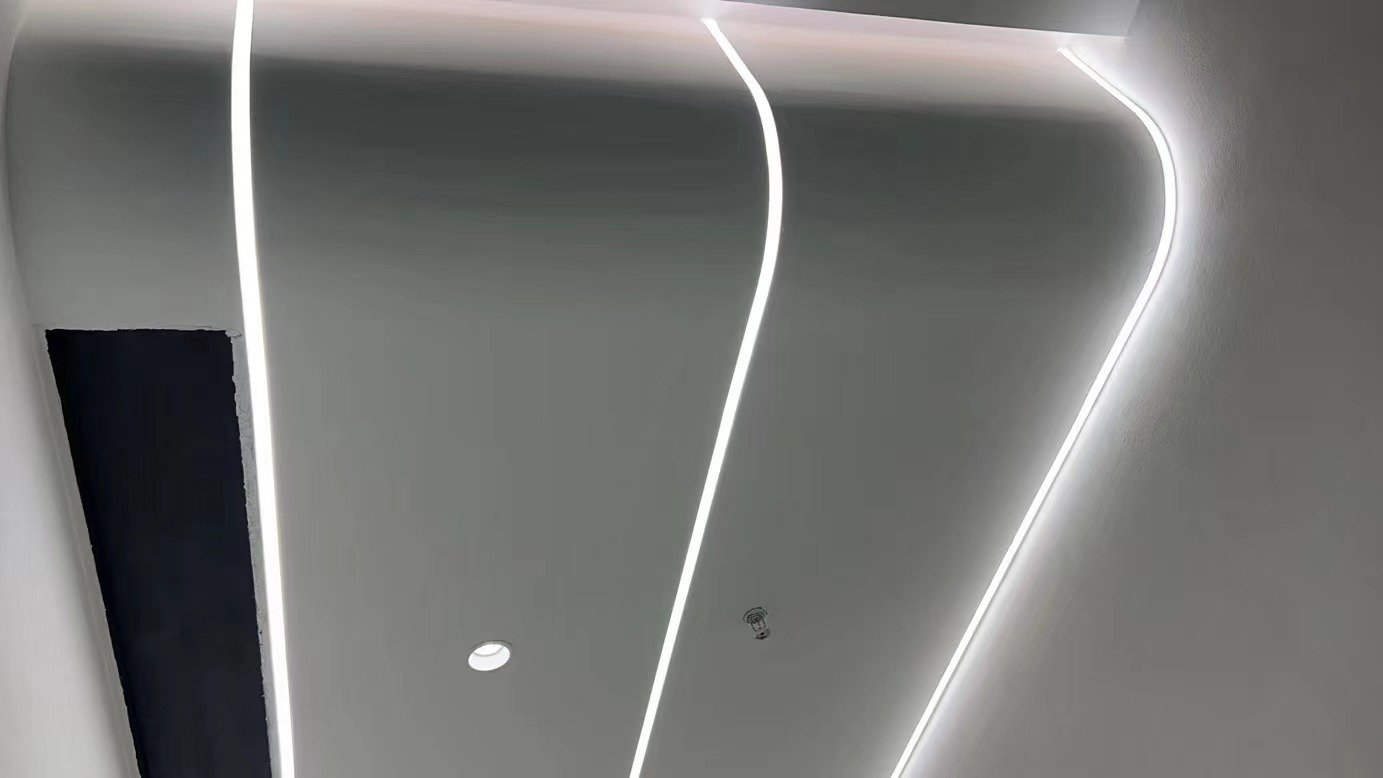

Architectural Lighting

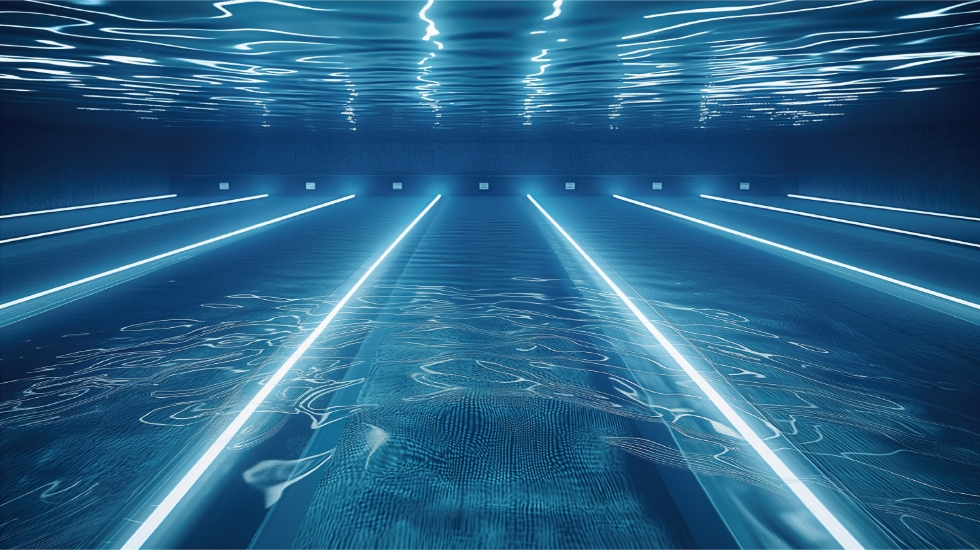

Marine / Underwater Lighting
Quick Series Overview
Material Options
Silicone / PU
IP Grades
IP65 / IP67 / IP68
Main Bend Types
Vertical / Horizontal / 3D / 360°
Power Options
CC (up to 30m) / CV (up to 5m)
How to produce?
LED Neon Flex
Engineered for absolute structural integrity and optical consistency. Explore our advanced 6-step extrusion and vulcanization process direct from our Vietnam facility.

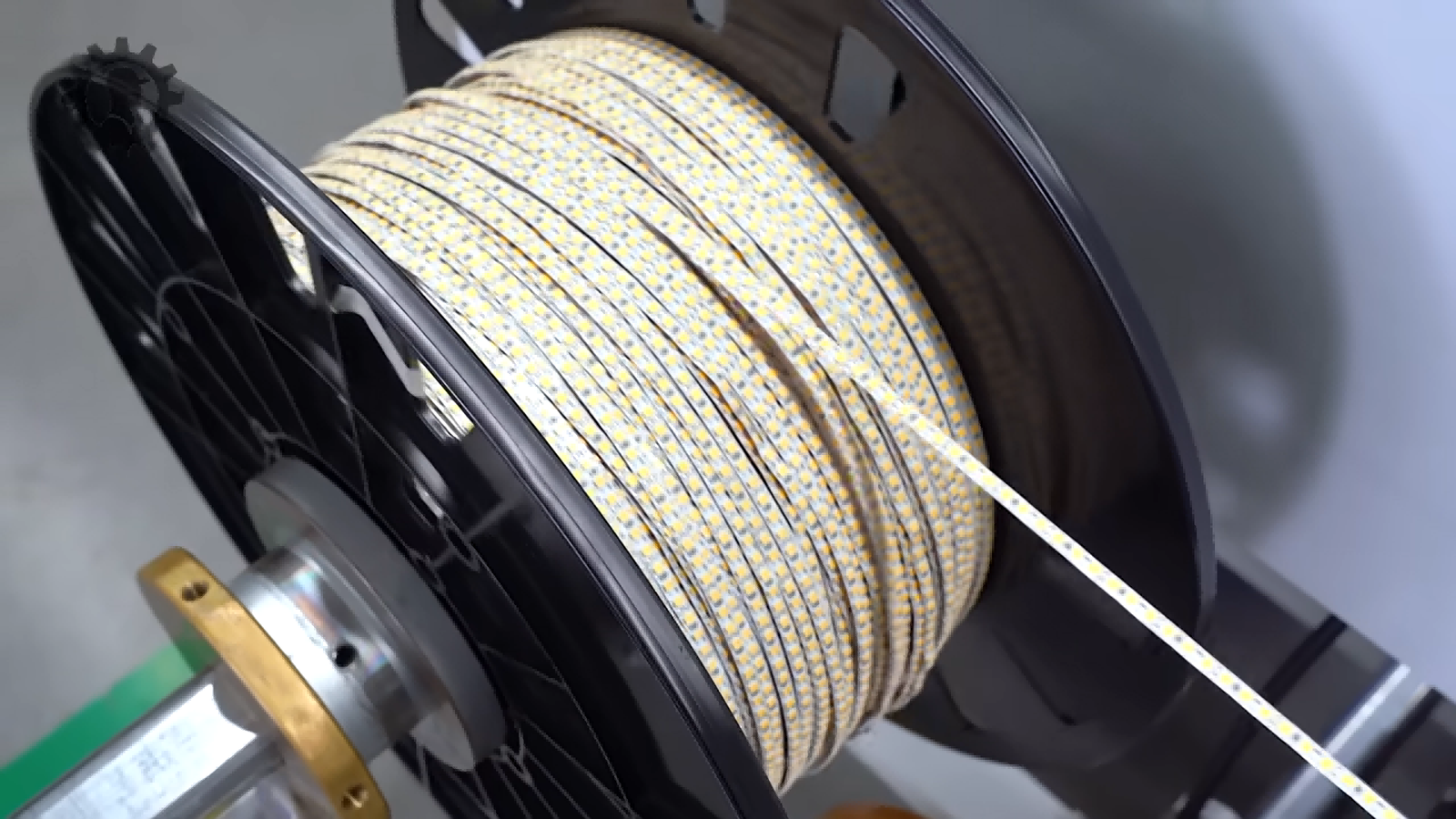

Precision LED Preparation
The foundation of optical consistency begins here. We meticulously prepare and inspect bare LED strips (IP20) to ensure zero defect tolerance before the encapsulation phase.

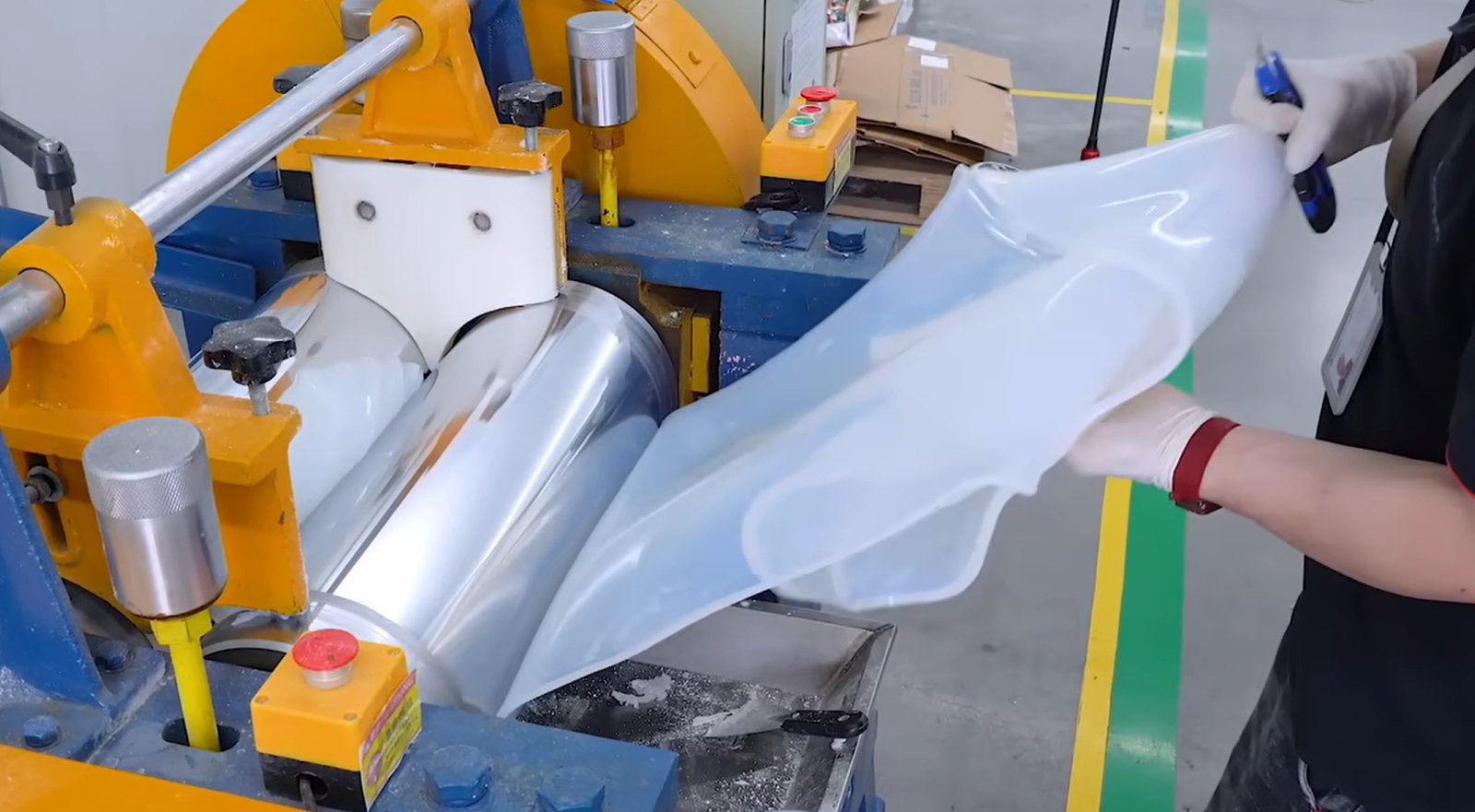

Silicone Formulation
Advanced aerospace-grade mixing technology ensures custom silicone compounds deliver maximum UV resistance and perfect light diffusion.

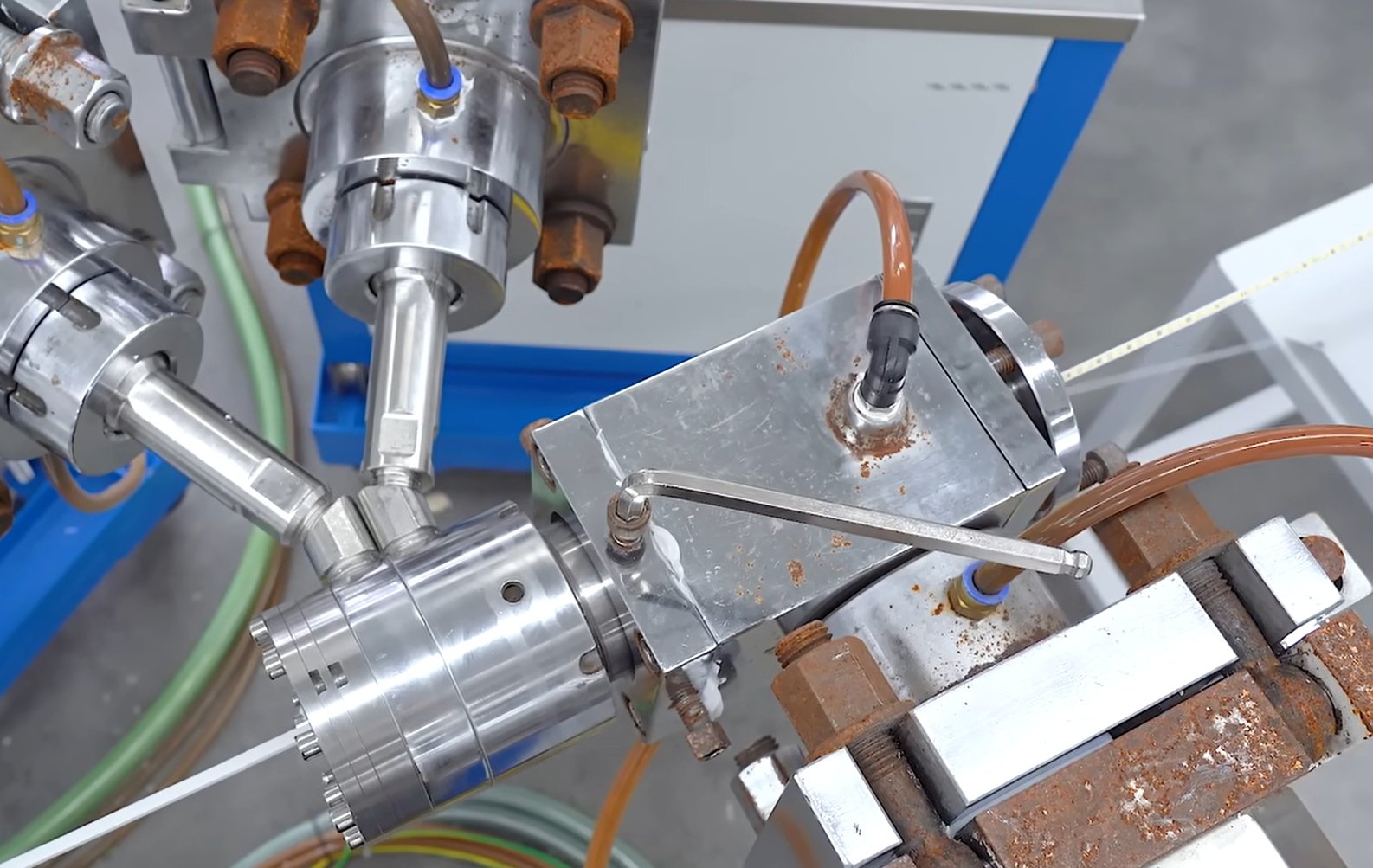

Automated Payoff
Rolling LED strips are installed on the payoff frame, adjusted, and sequenced with pinpoint accuracy via our precision alignment tables.
Co-Extrusion & Encapsulation
LED strips and silicone converge through a pre-assembled die. Electronic controls dictate the exact wrapping pressure, creating a seamless, watertight structural seal.

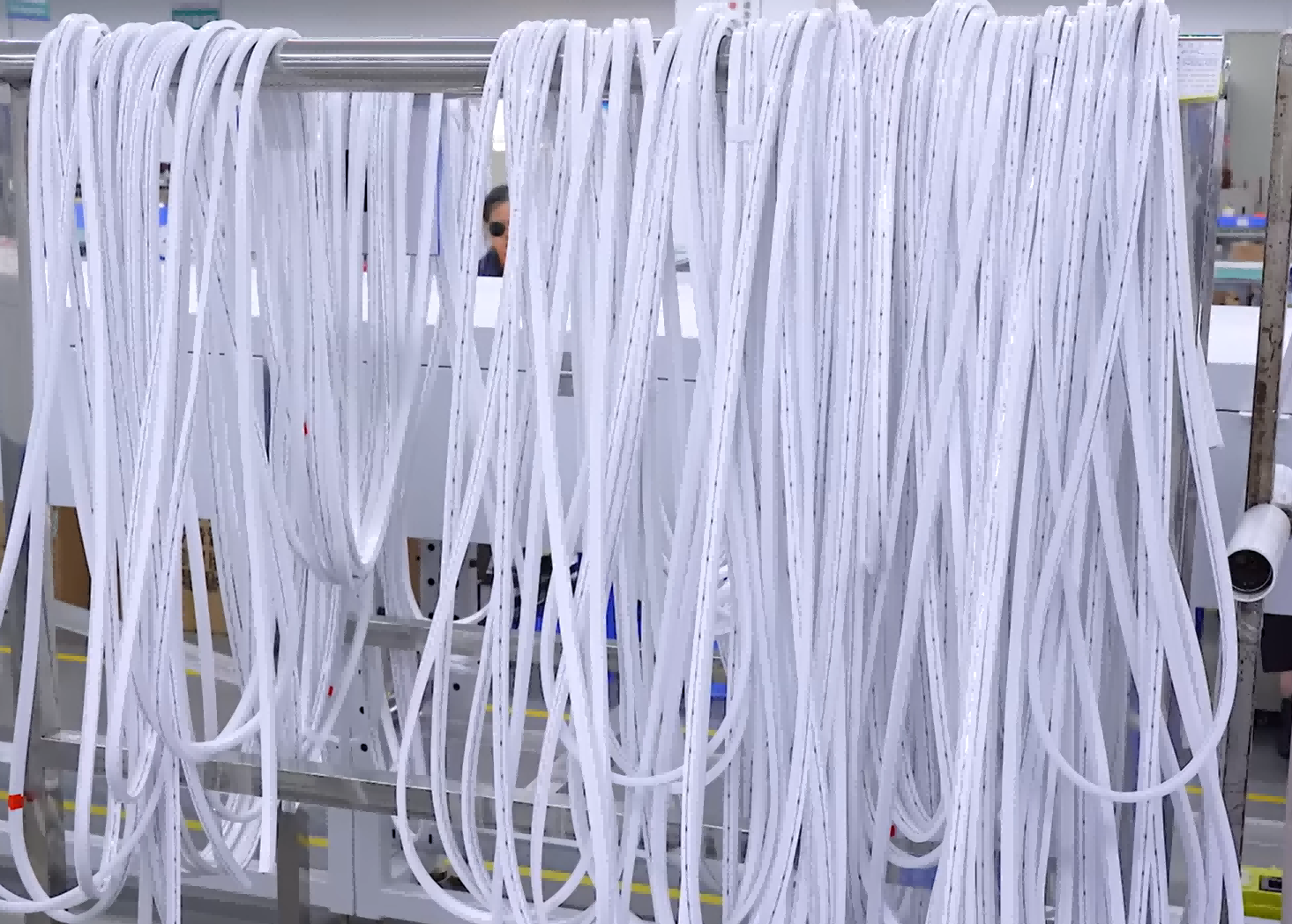

Thermal Vulcanization
The extruded profile passes through a precision-controlled vulcanizing oven. Moderate temperatures ensure shaping without degrading LED beads, smoothly pulled by an automated tractor.

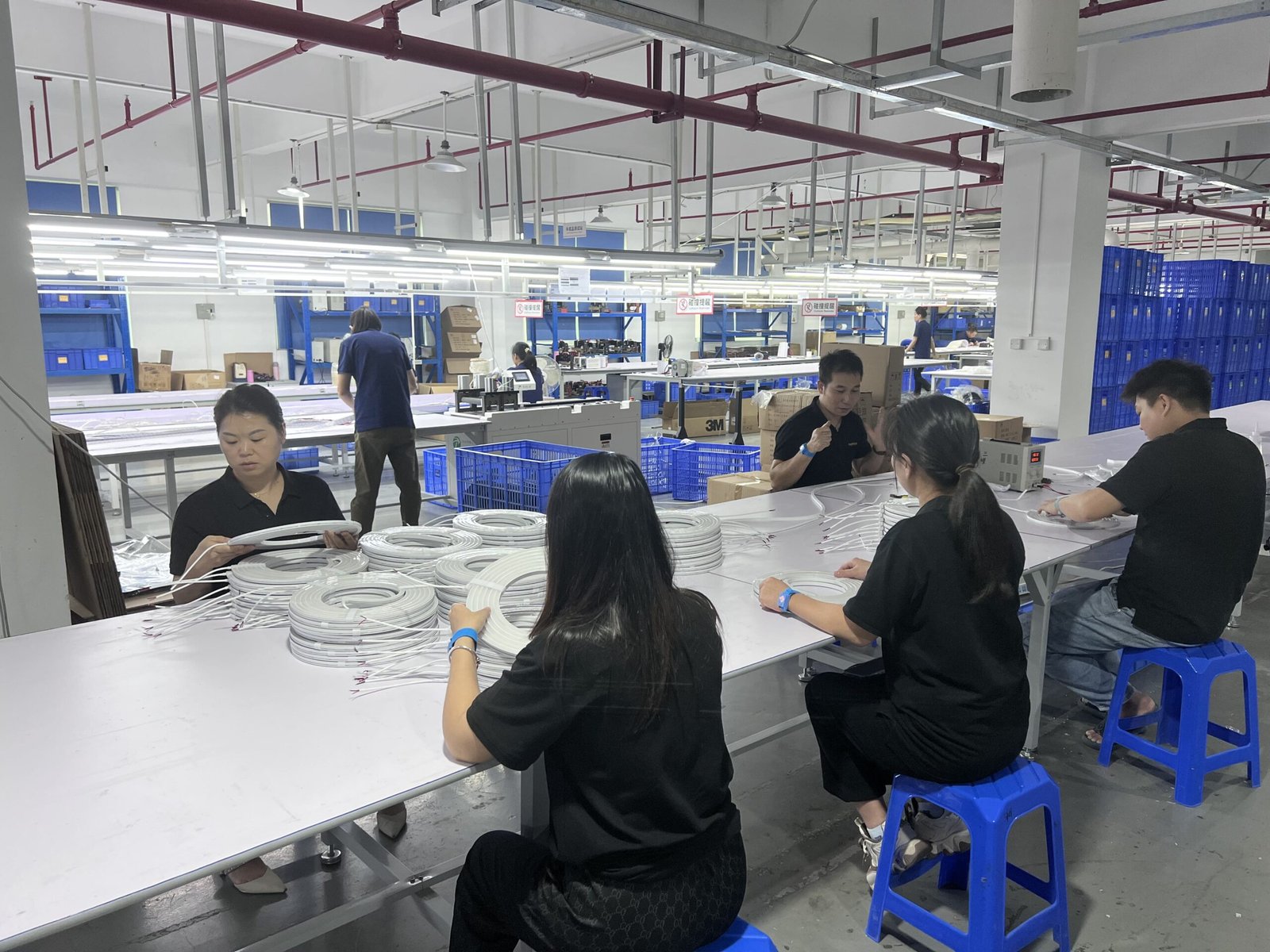

Rigorous QA & Assembly
Comprehensive semi-product testing, precise cutting, and secure cable connectivity ensure flawless performance.
How to Cut and Connect Neon Flex

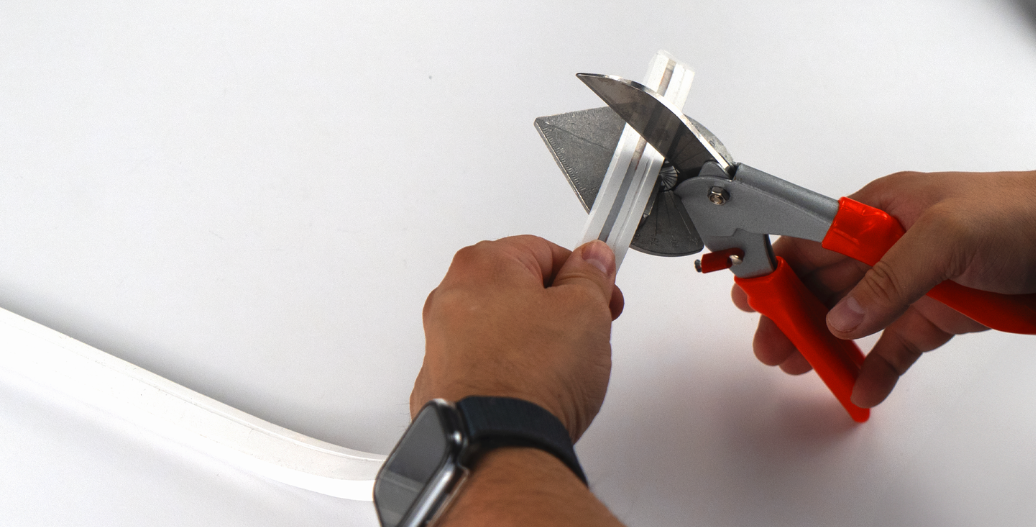

Cut by Neon Strip Cutter
The traditional and most secure method. Cut at designated marks and solder wires directly to the PCB pads. Requires silicone sealant and endcaps to restore IP rating.

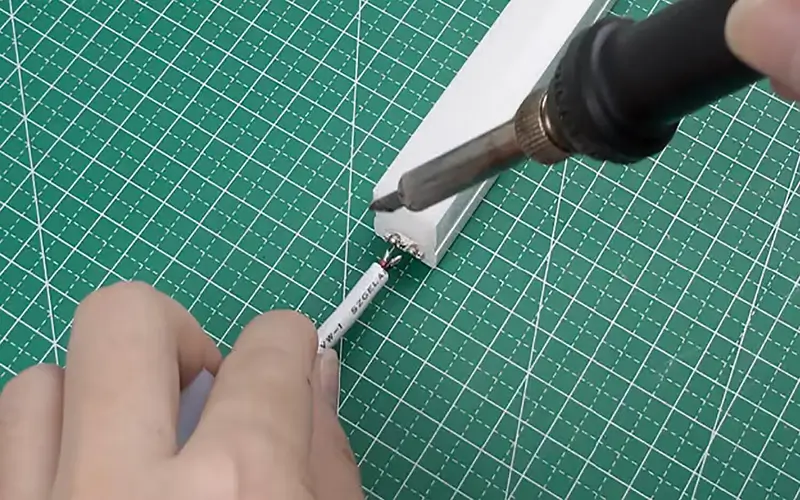

Connect by Soldering & Silicone End Cap
Designed for rapid field installation. Utilize our pin-based connectors to bridge cut sections without specialized tools or soldering equipment.

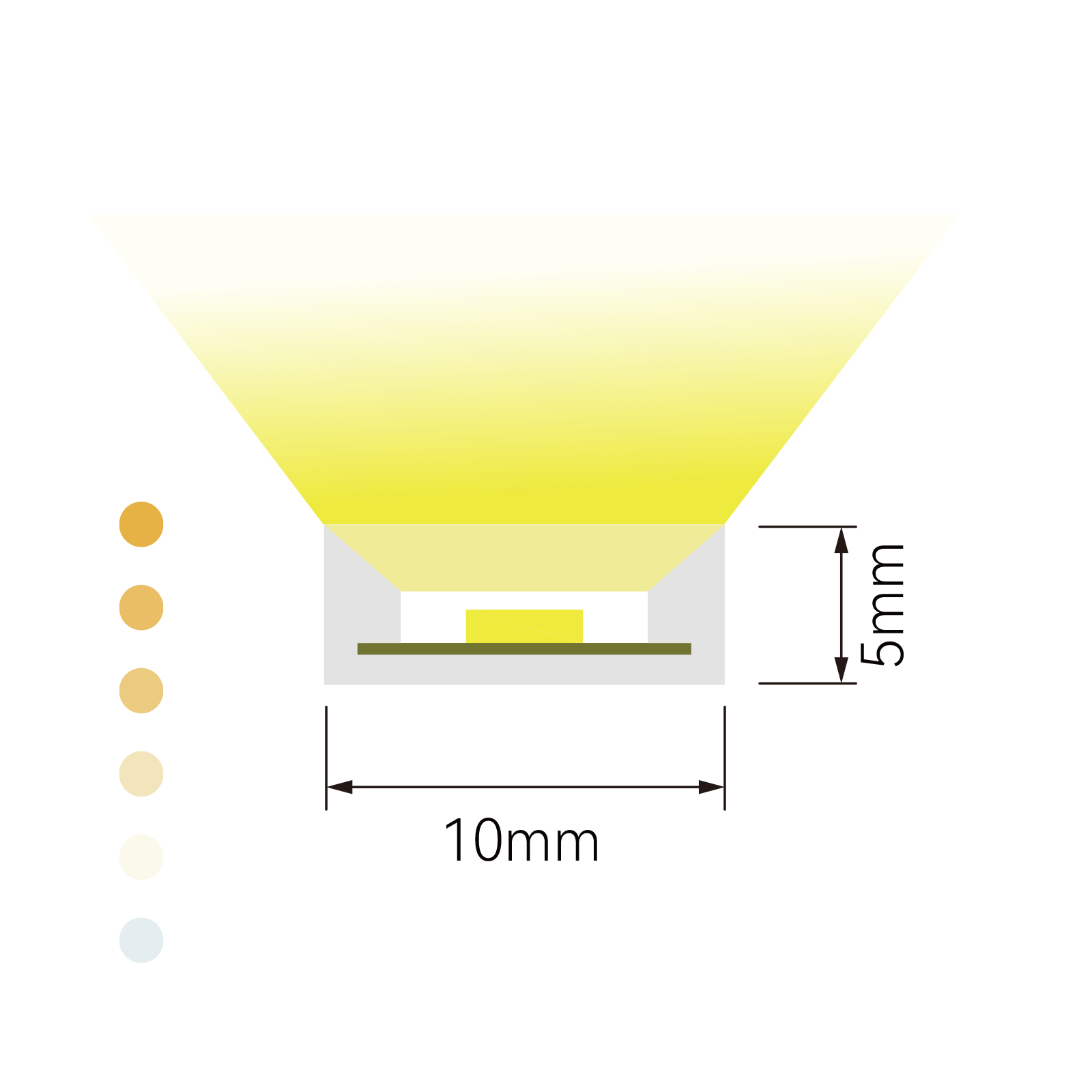

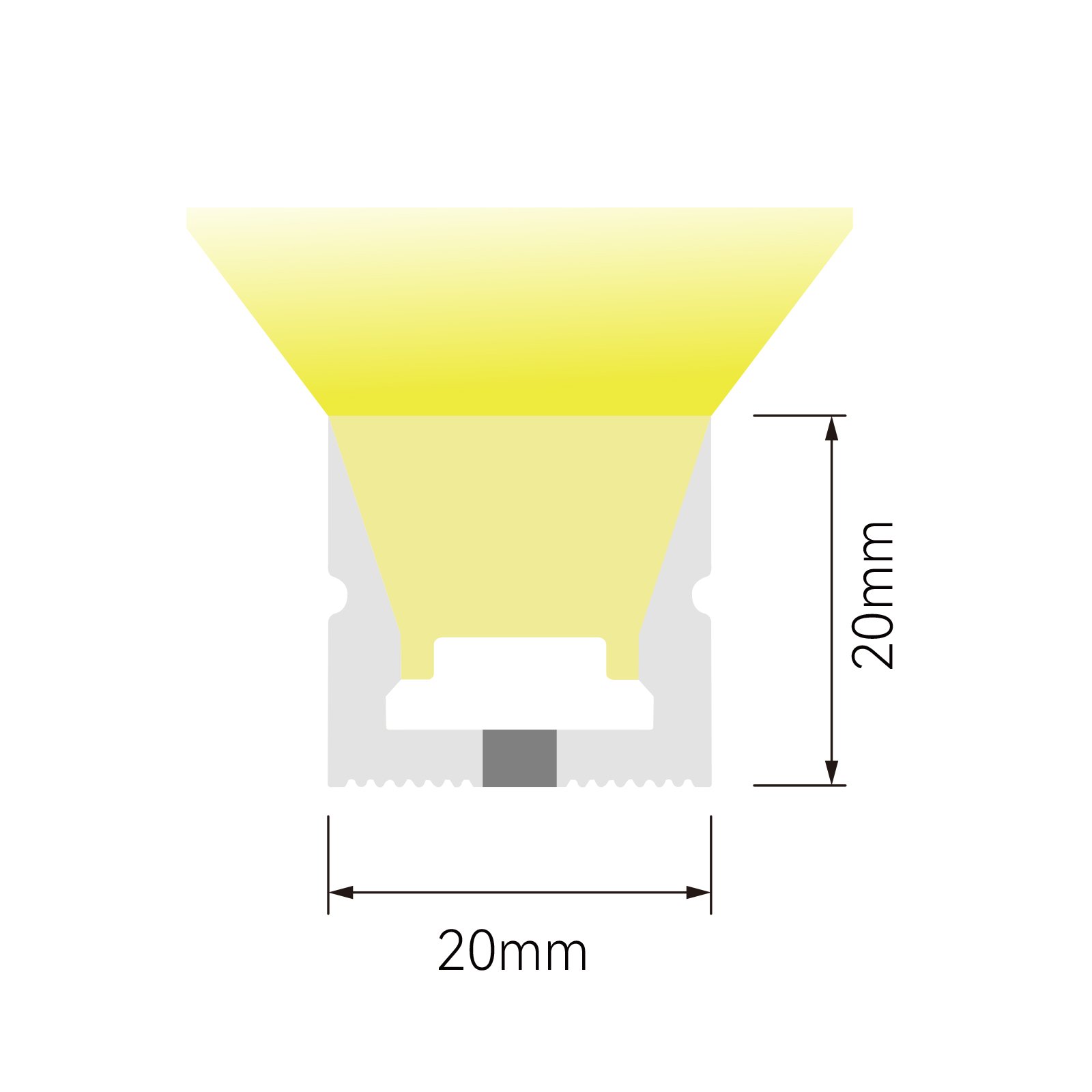

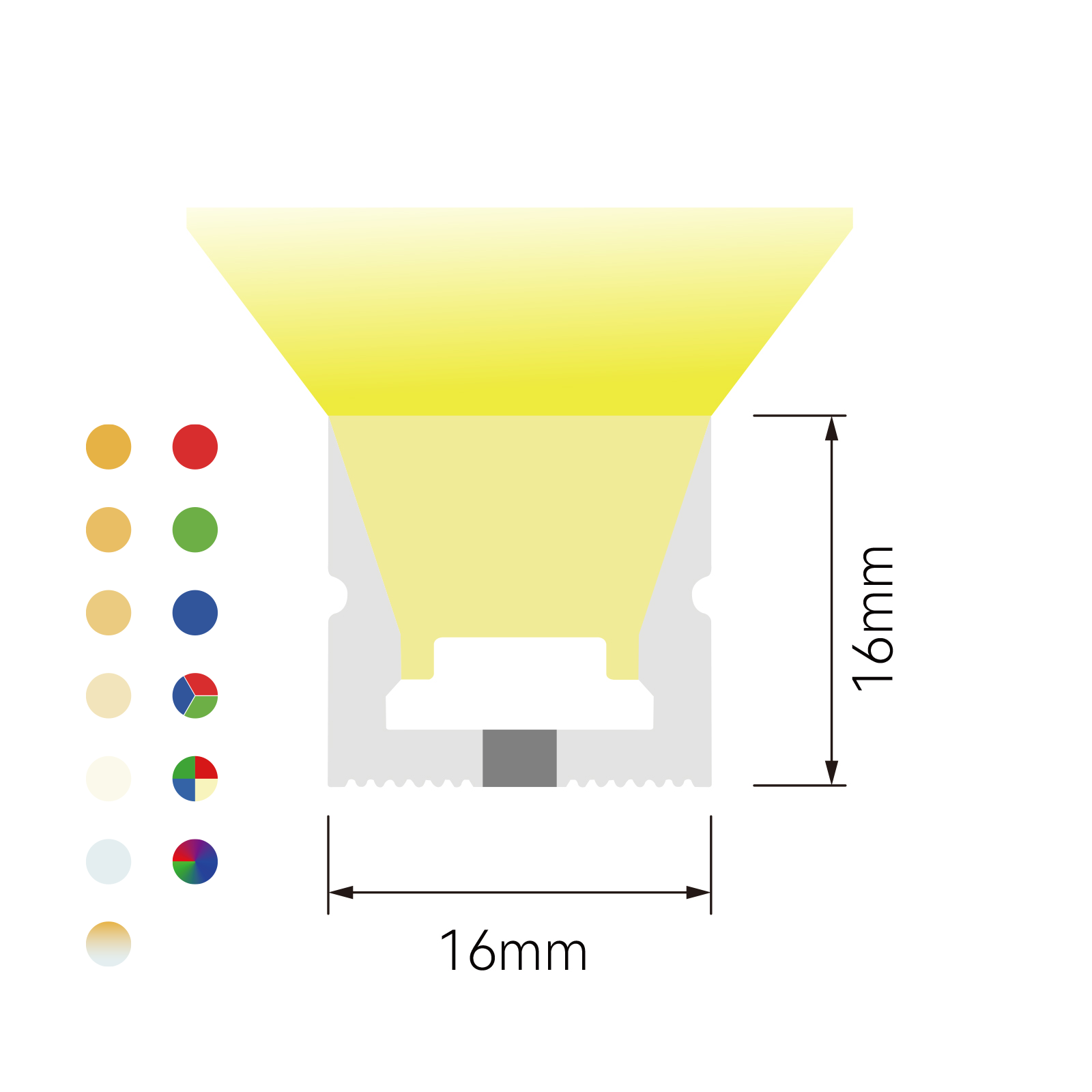

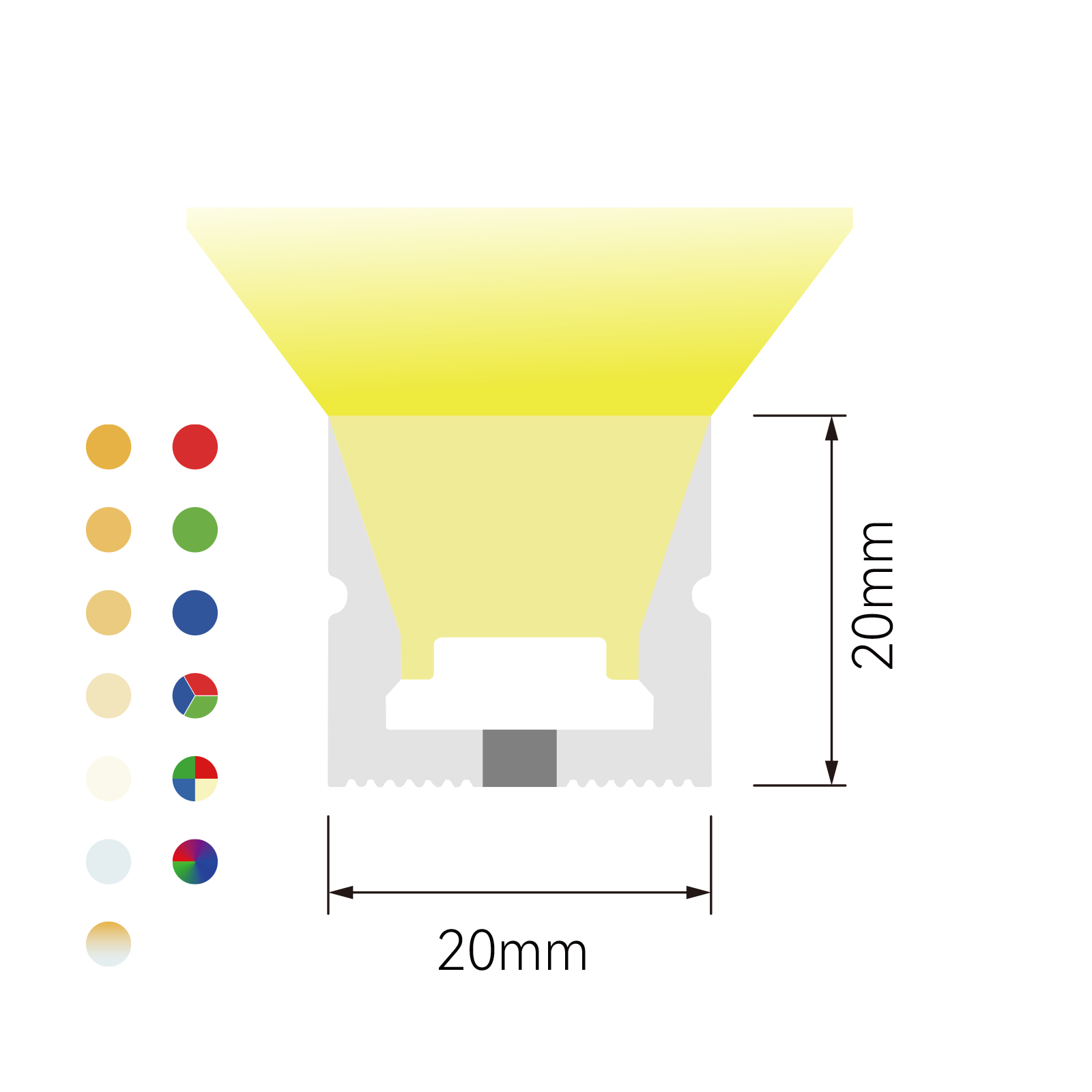

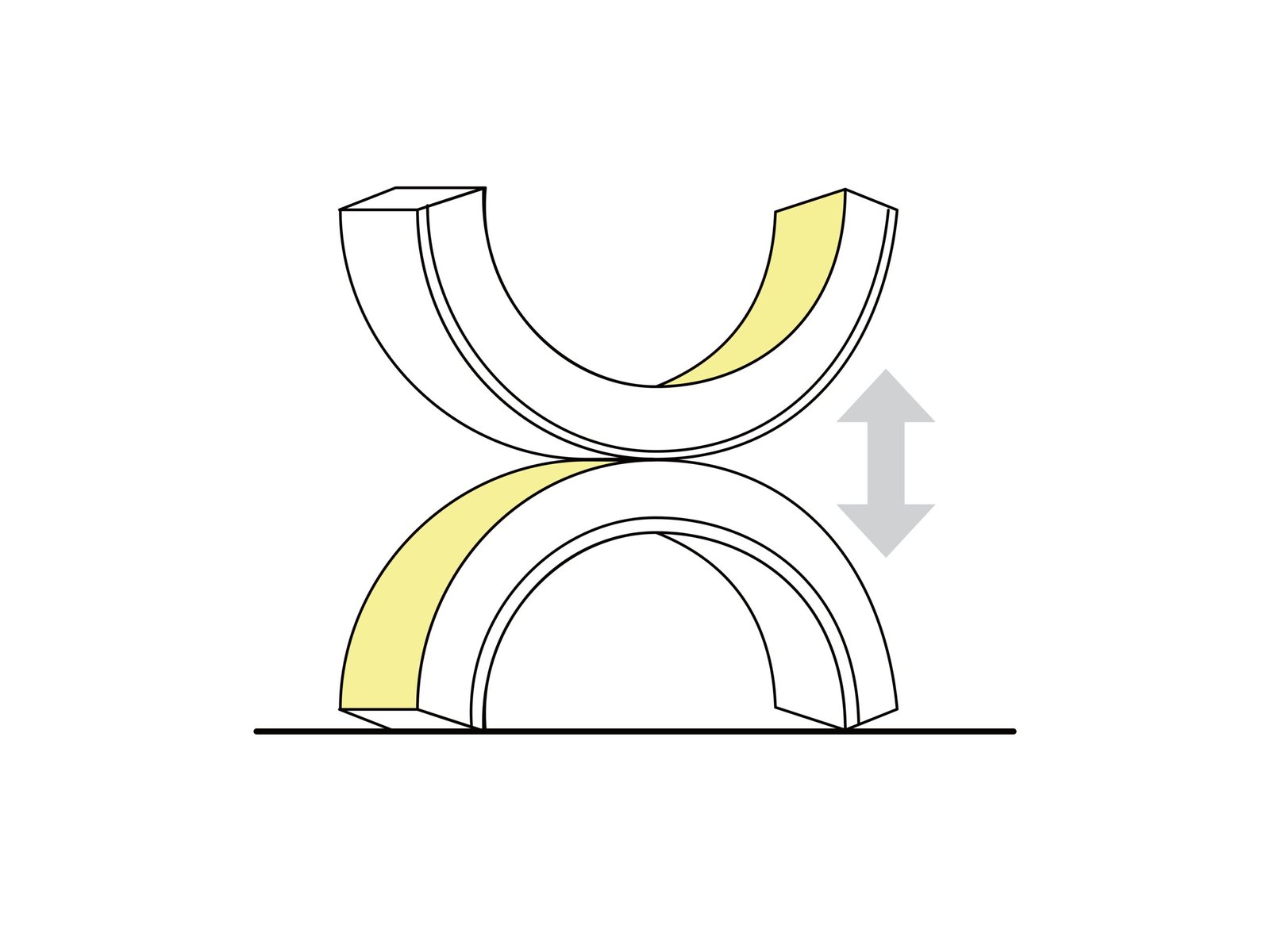

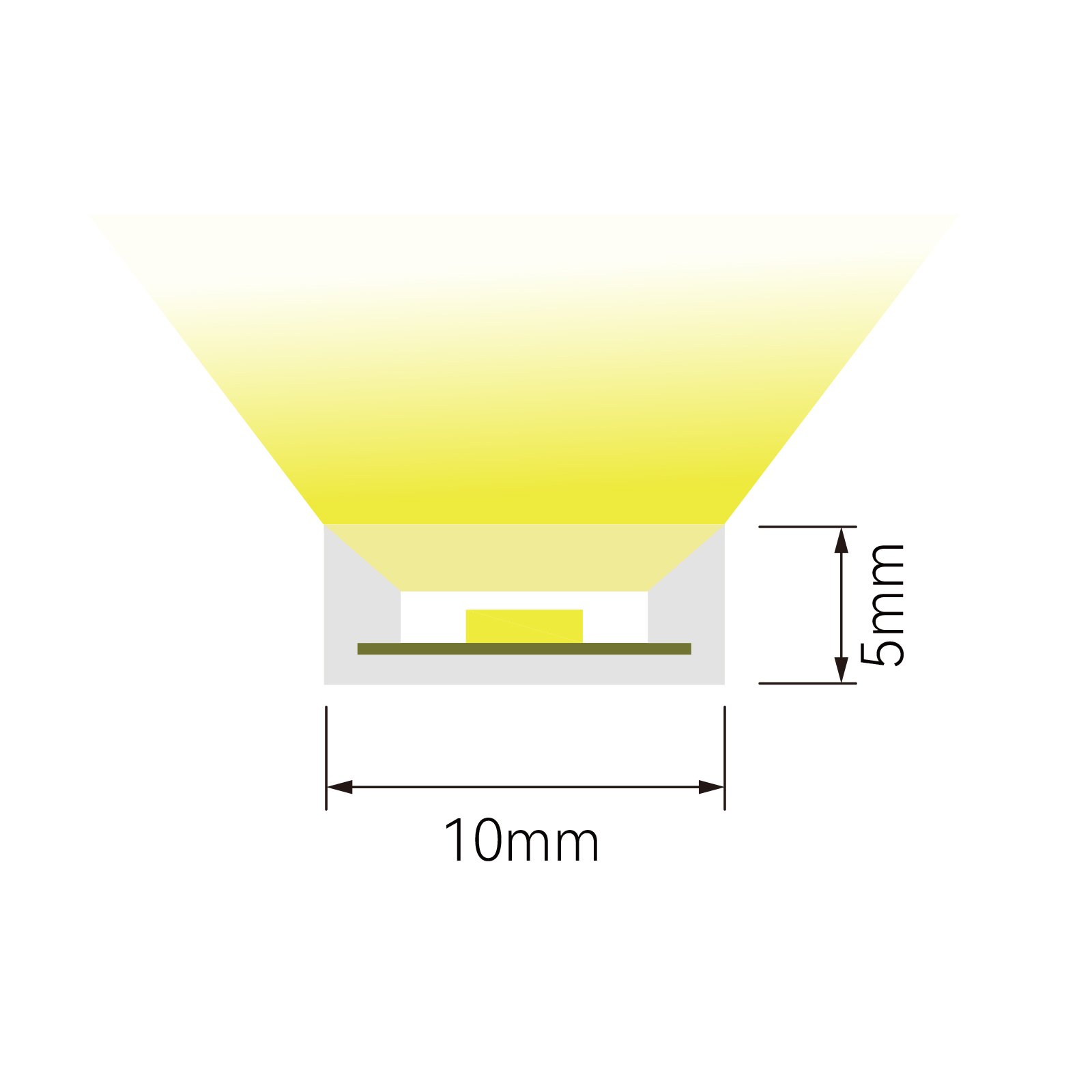

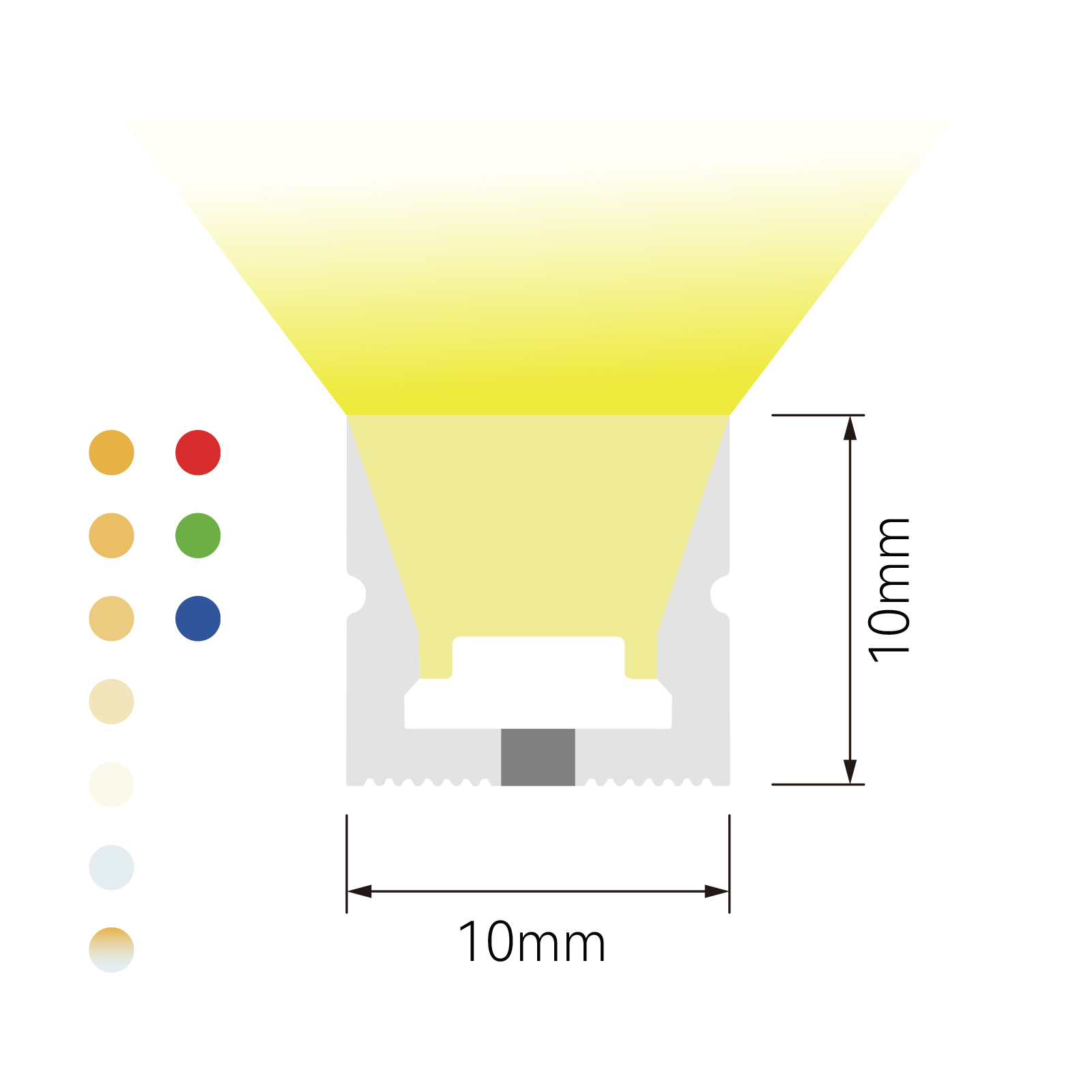

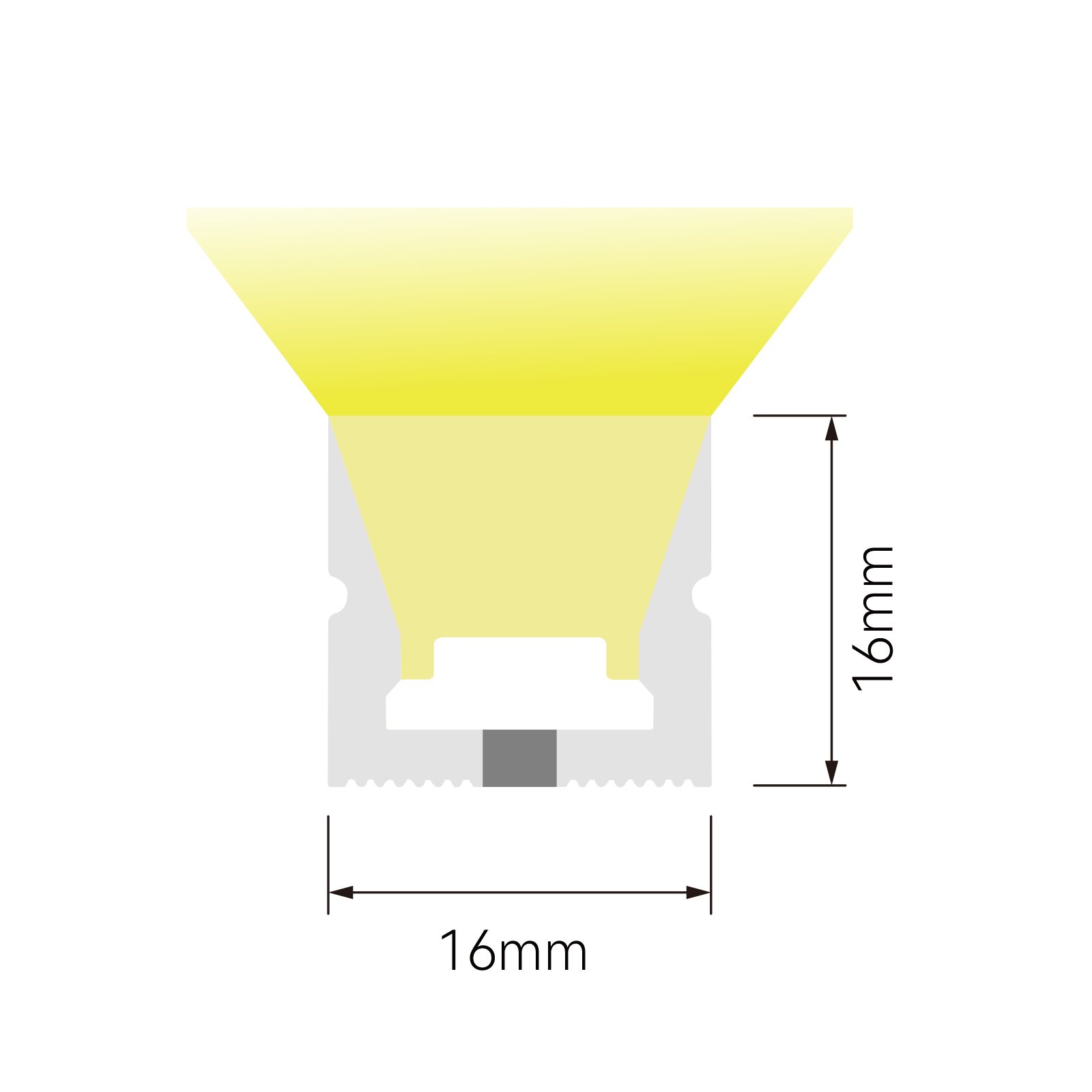

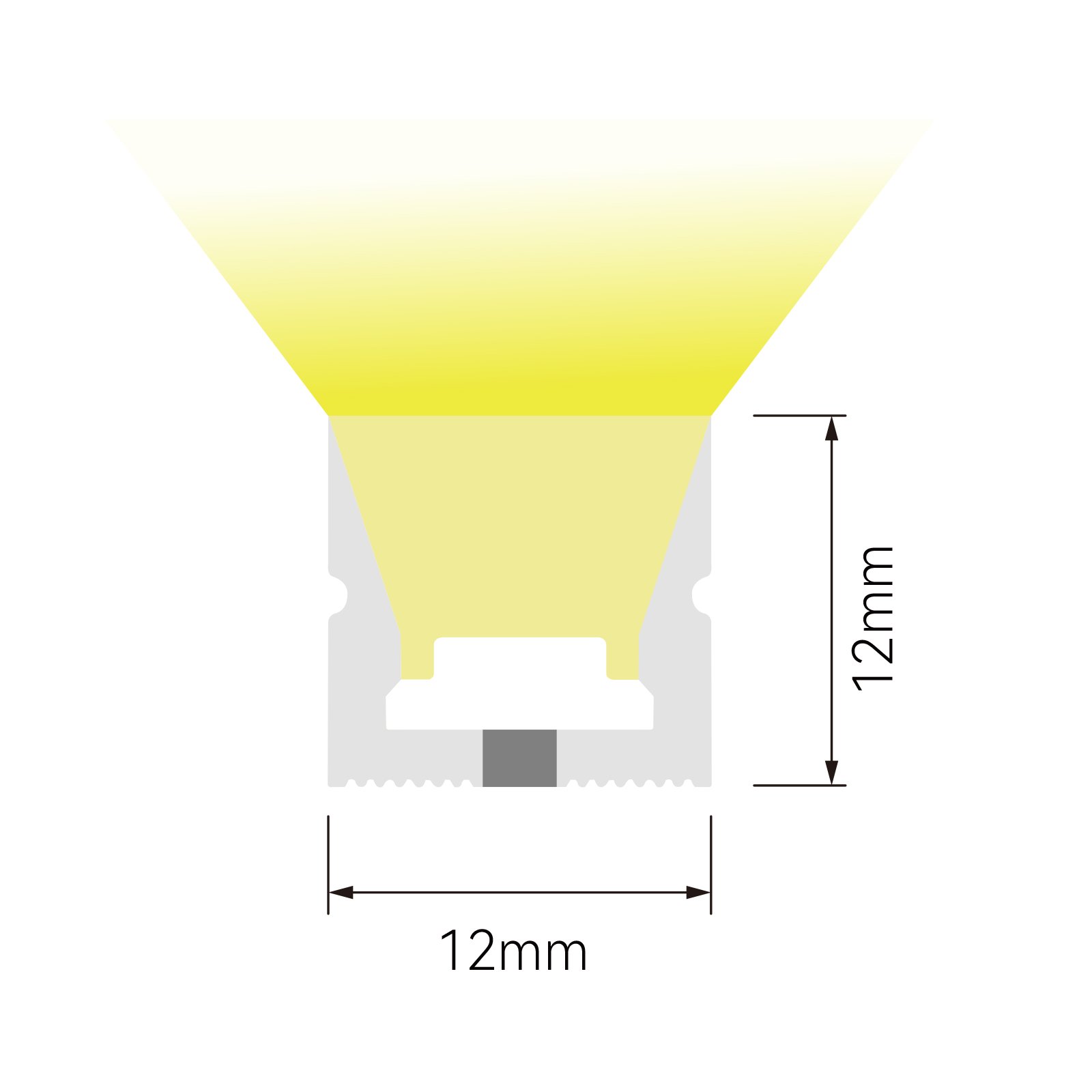

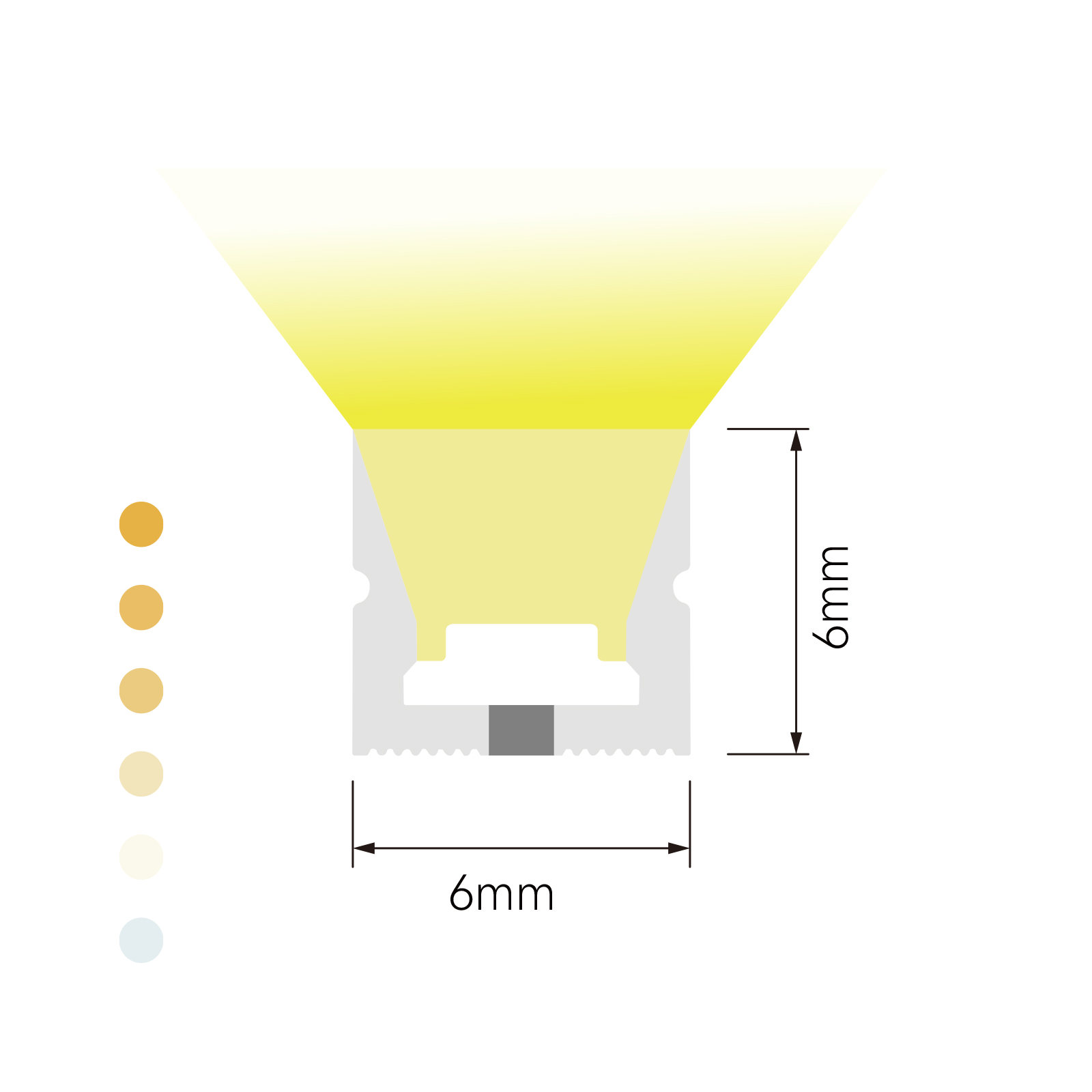

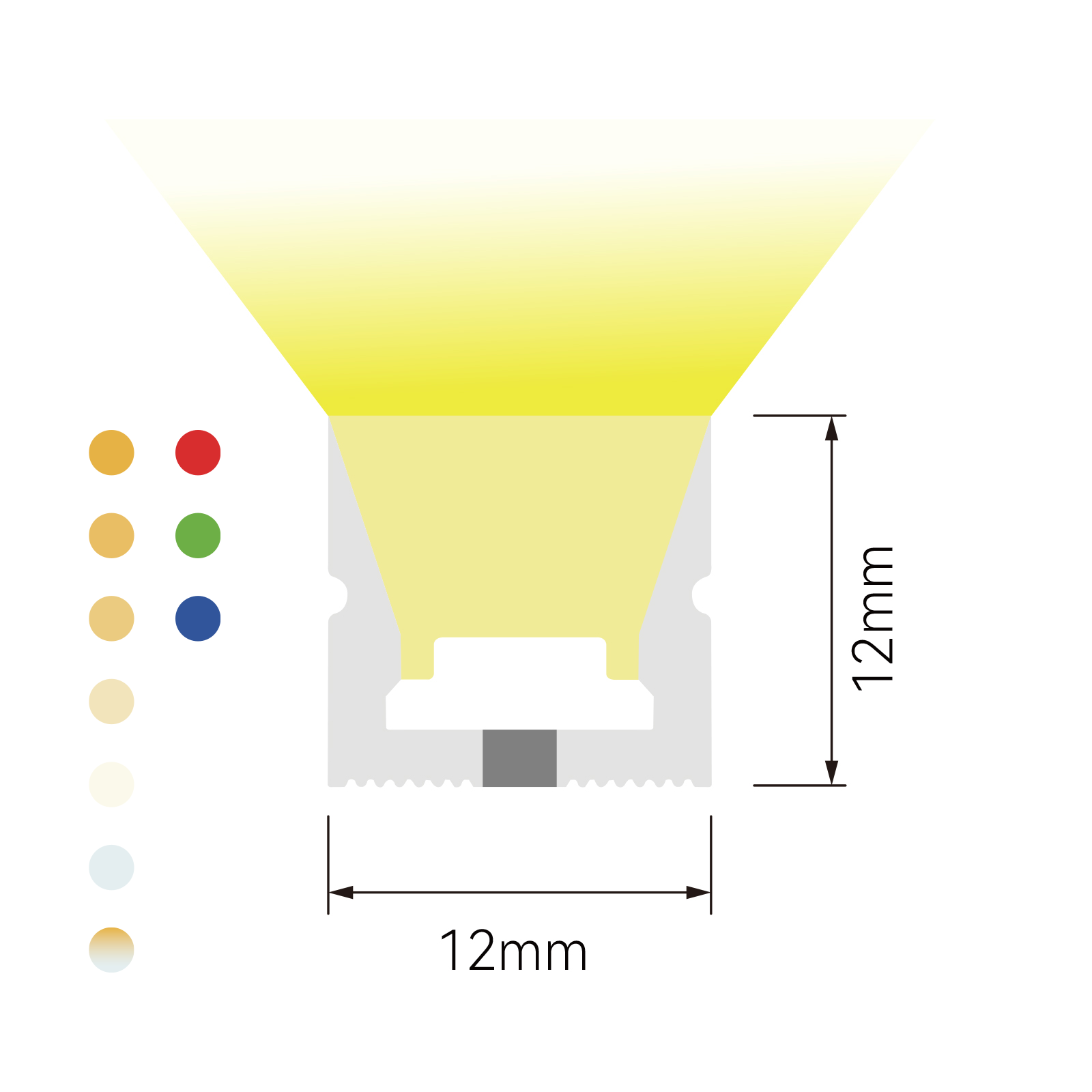

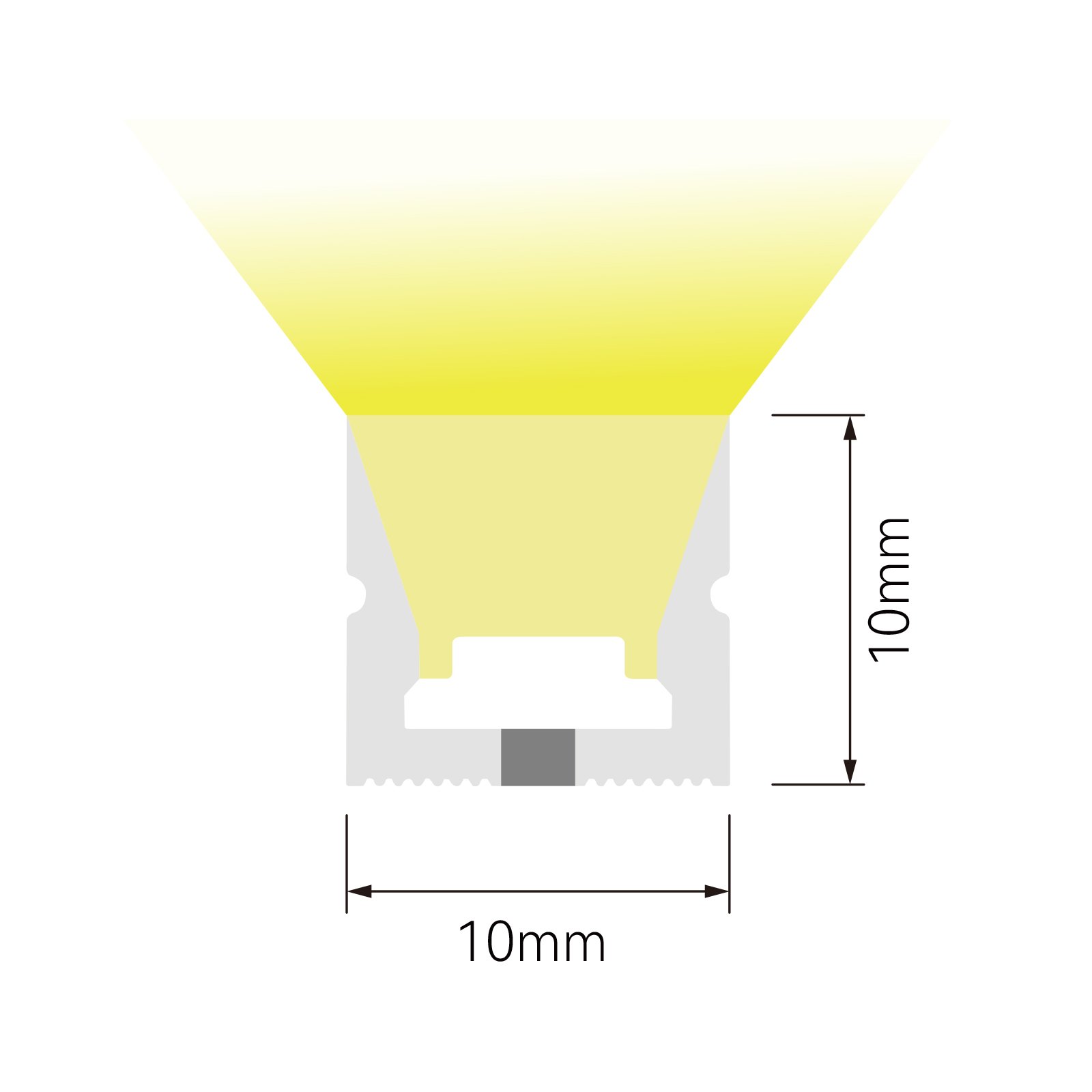

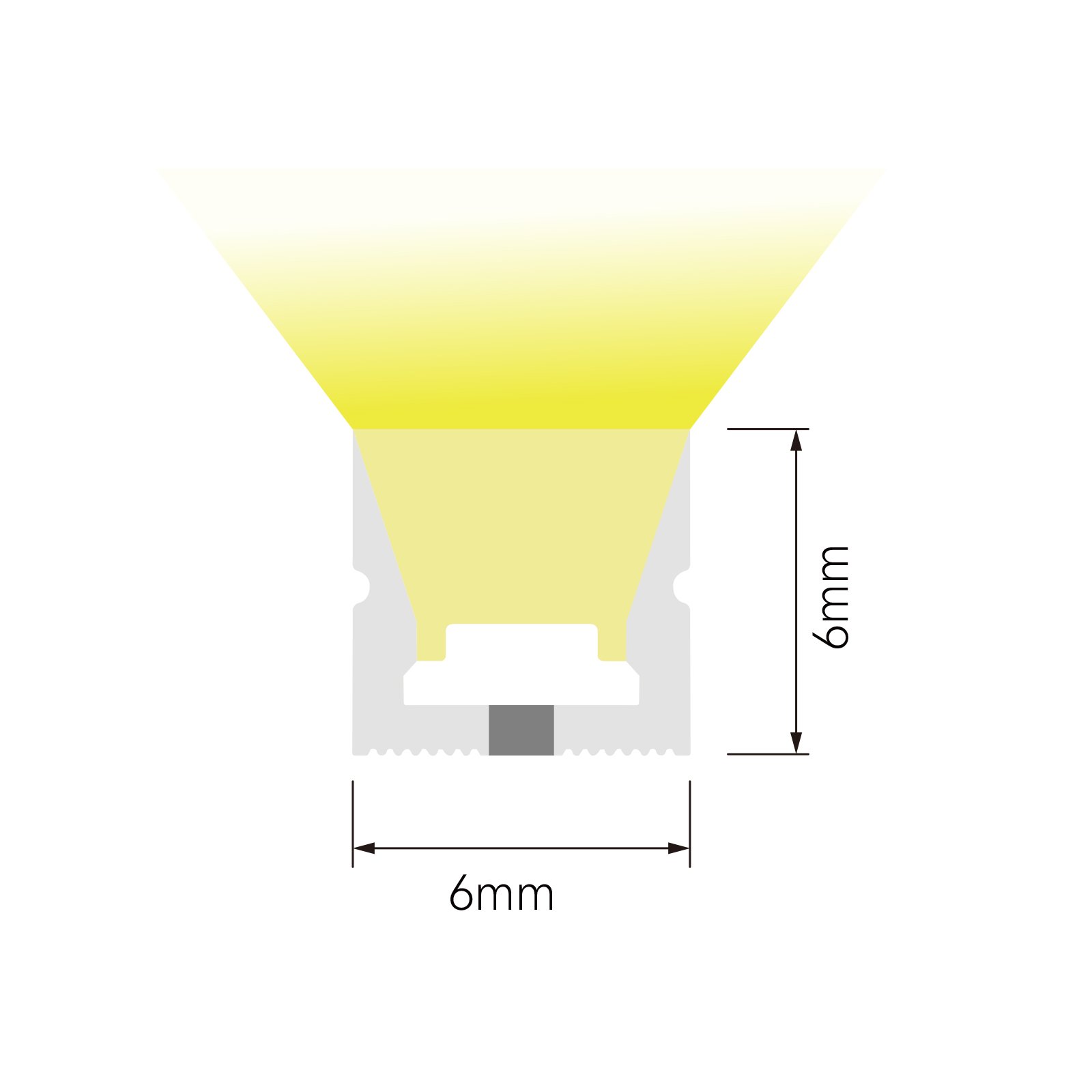

Vertical Bending Series
Engineered with environmental silicone material offering up to IP67 protection. Bends perpendicular to the illuminated surface, making it perfectly suited for wrapping around columns, creating sign lighting, and architectural contour lighting.
- • UV resistant, flame retardant, acid and alkali resistant
- • Top-emitting flat or domed profile options
- • Ideal for indoor and outdoor decorative lighting

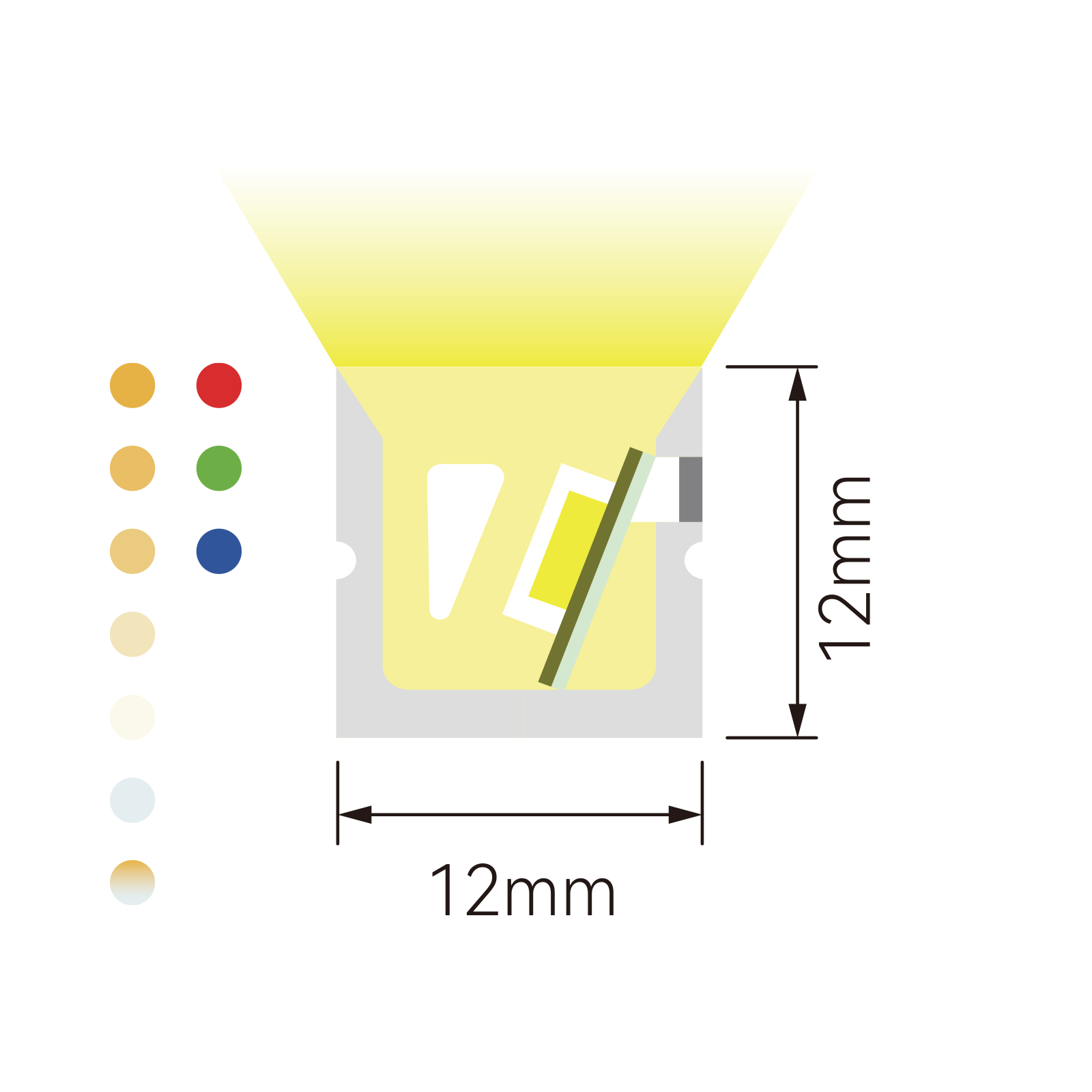

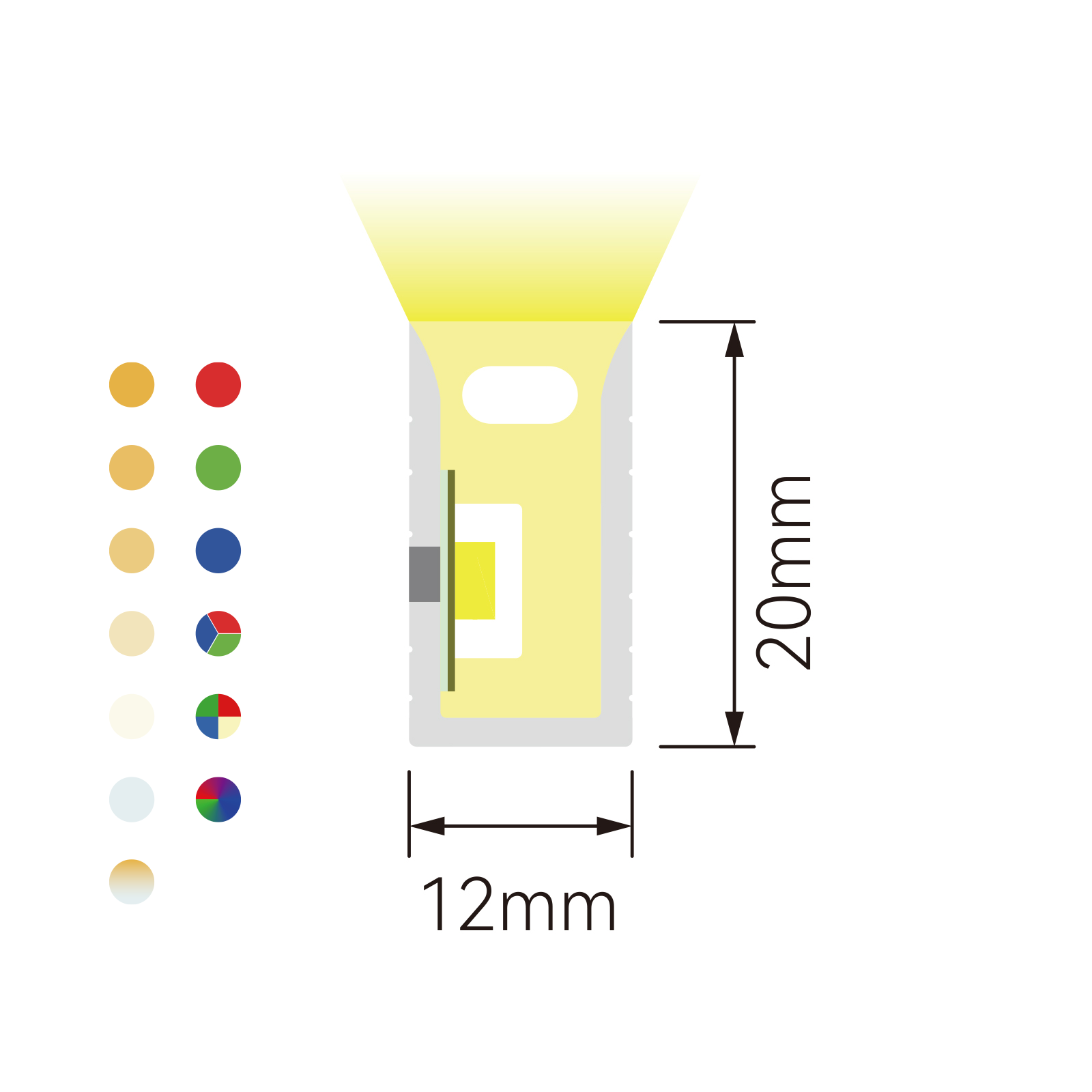

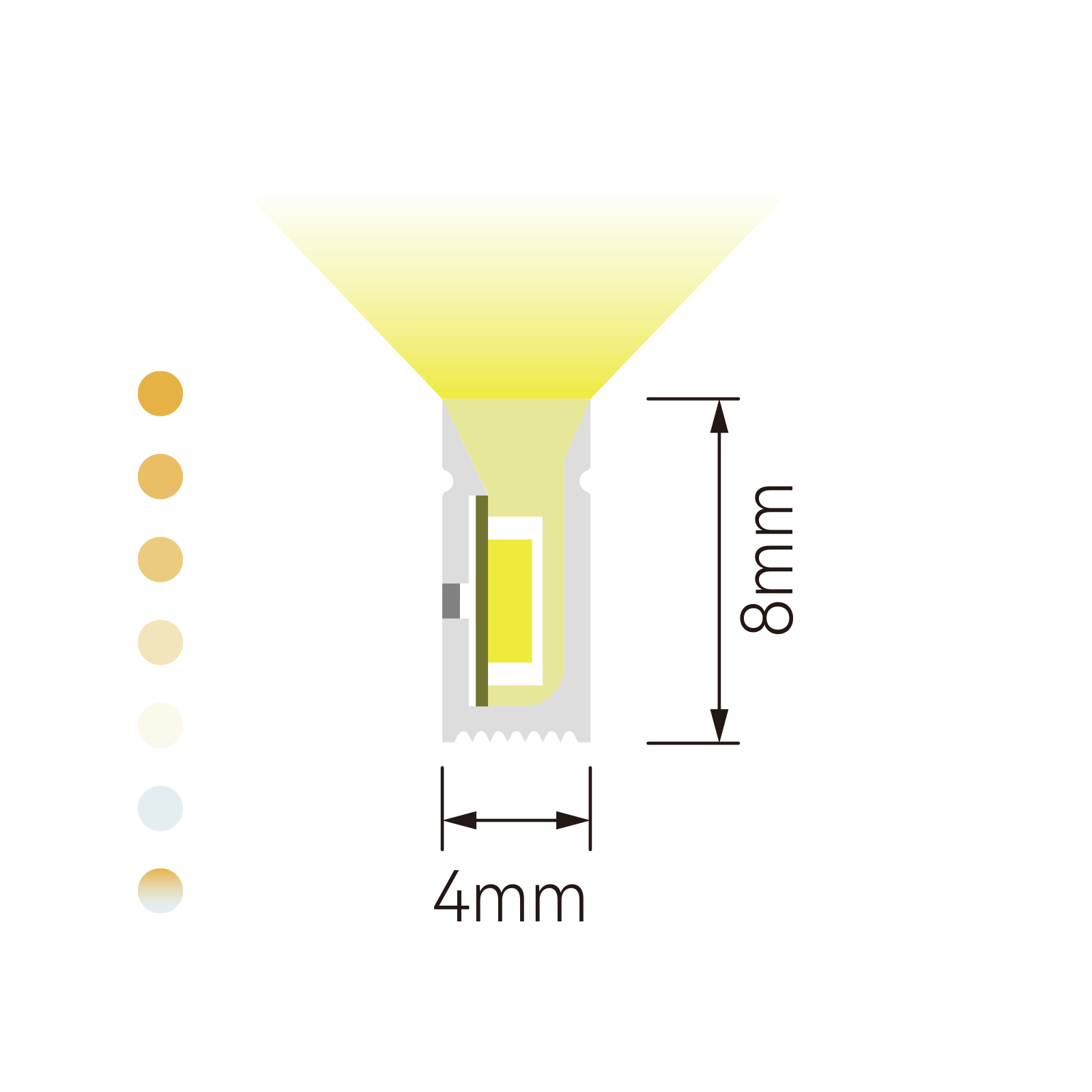

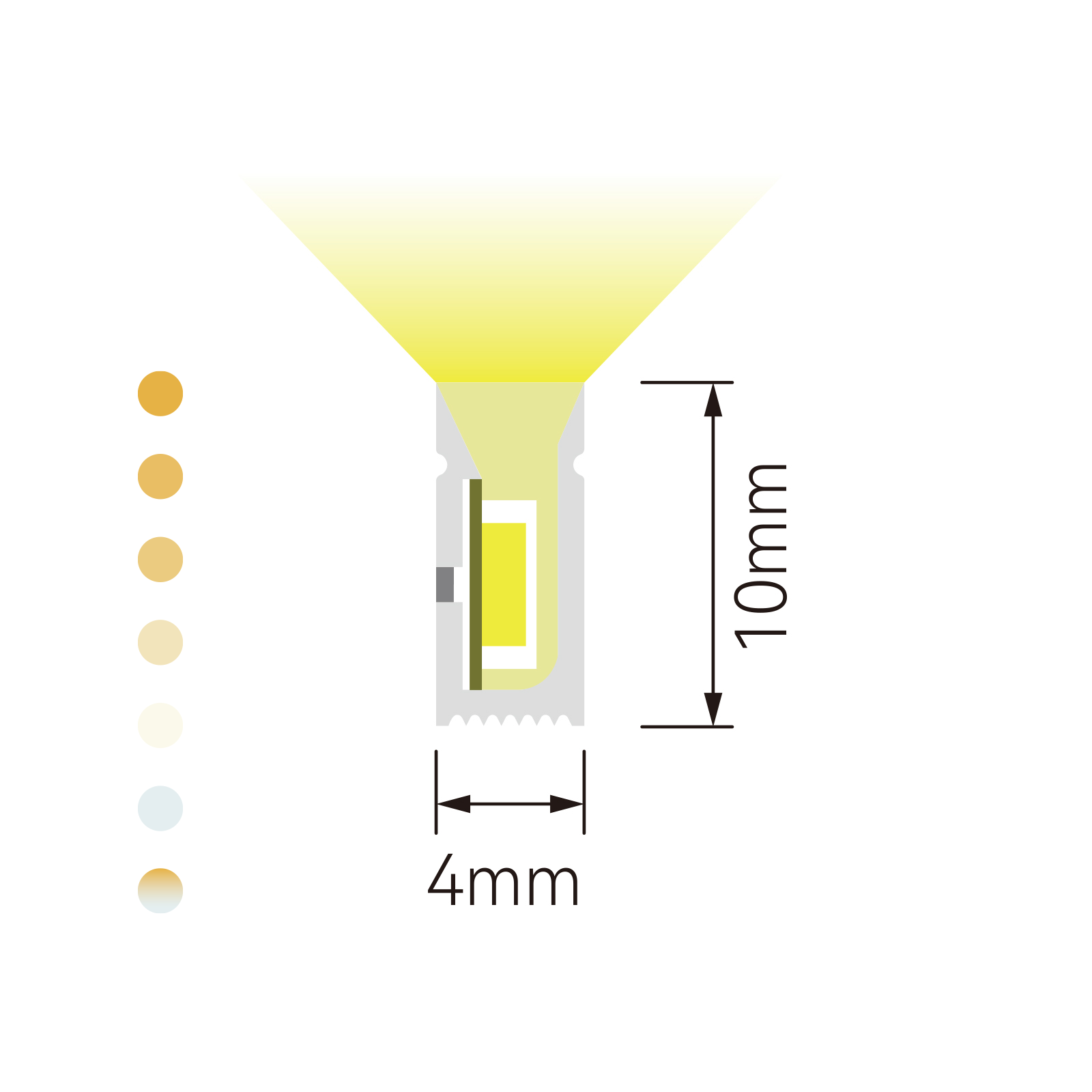

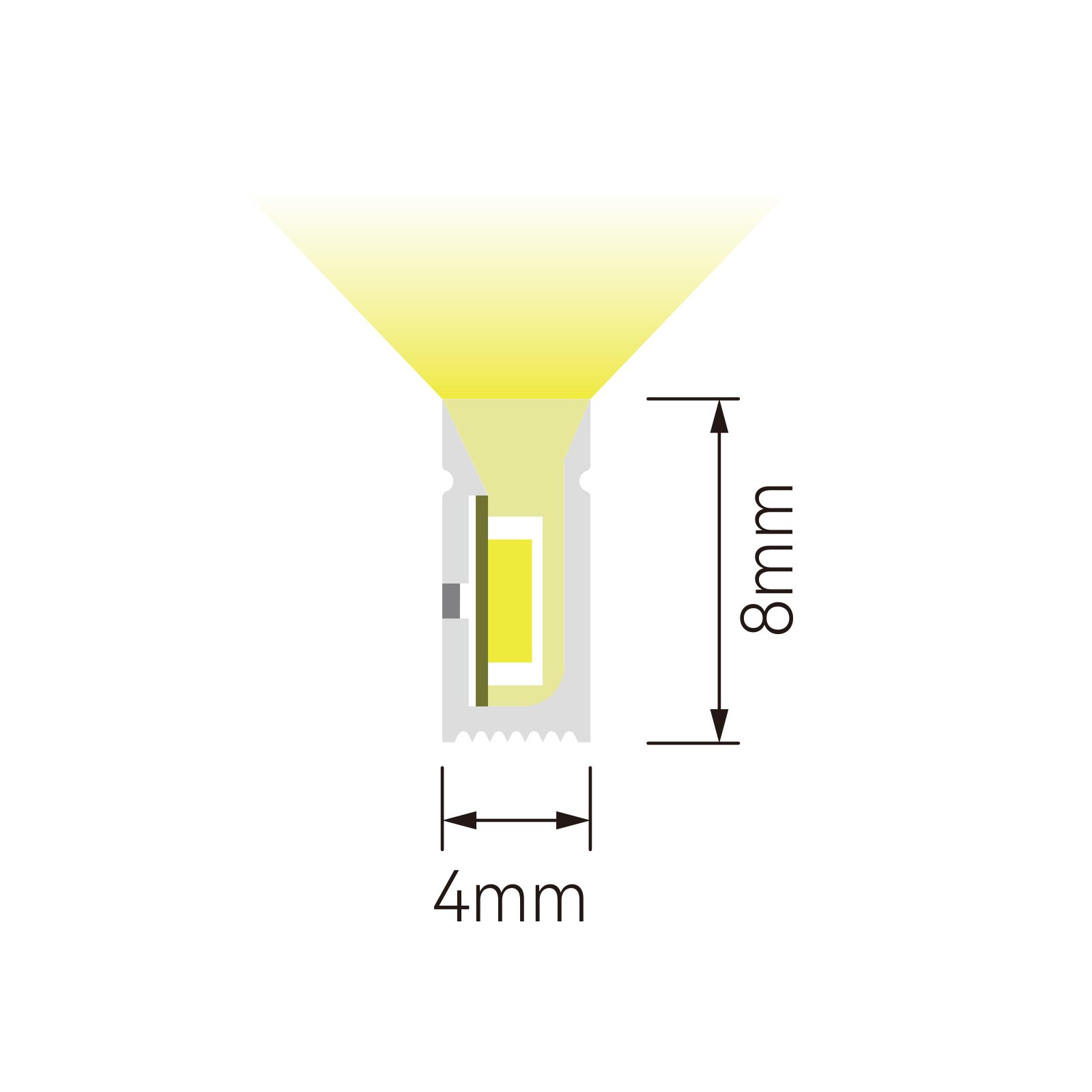

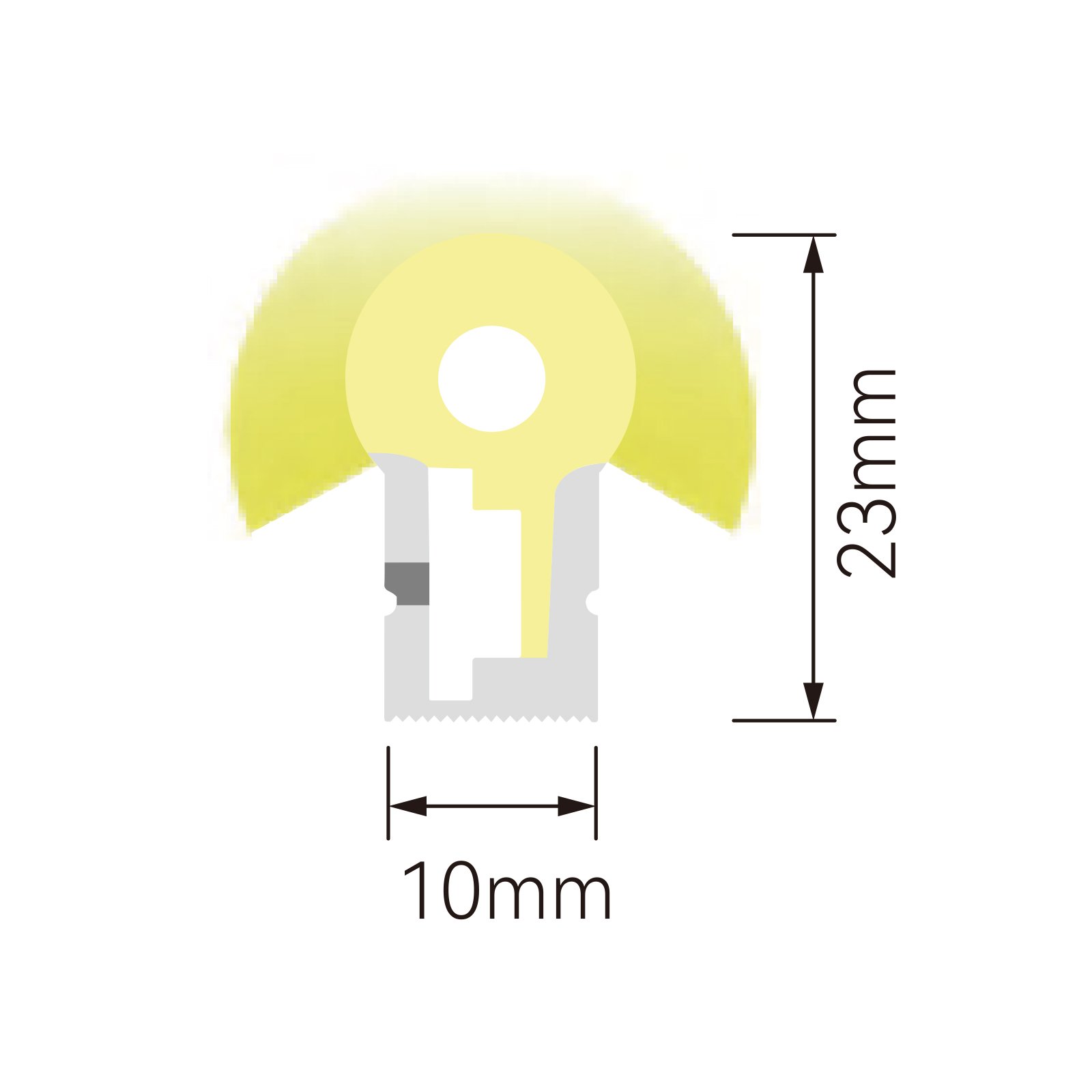

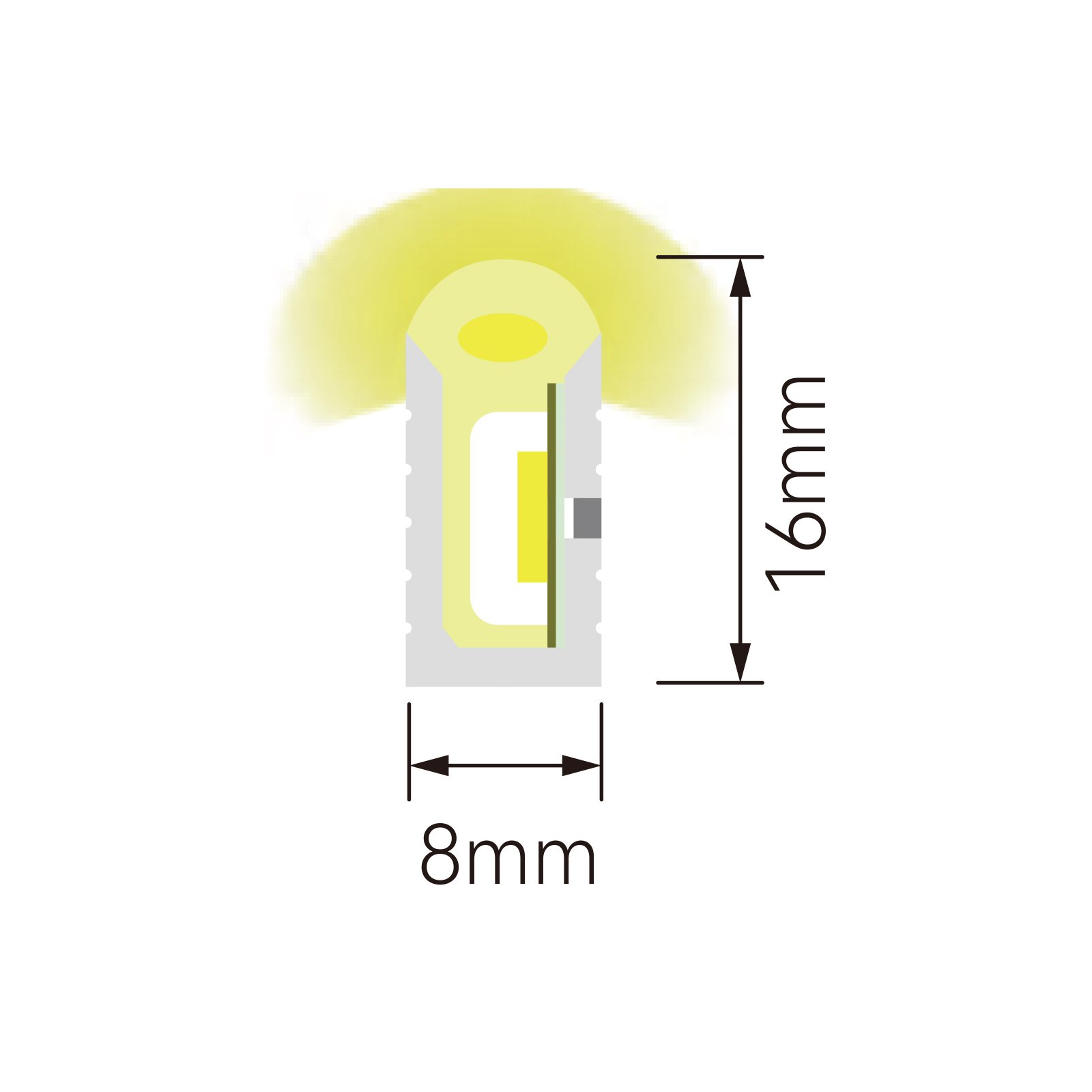

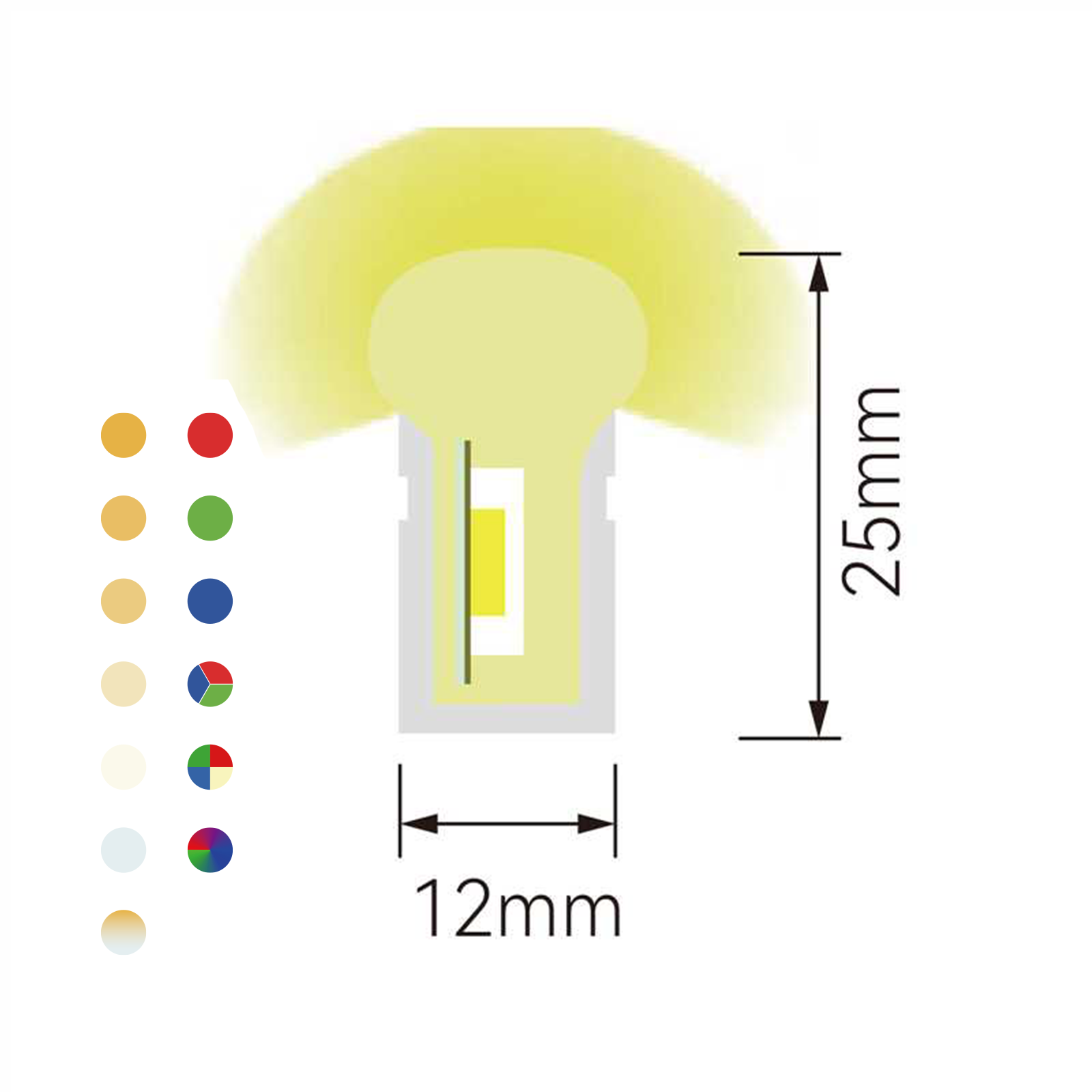

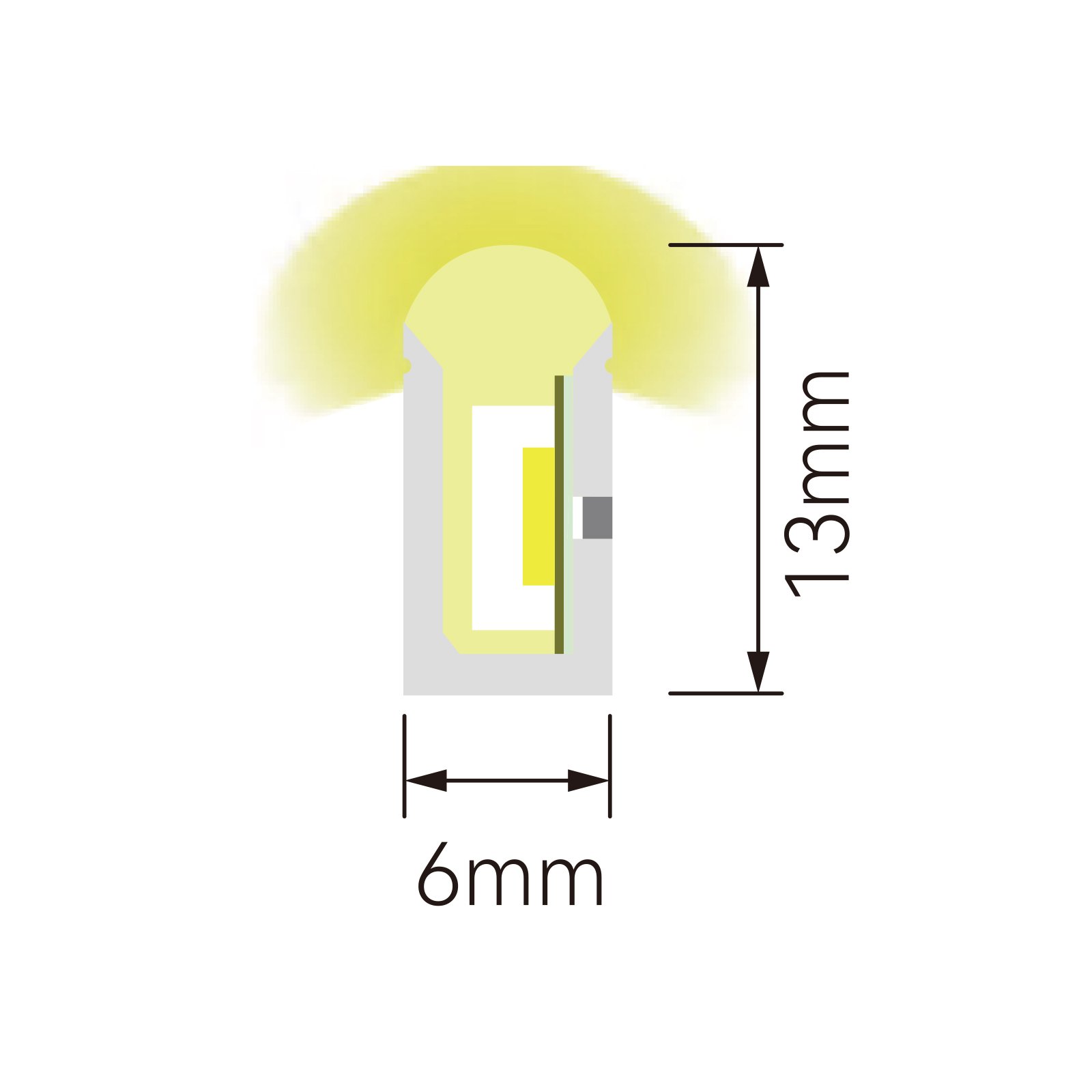

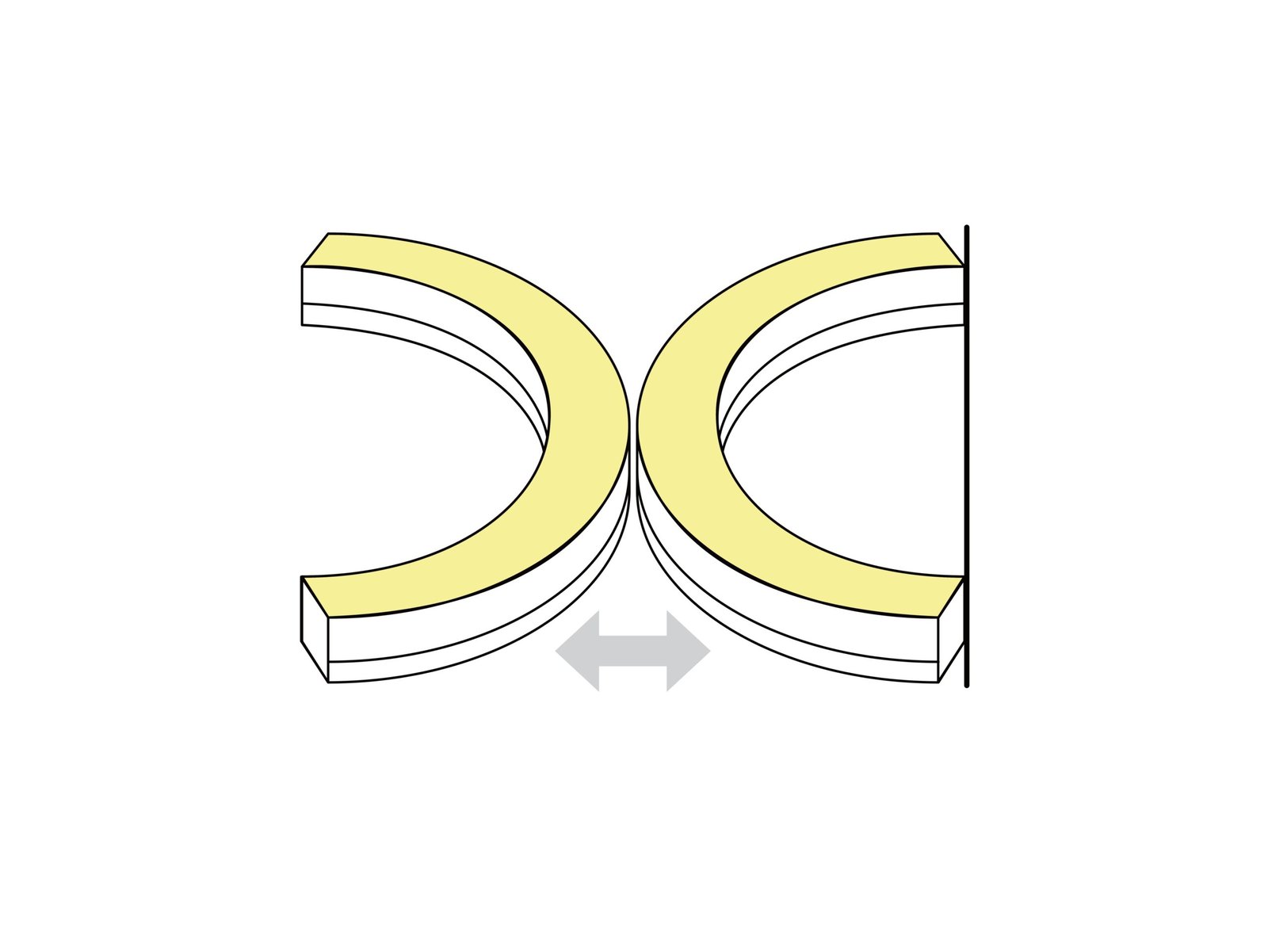

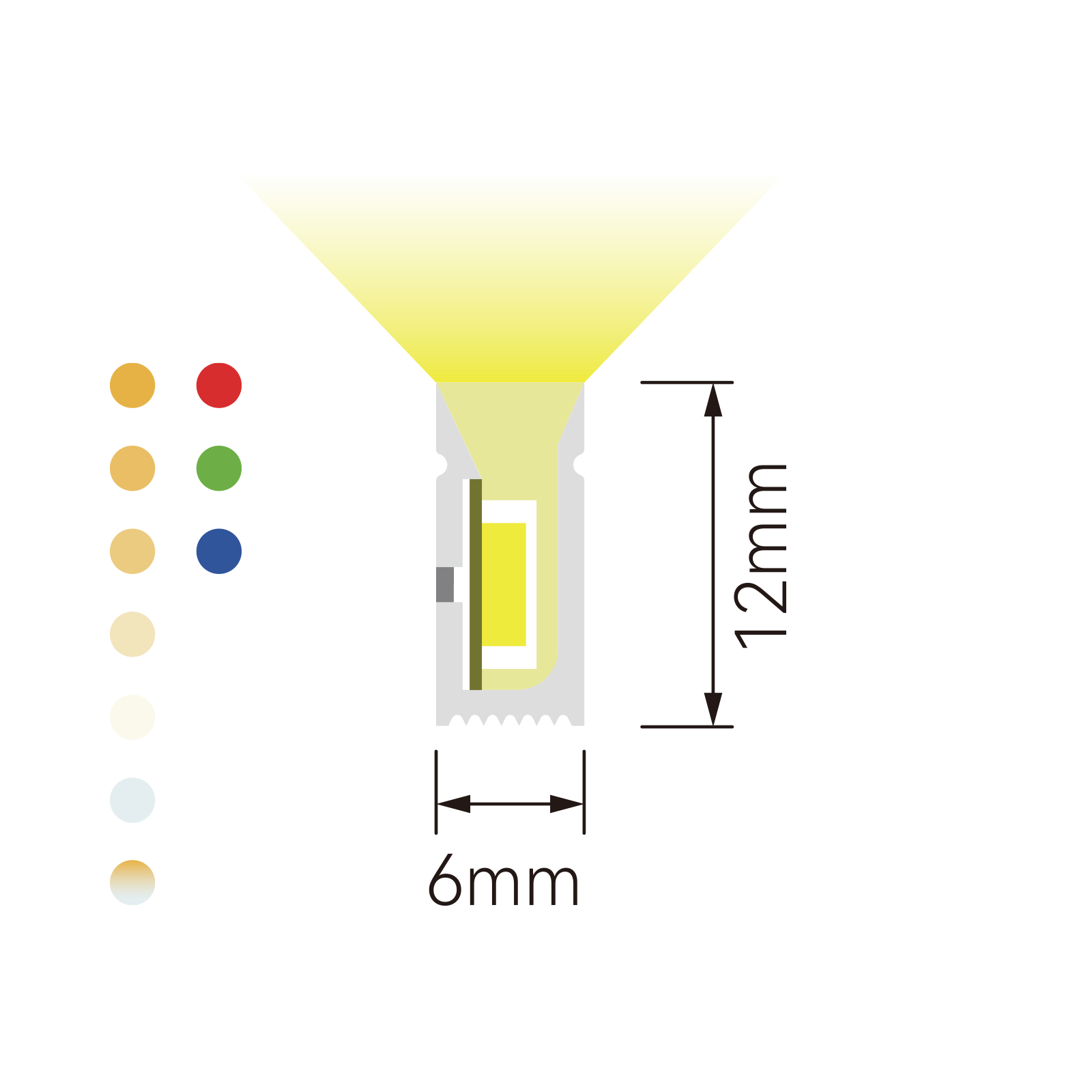

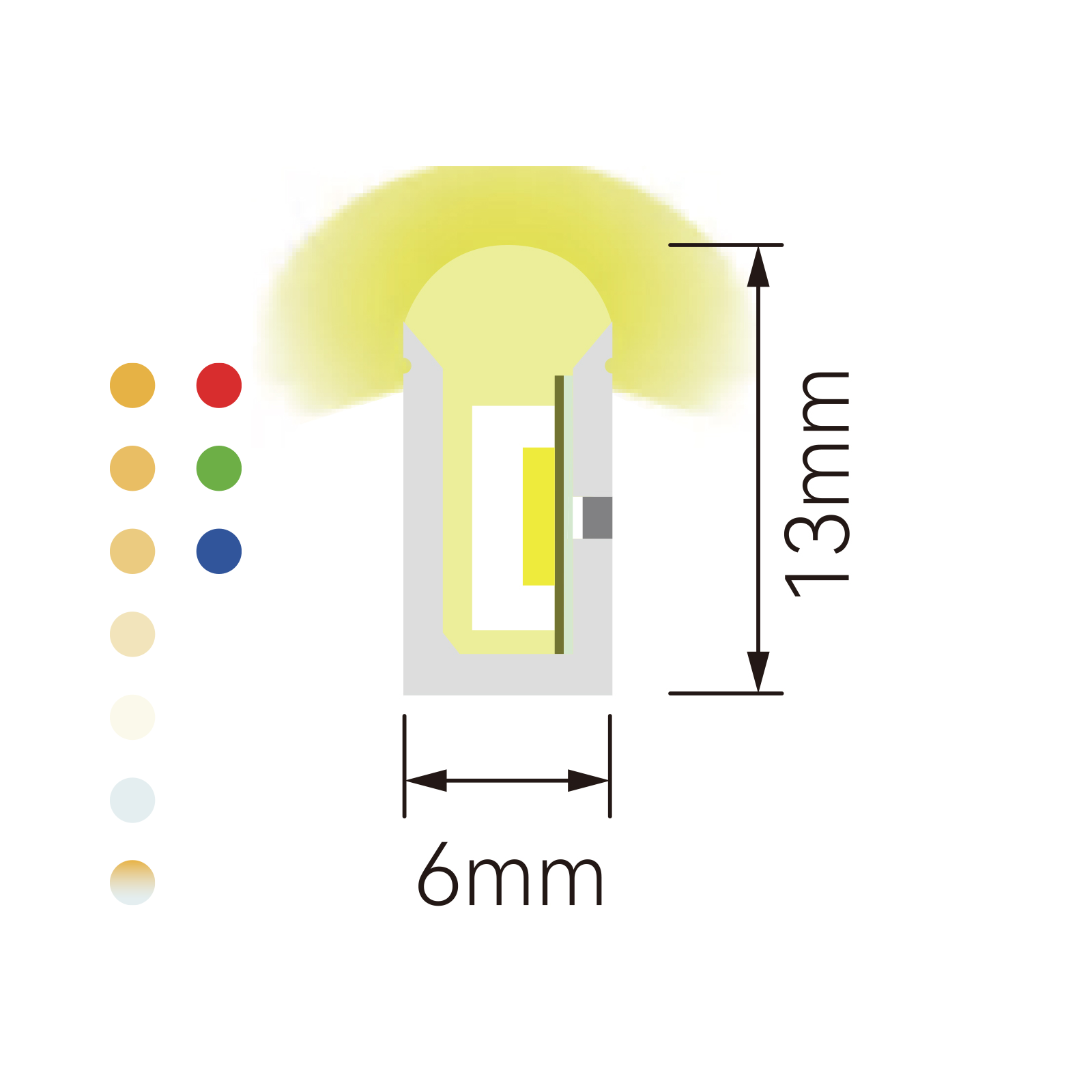

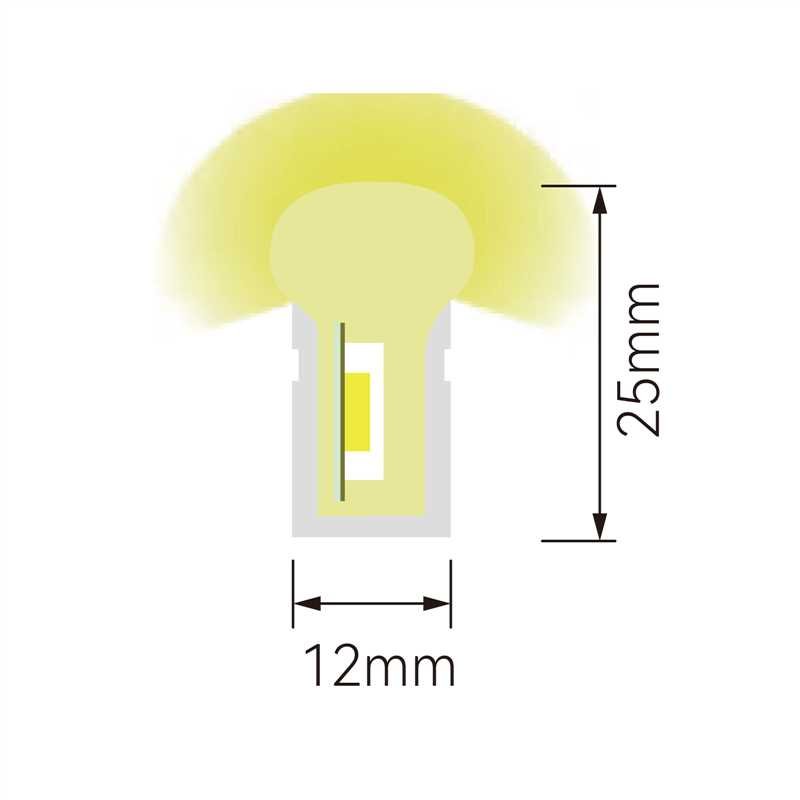

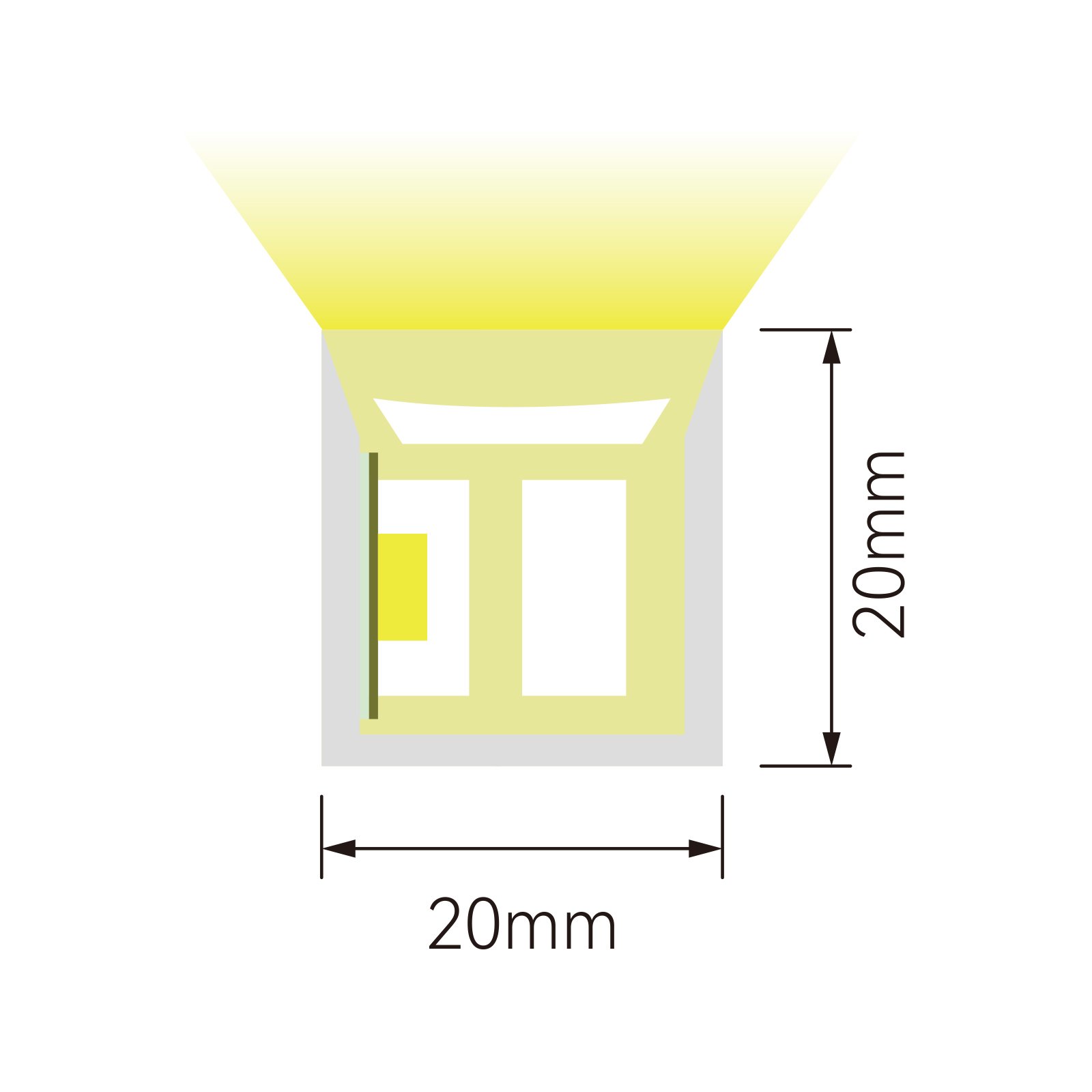

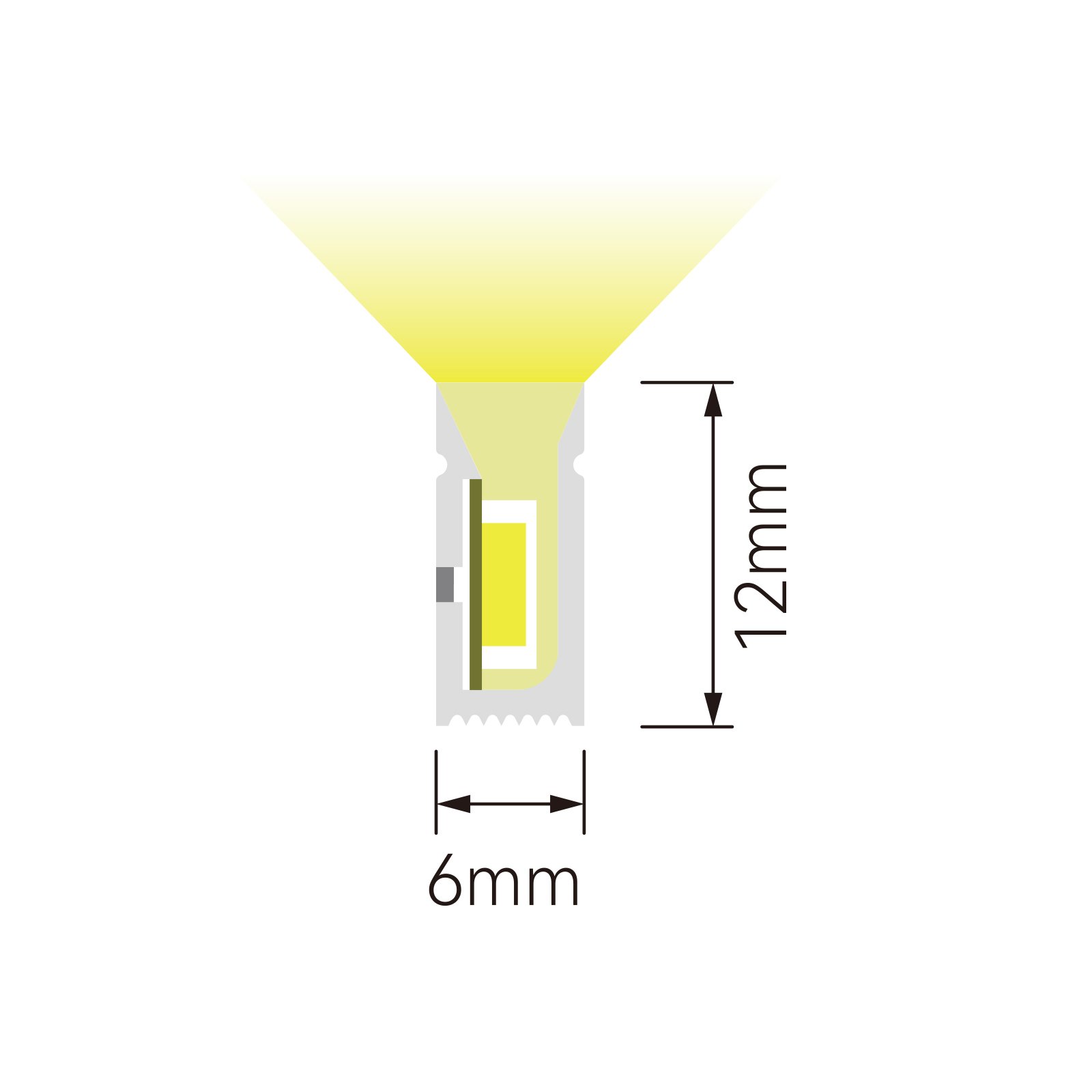

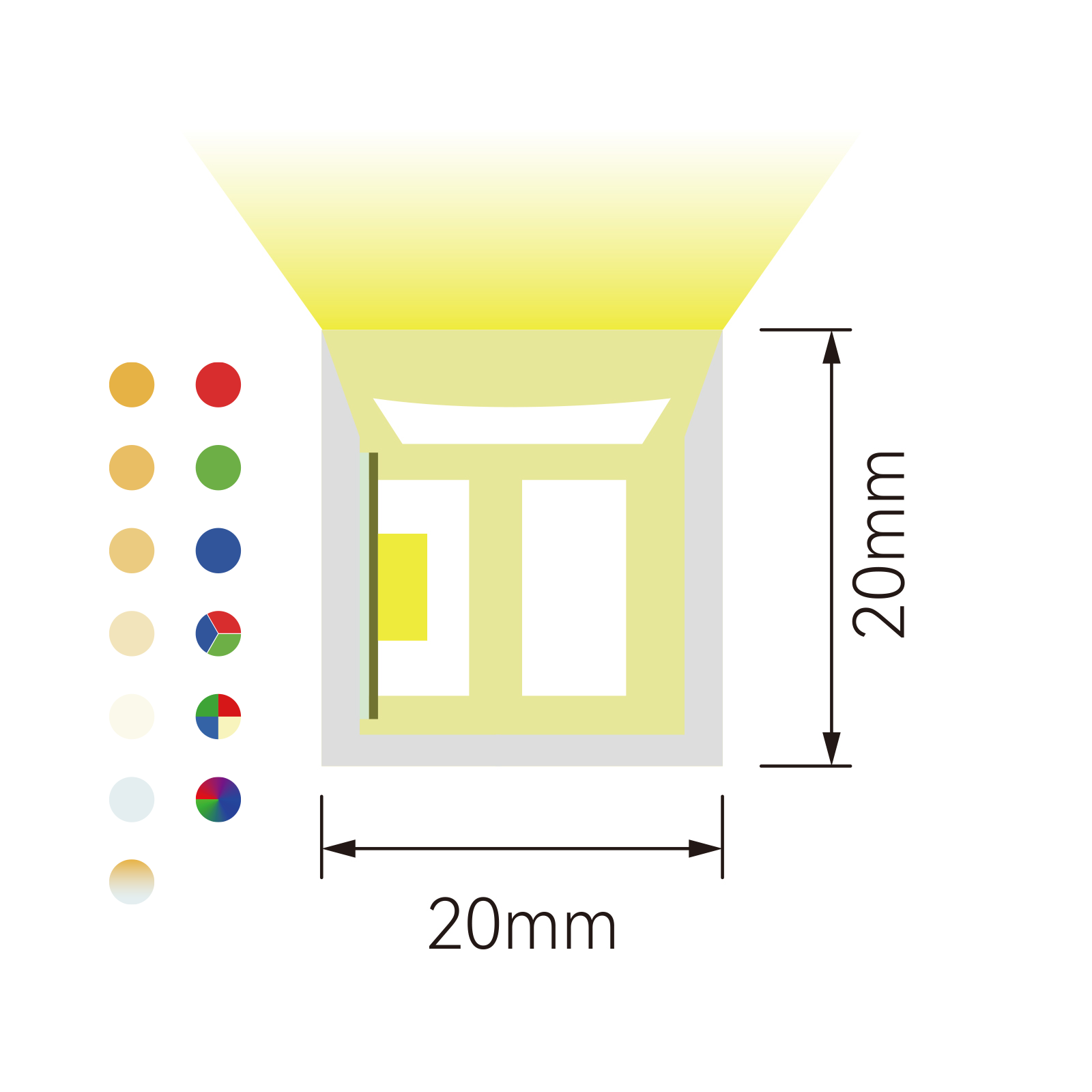

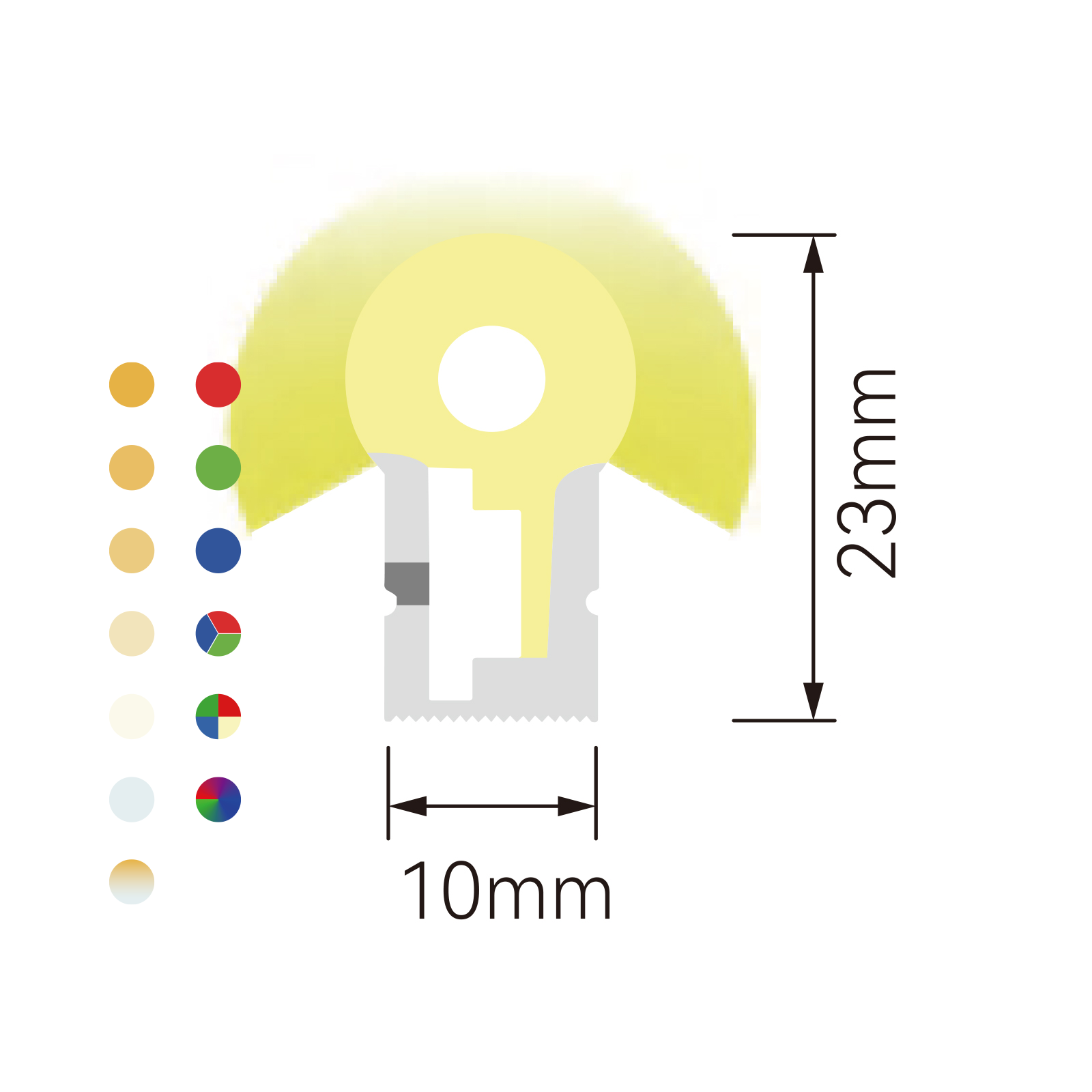

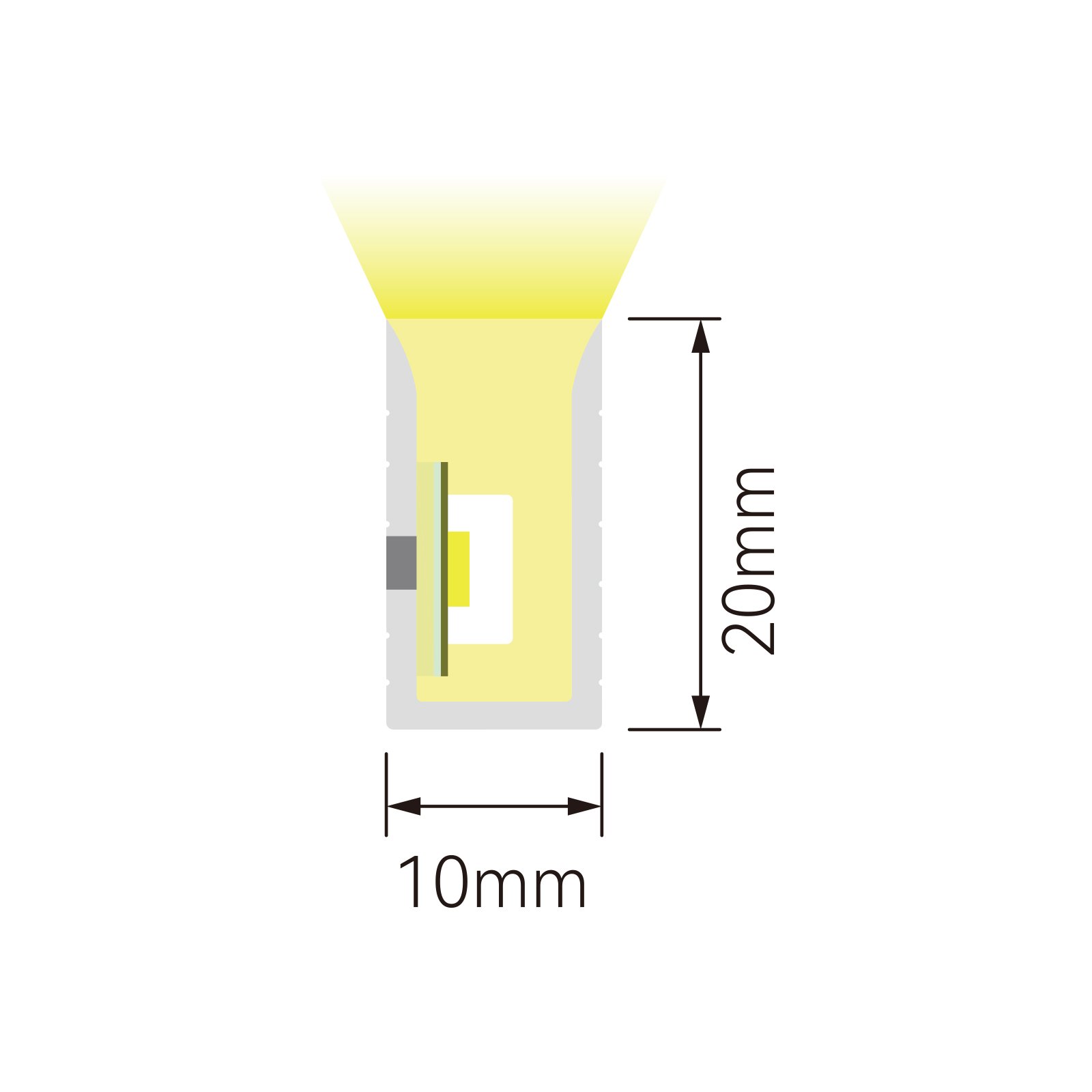

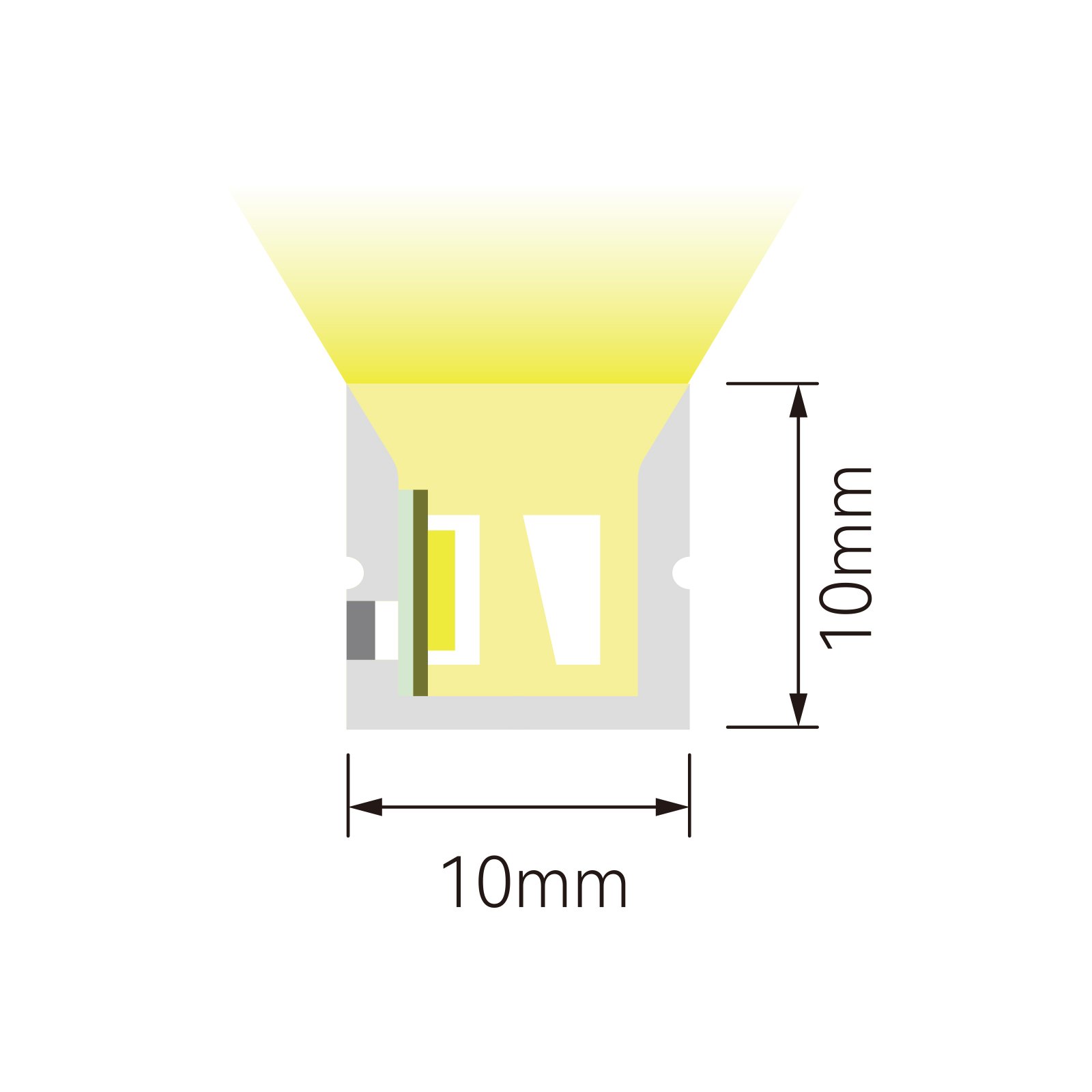

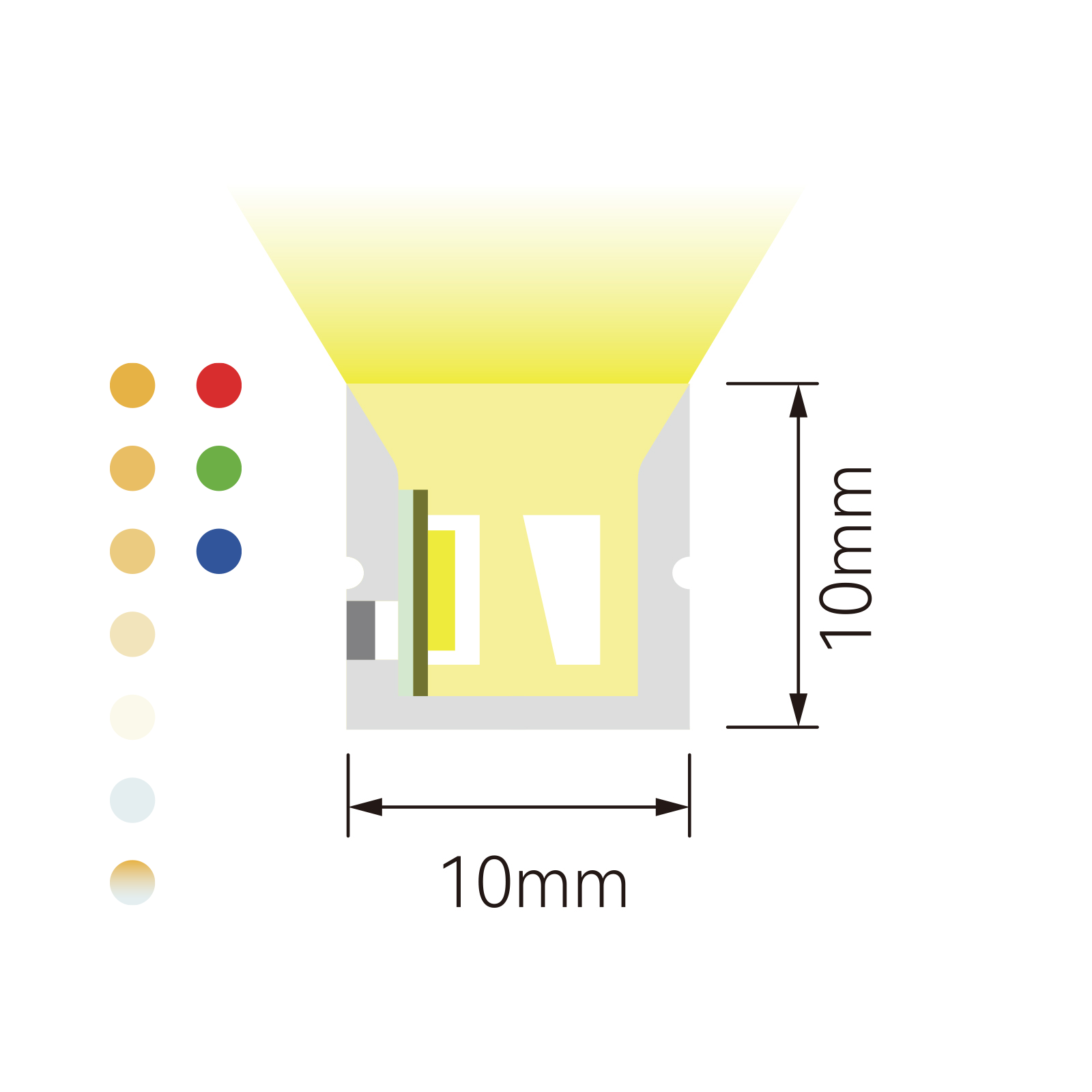

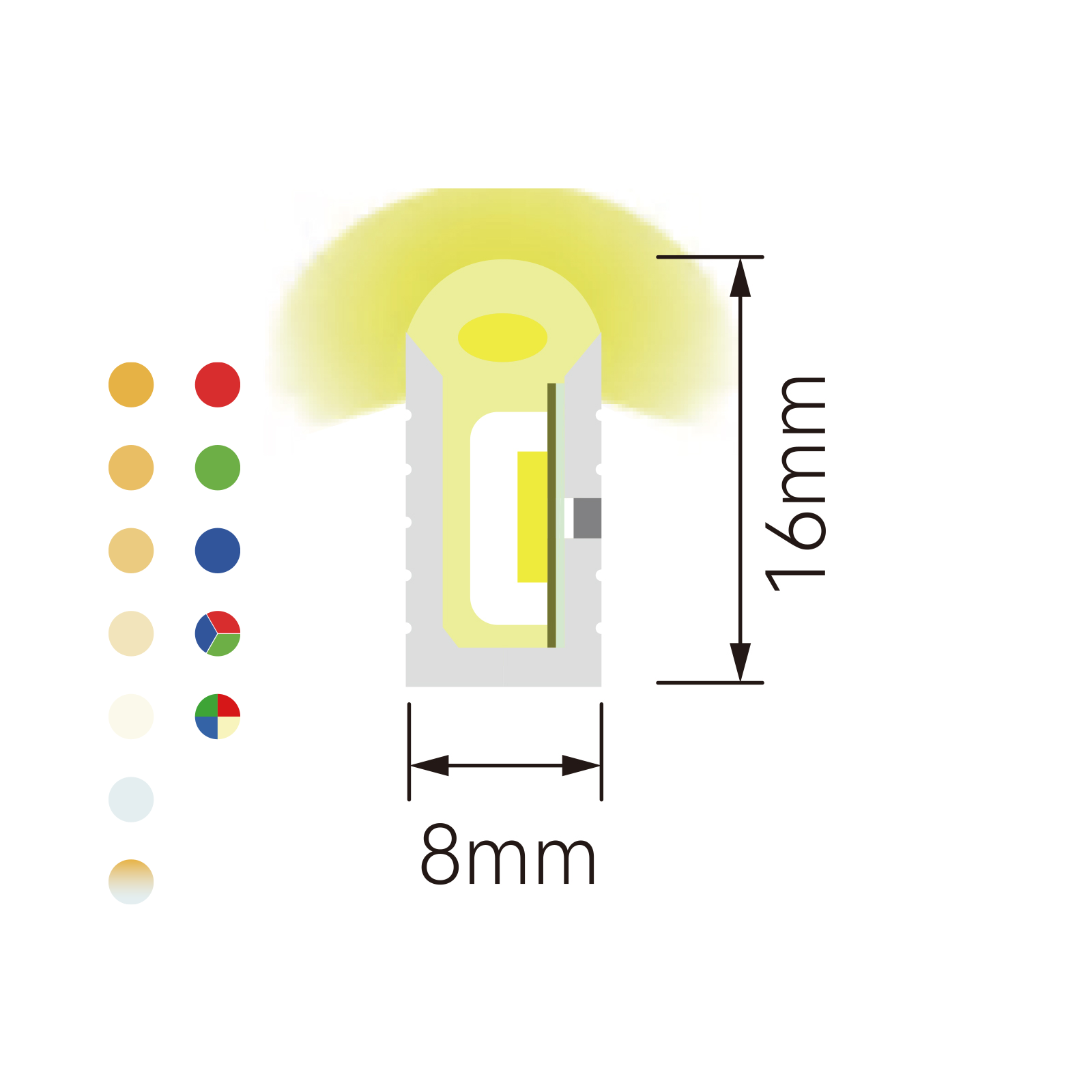

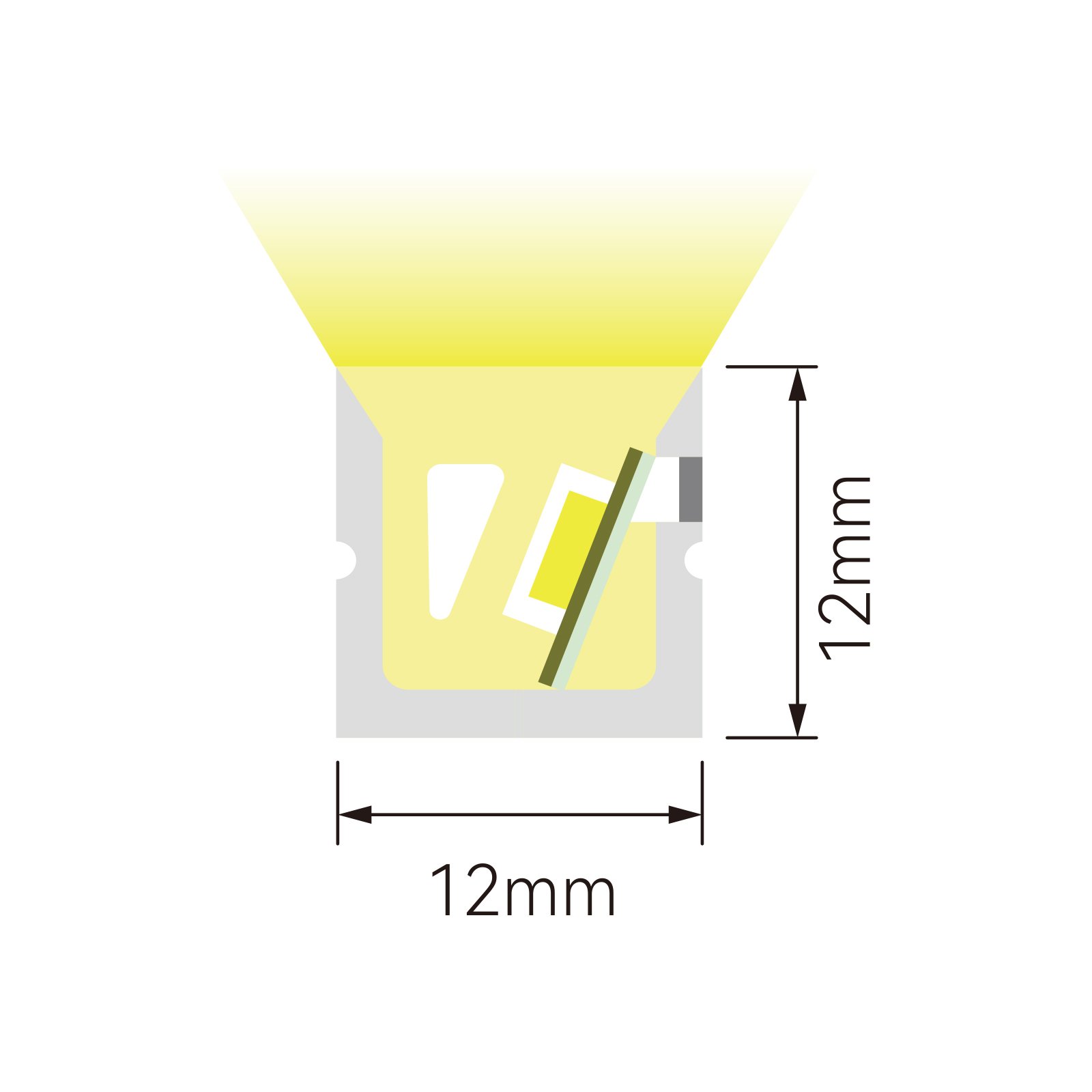

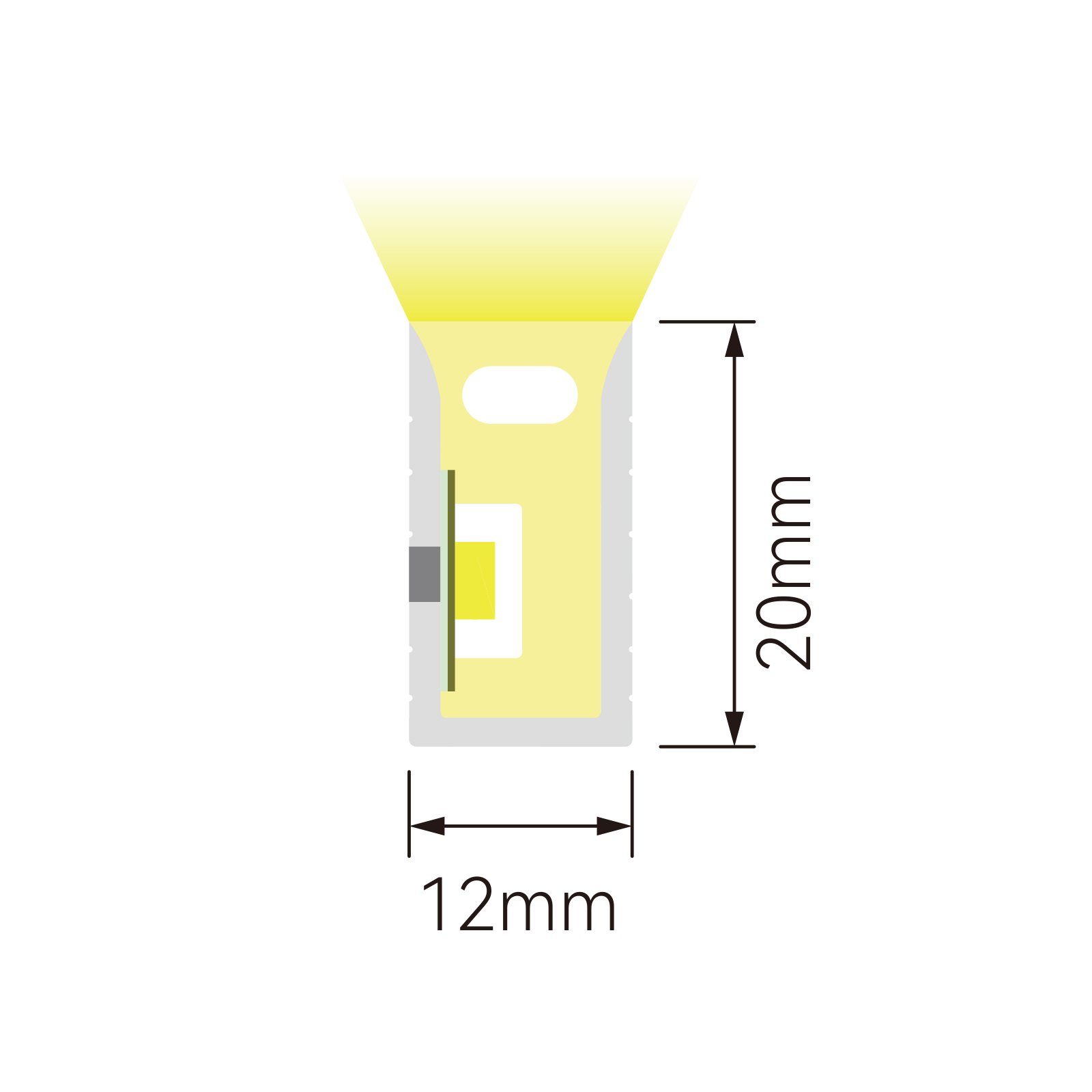

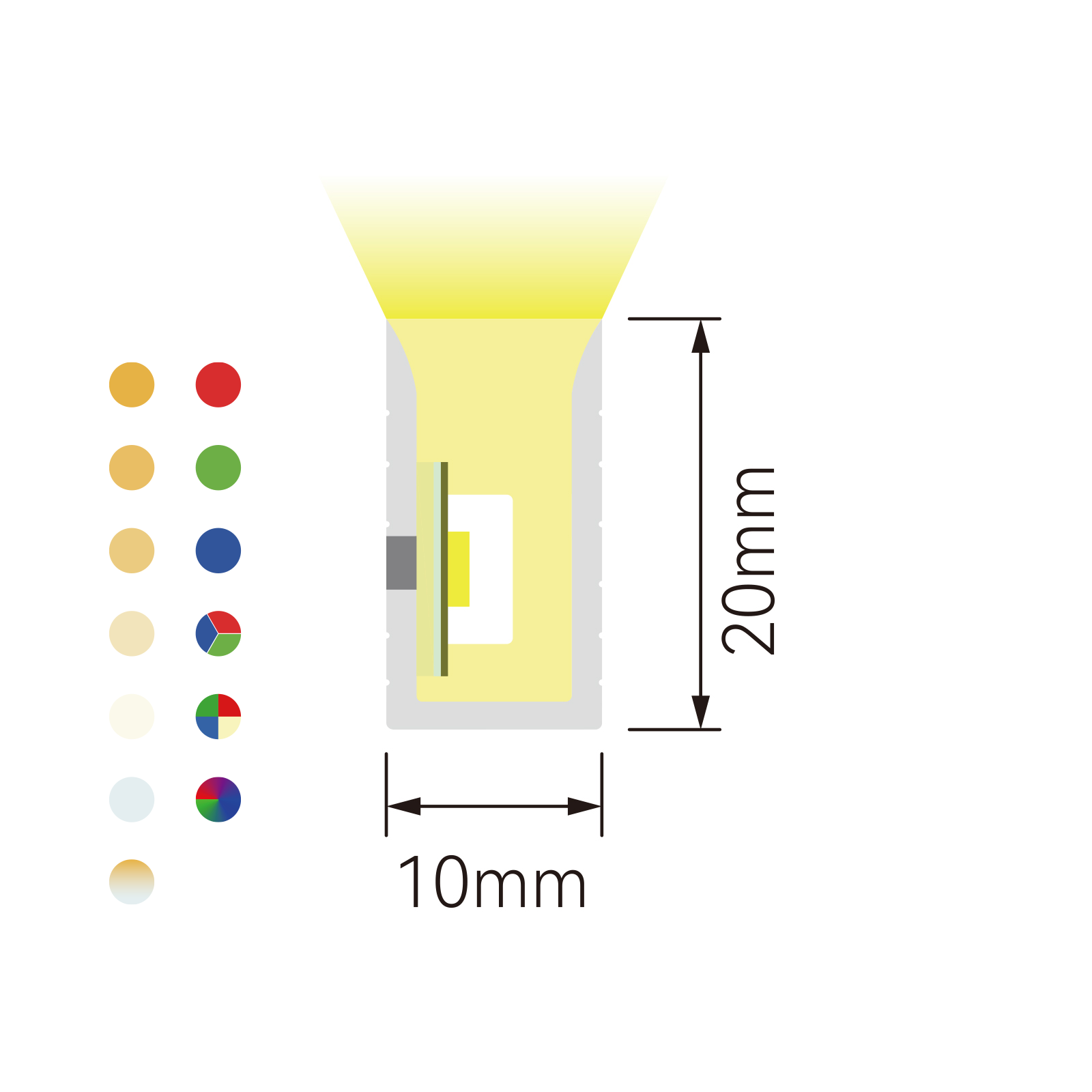

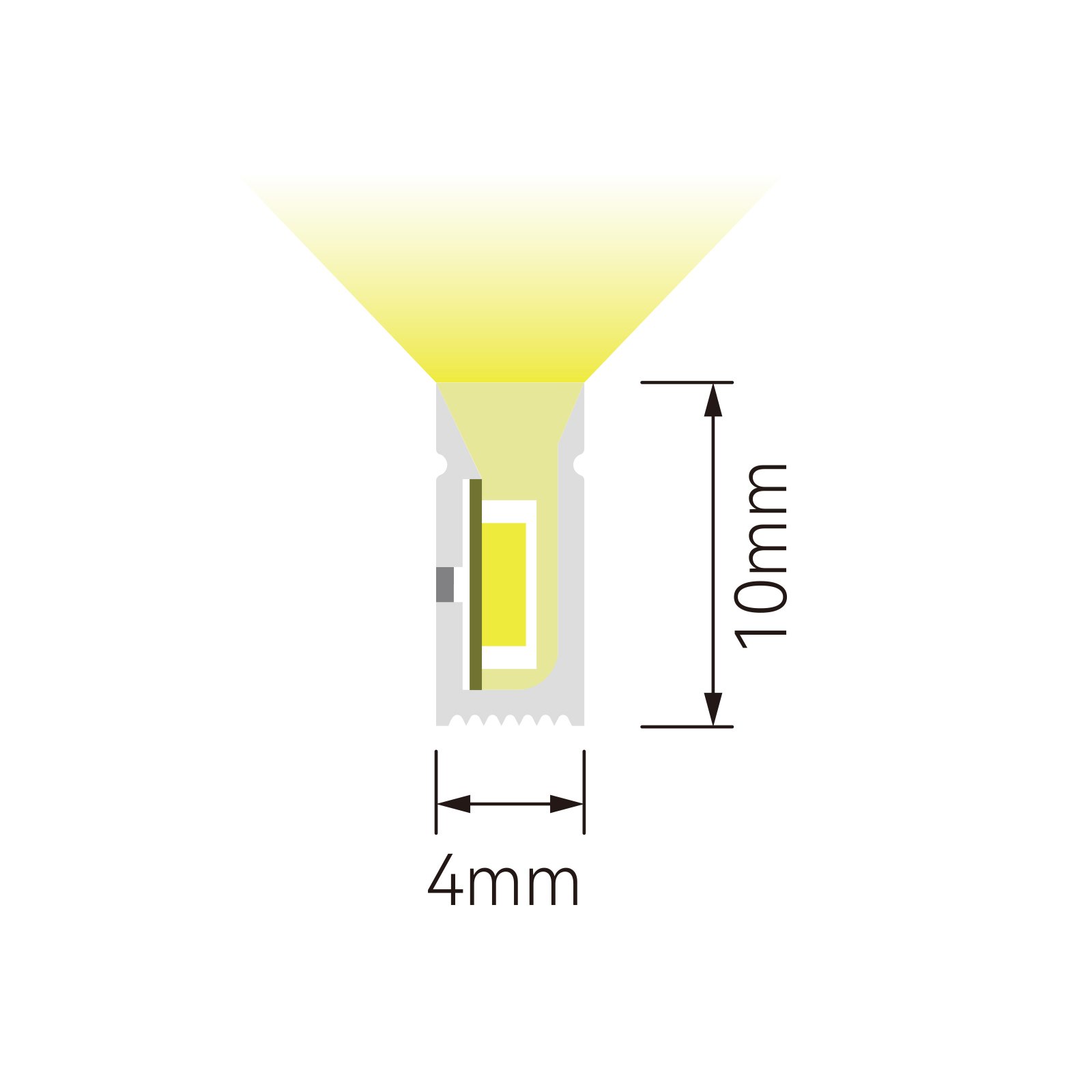

Horizontal Bending Series
Features a unique optical structure that ensures uniform light with absolutely no shadows. Bends parallel to the illuminated surface, allowing for smooth, flat curves along walls and facades.
- • Side-emitting profile for seamless edge lighting
- • Suitable for building outline and decorative lighting
- • IP68 high protection level available for swimming pool underwater lighting

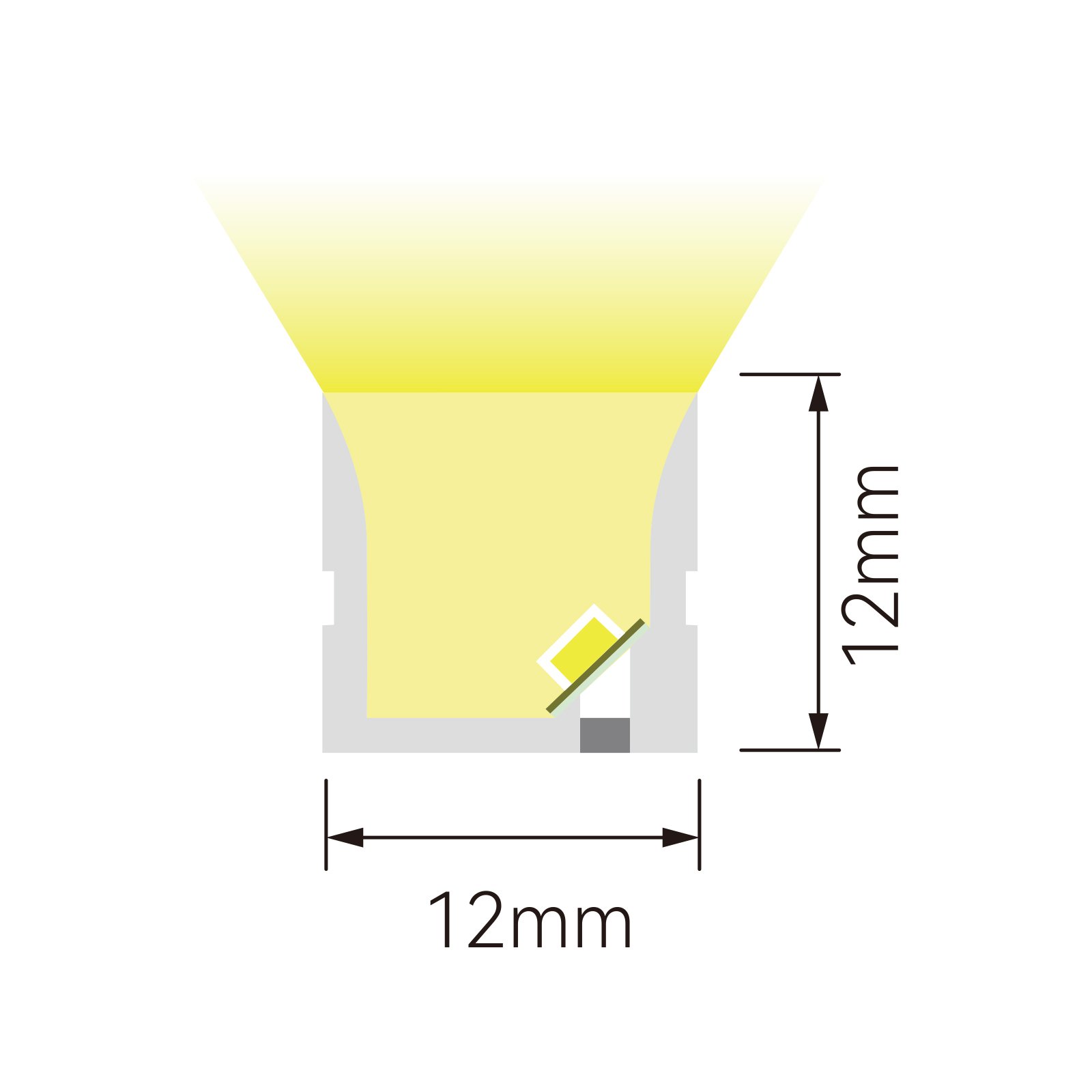

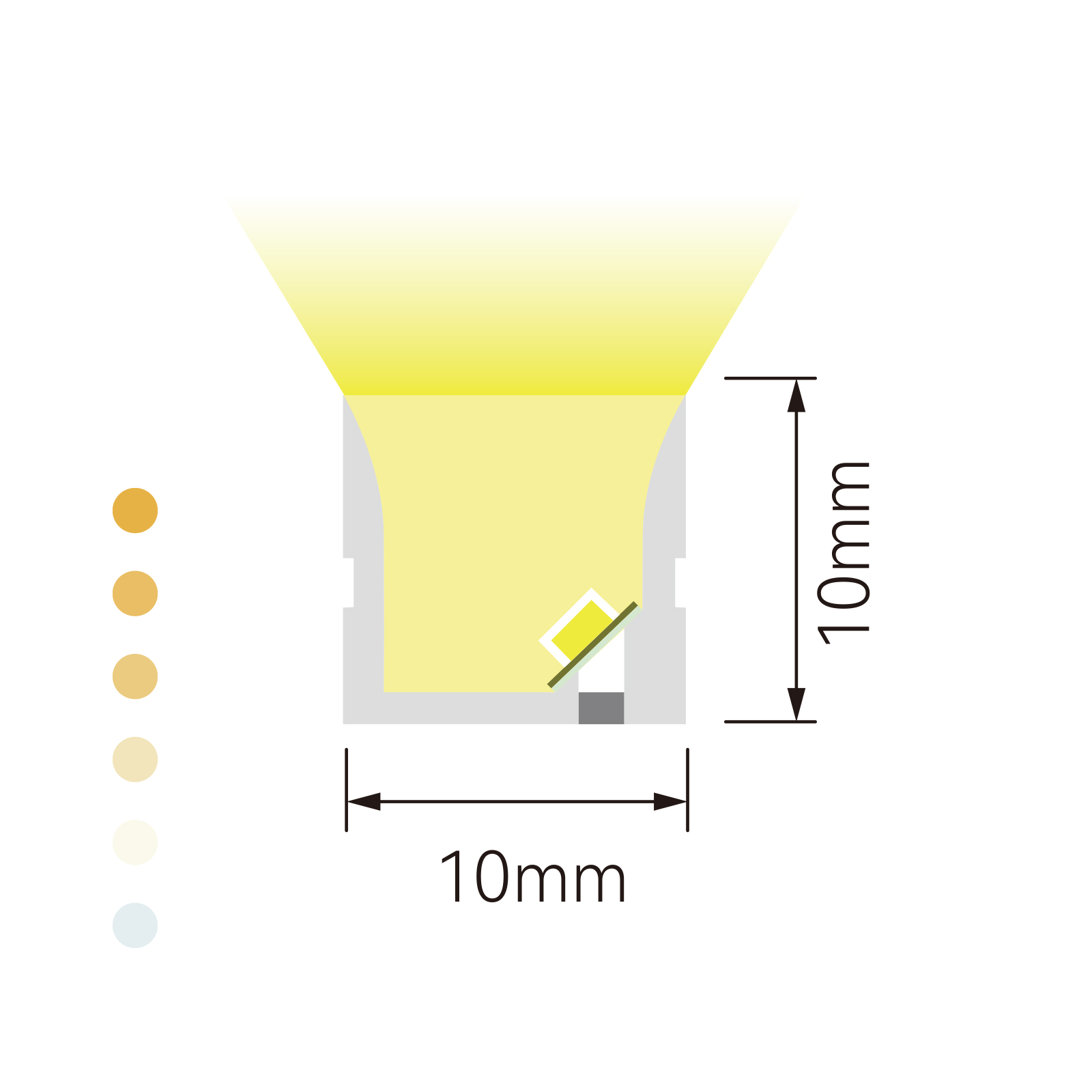

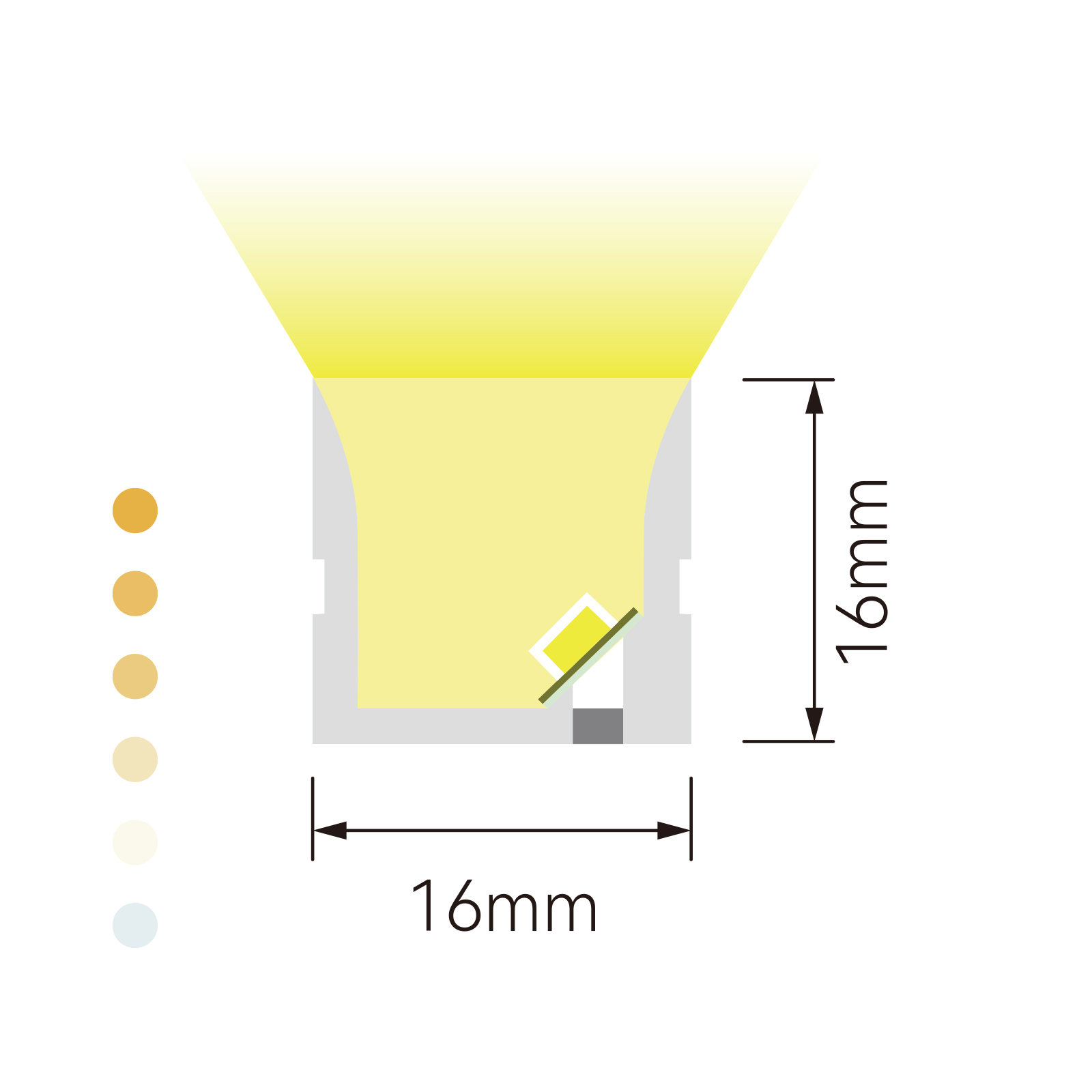

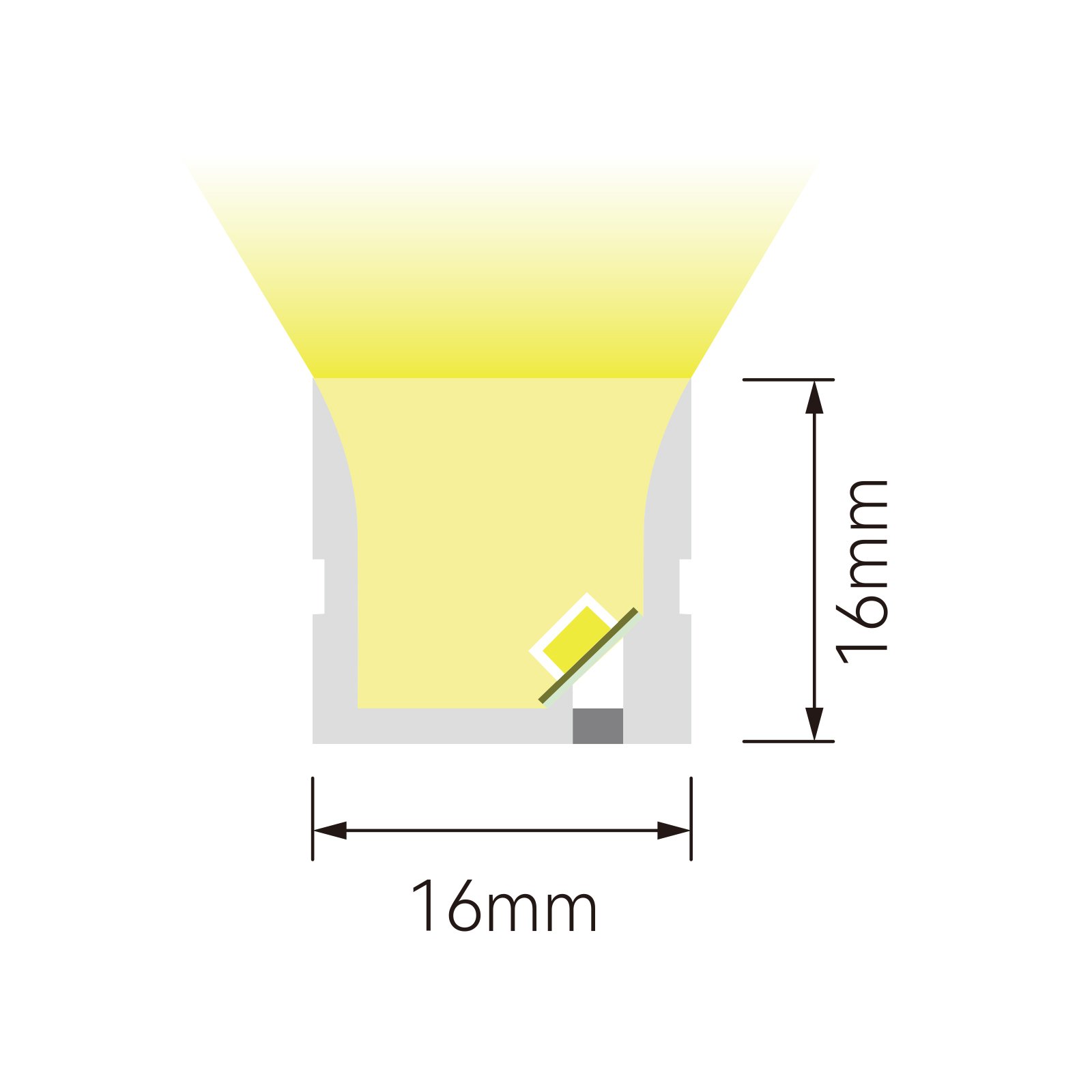

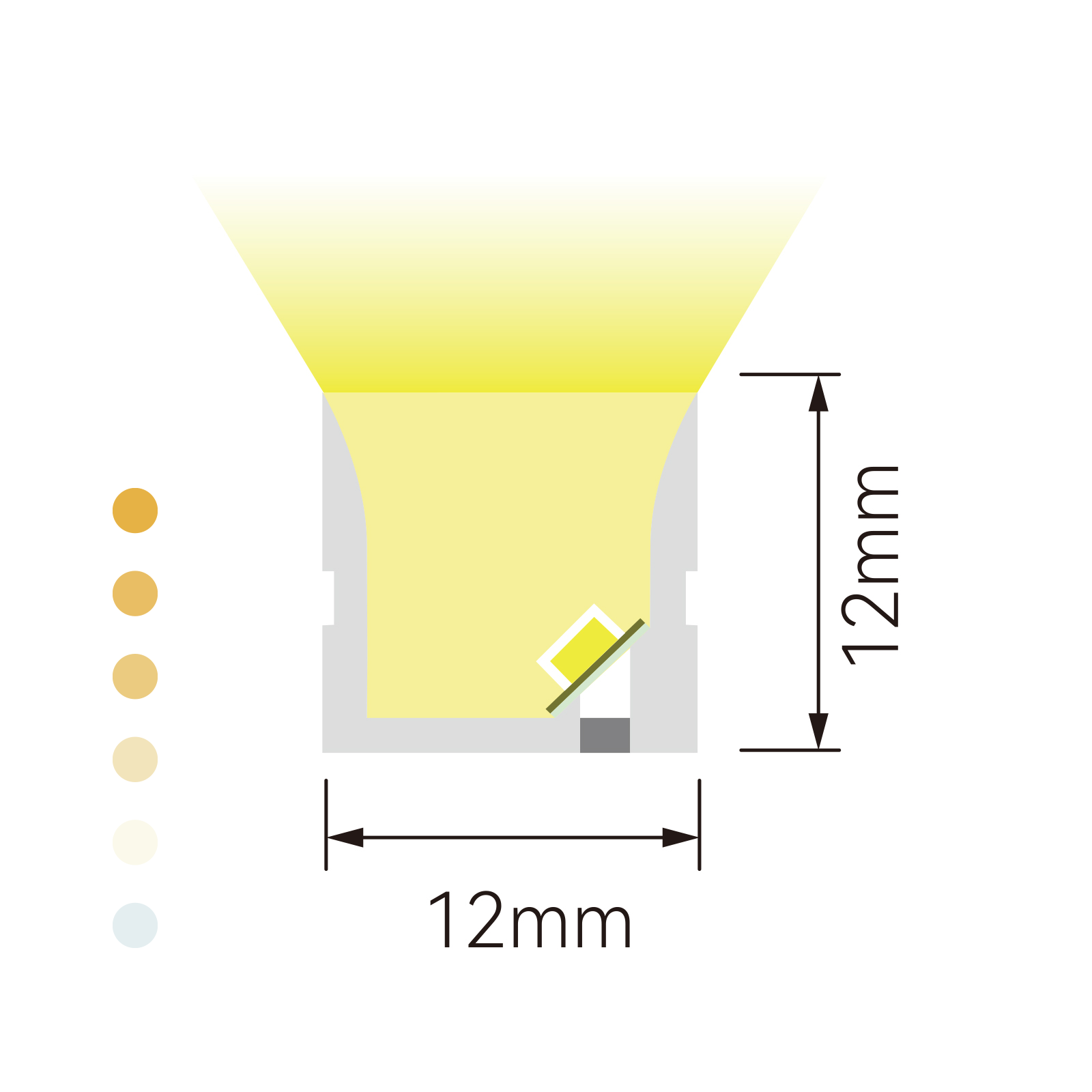

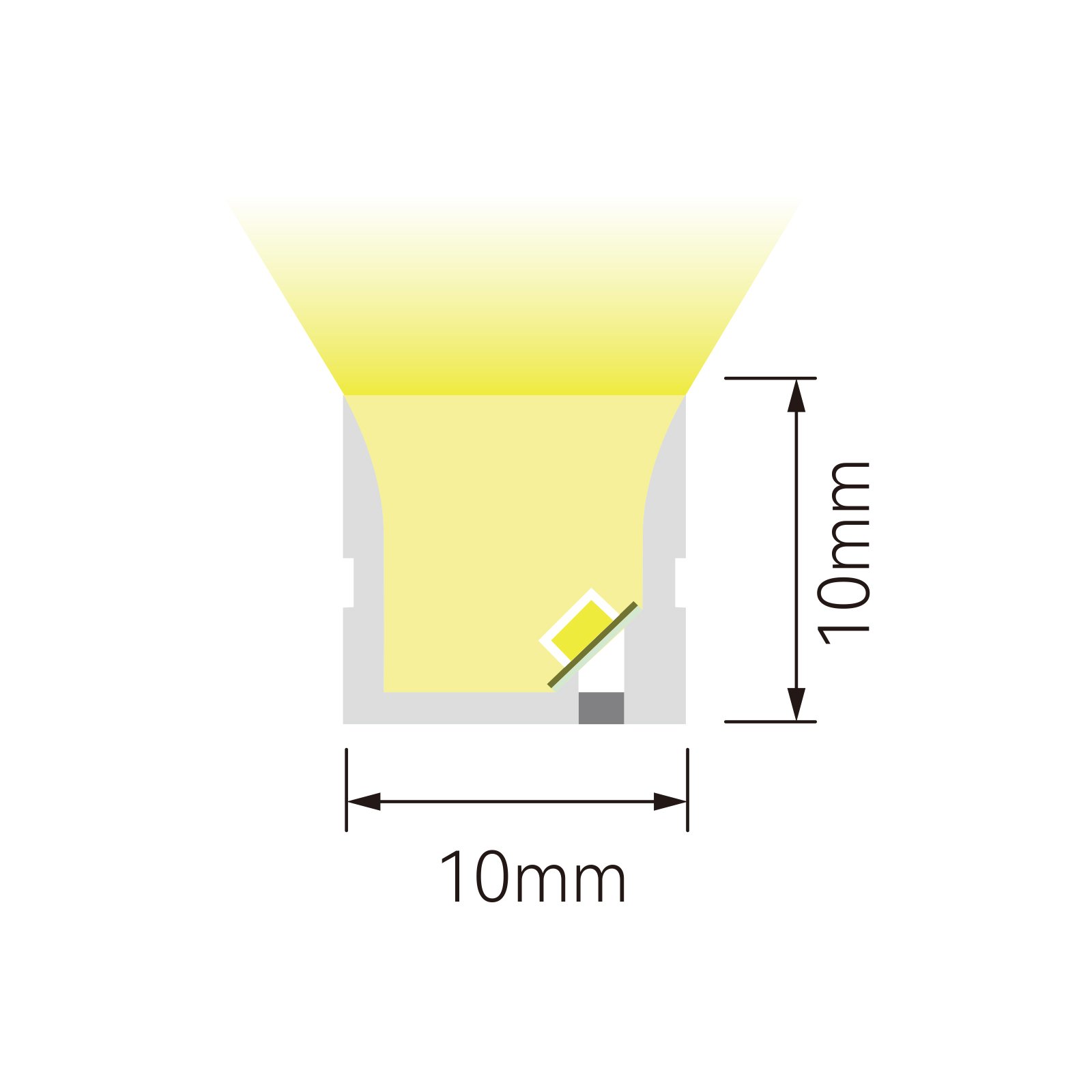

3D Bending Series
The ultimate in flexibility. This series possesses both vertical and horizontal bending capabilities within a single profile, allowing for free-form twisting and complex spatial designs.
- • Multi-axis flexible silicone material
- • Reliable IP67 protection for versatile placement
- • Suitable for landscape lighting, curtain walls, and complex shaped projects

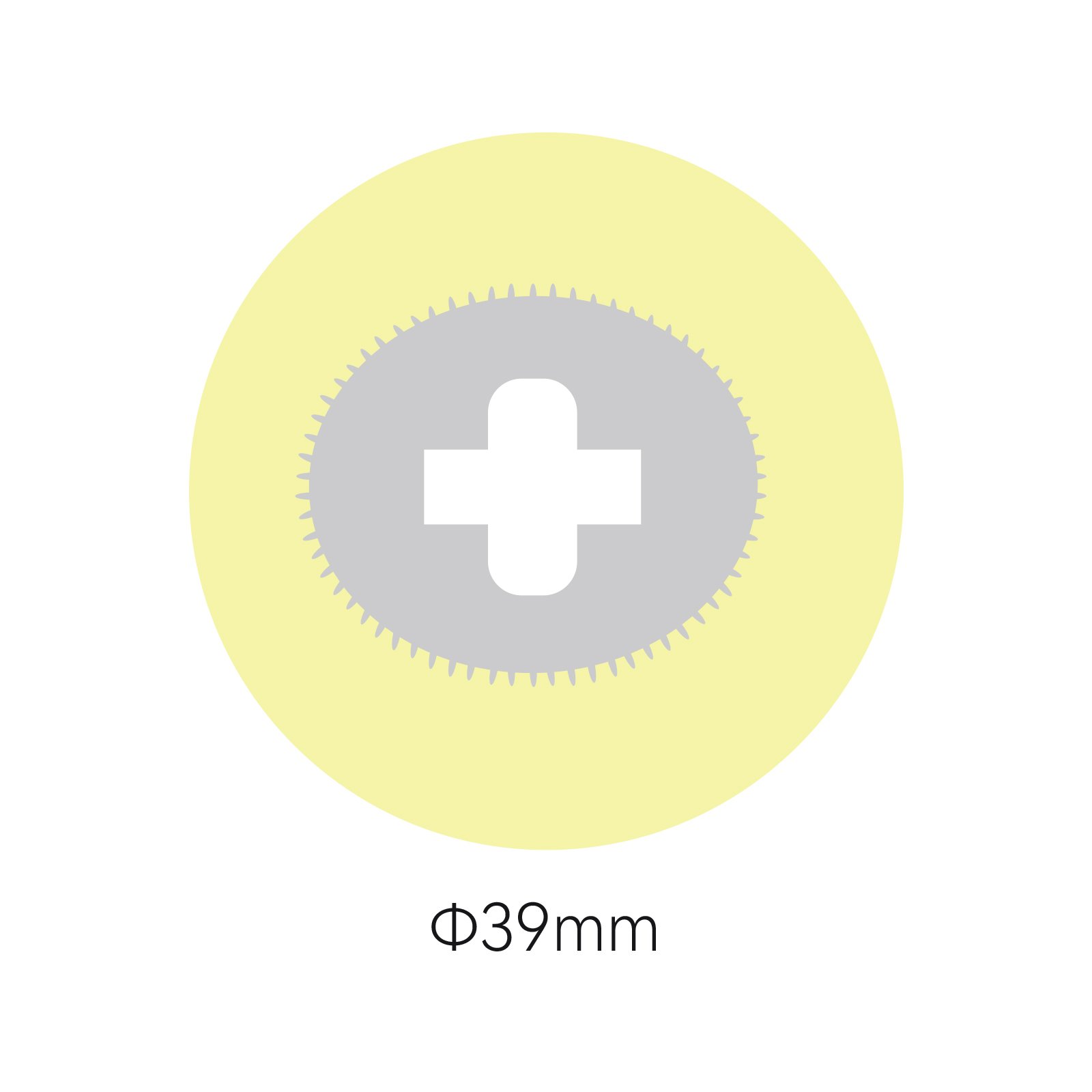

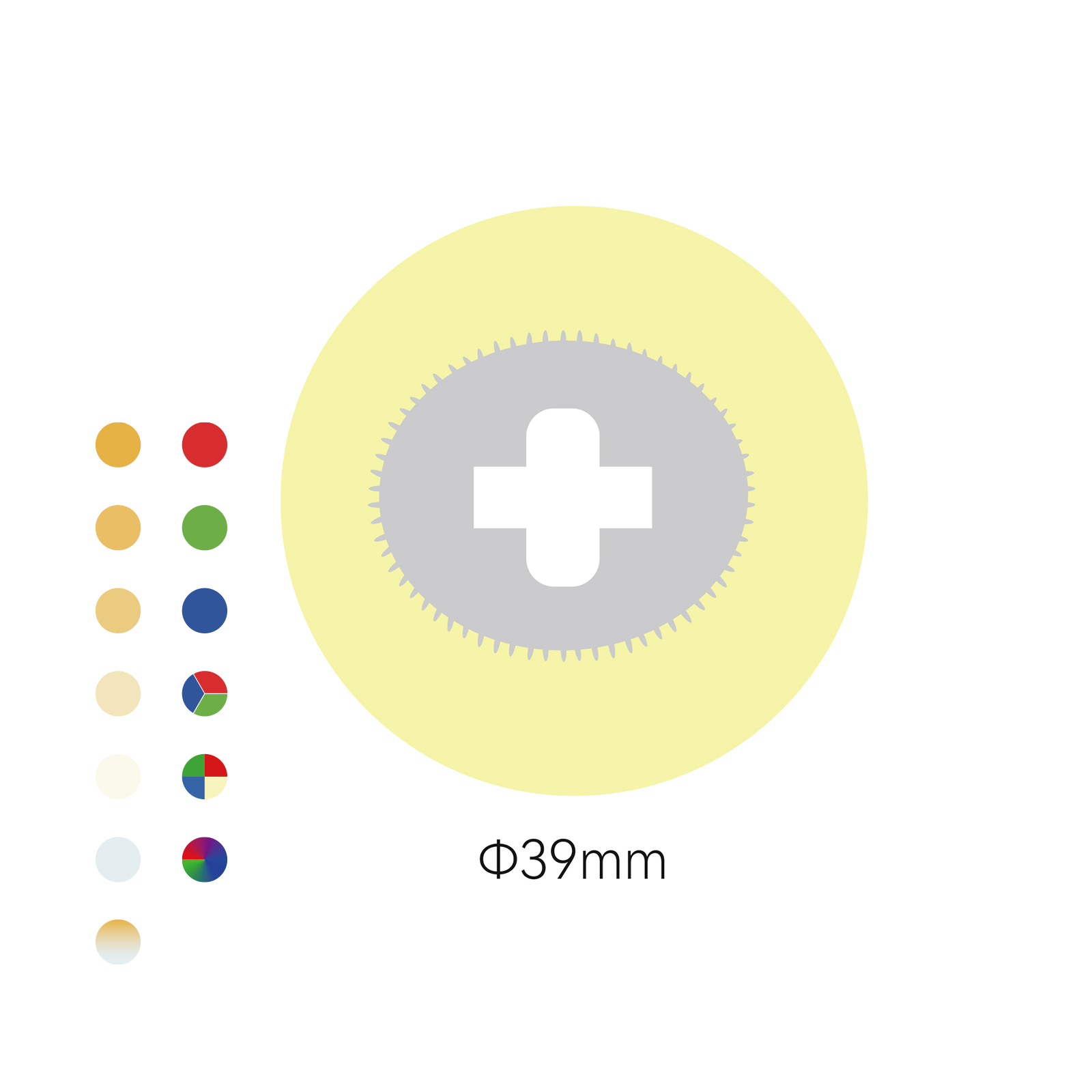

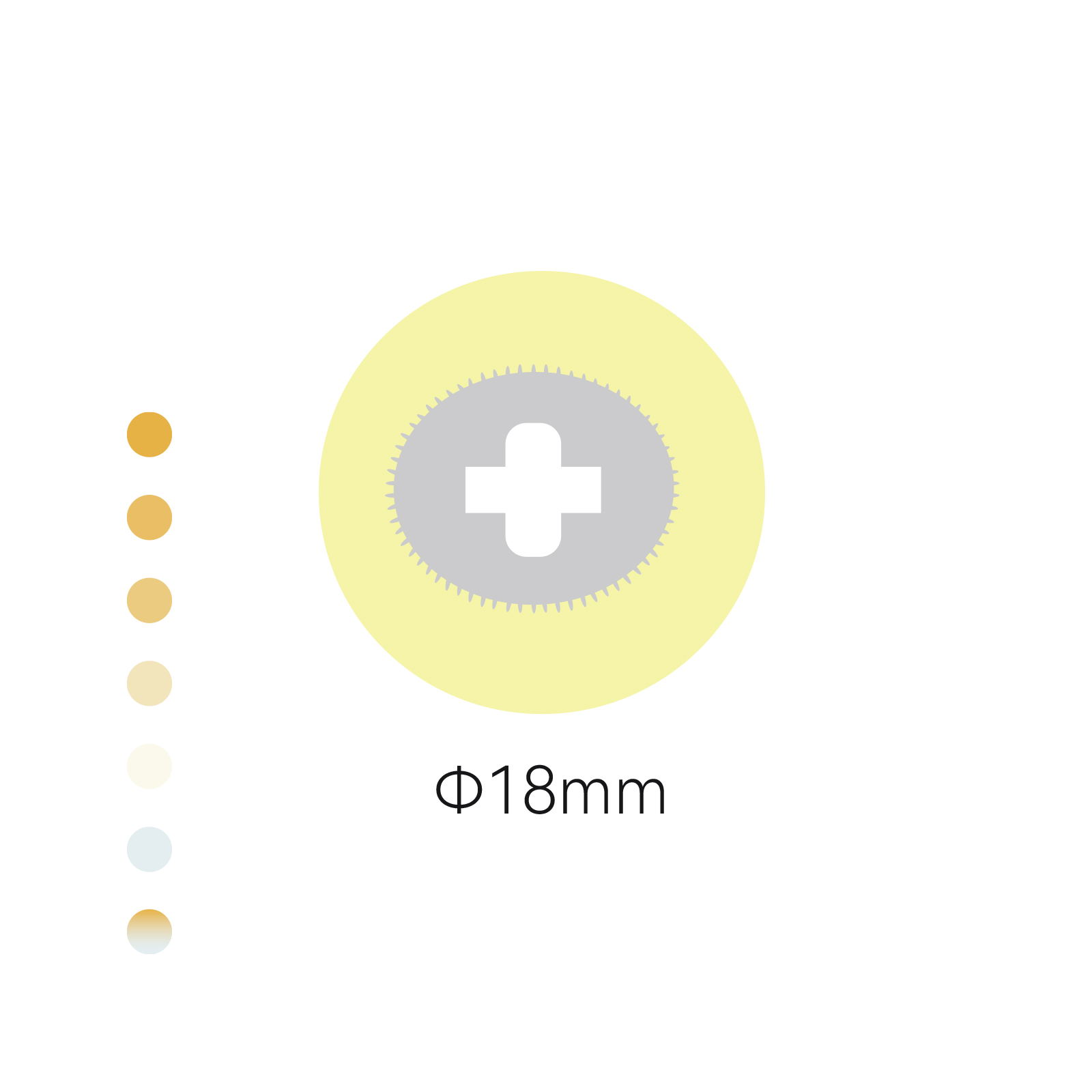

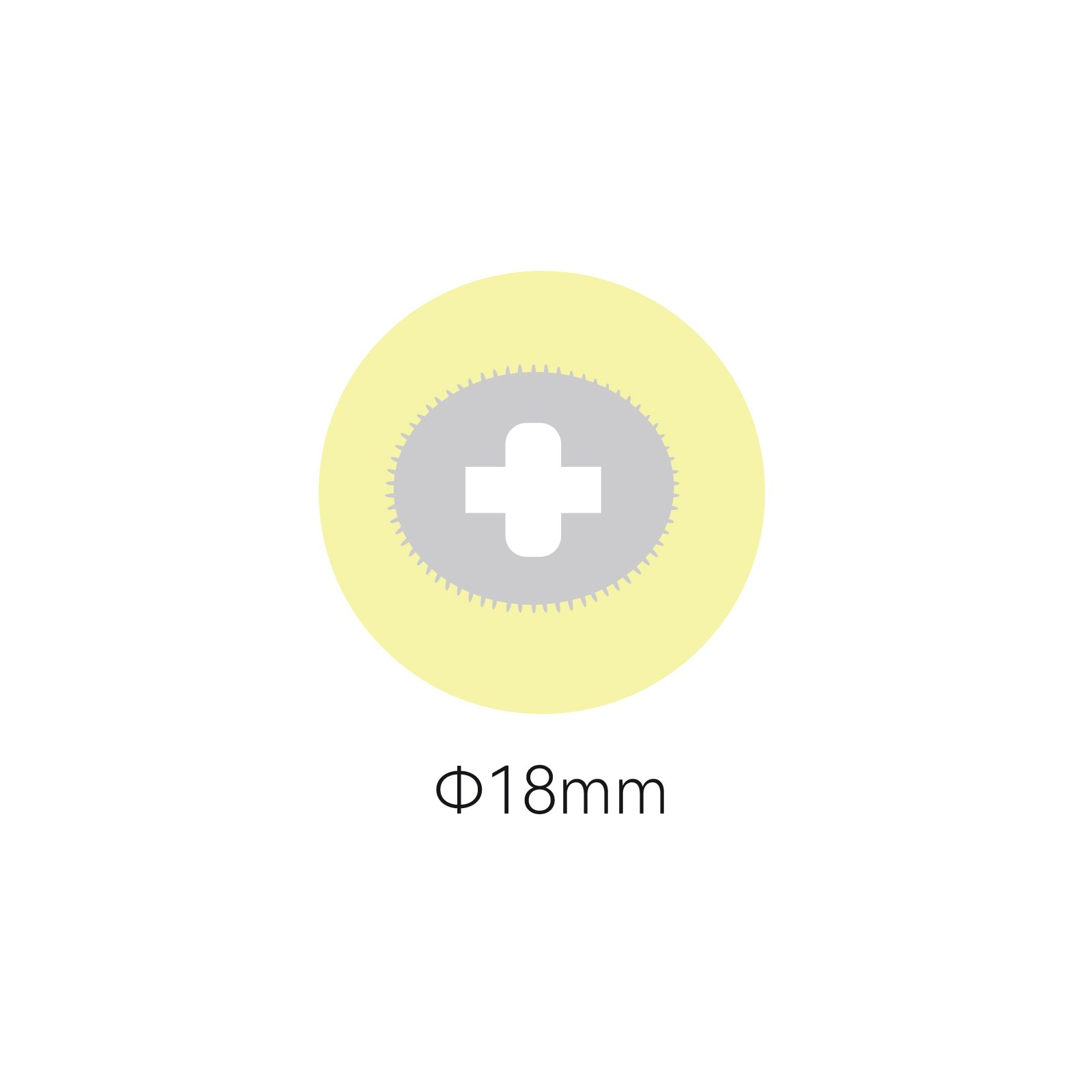

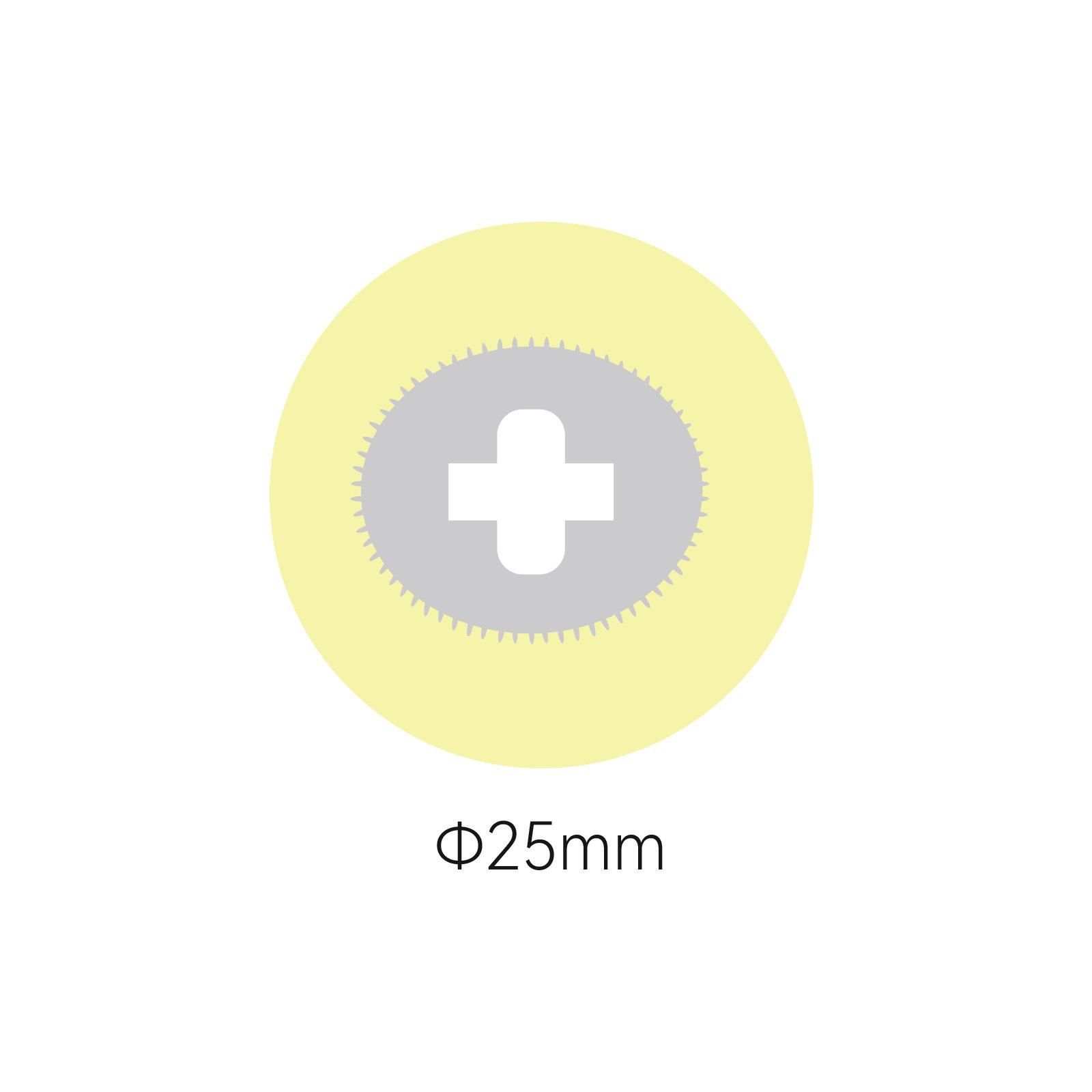

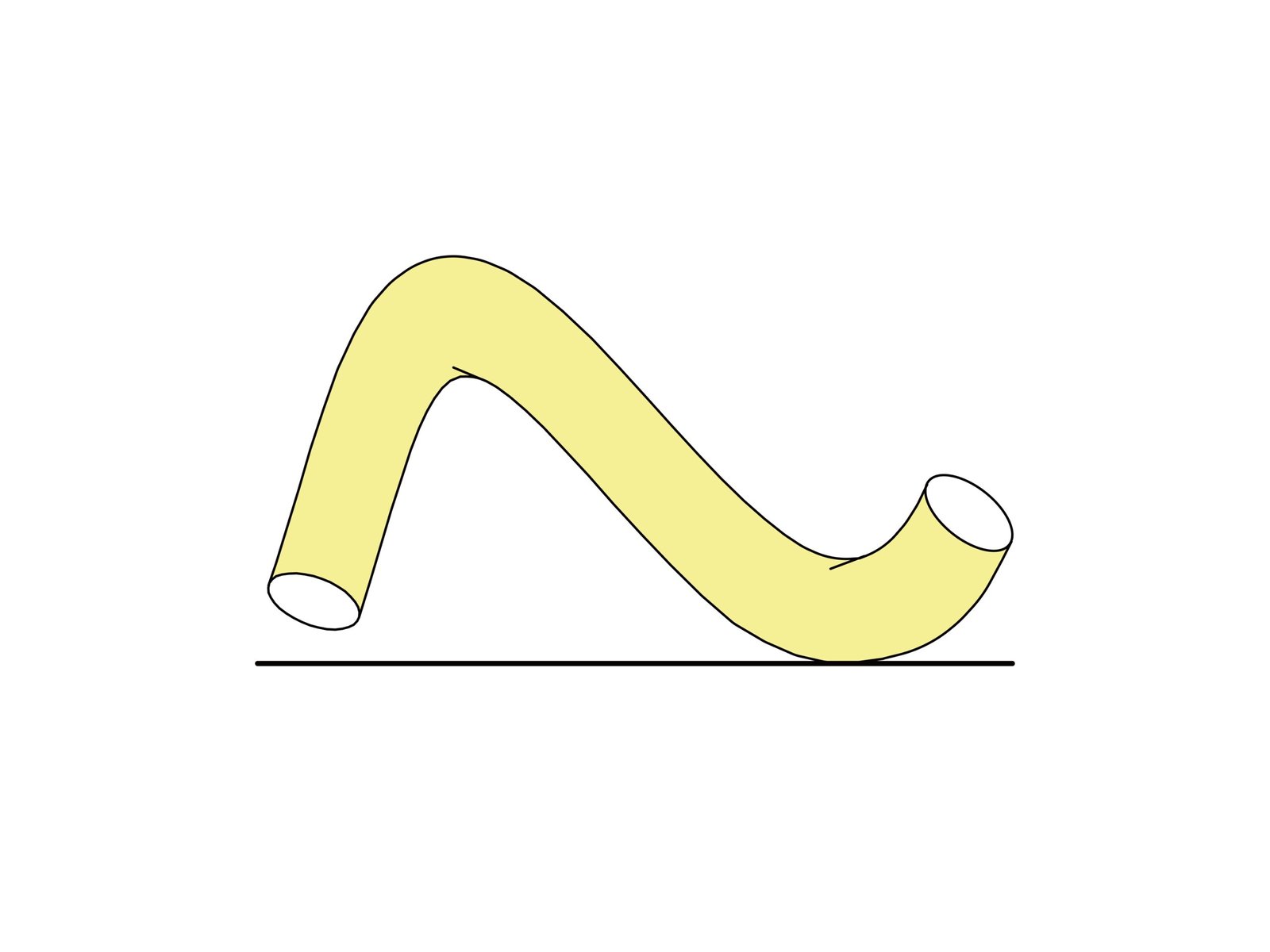

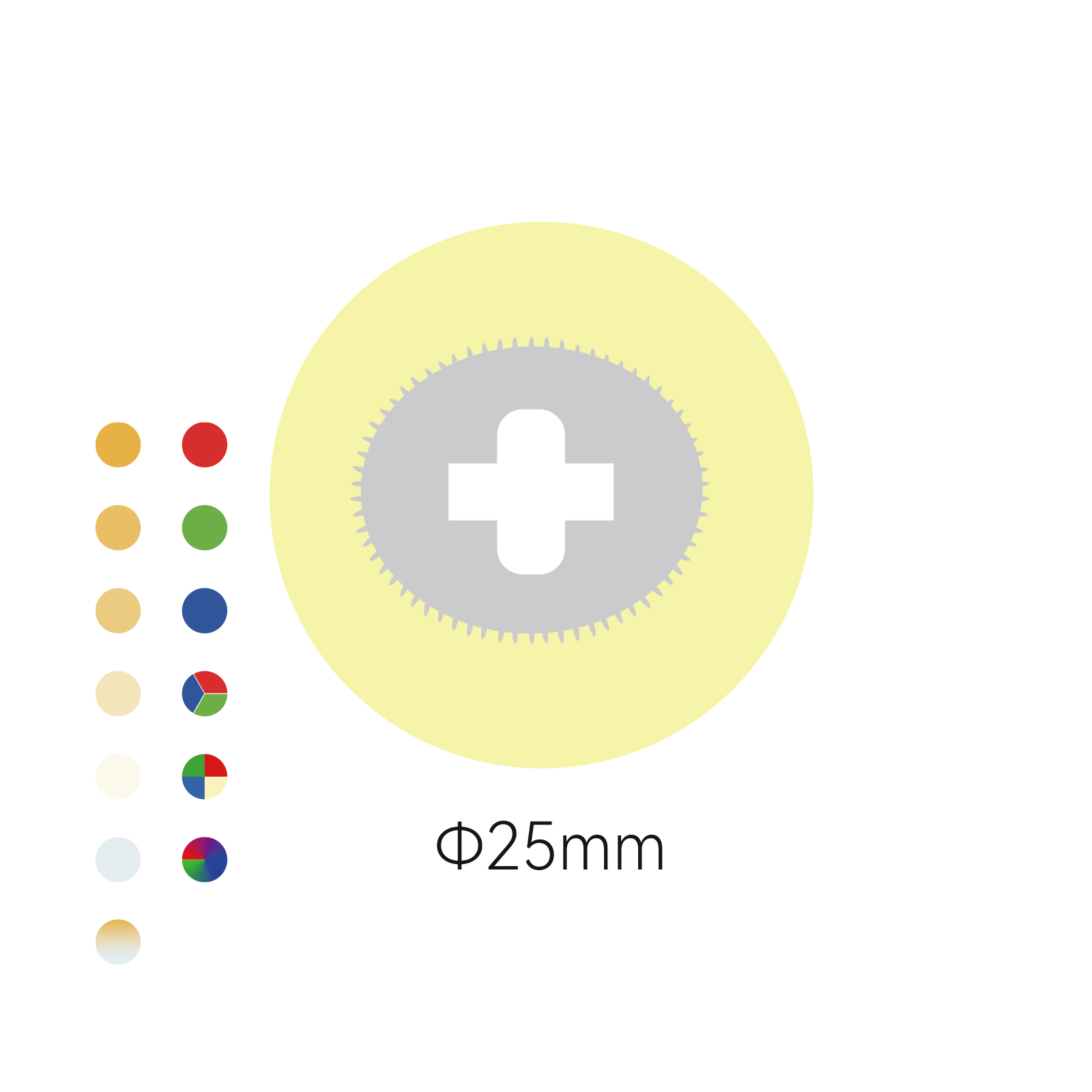

360° Round Series
A tubular design delivering true 360° light emission with no dark areas. Mimics the classic look of round glass neon tubes but with the immense benefits of modern LED and silicone technology.
- • Omnidirectional illumination
- • Suitable for straight, circular, curved, and special suspended shapes
- • Ideal for artistic installations and premium commercial space design
Extended Neon Flex Solutions

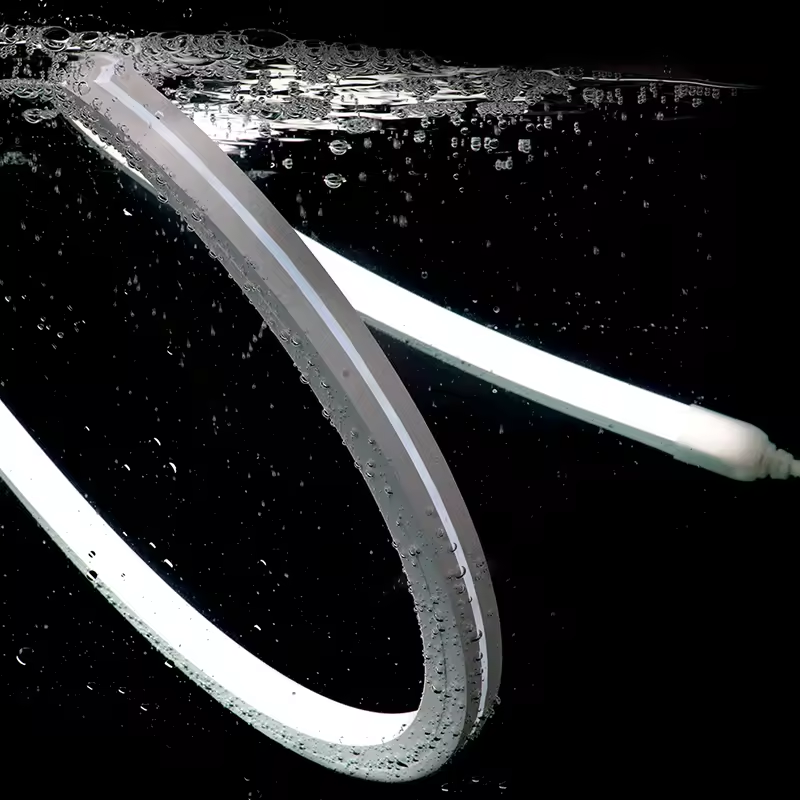

IP68 PU Neon Series
IP68 Silicone Neon
DMX512 & SPI Neon
High Efficiency Neon
Mini Cutting Neon
Wing Designed Neon
Comprehensive System Ecosystem
IP Grades
IP65 / IP67 / IP68 options tailored for indoor, outdoor, and underwater.
Endcaps
Silicone Endcap / Solder-free Endcap / Seamless Mold Injection Endcap.
Cable Outlet
Side / Bottom / Straight entry options to suit any installation constraint.
Mounting Accessories
Standard Clips / Aluminum Channels / Bendable Channels.
Connectors
IP65 / IP67 / IP68 Waterproof Connectors for secure power linking.
CC / CV Options
Constant Current (up to 30m run) or Constant Voltage configurations.
Standard Wattage
Multiple wattage variants to balance brightness and thermal management.
Custom Lengths
Factory pre-cut and sealed lengths available for immediate deployment.

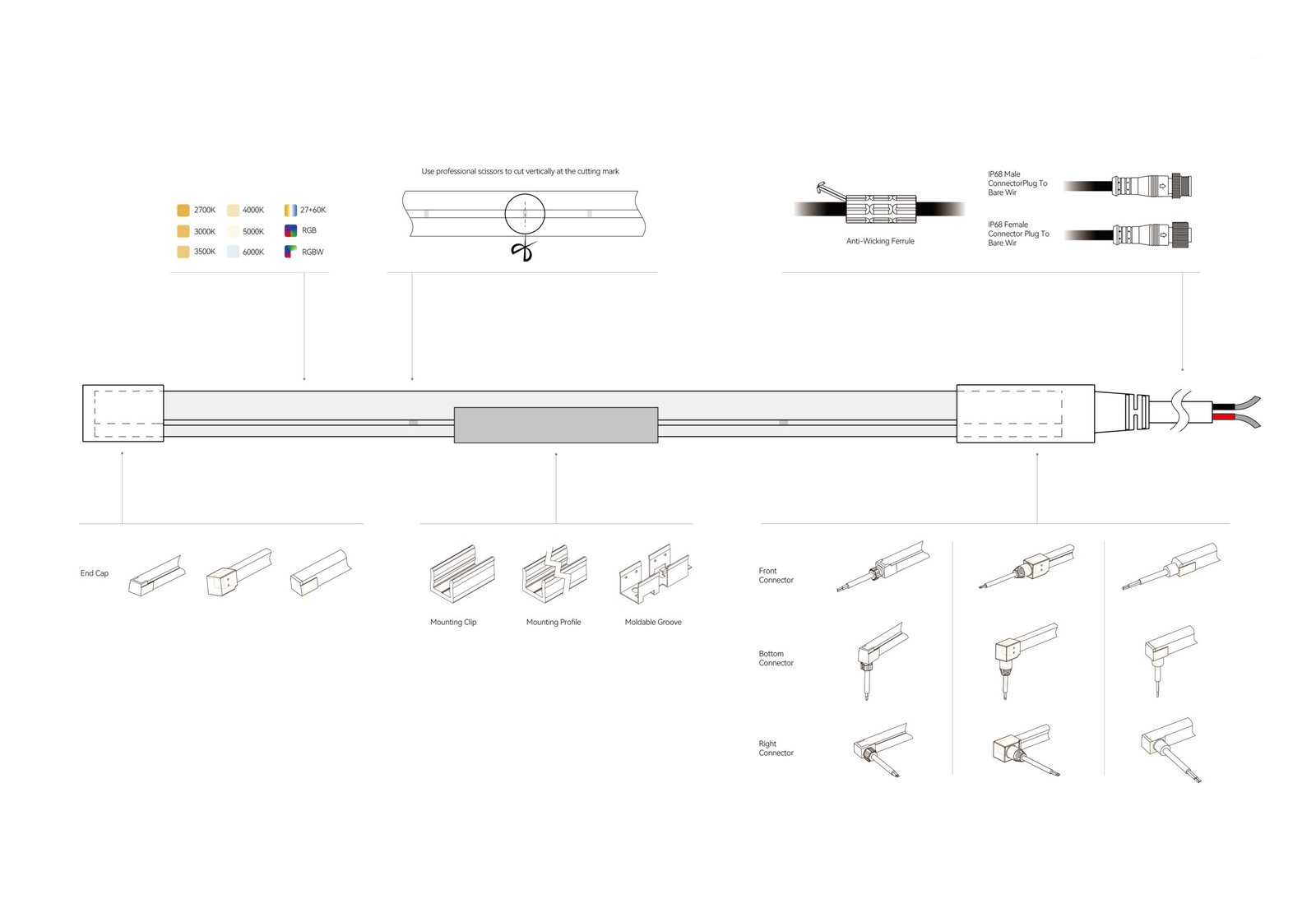

Cable Lead Options & Endcap Structures
A versatile range of endcap designs and cable routing directions to ensure clean, professional installations across diverse architectural constraints.
1. Integral End Cap (IP67)

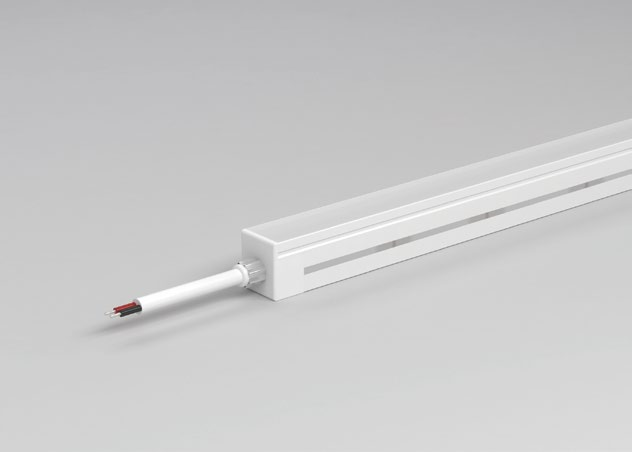

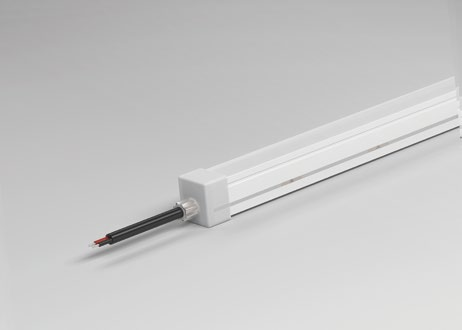

Front Cable Entry

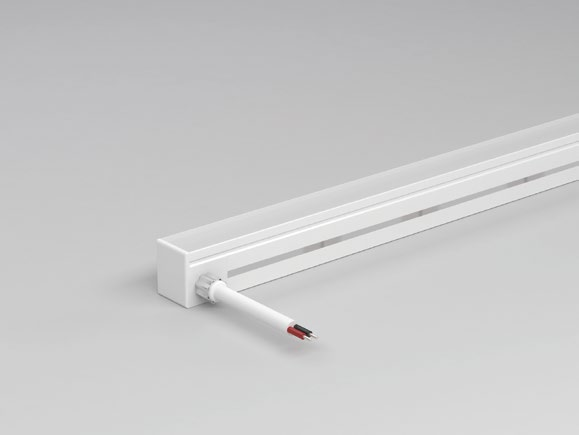

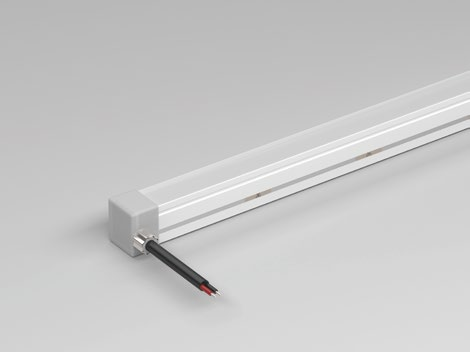

Side Cable Entry

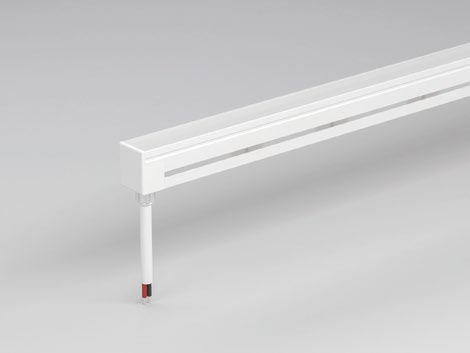

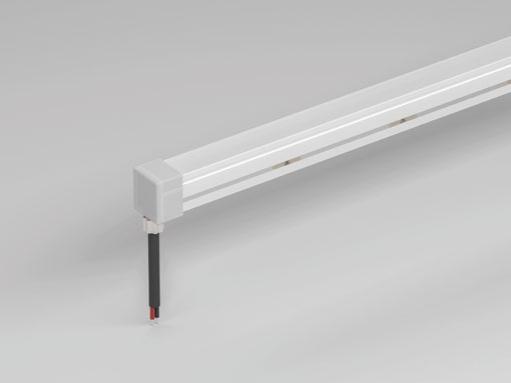

Bottom Cable Entry

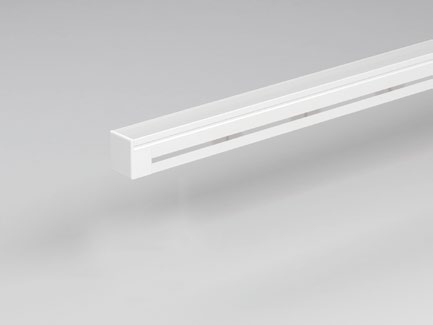

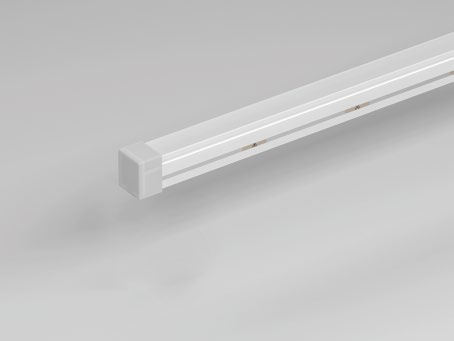

Closed End Cap
2. Silicone End Cap (IP67)
Front Cable Entry
Side Cable Entry
Bottom Cable Entry
Closed End Cap
Rigorous Reliability Testing
Certified for Global Markets
Why Partner With Us for Neon Flex?
Safer than traditional glass neon
Complete installation ecosystem
Multiple bending structures
Comprehensive OEM / ODM support
Indoor, outdoor & underwater capability
Stable global project delivery
Custom My Neon Flex
Configure every aspect of your Neon Flex order to meet exact project specifications.
Select from Vertical, Horizontal, 3D, or 360° Round depending on your installation surface and desired light direction.
Choose Silicone for general indoor/outdoor use, or PU for extreme environments and underwater submersion.
Specify IP65 (splash-proof), IP67 (outdoor weather-proof), or IP68 (submersible).
Available in flat profile for clean architectural lines or domed profile for wider viewing angles.
Various cross-section dimensions available (e.g., 10x10mm, 12x20mm, 16x16mm) to fit standard channels.
Opt for factory pre-cut lengths, or specify if you need soldering pads or solder-free plug compatibility.
Standard options include 12V DC or 24V DC. 24V is recommended to minimize voltage drop over longer runs.
Select aluminum mounting clips, rigid aluminum channels, or bendable serrated channels.
Choose between standard bare wires, DC jacks, or IP67/IP68 waterproof threaded connectors.
Specify Front, Side, or Bottom cable entry to hide wiring effectively in your application.
Standard 5m/reel or bulk packaging options. Custom labeling available for distributors.
Full OEM/ODM services including custom CCT, specialized profiles, and private label packaging.
Installation & Mounting Support
Mounting Clip
For simple, spaced fixing.
Aluminum Channel
Rigid aluminum for straight runs.
Bendable Channel
Serrated metal for curved outlines.
Flexible Aluminum Channel
IP67/IP68 secure linking.
Avoid Common Failures

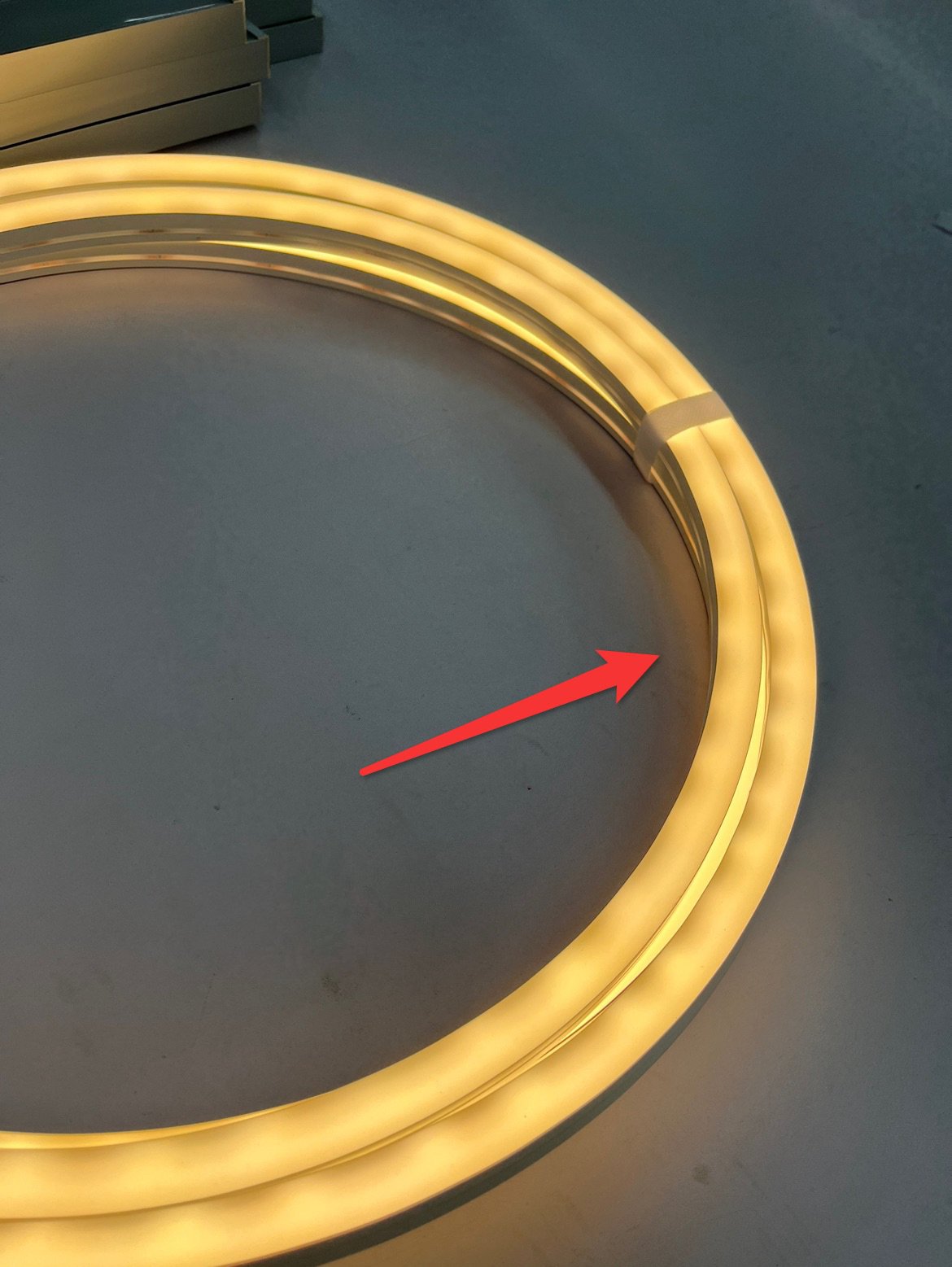

Wrong Bend Direction
Forcing a vertical bend neon horizontally damages the internal PCB.

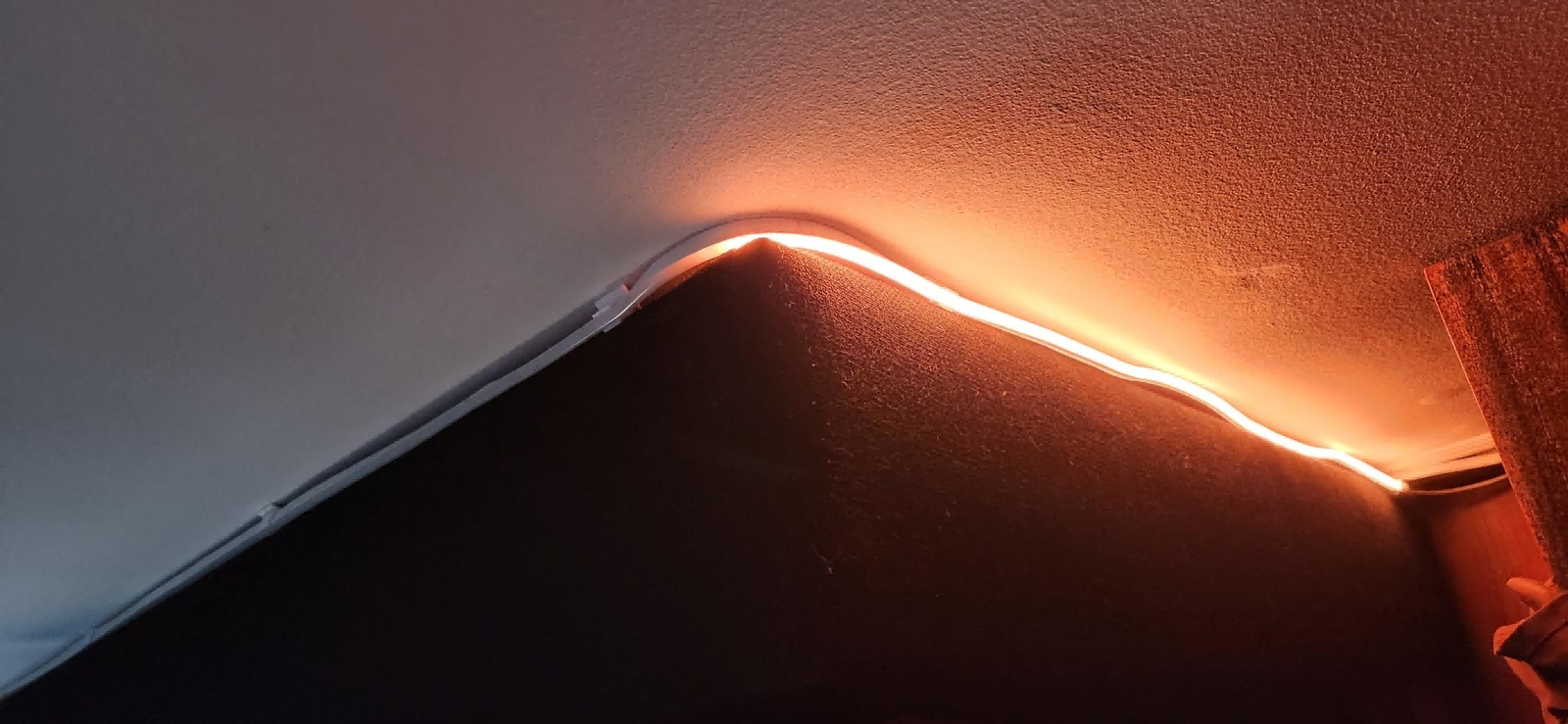

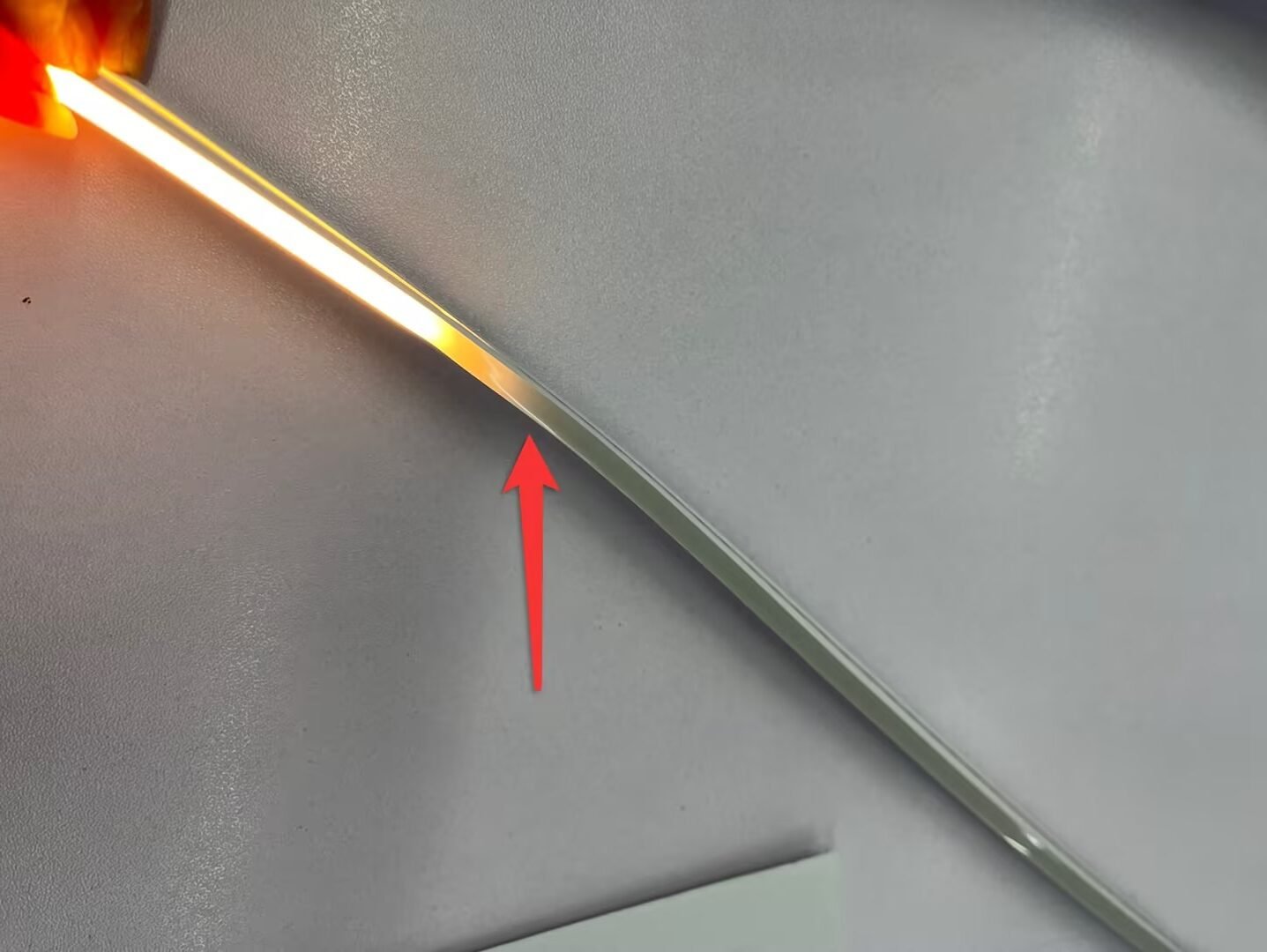

PCB Broken
Insufficient silicone sealant leads to moisture ingress and LED failure.

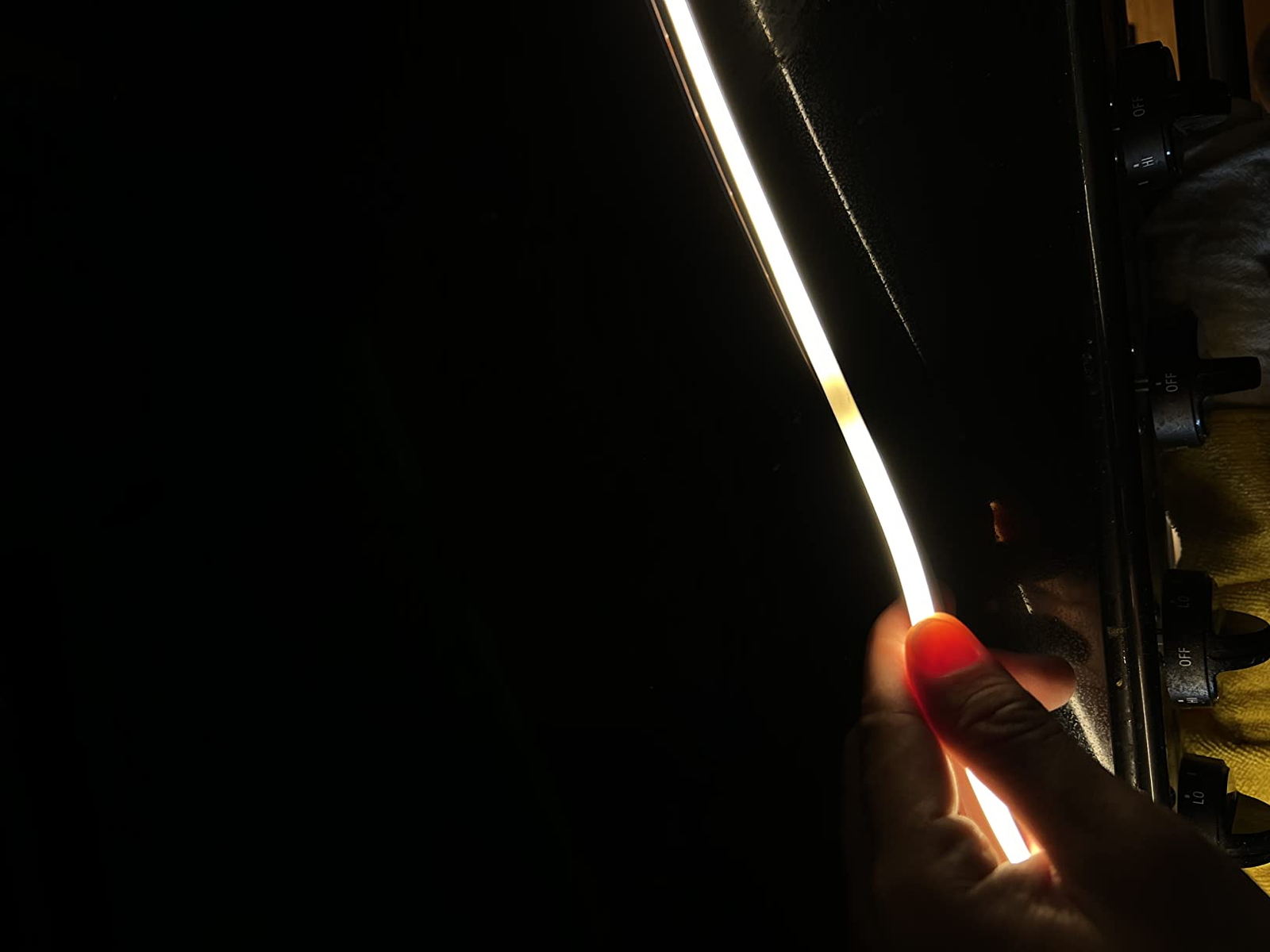

Poor Material Selection
Using standard silicone neon for underwater projects instead of PU.
Wrong Mounting Choice
Using sparse clips on heavy runs leading to sagging and uneven lines.
Neon Flex Connection Diagrams
Standard workflow: Cut Mark → Solder/Connector → Endcap Sealing → Mounting Channel

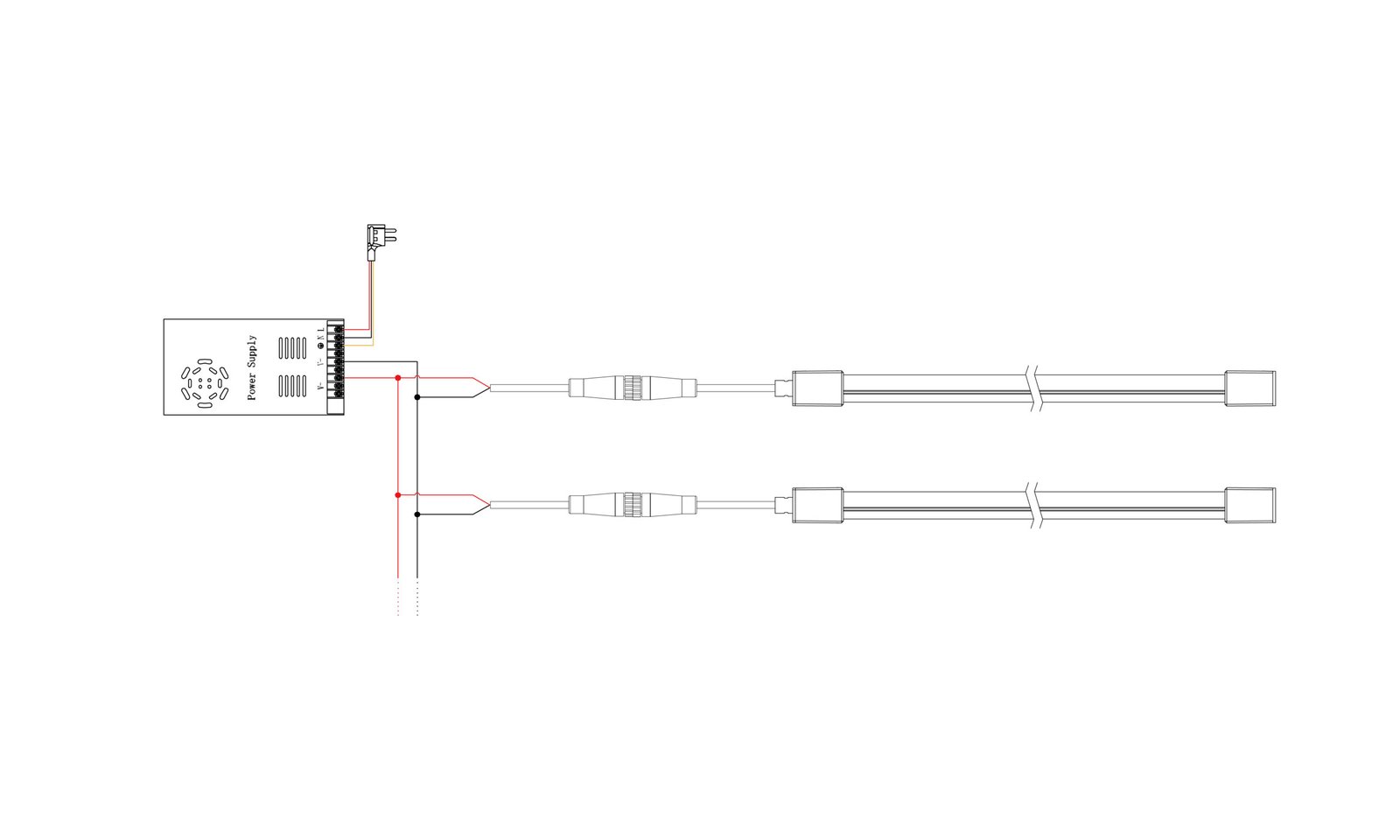

Single Color
Standard 2-wire connection (V+, V-) designed for uniform monochromatic illumination. Highly stable circuit design ideal for architectural outlines and basic accent lighting projects.

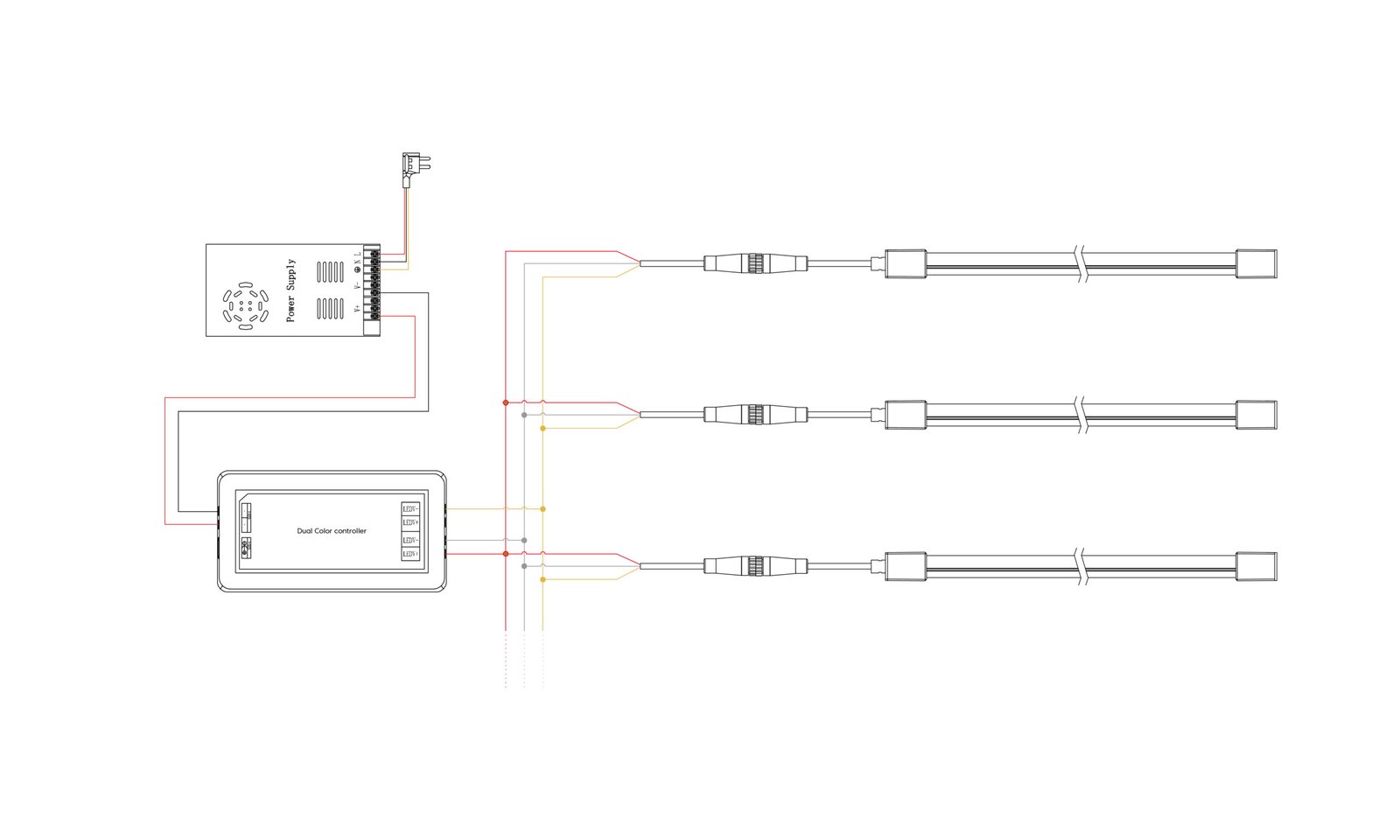

Tunable White Color
3-wire connection (V+, CW, WW) allowing seamless adjustment from warm to cool white color temperatures. Engineered for dynamic ambient control in premium commercial spaces.

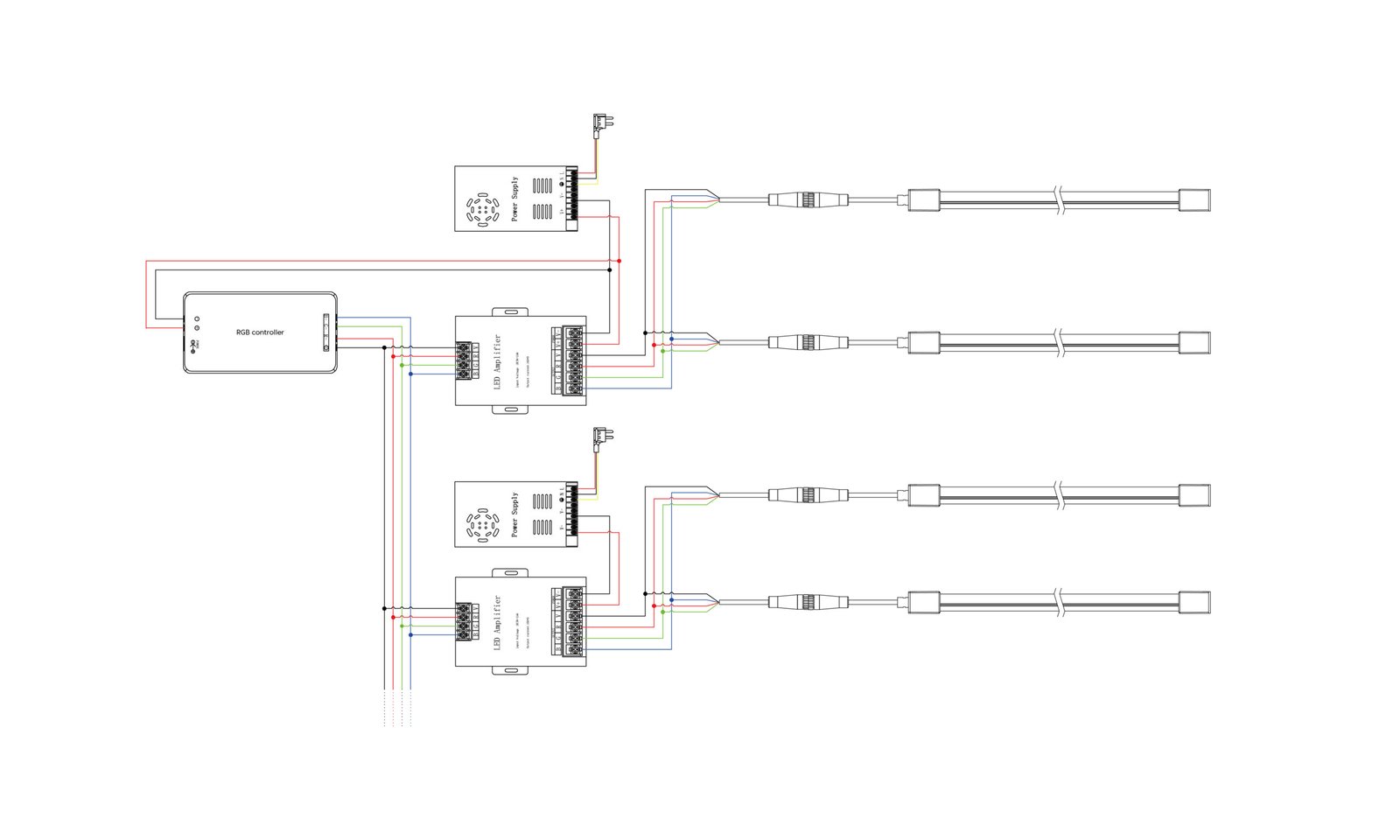

RGB Color
4-wire connection (V+, R, G, B) for full-spectrum color mixing. Features robust signal transmission ideal for vibrant, eye-catching facade and entertainment lighting installations.

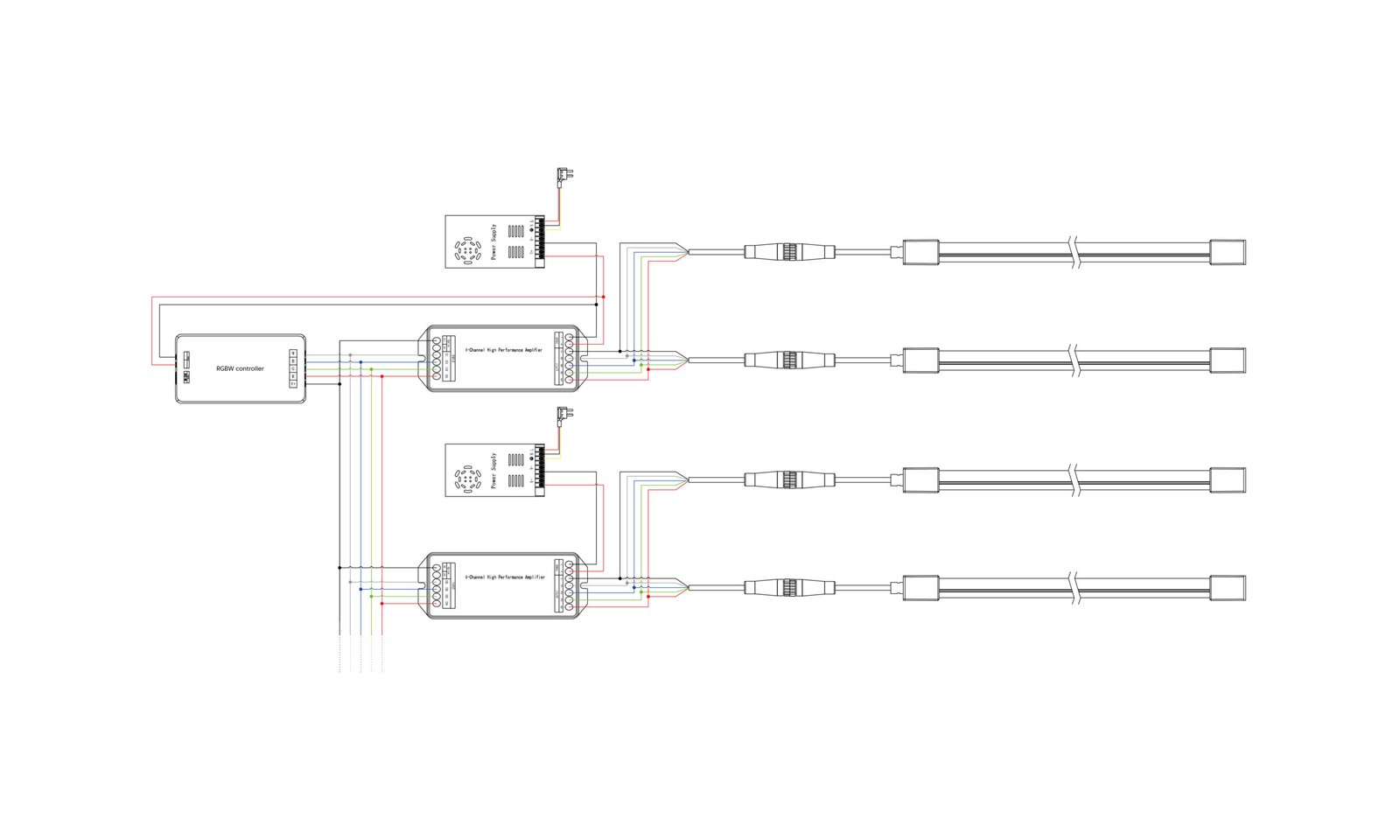

RGBW Color
5-wire connection (V+, R, G, B, W) combining dynamic RGB capabilities with a dedicated pure white channel. Delivers enhanced brightness and accurate pastel shade rendering.
RGBCCT Color
6-wire connection (V+, R, G, B, CW, WW) offering ultimate lighting versatility. Seamlessly integrates full-color RGB mixing with dual-channel tunable white temperature control.
Need Custom Wiring Solutions?
Direct support from our Vietnam Factory.
Frequently Asked Questions
LED Neon Flex is a flexible linear lighting product composed of a high-density LED light source and a silicone or PU protective body. It is designed to replace traditional glass neon, offering a safer, shatterproof, and more flexible solution for signage and architectural lighting.
Silicone neon is typically rated IP67 and is ideal for indoor and outdoor decorative lighting. PU neon is typically rated IP68, offering superior resistance to UV and saltwater, making it the standard choice for underwater applications like swimming pools.
Choose Vertical Bend for wrapping around columns or top-emitting contours. Choose Horizontal Bend for flat curves along walls. Choose 3D Bend for complex, multi-axis shapes, and 360° Round for suspended or omnidirectional artistic designs.
Yes, it can be cut at designated cut marks. It can be reconnected by soldering (most secure) or using our solder-free plugs. We also offer 2nd generation solderless endcaps to help maintain IP ratings after cutting.
Yes, specifically our PU Neon Flex series is rated IP68 and is designed for continuous underwater submersion.
Yes, we offer stocked samples based on our standard item for project validation. Please contact our team at tenly@xmartlighting.com to request your sample kit.
Looking for a more reliable Neon Flex supply partner?
Connect with our engineering team to discuss your project requirements, request full specifications, or get a custom quote.
