LED Driver Matching for LED Strip Systems
Compare constant-voltage LED drivers and power-supply options for Xmart LED strip projects. Selection is based on strip voltage, connected load, input mains, dimming method, installation environment and model-specific certification requirements.
Supported Driver Types for Different Control Needs
Xmart strip lights can work with mainstream driver and dimming systems depending on the application and control logic.
Triac / Phase-cut Dimmable
Traditional wall-dimmer compatible solutions for straightforward retrofits.
0/1-10V Dimmable
Standard analog control logic for commercial and office lighting systems.
DALI-2 & Push-Dim
Advanced digital addressable lighting interface for precise, scalable control.
DMX512 Dimmable
Dynamic protocol ideal for complex RGB/RGBW architectural and stage lighting.
Wireless (Bluetooth/ZigBee/Wi-Fi)
Modern smart lighting integrations for app and voice-controlled environments.
Non-Dimmable
Reliable, constant voltage power supplies for standard on/off applications.
How to Choose the Right LED Driver for an LED Strip Project
Match the driver to the LED strip’s output voltage, connected load, dimming method, installation environment and required documentation.
1. Match the Output Voltage
Most LED strips require a constant-voltage power supply. The driver output voltage must match the strip’s rated input voltage. Constant-current drivers should only be used with compatible LED modules or fixtures.
2. Confirm the Connected Load
Calculate the load from the selected strip model, watts per meter and total connected length. Final sizing should follow the exact driver datasheet, circuit arrangement and applicable derating conditions.
3. Select the Dimming Method
Confirm whether the project requires non-dimmable, phase-cut, 0–10V, 1–10V or DALI control. DMX512, SPI and wireless systems normally require a separate controller, decoder or gateway.
4. Verify Installation and Documents
Check the AC input, installation location, ambient temperature, enclosure and wiring method. Confirm the complete model, wiring diagram, certification coverage and warranty conditions before approval.
For driver matching, provide the LED strip model, voltage, total length, W/m, AC input, control method, installation environment and destination market.
Main Available Power Supply Programs
While our strip lights support mainstream dimming and control systems, the following power supply programs are the main currently available options for faster quotation and project support.
MEAN WELL
Selected MEAN WELL models may be matched to Xmart LED strip projects according to output voltage, power, enclosure, dimming function and destination-market requirements. Final specifications and certifications must be verified using the exact MEAN WELL model and current datasheet.
China Brand
Alternative driver models are available for selected indoor, dimming and project-budget requirements. Manufacturer, model, specification and certification details are confirmed before quotation.
Cabinet Power Supply
A constant-voltage power unit with multiple low-voltage output interfaces for compatible cabinet and showcase LED strips. Buyers should confirm total output power, maximum load per port, connector type, input cord, installation location and applicable ETL documentation.

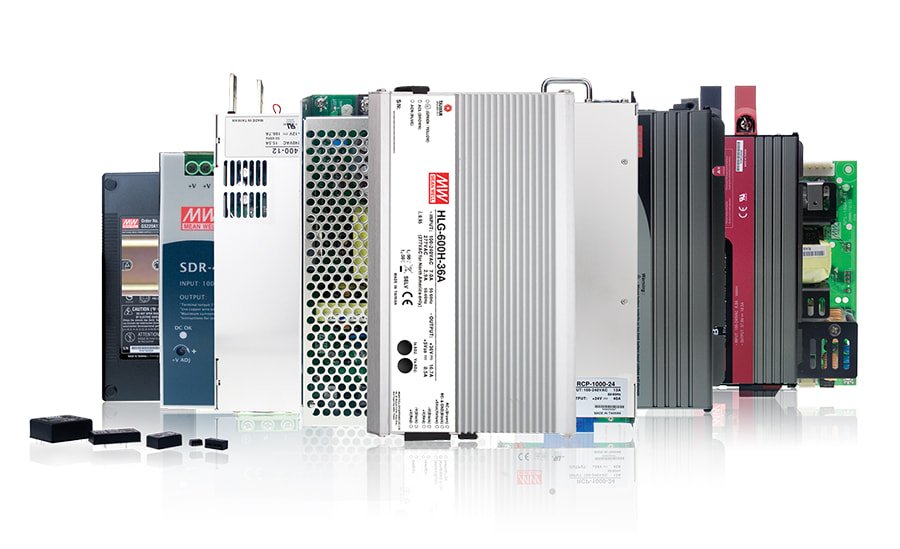

Mean Well Power Supply Series
Our primary Non-Dimmable main program. With complete global certifications, Mean Well LED power supplies are universally trusted for their exceptional stability and longevity in demanding commercial and industrial applications.

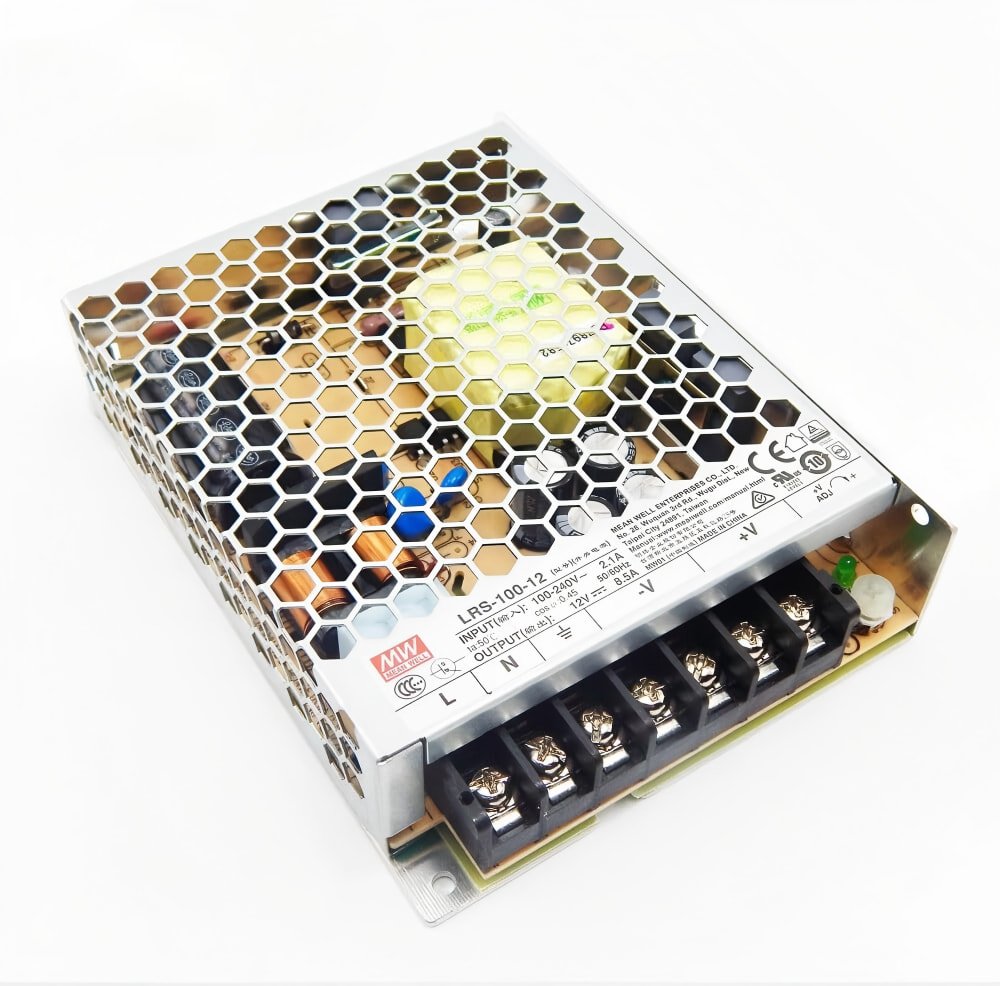

LRS Series
Enclosed type power supply for indoor installations.

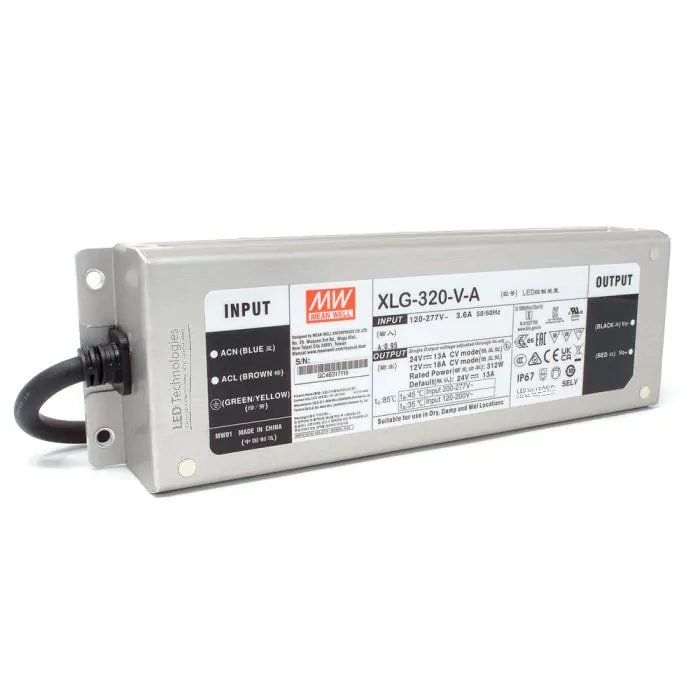

XLG Series
Compact metal case design for harsh environments.

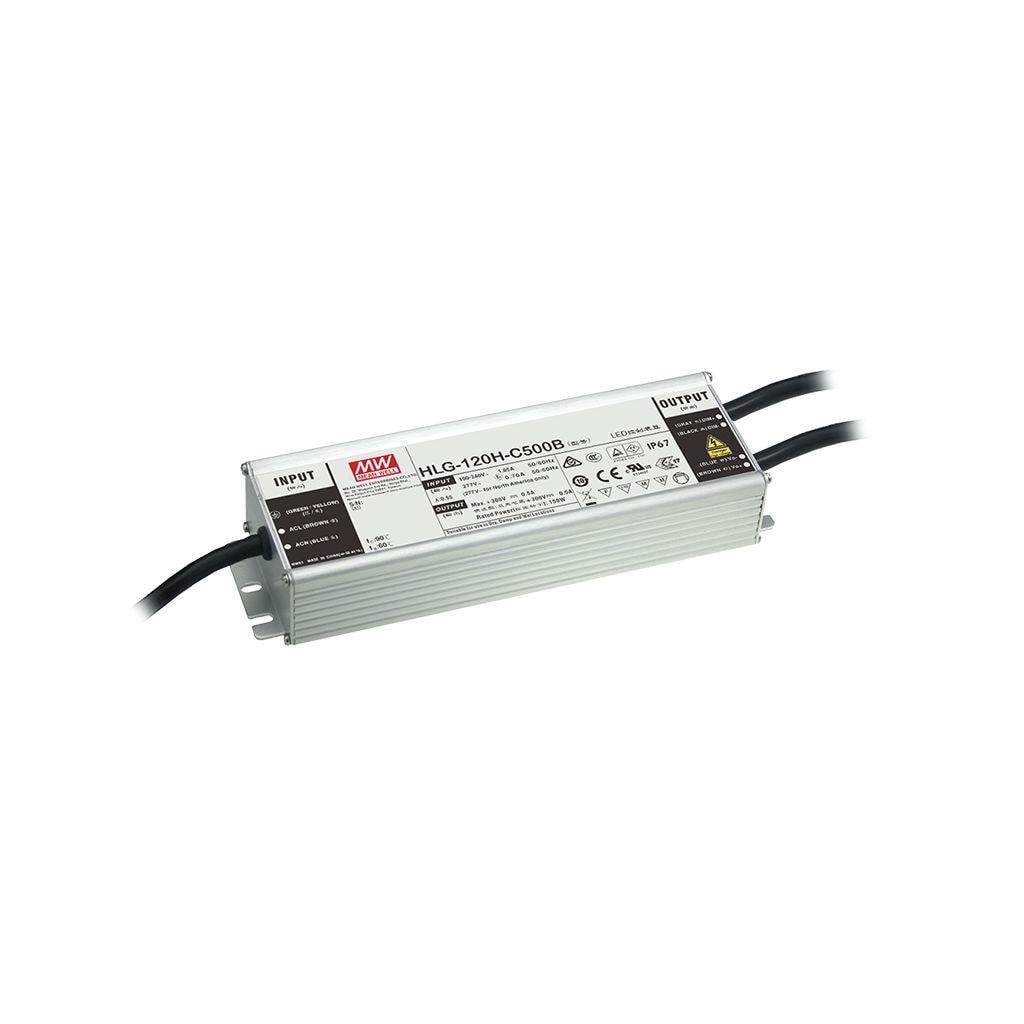

HLG Series
High-performance metal housing driver for heavy-duty applications.
Mean Well Series Wiring Diagram

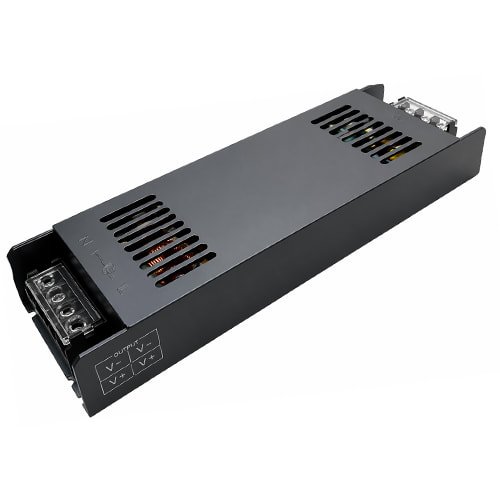

China Brand Power Supply Series
A more flexible and conventional power solution program. These series are highly practical for standard indoor installations, offering excellent value for everyday strip light projects.
Dimmable Series
Standard constant voltage driver for general indoor lighting.

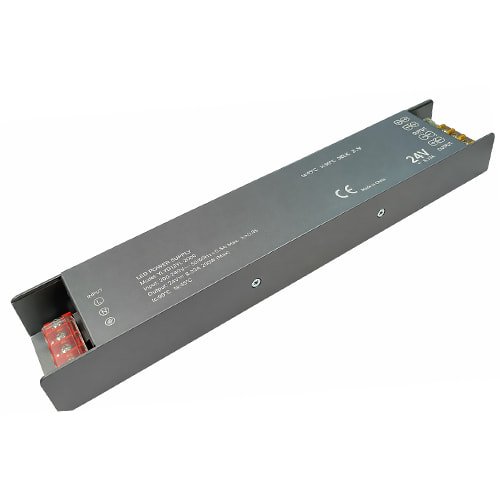

0-10V Series
0-10V/ 1-10V/ Resistance/ 10V PWM dimmer and various lighting control systems.
China Brand Series Wiring Diagram
Cabinet Power Supply
Not a standard driver, but a ready-to-use power solution. ETL certified and designed specifically for cabinet and showcase lighting applications with easy plug-and-play interfaces.
12/24V Multi-Interface Power Hub
-
Output Voltage
12/24V DC Constant Voltage
-
Interface Design
1 in 6 out (6 interfaces for easy cabinet strip connection)
-
Available Wattage
36W 48W 60W
Cabinet Power Supply Wiring Diagram
How to Size an LED Driver for an LED Strip Project
Start with the connected LED strip load, then verify the circuit arrangement, control equipment and the exact driver’s continuous-output and derating requirements for your commercial LED strip project.
Calculate the Connected Load
Connected Strip Load = Σ (Length × Rated W/m)
Use the selected LED strip model’s specified power and calculate the load connected to each driver output. Separate circuits should be calculated individually.
Check the Complete Circuit
Confirm the number of powered sections, cable voltage drop, controller or dimmer current rating and connector capacity. Driver wattage alone does not confirm complete system compatibility.
Verify the Driver Datasheet
Select the final driver using its rated continuous output, AC input range, ambient-temperature derating, installation orientation, enclosure and dimming requirements. Apply additional design margin only when required by the driver manufacturer or project specification.
Is the 80% load rule mandatory for every LED driver?
No. A fixed 80% rule is a common planning approach, not a universal requirement. Some constant-voltage LED drivers can operate at their full rated load under defined conditions, while others require derating based on ambient temperature, input voltage, enclosure or installation method. Always follow the exact model datasheet to determine the optimal LED strip power supply wattage.
LED Driver Selection Frequently Asked Questions
The correct LED driver depends on the LED load, output voltage, connected wattage, dimming method, installation environment and model-specific documentation.
Does an LED strip require a constant-voltage or constant-current driver?
Can any 24V power supply be used with a 24V LED strip?
How should buyers calculate the required LED driver wattage?
Is the 80% load rule mandatory for every LED driver?
What is the difference between phase-cut, 0–10V, 1–10V and DALI dimming?
Does an IP67 driver make the complete LED strip system suitable for wet locations?
How should multiple LED strip sections be powered?
Which LED driver models have UL, ETL or DALI-2 documentation?
Need Help Matching the Right Driver to Your Strip Light Project?
Don't guess on compatibility. Tell us about your project, and our engineering team will recommend a practical, reliable power supply solution.
- Tell us your strip type
- Tell us your voltage (12V/24V/48V)
- Tell us your control requirement
