Mini Narrow Beam LED Wall Washer
Break free from conventional lens-based wall-washing structures. Xmart Mini Narrow Beam Series uses an integrated silicone optical profile to create precise, flexible illumination with beam angles down to 15°.
- Beam Angle Down to 15°
- Up to 1830 cd in Selected 15° Configurations
- 90+ lm/W in Selected ST1616 Configurations
Designed for precise wall grazing, architectural contours, curved facades, and high-impact linear lighting where broad, diffused output is not enough.
Performance values vary by profile, CCT, beam configuration, product length, and final assembly.
What Makes This a Narrow Beam Wall Washer?
A conventional flexible wall washer often relies on a separate optical lens to control light. Xmart Mini Narrow Beam Series uses a lens-free architecture: the silicone body, light-emitting geometry, and LED arrangement work together as an integrated optical system.
The result is a flexible neon wall washer that can deliver a focused linear beam rather than the broad, diffused output associated with ordinary decorative neon strips. With beam angles down to 15°, it is engineered for visual precision, contrast, and architectural definition.

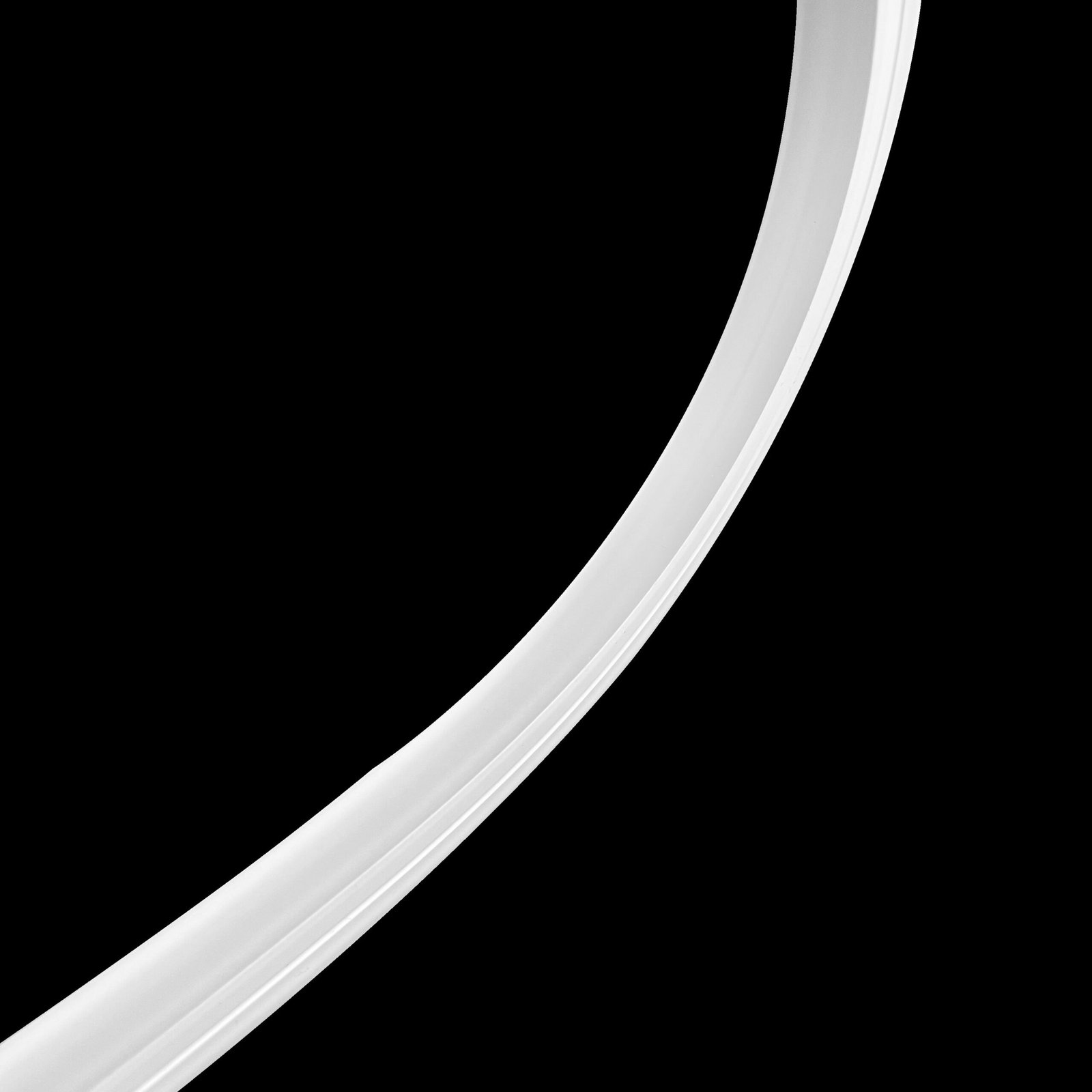

- Integrated Silicone Optical Profile
- LED PCB
- Controlled Light Exit
- Flexible Silicone Body

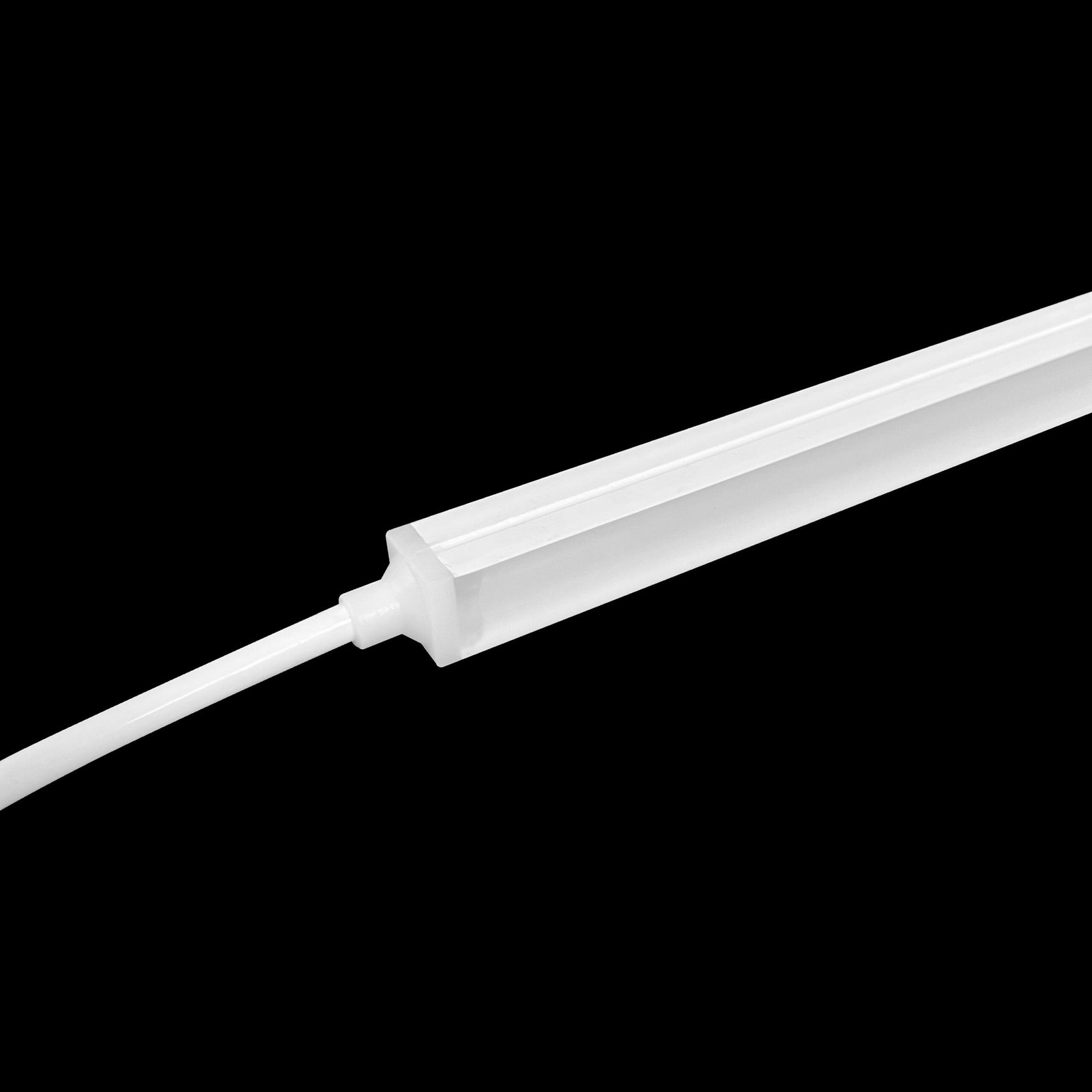

- Seamless Molded End Cap
No separate optical lens component. The optical function is integrated into the product structure.
Precision Wall Grazing with a Minimum 15° Beam
A narrow beam creates a more deliberate relationship between light and surface. Instead of flooding a wall with broad illumination, a 15° beam helps reveal vertical lines, material texture, façade rhythm, columns, curved edges, and architectural details.
Sharper Visual Definition
Create a more focused and controlled lighting expression on architectural surfaces.
Higher Centre Intensity
Concentrate light where it is needed for stronger visual impact in selected narrow-beam configurations.
Flexible Installation Freedom
Bring narrow-beam wall grazing to curves, rounded corners, irregular façades, and linear architectural details.
When Is a 15° Narrow Beam the Right Choice?
Selecting the correct optical distribution based on project intent.
| Selection Point | 15° Mini Narrow Beam | Wider Beam Wall Washer |
|---|---|---|
| Visual effect | Crisp, focused, high-contrast linear emphasis | Broader, softer surface coverage |
| Best use | Architectural details, façade lines, texture, columns, close-to-surface grazing | General wall washing and wider illuminated surfaces |
| Light distribution | Concentrated in the narrow beam direction | Spread across a larger visual area |
| Design priority | Precision and architectural definition | Broad uniform coverage |
| Project review | Confirm mounting distance, surface texture, and desired contrast | Confirm coverage height, spacing, and uniformity |
Choose the Profile That Fits the Architecture
Two mini profiles, one narrow-beam design language.

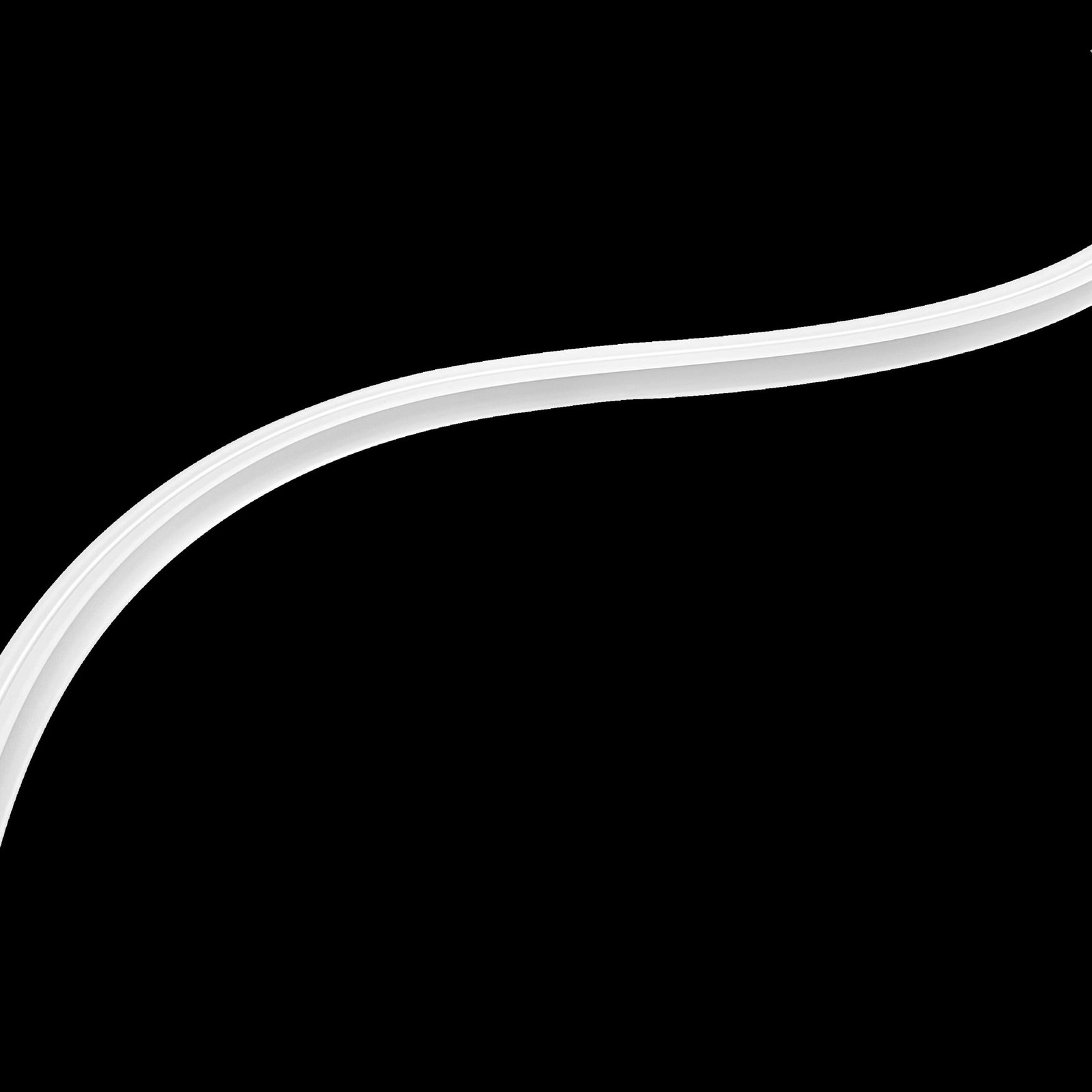

16 × 16 mm Narrow Beam Wall Washer
A compact square profile for applications that require a stronger linear presence while maintaining a clean, flexible neon appearance.
12 × 12 mm Top-Bending Mini Wall Washer
A smaller top-bending profile for refined architectural lines, curves, contours, and installations where a more compact visual footprint is required.
High Optical Efficiency, Without Sacrificing Beam Control
Narrow-beam flexible wall washers are often judged only by beam control. Xmart also focuses on useful light output. In a tested ST1616, 1 m, 16W, 2700K configuration, the system achieved 92.73 lm/W and 1557.9 lm total luminous flux.
- High efficacy should be evaluated against the exact beam, CCT, power, and product build.
- Photometric performance must be verified with matched IES files and test reports.
- Do not compare efficacy values across unmatched beam angles, CRI levels, or test conditions.

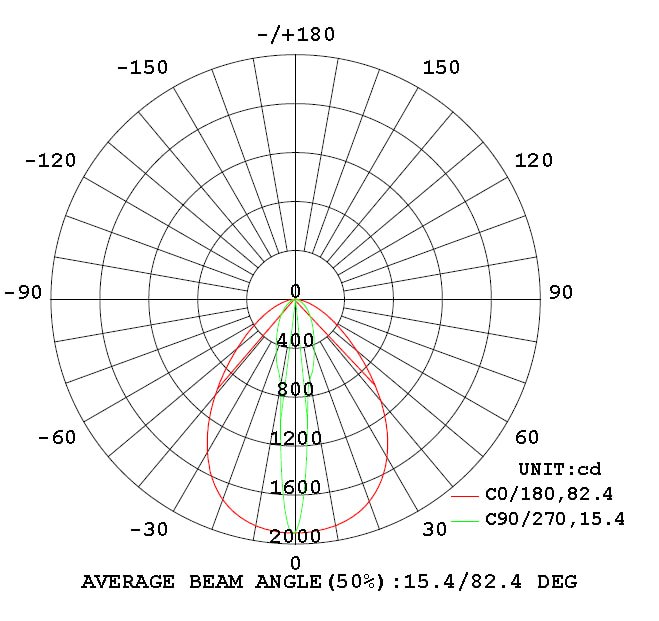

The cited test configuration reports a narrow-linear distribution of approximately 18.7° × 83.7°. The series supports beam angles down to 15°; 15° values must be supported by the matching model report.
Mount the Beam Where the Architecture Needs It
Four Installation Systems for Straight, Curved, and Directed Light
A clean, efficient fixing option for standard straight runs and concealed linear details.
Provides a more defined mounting route, cleaner alignment, and additional mechanical support for architectural installations.
A bendable aluminum rail for curved façades, rounded surfaces, arches, and free-form linear details.
Allows the installer to fine-tune the direction of the narrow beam after installation, supporting more precise wall-grazing alignment.
Built as a Complete Outdoor Linear Lighting Assembly
The Mini Narrow Beam Series follows the manufacturing logic of professional silicone neon flex while adding focused wall-washing performance. The final assembly uses seamless molding end caps to create a cleaner, more integrated end finish and support the IP67 protection design.
IP67 refers to dust-tight protection and temporary immersion resistance for the complete final assembly. It is not a claim for permanent underwater operation.
Manufacturing Process for Consistent Optical and Outdoor Performance
LED PCB Preparation
Prepare the LED circuit assembly for the selected power, CCT, and optical configuration.
Integrated Silicone Optical Extrusion
Form the flexible silicone body and controlled light-exit geometry that define the lens-free optical structure.
Cutting and Assembly
Prepare product lengths, cable entries, and required installation accessories according to project requirements.
Seamless End-Cap Molding
Create a finished, integrated end treatment for the specified IP67 final assembly.
Electrical and Appearance Inspection
Verify electrical function, appearance, labeling, and product assembly against the approved configuration.

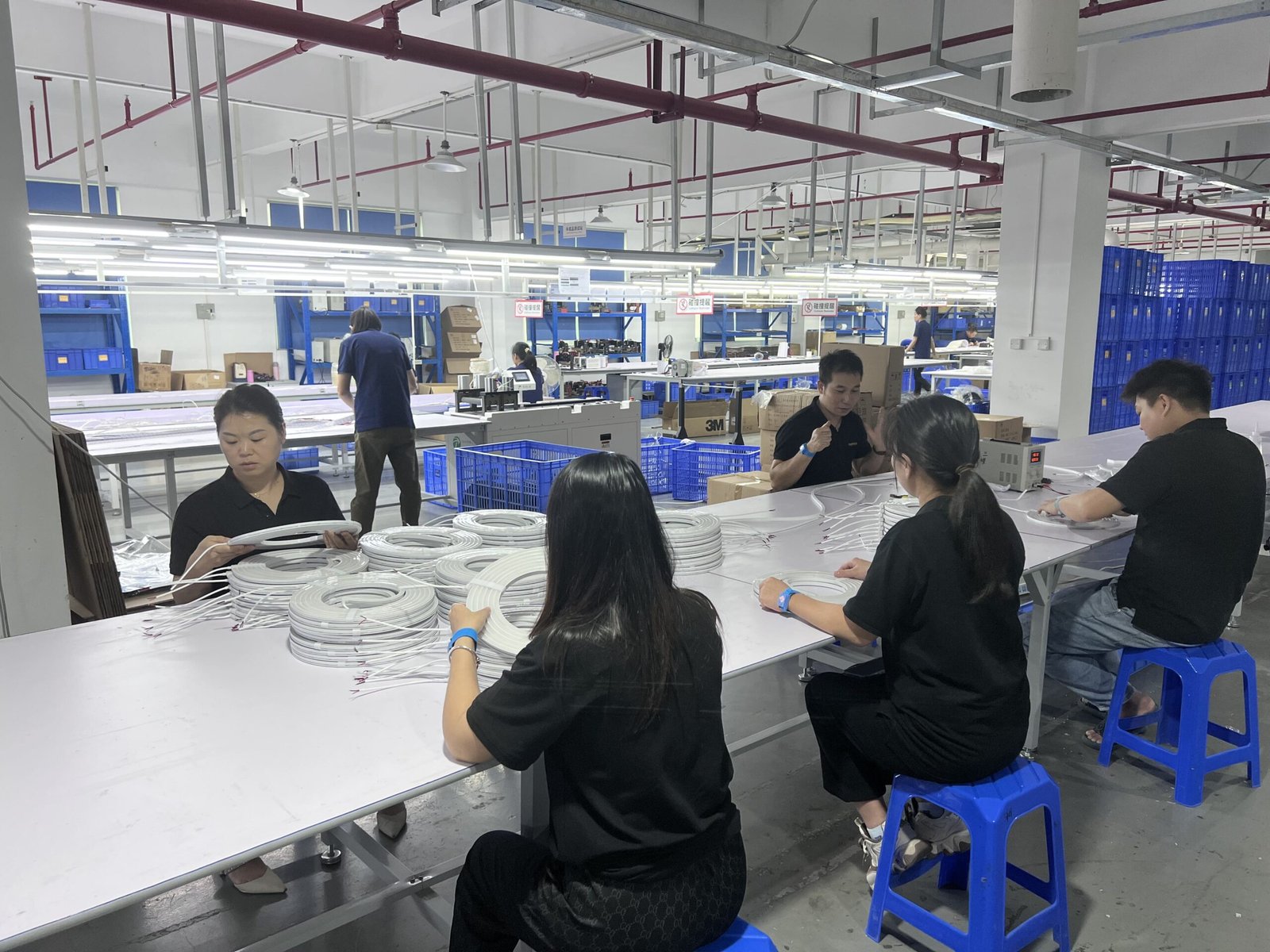

Packing Release
Check accessories, product protection, carton marking, and final packing requirements before shipment.
Designed for Architectural Surfaces That Need Definition
Use the narrow beam to shape the surface, not simply to make it brighter.

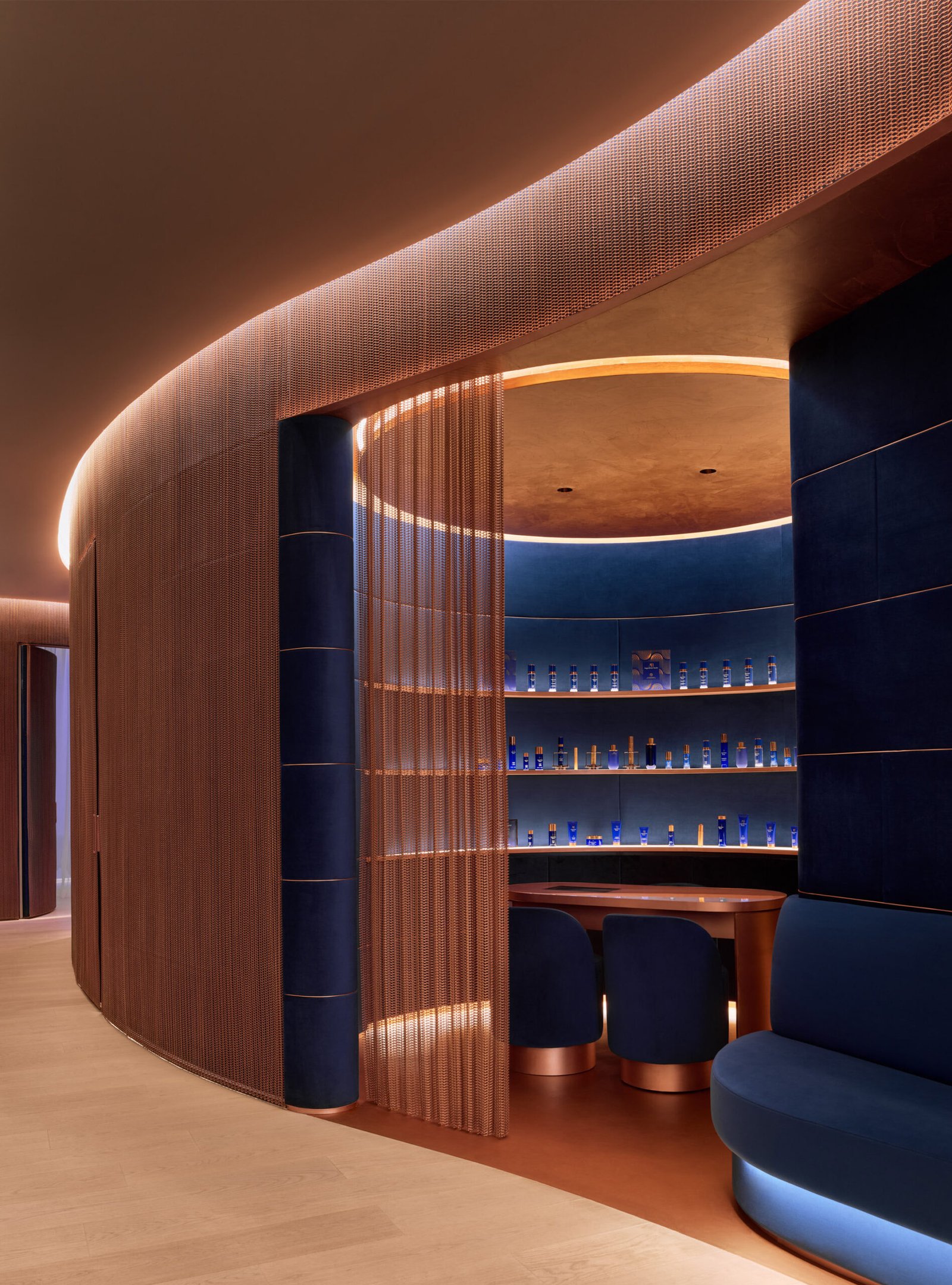

Façade Lines and Building Edges

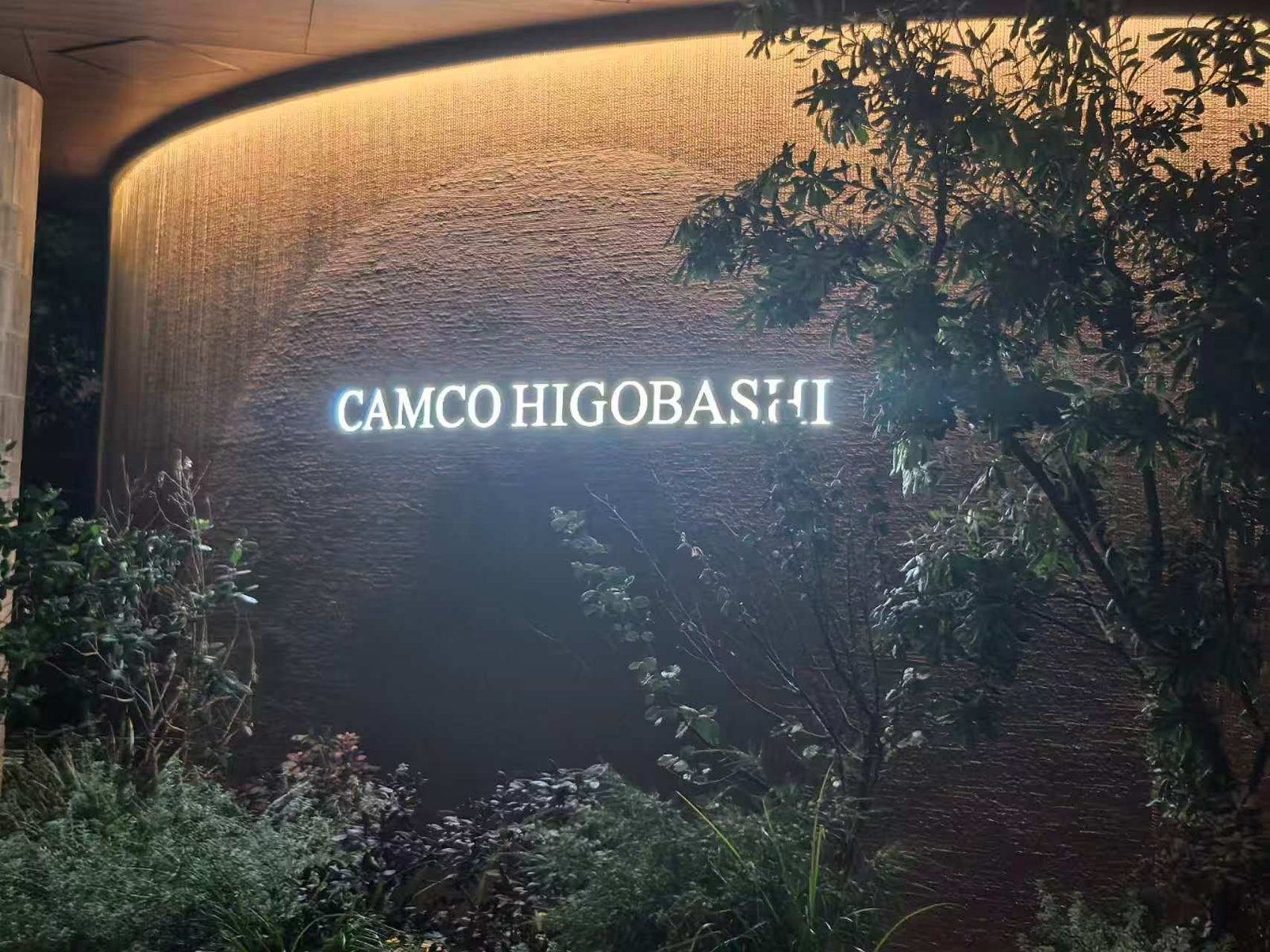

Columns, Arches, and Curved Walls

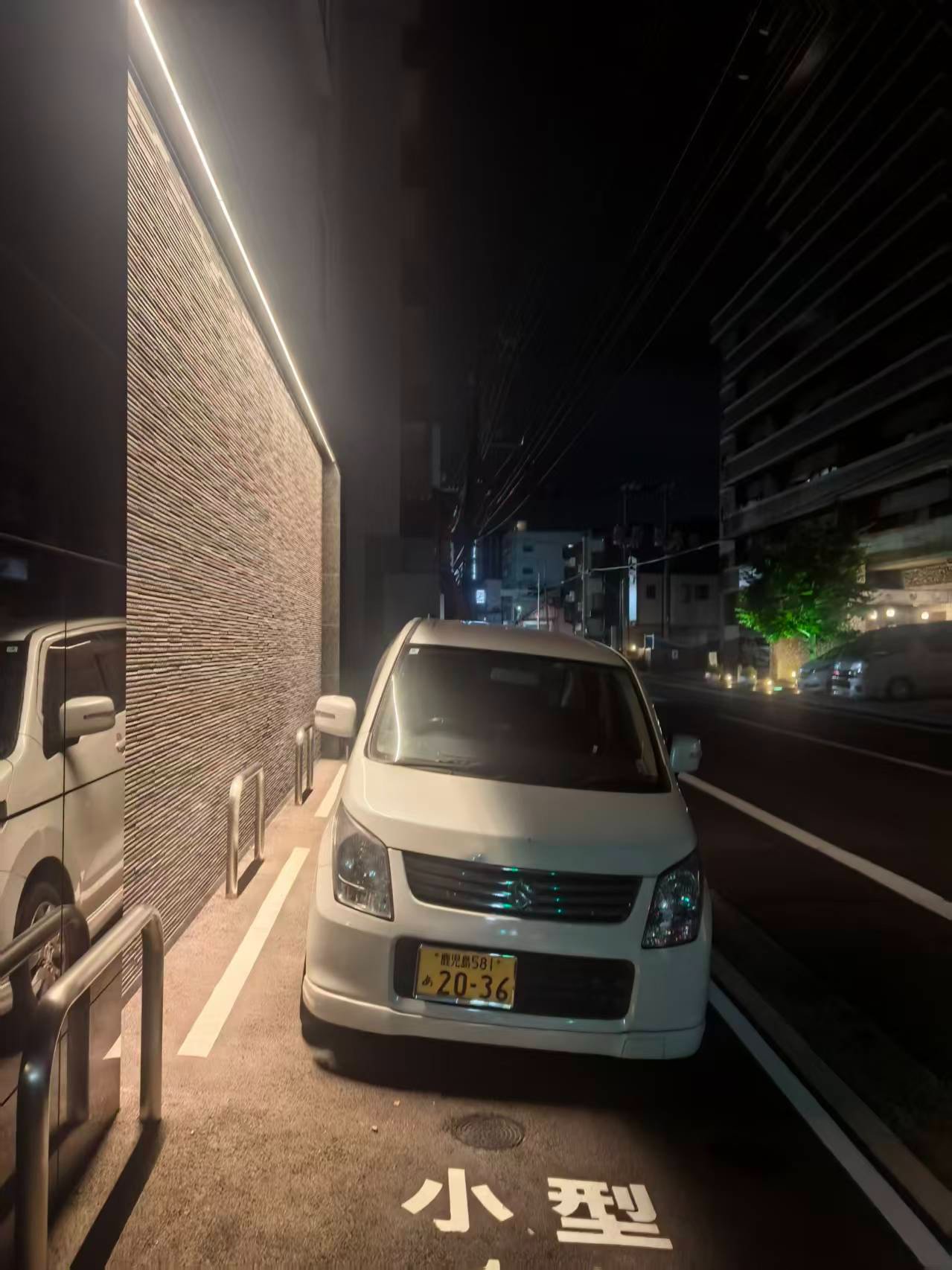

Stone, Metal, and Textured Surfaces

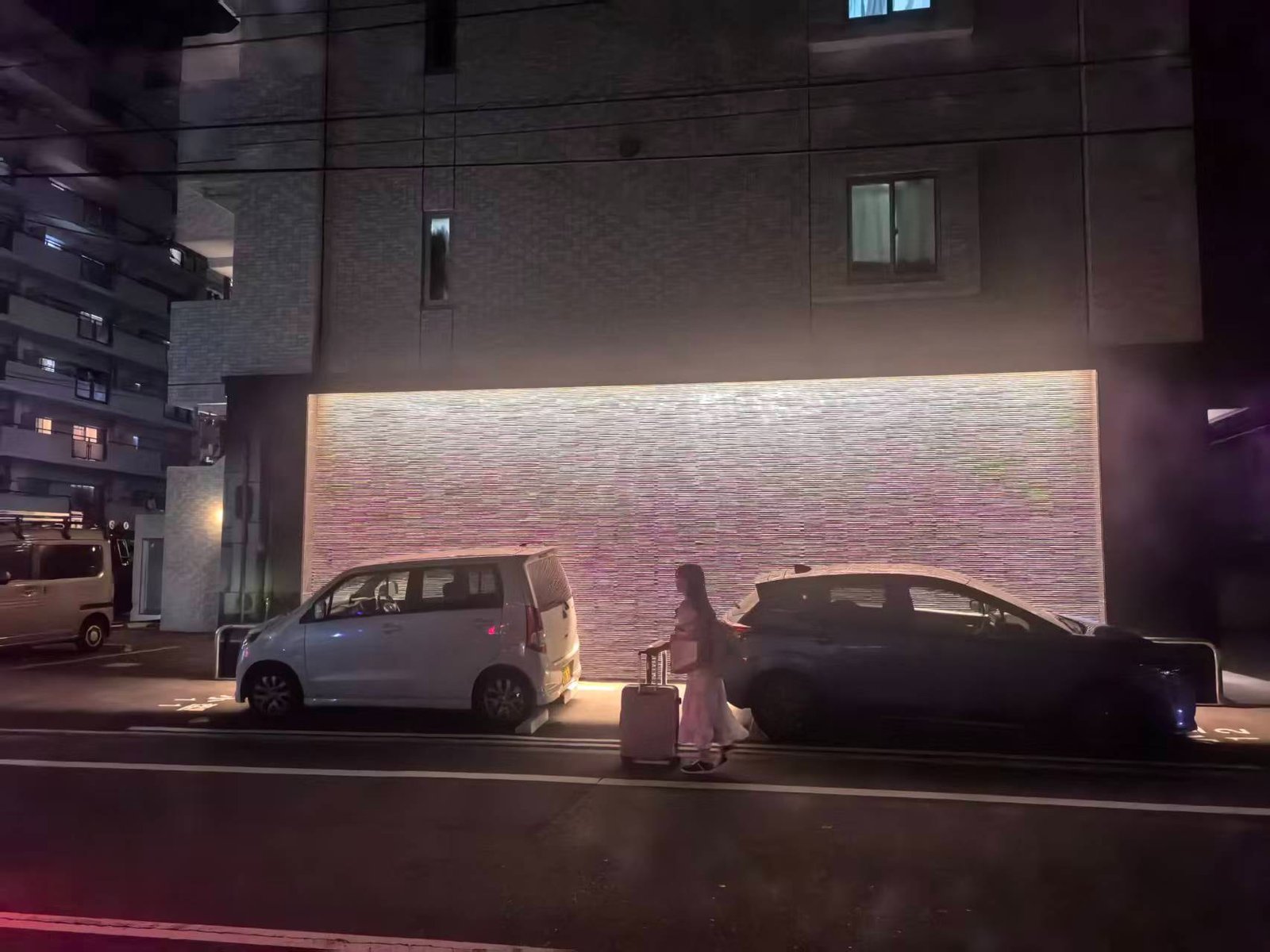

Hospitality, Retail, and Public Spaces
Landscape Structures and Exterior Details
Mini Narrow Beam LED Wall Washer Manufacturer & Supplier
Xmart supports architectural lighting programs that require more than a standard flexible strip. From profile selection and optical configuration to mounting direction, sample approval, quality review, labeling, accessories, and packing, we help customers turn narrow-beam requirements into a manufacturable product program.
Optical Configuration Support
Review the profile, beam option, CCT, power, and project lighting intent before sample approval.
Installation Integration
Match clips, aluminum profiles, shapeable rails, or aiming brackets to the mounting surface and beam direction.
OEM / ODM Coordination
Support product length, cable entry, label, accessories, packaging, and selected customization requirements, subject to project feasibility.
Documentation and Quality Review
Provide configuration-matched specification, wiring, photometric, and quality information through the project review process.
Final product specifications, photometric values, IP protection, and documentation must be confirmed against the approved SKU and project configuration.
Explore Related Flexible Lighting Solutions
Frequently Asked Questions
What makes this wall washer lens-free?
What is the minimum beam angle available?
Is 15° suitable for wall washing or wall grazing?
What is the difference between the 16 × 16 mm and 12 × 12 mm versions?
Can the product be installed on curved surfaces?
Does IP67 mean the product can be permanently installed underwater?
Can I request IES files and photometric reports?
Can Xmart support OEM or project-specific configurations?
Develop Your 15° Narrow Beam Wall-Washing Solution
Share your application, target surface, preferred profile, installation method, CCT, and expected quantity. Xmart will help you review a suitable Mini Narrow Beam configuration for your project.
Your project information is handled confidentially. Product recommendations and technical records are reviewed against the final project configuration.
