High Efficacy LED Flat Panel Light Manufacturer
Xmart develops high efficacy LED flat panels delivering up to 160 lm/W in verified configurations. Built for commercial buyers who need stronger energy performance, flexible field settings, model-specific DLC 6.0 documentation and repeatable supply.
- Up to 160 lm/W by Tested Configuration
- 3 Wattage + 3 CCT Selectable
- DLC 6.0 Standard-Ready by Exact SKU
What Makes a LED Flat Panel High Efficacy?
High efficacy means a LED flat panel produces more useful light for each watt of power consumed. It is measured in lumens per watt, not simply total lumens. A higher-efficacy panel can help commercial buyers meet energy targets while maintaining the required light output for the space.
Xmart high efficacy LED Flat Panel configurations can reach up to 160 lm/W. Actual efficacy depends on the selected size, wattage, CCT, driver and tested product configuration.
Peak Performance
160 Lumens/Watt
Up to 160 lm/W: More Light from the Same Project Power Budget
High Efficacy Is a Project-Level Advantage, Not Just a Datasheet Number
For commercial lighting programs, efficacy affects energy planning, operating cost, rebate eligibility and long-term product positioning. A high efficacy panel can help a buyer meet the required lighting target with a more efficient fixture configuration.
Support energy-conscious commercial retrofit and new-build programs.
Help brands position a higher-performance LED Panel line.
Give project teams more flexibility when matching output and power budget.
DLC V6.0 Troffer Standard Threshold
Xmart High Efficacy Configuration
Performance Difference
Up to 40 lm/W above the DLC V6.0 Standard threshold
DLC thresholds are qualification requirements. Xmart performance claims must be supported by the exact tested SKU, selected wattage and CCT configuration.
High Efficacy LED Flat Panel Manufacturer & Supplier
High Efficacy Product Design Supported by Controlled Manufacturing
A high efficacy LED Panel program depends on more than LED components. It requires controlled product configuration, approved driver selection, material consistency, assembly discipline, test documentation and repeat-order control.
Own Supply Chain
Coordinate LED components, drivers, metal backplates, frame materials, assembly and packaging through a controlled supply-chain network.
China Plus One Manufacturing
Combine China-based material and process support with Vietnam fixture assembly, testing and export preparation.
OEM / ODM Product Programs
Support private labels, approved product configuration, documentation, manual, carton artwork and repeat-order consistency.
Vietnam CO Support
Certificate of Origin support is reviewed for qualifying product configurations and shipments.
3 Wattage and 3 CCT Settings for Practical Commercial Flexibility
External driver with integrated selectable switches
One Product Platform. Nine Configuration Paths.
The 3W and 3CCT selectable design allows commercial buyers to configure three wattage settings and three color temperature settings from one approved product platform. It can simplify inventory planning while supporting different room conditions and project requirements.
Selectable Wattage
Selectable CCT
-
For Distributors: Fewer core SKUs to stock.
-
For Contractors: More flexibility during project installation.
-
For Brands: A compact high-efficacy panel platform for broader market coverage.
-
For Buyers: Less risk of ordering a fixed output or CCT that does not fit the site.
Built Around DLC 6.0 Standard Requirements
For 2x2, 1x4 and 2x4 commercial LED Panel configurations submitted as Troffers, DLC V6.0 Standard requires a minimum efficacy of 120 lm/W. Xmart’s high efficacy platform is designed to meet or exceed this requirement through the exact qualified product configuration.
| Verification Point | What Buyers Should Confirm |
|---|---|
| Product Category | Applicable Troffer product designation |
| DLC Status | Exact model number and QPL listing |
| Efficacy | Tested lm/W at approved configuration |
| Light Output | Tested lumen output for selected setting |
| CCT | Actual selectable or fixed CCT range |
| Driver | Voltage range, PF and THD documentation |
| Dimming | Dimming method and minimum dimming level |
| Photometrics | LM-79 report and IES file |
| Controls | Wiring diagram and applicable control option |
DLC qualification is not a generic family claim. Buyers should review the exact QPL listing, product datasheet, LM-79 report, IES file and driver information before approving a model.
Request DLC 6.0 DocumentsHigh Efficacy Must Also Work with Real Commercial Control Systems
0-10V Dimming
Selected models can support 0-10V dimming when paired with the correct driver and compatible control system. Confirm the dimming range, control compatibility and model-specific wiring diagram before installation.
UGR and Visual Comfort
High efficacy should not be evaluated without visual comfort. For applicable projects, request model-specific UGR documentation, photometric report and IES file instead of relying on a generic “low-glare” statement.
Commercial Voltage
Confirm the exact driver input range for the building. Where a 120–347V driver configuration is available, it may support common 120V, 277V and 347V commercial systems. Never assume 480V compatibility without the approved datasheet.
0-10V Dimming Wiring Diagram

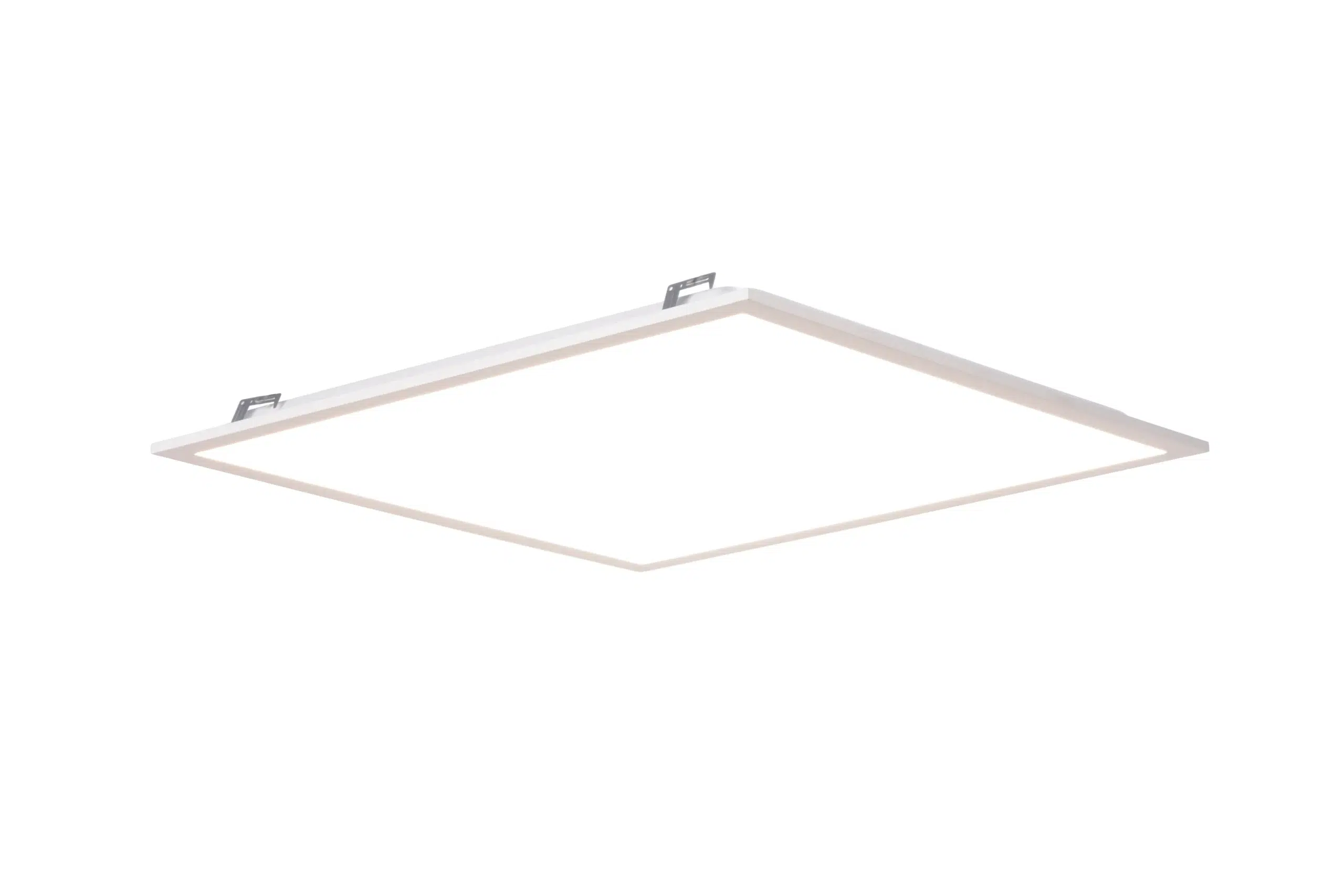

High Efficacy LED Flat Panel Specifications
| Product Type | Commercial LED Backlit Flat Panel |
|---|---|
| Efficacy | Up to 160 lm/W by verified configuration |
| Wattage Selection | 32-25-20 |
| CCT Selection | 3000K-4000K-5000K |
| Input Voltage | 120V - 277V |
| Dimming | 0-10V |
| UGR | <22 |
| Mounting | Recessed / Surface-Mount / Suspended by model |
| Documentation | Specification sheet, LM-79, IES, installation guide and applicable certifications |
| OEM / ODM | Label, packaging and project configuration support |
High Efficacy LED Flat Panel vs Standard Efficacy Panel
| Buyer Consideration | High Efficacy Panel | Standard Efficacy Panel |
|---|---|---|
| Main Priority | More lumens per watt | Standard commercial performance |
| Best For | Energy-focused projects, high-performance product lines and commercial upgrades | General applications where standard efficiency meets the project requirement |
| Procurement Focus | Tested efficacy, output, driver and DLC documentation | Product cost, output and required certification |
| Buyer Question | "Can this model meet the light target with a stronger efficiency position?" | "Does this model meet the basic project requirement?" |
| Correct Decision | Choose based on the verified configuration and project power target | Choose when standard performance is sufficient |
Higher efficacy is valuable when it supports the required light output, visual comfort, controls and project economics. Compare tested data, not only headline lm/W claims.
Where High Efficacy LED Flat Panels Create the Most Value
Suitable when a project prioritizes verified efficiency, repeatable panel configuration and commercial ceiling compatibility.
Large Office Floors
Classrooms and Education Facilities
Healthcare Interiors
Retail and Multi-Site Stores

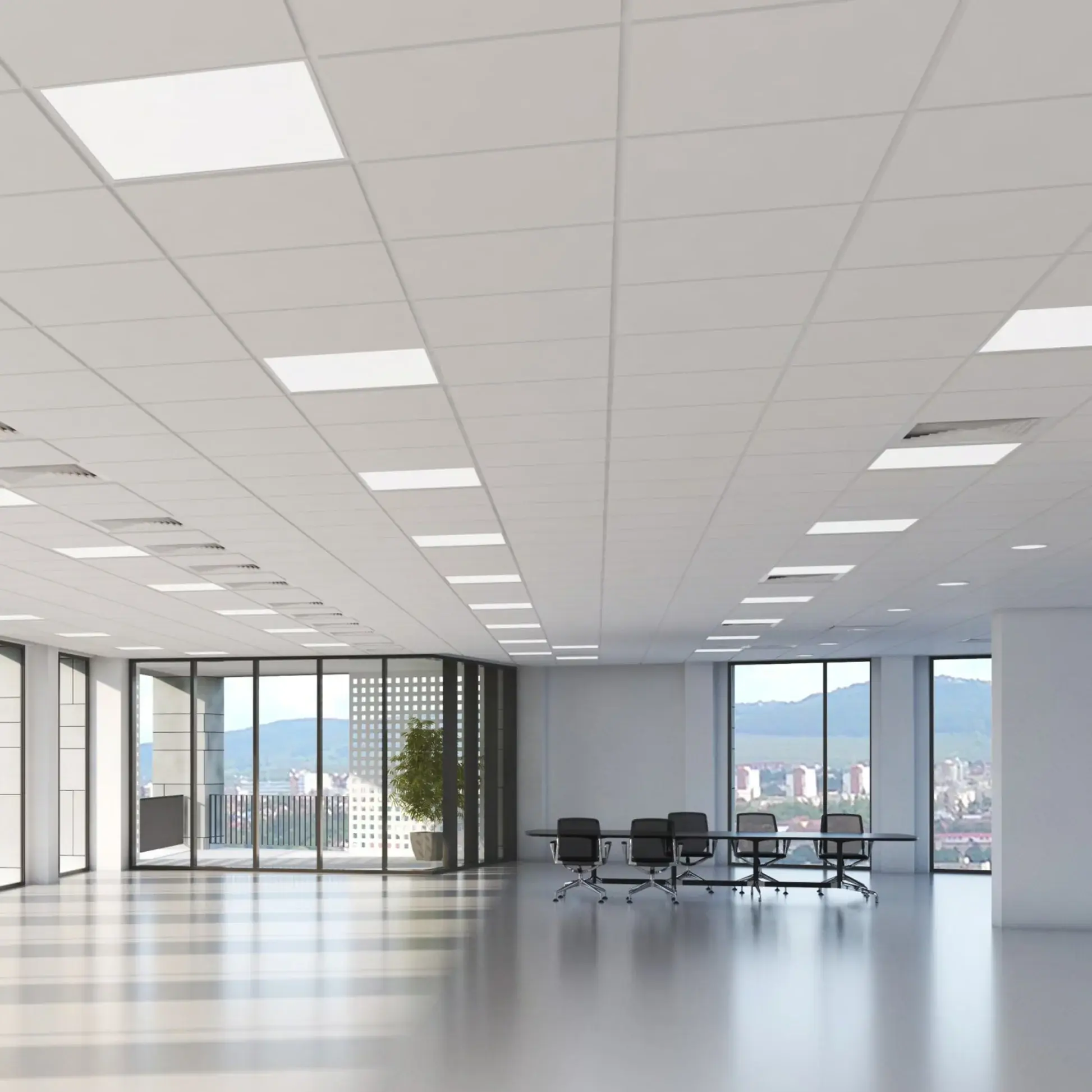

Commercial Projects

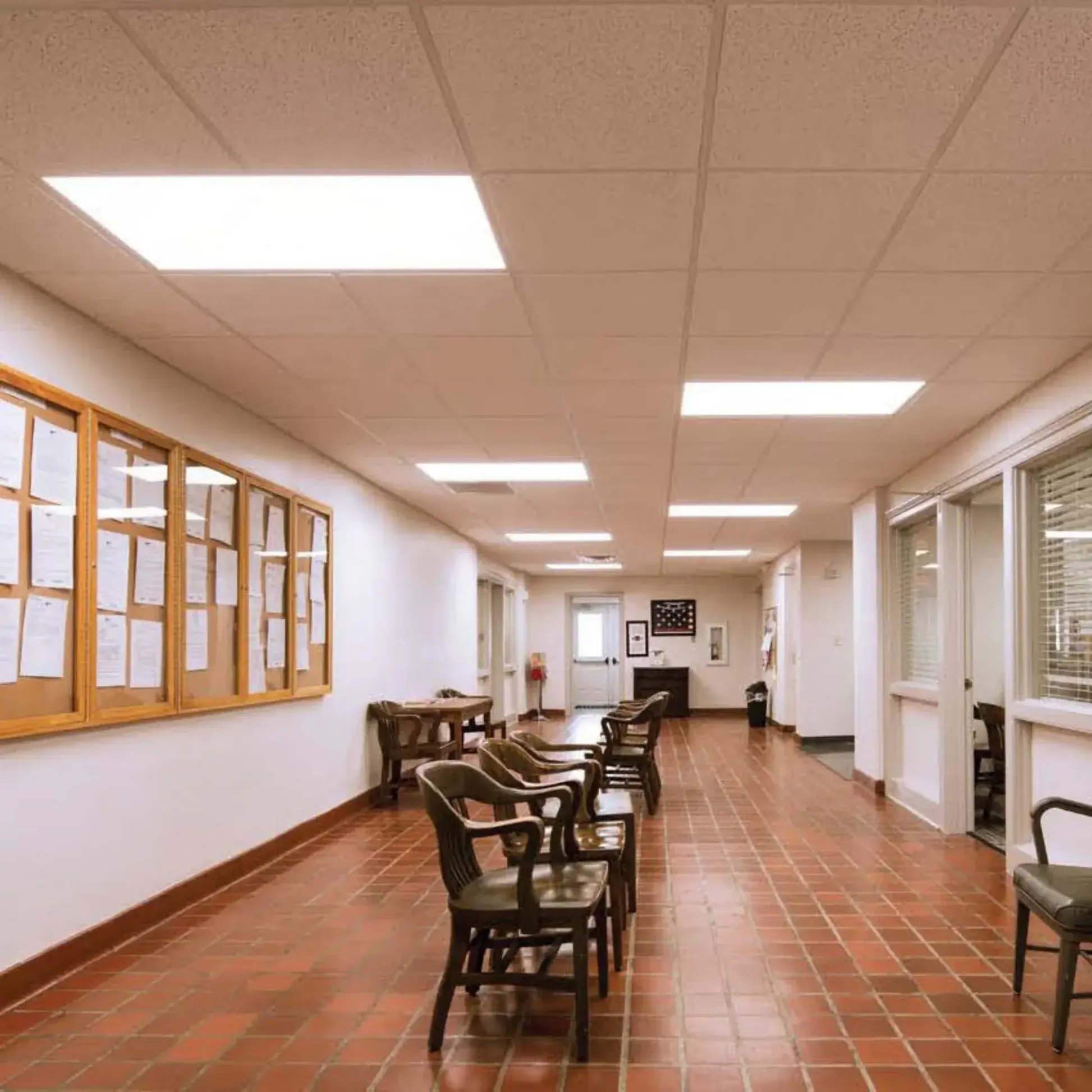

Inviting commercial spaces
Installation and Packaging Planned for Commercial Delivery
Mounting Options
Recessed T-Bar
Standard drop ceiling grid installation.
Surface-Mount Frame
For drywall or hard ceilings (requires kit).
Suspended Cable
Wire suspension for open ceiling designs.
Packaging Formats
Individual Protective Carton
Single unit packing for retail or small jobs.
Multi-Pack Distributor Carton
2-pack for efficient stocking.
Palletized Project Shipment
Secured bulk loading for large volume orders.
Final mounting and packaging are confirmed by fixture model, order quantity, shipping route and project requirement.
High Efficacy LED Flat Panel Questions
What does 160 lm/W mean for a LED flat panel light?
Is high lumen the same as high efficacy?
Does this high efficacy panel meet DLC 6.0 Standard?
Are all 3 wattage and 3 CCT settings rated at 160 lm/W?
Does the panel support 0-10V dimming?
Can I request UGR and IES documentation?
Which voltage range is available for the high efficacy panel?
Can Xmart support OEM and Vietnam CO documentation?
Request a High Efficacy LED Panel Proposal
Send your target panel size, required light output, wattage, CCT, voltage, DLC, controls and quantity. Xmart will review the most suitable high efficacy configuration for your commercial program.
Your request will be reviewed against the exact tested product configuration, documentation, controls and manufacturing requirement.
