For curved facades, irregular architectural surfaces, and projects where rigid wall washer no longer fits.
Many projects face a harsh reality on site: the wall washing path is simply not a straight line. Facades have arcs, architectural structures feature organic curves, and rigid metal wall washers become a logistical nightmare to install and transport.
When the surface is irregular, forcing standard rigid fixtures compromises the lighting intent. You need a solution that adapts to the architecture, not the other way around.
Our free bend flexible LED wall washer is engineered to solve these exact site conditions. It provides the necessary freedom to follow complex outlines while maintaining the precise optical control required for professional wall washing.

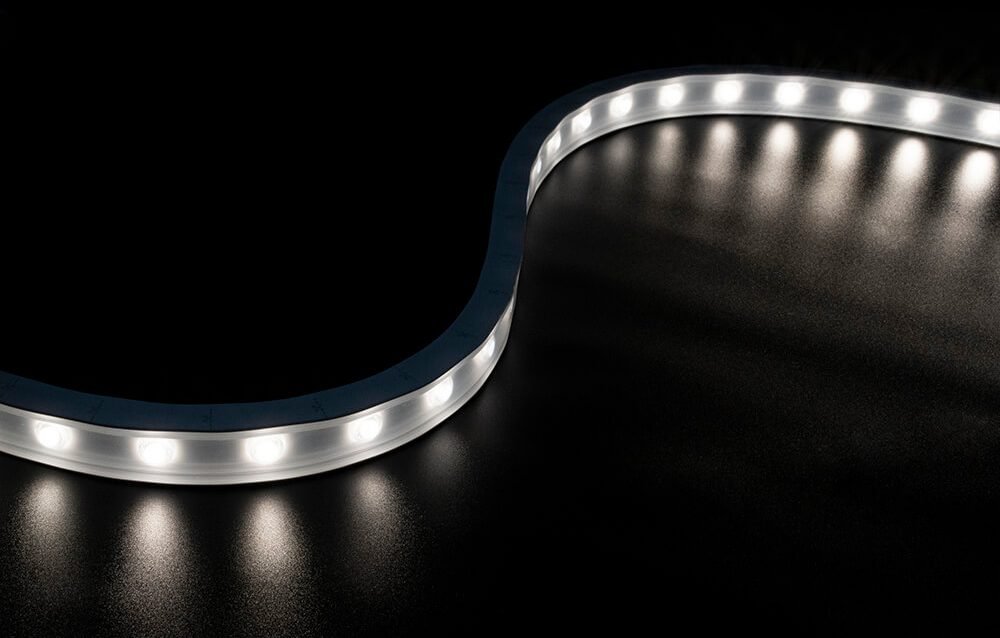

A 3D Bending Flex Wall Washer is a highly flexible, linear LED lighting fixture engineered to bend both horizontally and vertically (3D). It seamlessly conforms to complex, curved architectural surfaces, providing smooth, uniform vertical illumination for facades, columns, and waves.
Dual-axis flexibility for intricate contours and arcs.
Smooth, flawless light distribution for large facades.
Optical-grade silicone built for harsh environments.
Easily adapted on-site to precise architectural dimensions.
Decision factors for selecting flexible solutions over rigid fixtures.
Better choice when the architectural surface is curved, irregular, or features organic shapes that reject straight lines.
More useful when rigid wall washer logistics, handling, and mounting become physically difficult on site.
Helps fit building facades and landscape outlines more naturally, leaving a cleaner visual trace during the day.
Better for hidden installation in complex architecture where bulky metal fixtures would disrupt the design.
Useful when both horizontal and vertical bending are needed simultaneously to track 3D architectural paths.
More practical when the project demands structural flexibility without giving up professional wall washing output and optics.
Where curve adaptability, flexible installation, and true wall wash effects intersect.

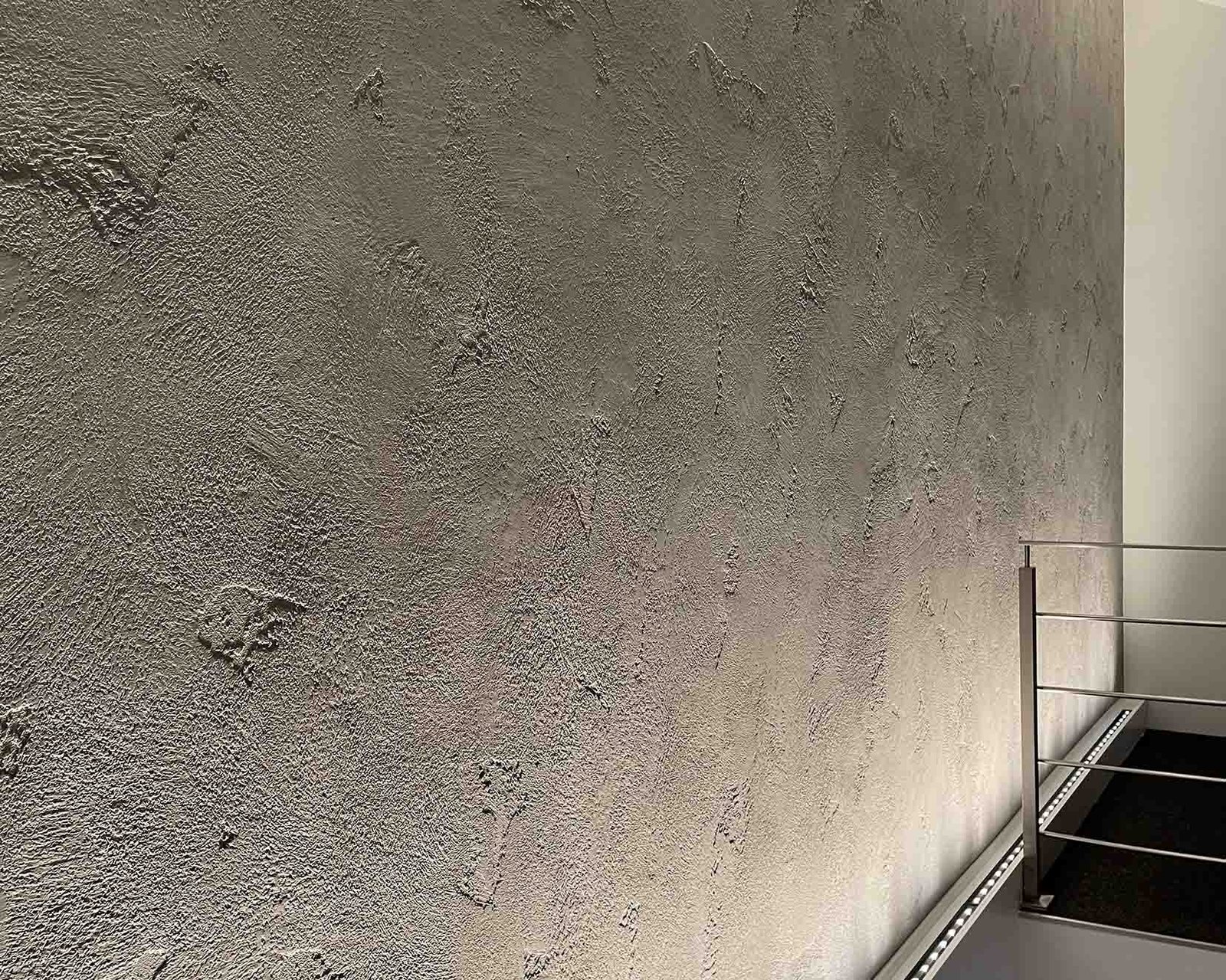

Seamlessly follows building contours to deliver uniform vertical illumination on complex architectural skins.

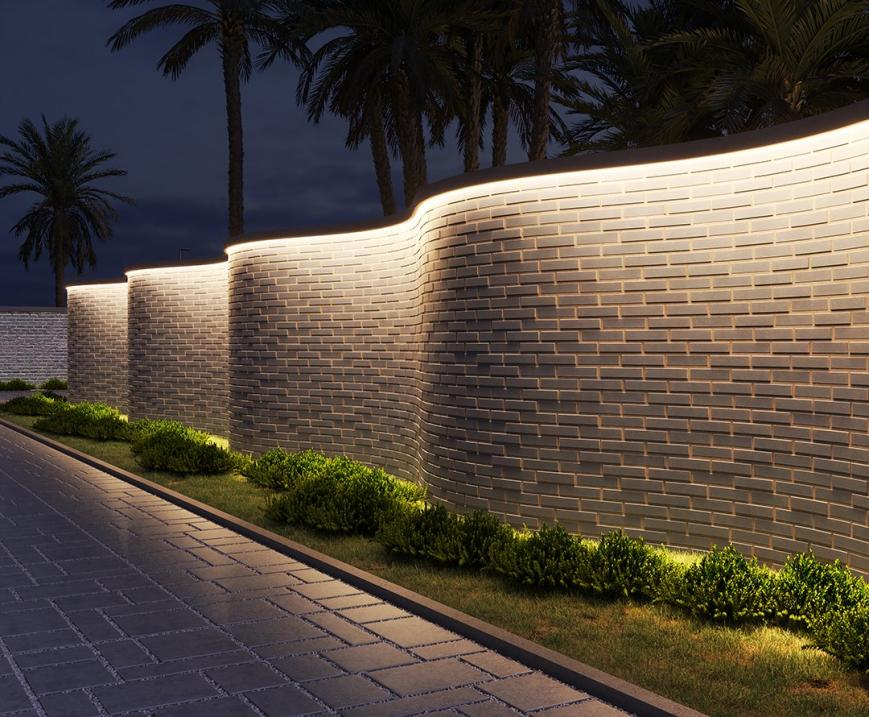

Highlights structural curves and rooflines where standard rigid fixtures cannot bend to match the radius.
Adapts to retaining walls, curved pathways, and organic landscape structures with IP65 outdoor reliability.
Provides directional wash lighting for bridges, underpasses, and curved infrastructural boundaries.

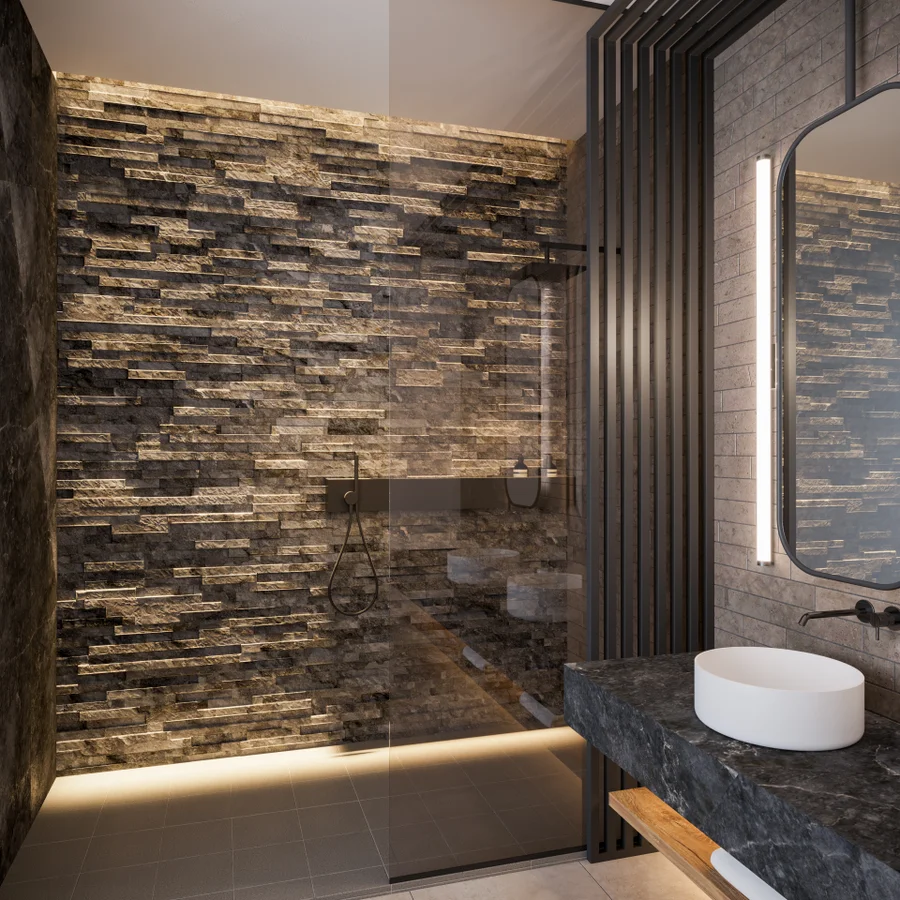

Ideal for theme parks and cultural monuments requiring discreet installation and dynamic DMX control.

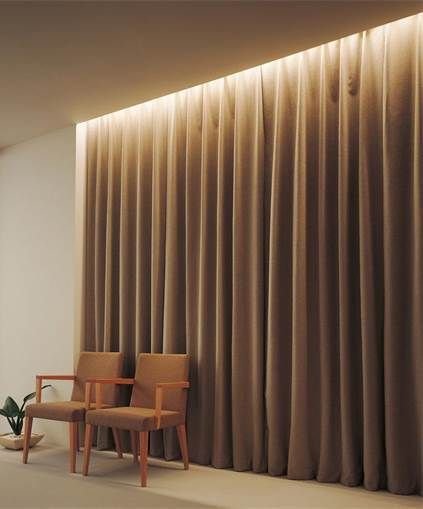

Wraps around 3D art installations and bespoke geometries, combining dual-axis bending with focused optics.
| Bend Logic | Free Bend / Dual Bend (Horizontal & Vertical simultaneously) |
|---|---|
| Protection Level | IP65 (Optical grade silicone extrusion) |
| Voltage | Low Voltage DC24V |
| Control Compatibility | ON/OFF, DMX512 Addressable, DALI |
| Beam Angle Options | 15°, 30°, 60°, 25°×45°, 30°×60°, Polarized |
| Minimum Cut Length | 250mm |

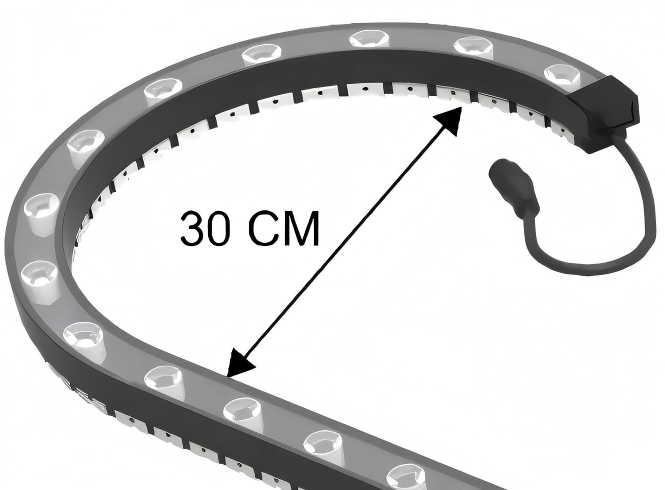

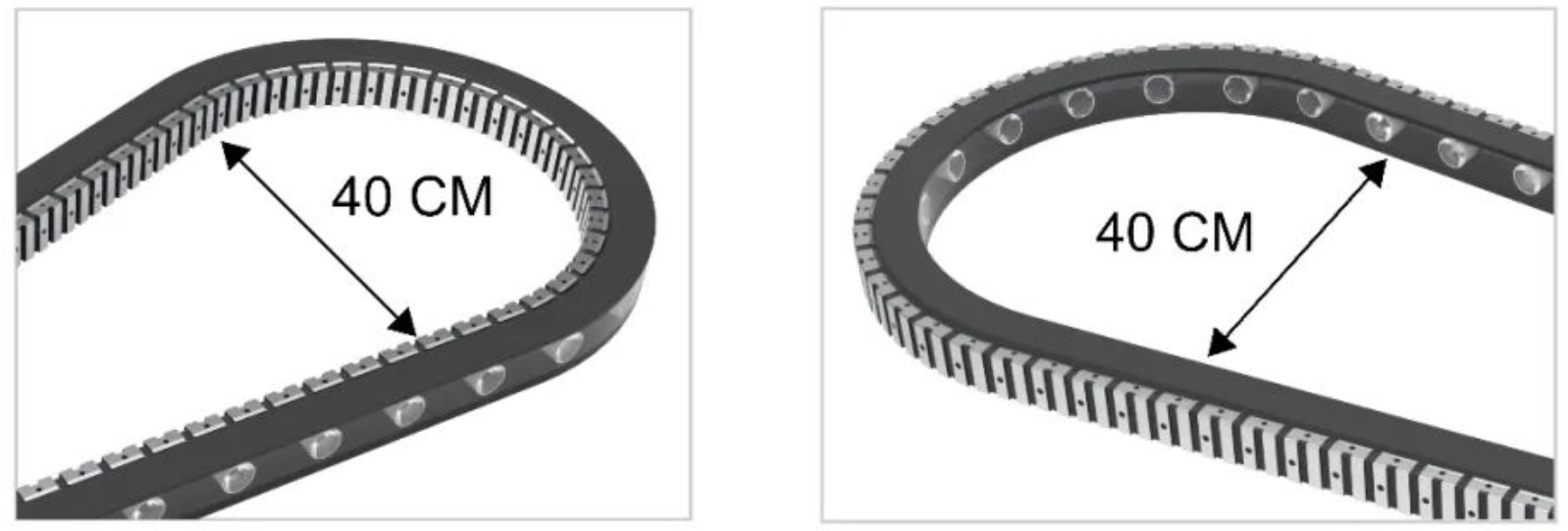

| Minimum Bend Radius | 200mm |
| OEM / Custom Support | Available for project-specific lengths and CCTs |
How do buyers choose between 26×20, 20×20 and 16×16? Compare the profiles below to match your project scale.

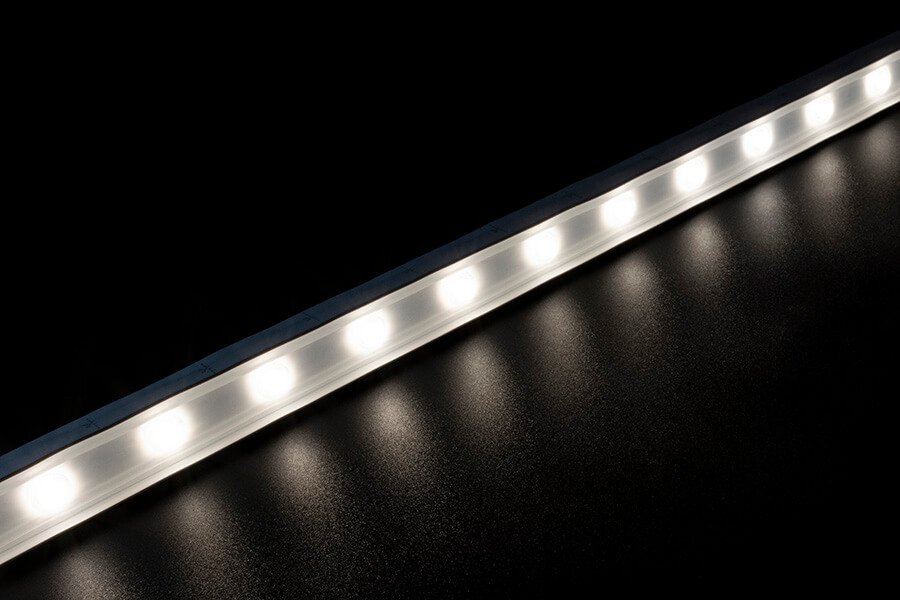

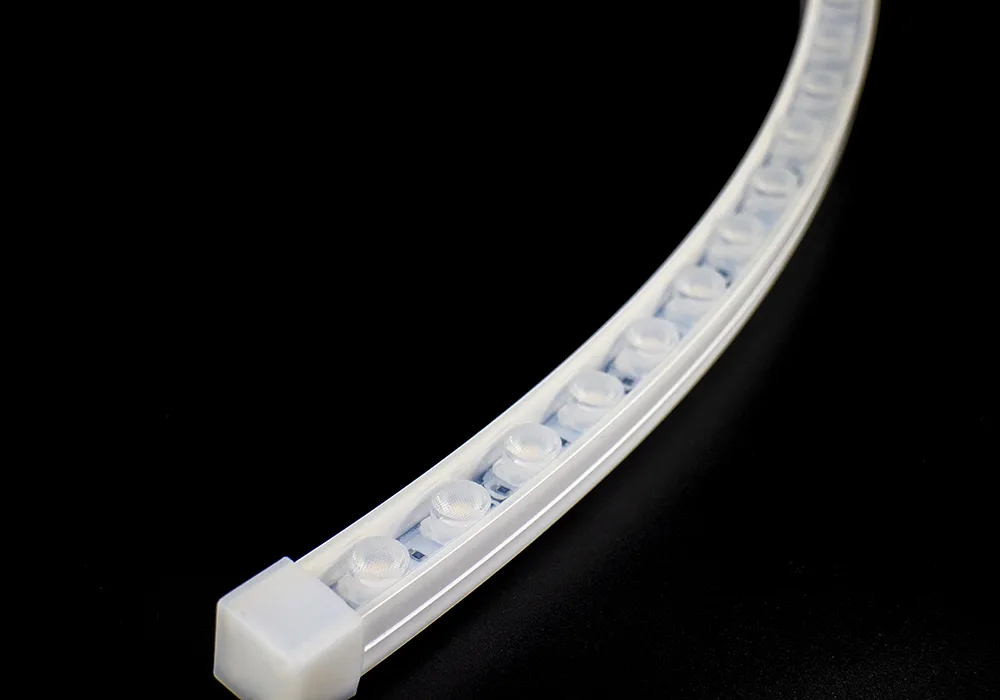

The 26×20 size is engineered for mid-to-large facades, building outlines, and projects requiring a robust wall wash performance.
If buyers prioritize output integrity and a classic facade wall washing logic over extreme miniaturization, this profile serves as the primary workhorse. It offers the structural stability needed for long vertical drops while maintaining necessary flexibility.

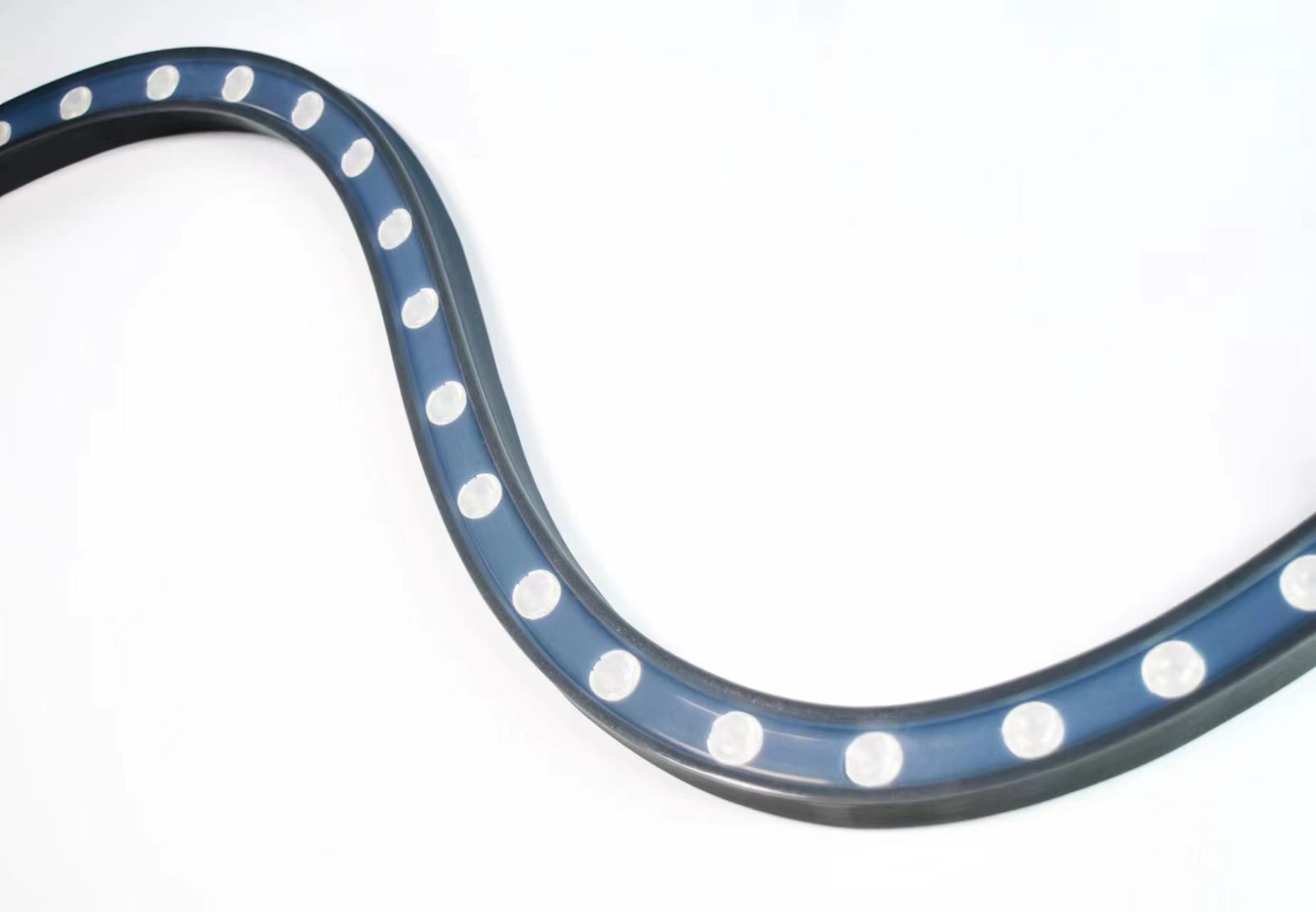

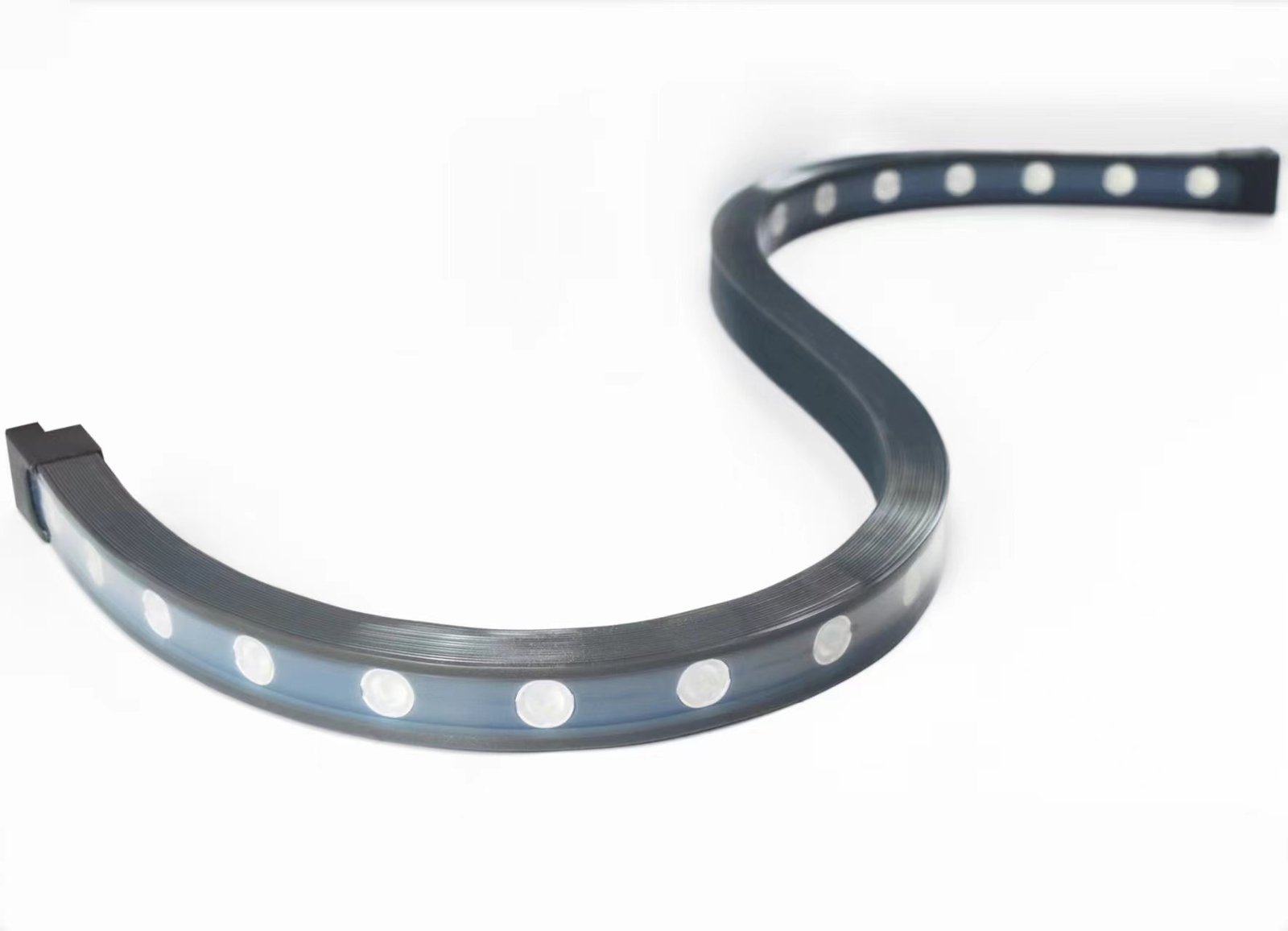

The 20×20 profile strikes the perfect balance between physical dimension, installation freedom, and optical output.
Suitable for mid-scale architectural and landscape applications where buyers seek a harmonious compromise. It provides excellent wall washing effects without demanding excessive mounting space, making it a highly versatile option for curved installations.

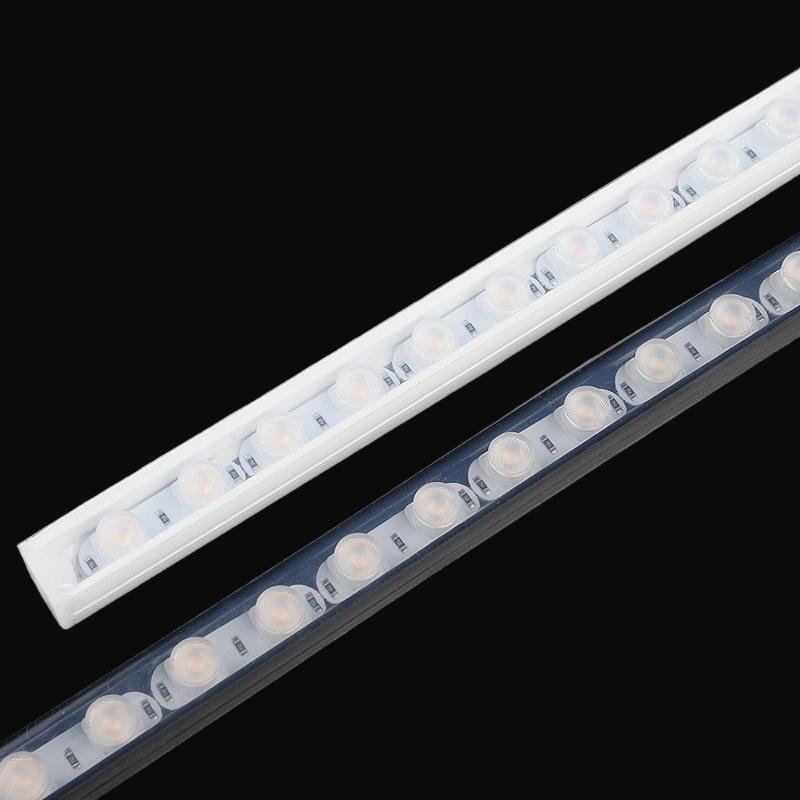

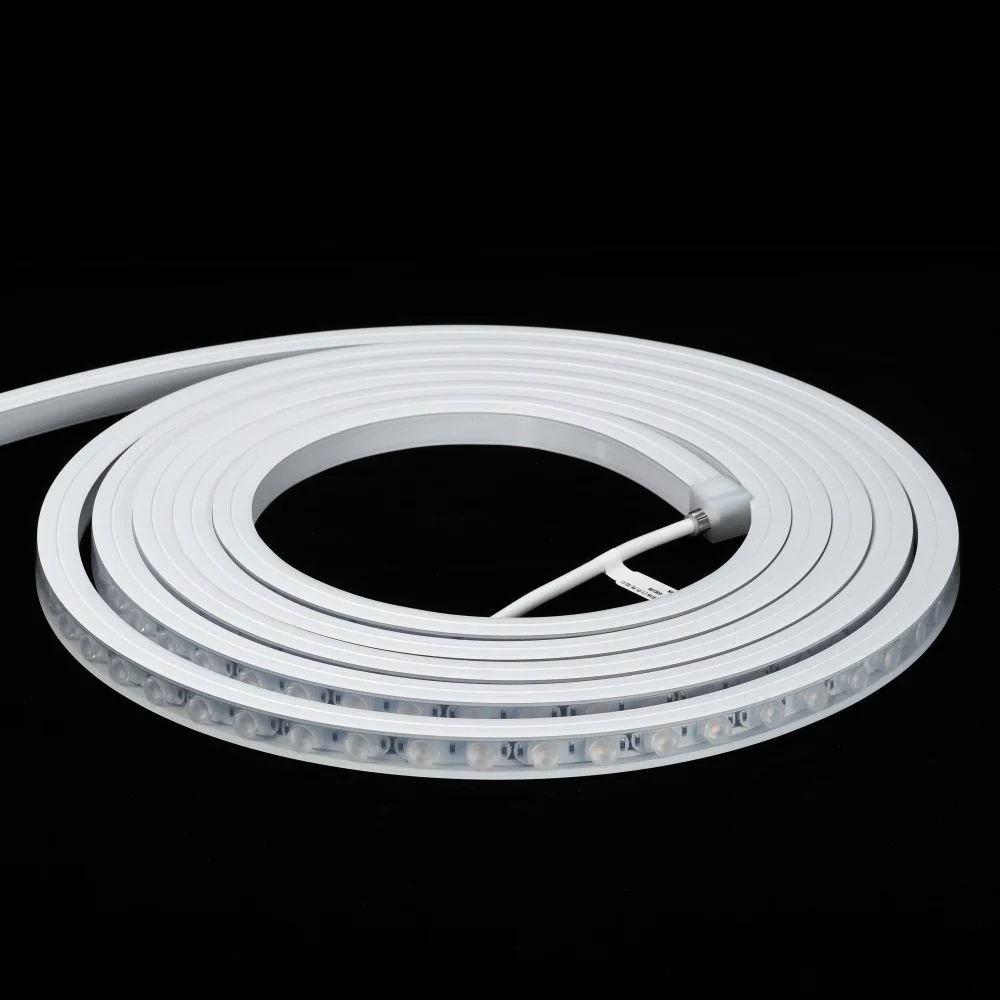

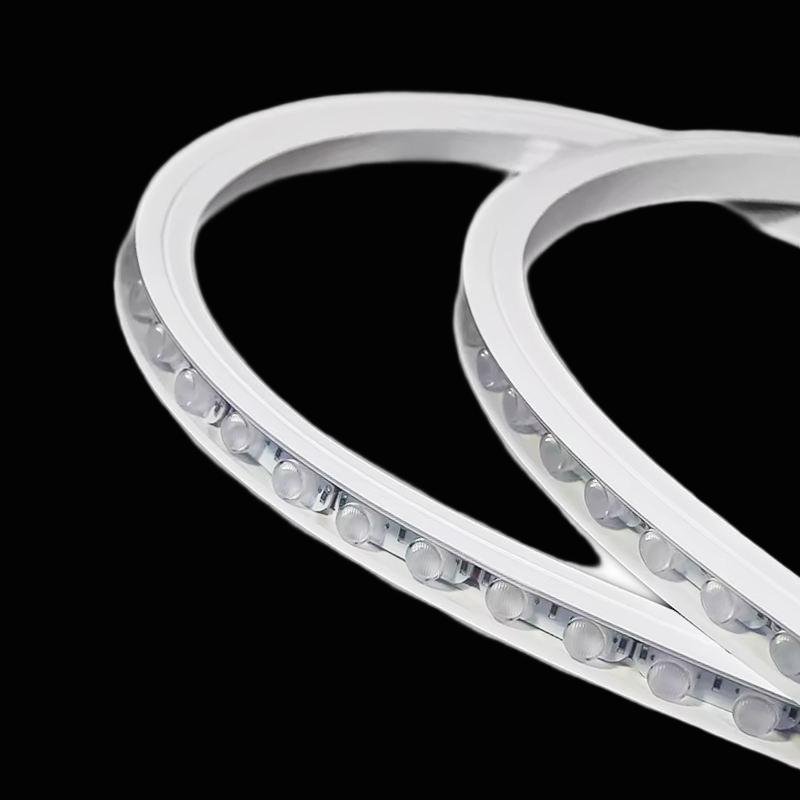

The 16×16 size is tailored for detailed contours, refined architectural edges, and projects where the fixture itself must remain discreet.
When buyers prioritize a lightweight structure, intricate installation paths, and a minimal visual footprint during the day, this compact profile excels. It delivers targeted wash lighting without the bulk of traditional units.
Which beam angle works better for a project? Select the right optics based on wall height and texture.

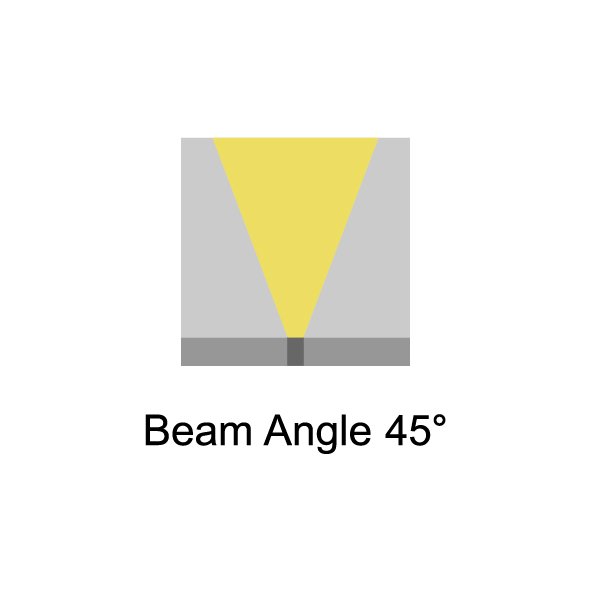

Narrow beam for taller walls and more focused wash.

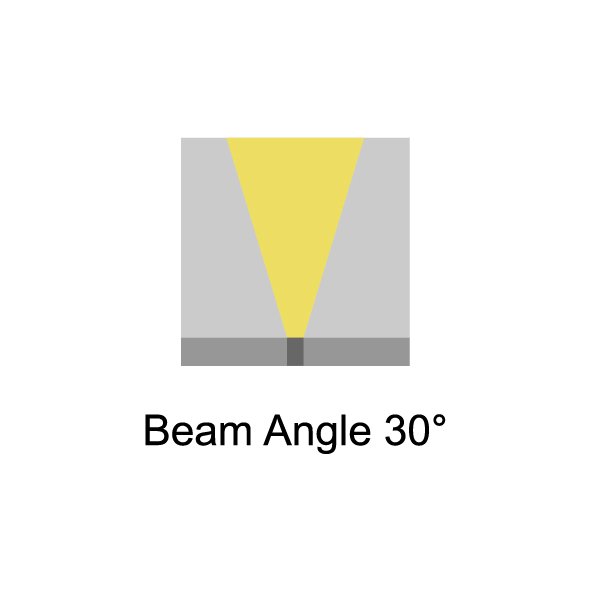

Balanced beam for standard facade wall washing.

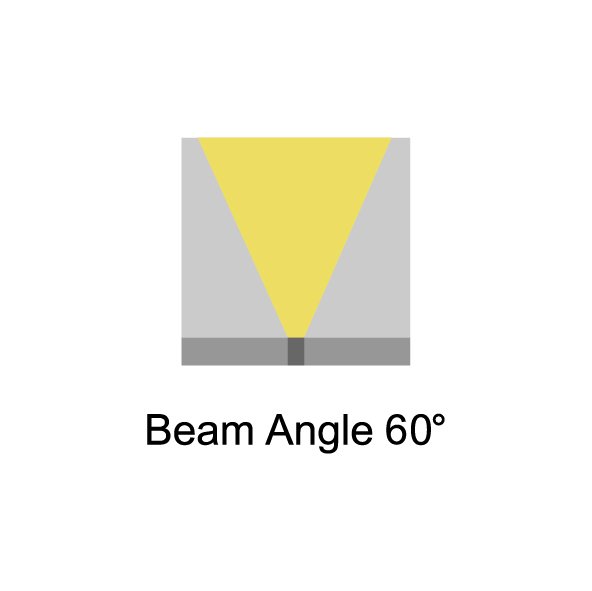

Wide beam for broader, softer surface coverage.

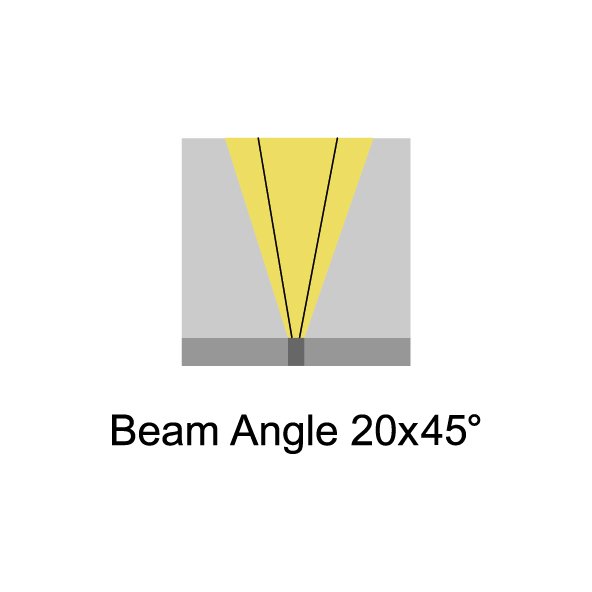

Asymmetric spread for directional wall wash control.

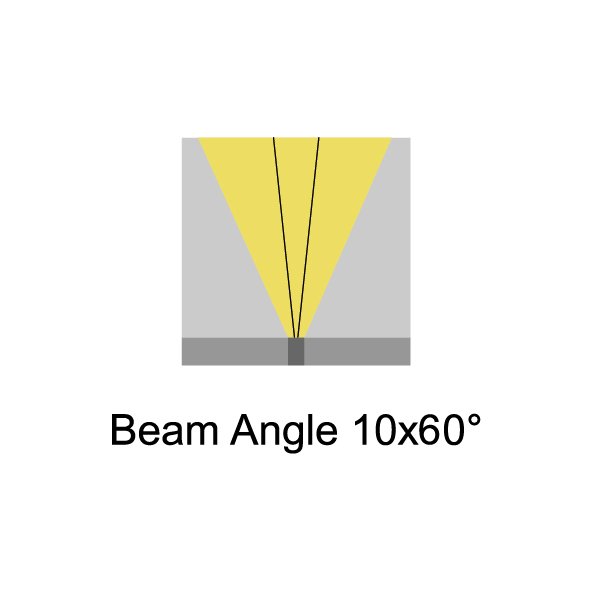

Wider asymmetric spread for sloped or uneven surfaces.
Specialized effect for projects that need different light distribution behavior.
Silicone Extrusion and Mold End Cap

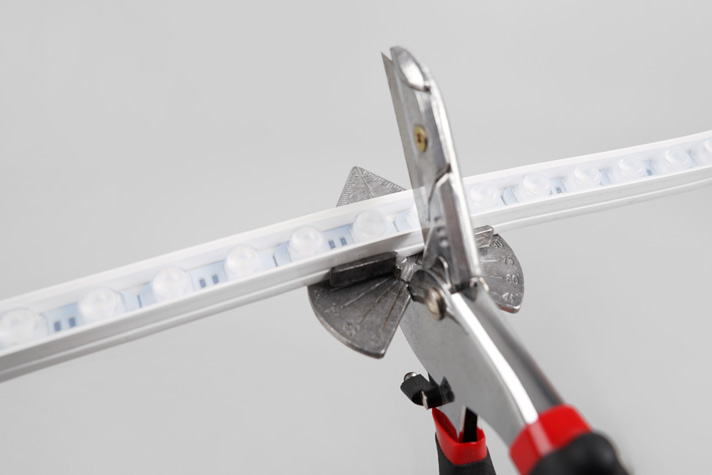

Cutting

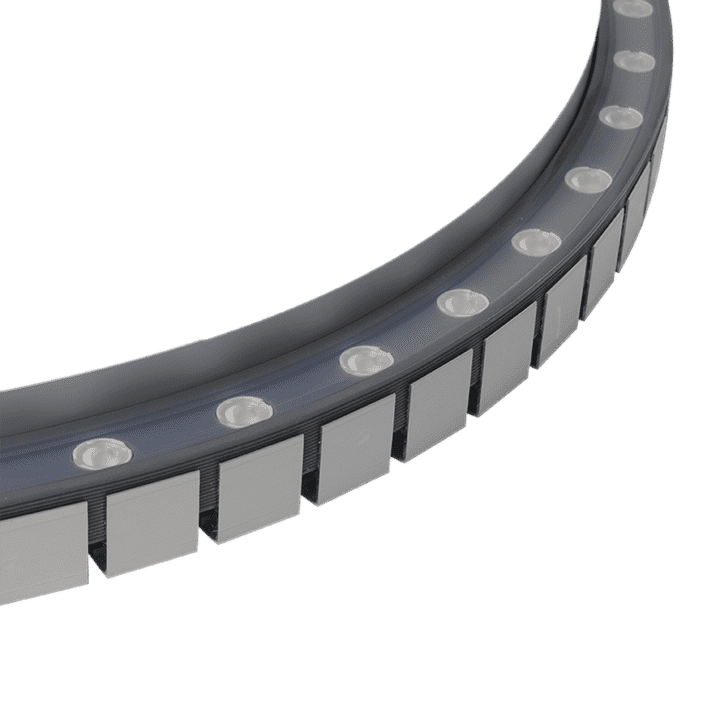

Curved Surface Mounting
Hidden End Cap Detail

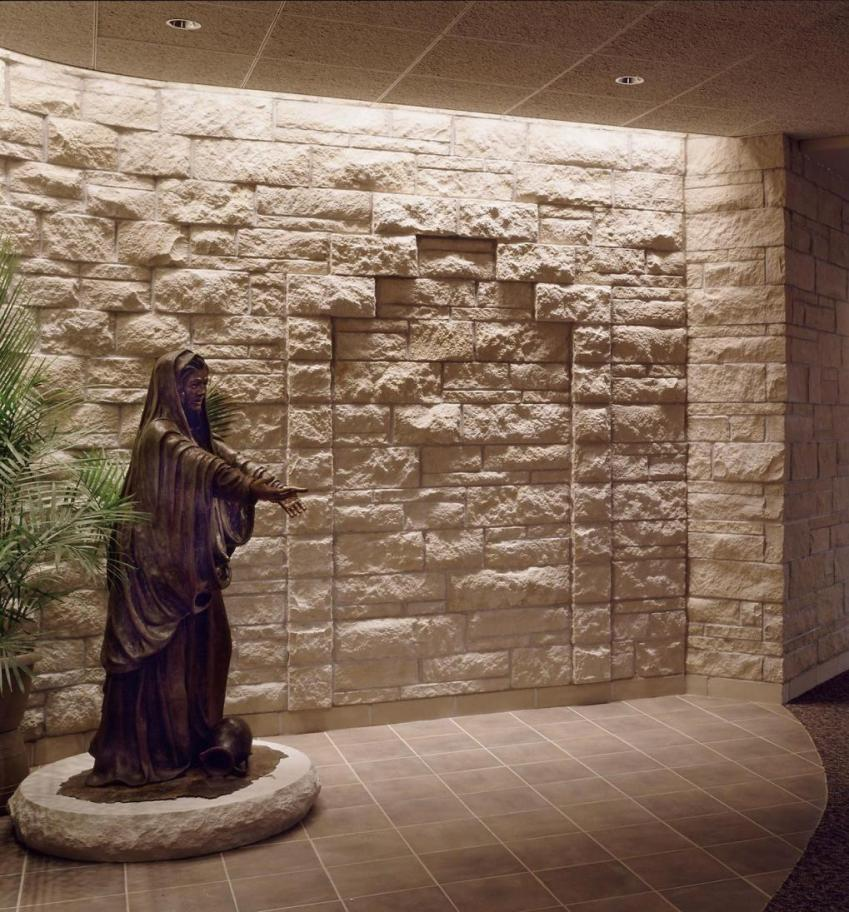

Real Wall Wash Effect on Architecture
Purpose-built hardware to ensure secure mounting across various surfaces.

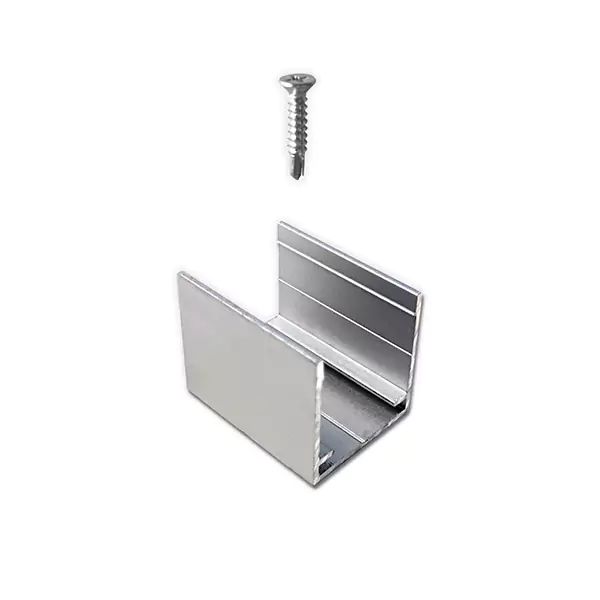

Fast and practical fixing for straightforward surface mounting.

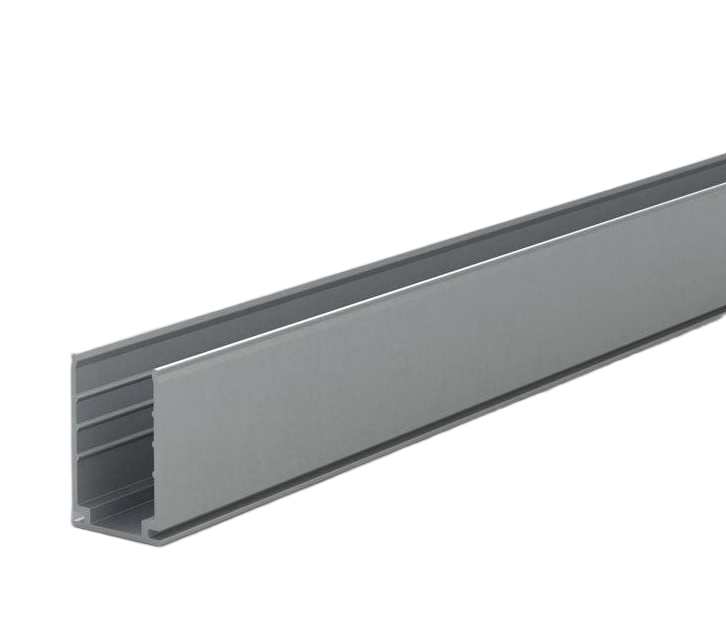

Cleaner linear finish and more defined installation line for straight runs.

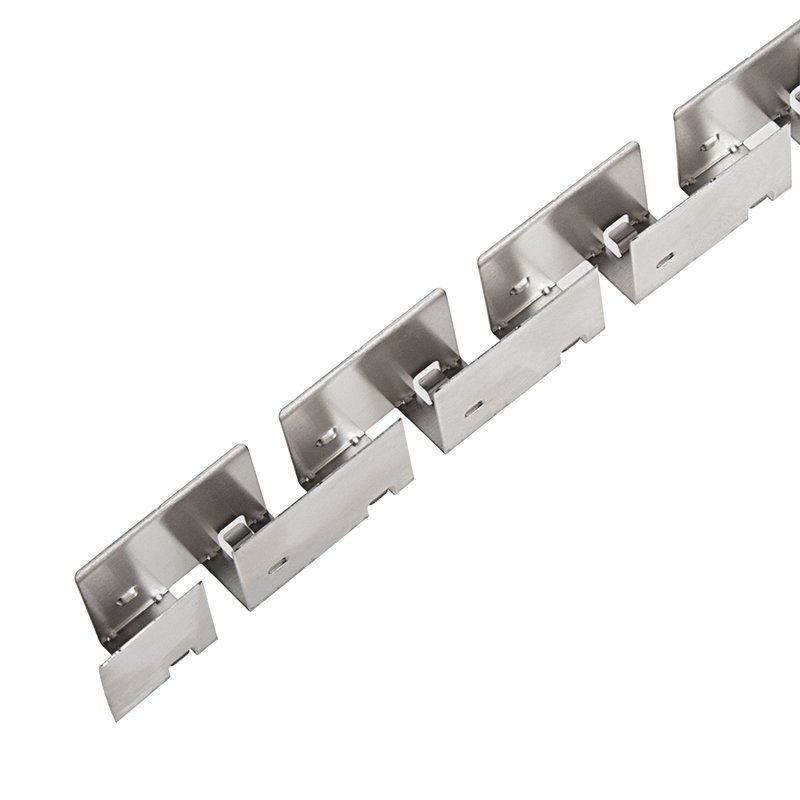

Versatile shaping for complex architectural contours and custom LED routing.

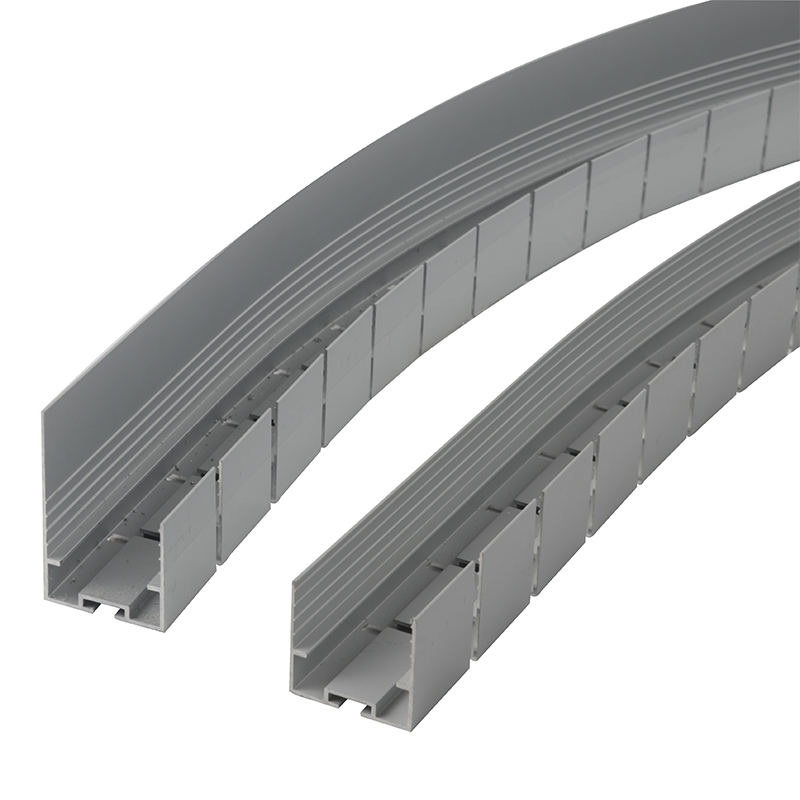

Better support for curved installations where standard channels no longer fit.
Choose free bend wall washer when the surface is not straight and forcing metal fixtures would damage the architectural intent.
Choose free bend when both horizontal and vertical bending are needed to track complex 3D paths seamlessly.

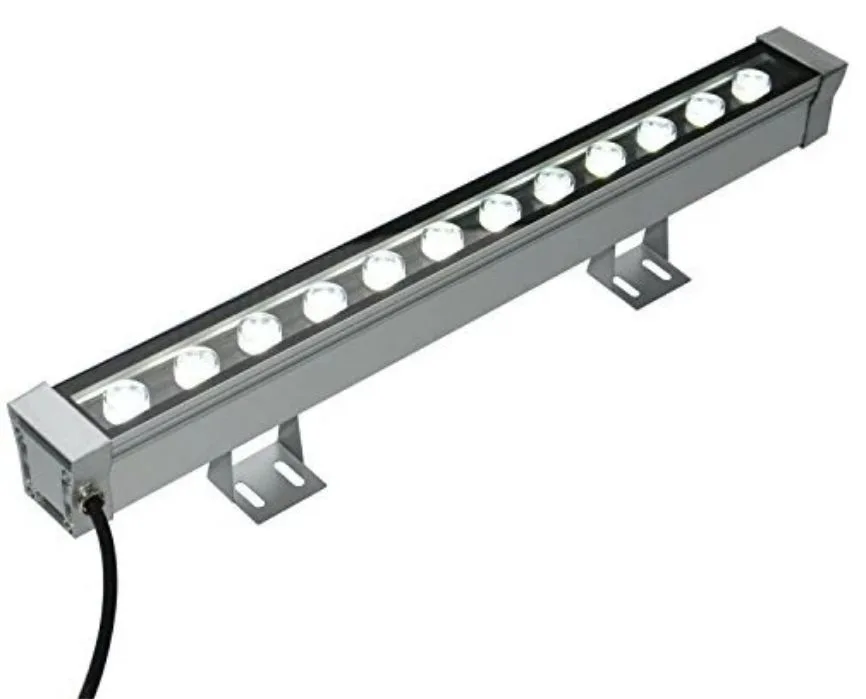

Choose rigid wall washer only when the project path is simple, perfectly straight, and surface mounting space is abundant.
Compare free bend and rigid options based on installation freedom and labor costs, not just raw lumen output.
Use free bend when curved facade fit matters more than retaining a traditional rigid structure.
What is the difference between flexible wall washer and standard metal wall washer? It comes down to site adaptability.
Flexible units mold to arcs; rigid units require segmented, angular installation on curves.
Silicone bodies can be adjusted on-site; metal housings demand precise pre-measurement.
Compact flexible profiles hide easily within architectural slots compared to bulky metal brackets.
Flex washers ship in rolls, reducing freight volume and handling damage vs long metal extrusions.
Clear connection logic for accurate project planning.

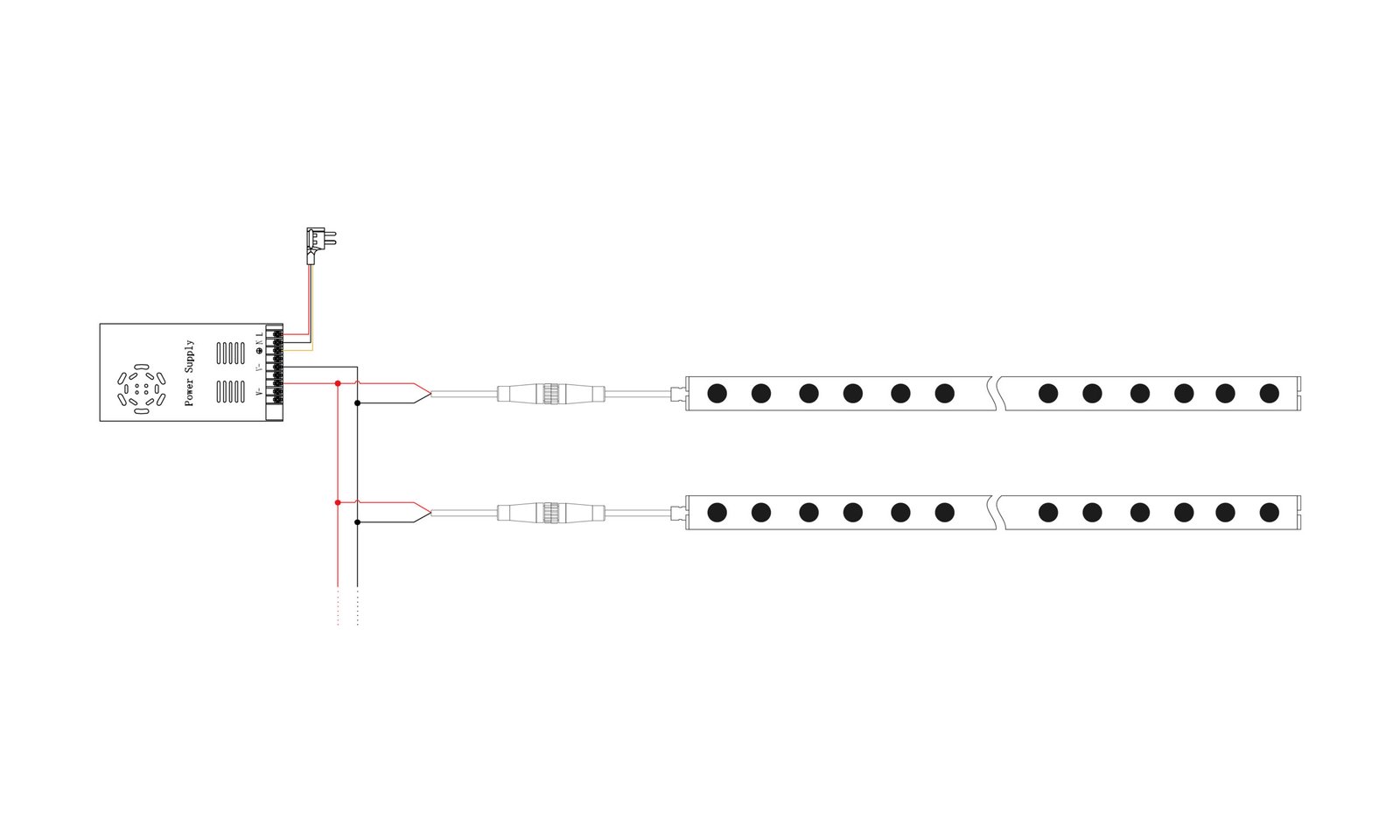

Show basic connection logic between wall washer, driver, controller and accessories.

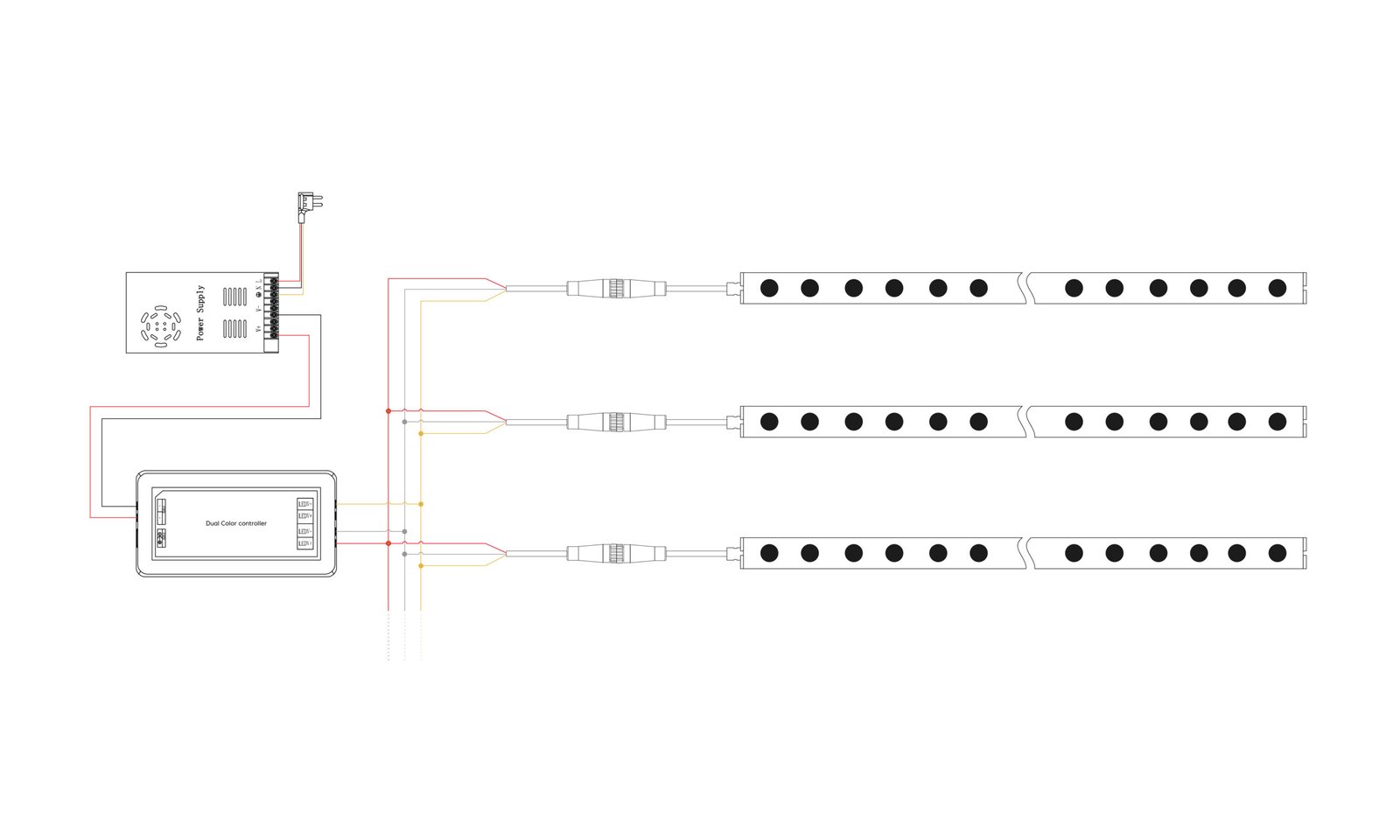

Make wiring easier to understand for dual-channel CCT project planning.

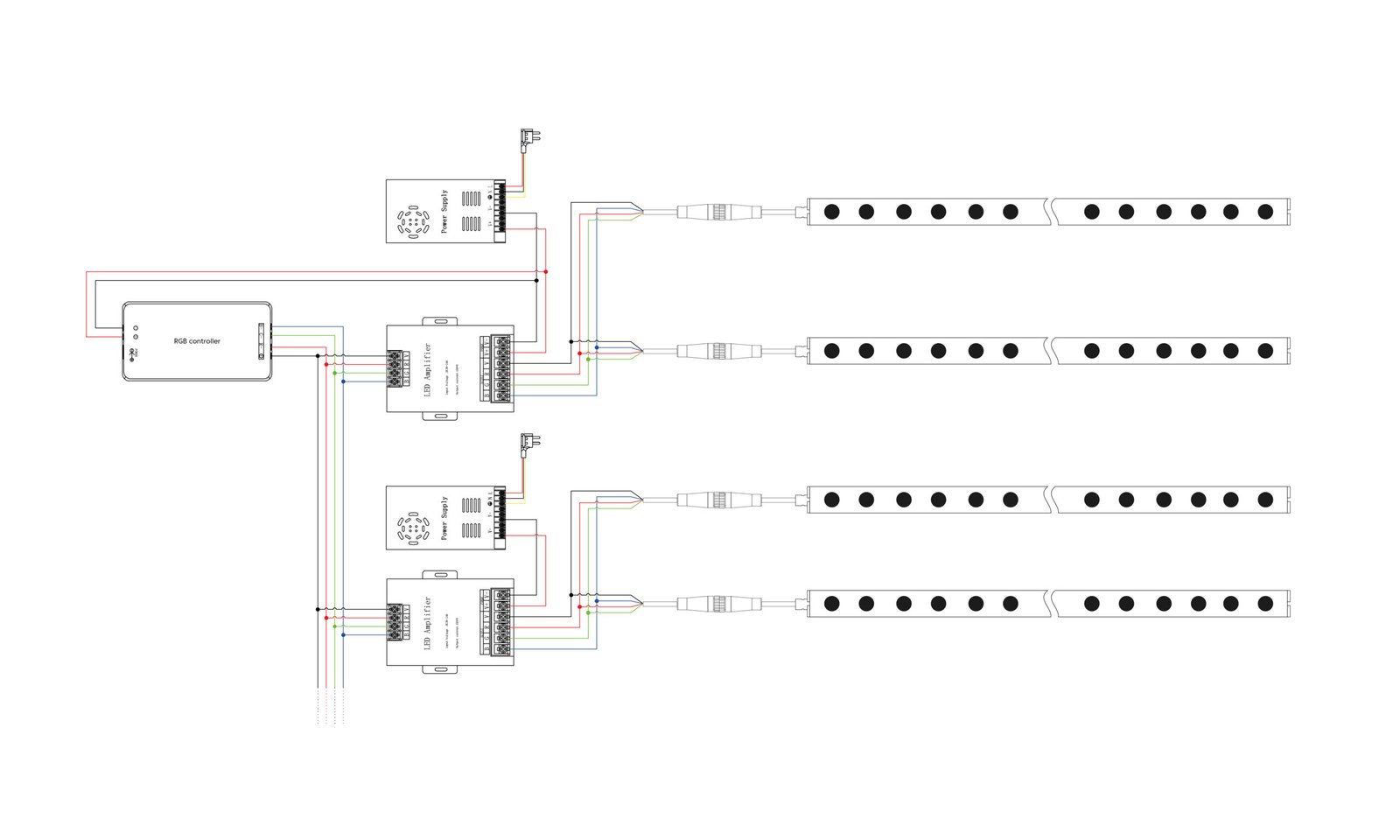

Illustrate standard 3-channel color control connections for dynamic facades.

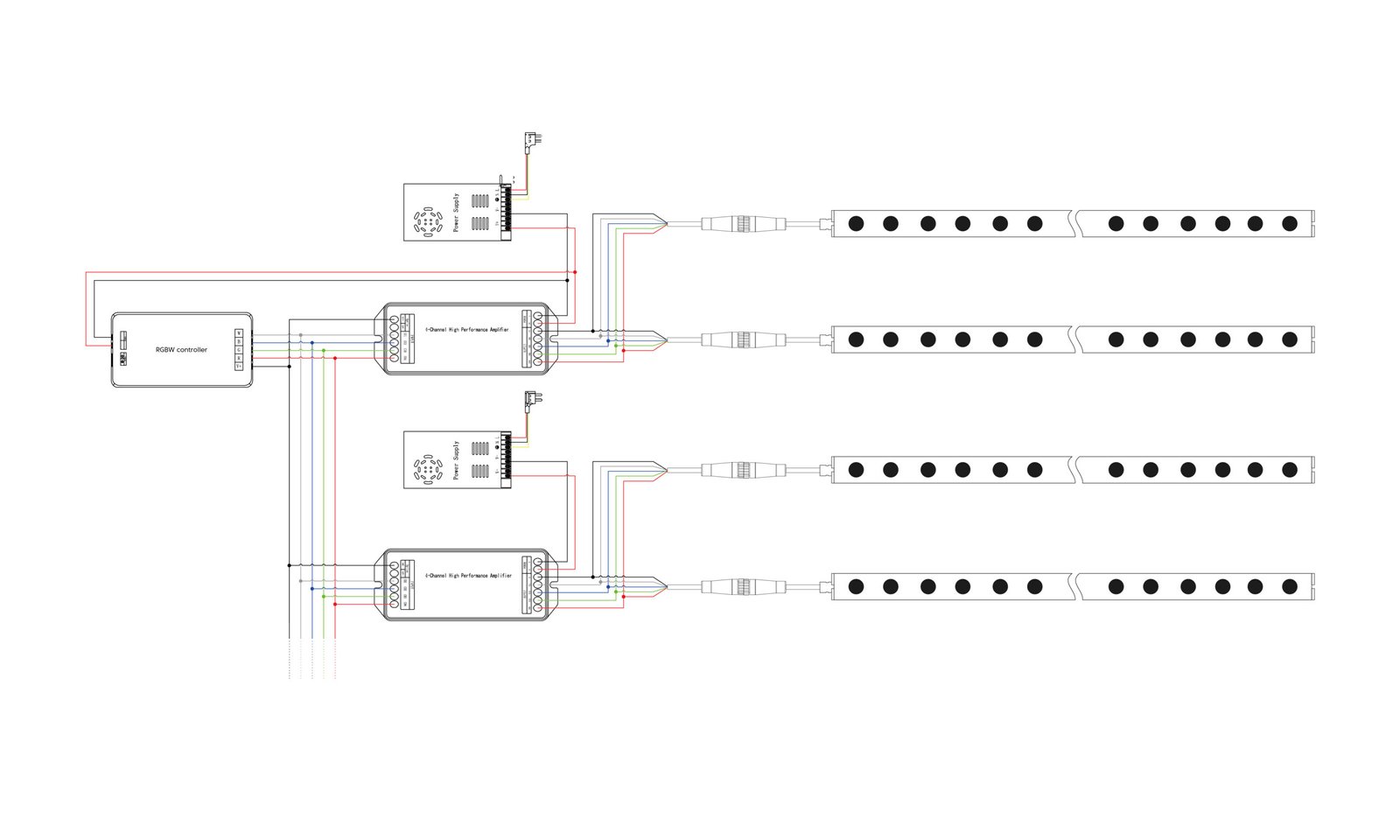

Detail 4-channel setup including DMX512 integration for complex architectural lighting.
A 3D bending flex wall washer is an architectural lighting fixture encased in optical-grade silicone that can bend both horizontally and vertically simultaneously. It is designed to replace rigid metal wall washers on curved facades and complex surfaces.
Unlike standard metal wall washers that require straight installation paths, flexible silicone wall washers adapt to the natural curves of a building. They offer superior hidden installation friendliness and eliminate the need for segmented, disjointed mounting on arcs.
Choose 26×20 for large building facades requiring robust output. The 20×20 is a balanced choice for standard curved architectural outlines. Select the 16×16 compact profile when installation space is highly restricted and the fixture must remain hidden.
Use a 15° narrow beam for tall walls requiring focused projection. A 30° beam is standard for general wall washing. Opt for asymmetric lenses (like 25°×45°) when directional control is needed to minimize light spill, and wide beams (60°) for shorter, broader surface coverage.
Yes, our flexible LED wall washers are rated IP65, featuring anti-UV optical silicone extrusion and hidden end caps, making them highly reliable for permanent outdoor architectural and landscape use.
These fixtures support standard ON/OFF, DALI, and DMX512 Addressable protocols, allowing for static white, tunable white, RGB, and dynamic RGBW lighting effects.
Stop compromising your curved facade designs with rigid fixtures. Get the precise specifications and pricing for your next project.
