RGBX Color Changing
LED Strip
Engineered for high-end architectural, commercial, and project lighting. Our multi-channel strips deliver precise color mixing and tunable white capabilities, fully compatible with professional control ecosystems.
- RGB / RGBW / RGBCCT options
- 3 / 4 / 5 channel solutions
- Multiple voltages and widths
- Indoor to outdoor protection options (IP20 to IP68)
- Compatible with professional control systems
- OEM / ODM supported
RGBX Color Changing LED Strip Supplier & Manufacturer
Operating from our advanced facility in Vietnam, Xmart specializes in manufacturing high-performance RGB, RGBW, and RGBCCT LED strips for global lighting brands and large-scale projects.
Project-Grade Manufacturing
Strict binning controls and automated SMT lines ensure absolute color consistency across massive production runs, critical for multi-channel RGBX installations.
OEM / ODM & Customization
From custom PCB widths and specific IP ratings to tailored control system integrations, our engineering team builds to your exact specifications.
Control System Synergy
We don't just manufacture strips; we ensure seamless compatibility with DMX512, DALI, and advanced RF control ecosystems for perfect synchronization.
What Are RGBX Color Changing LED Strips?
"RGBX" is an umbrella term for multi-channel LED strips. Depending on the specific application requirements for color mixing and white light quality, different channel configurations are utilized.

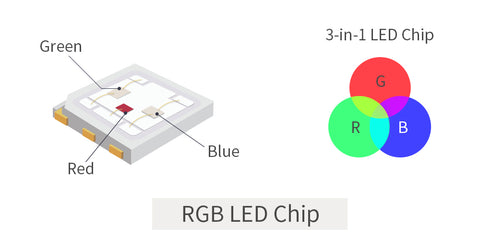

RGB LED
Relies on 3 channels: Red, Green, and Blue. By mixing these three primary colors, our Vietnam factory OEM/ODM RGB LED modules can produce a wide spectrum of colors. However, creating a pure, high-CRI white light is challenging using only RGB.
RGBW
Engineered with an independent White channel (4-channel RGBW). Our Vietnam factory OEM/ODM RGBW LED strips deliver dynamic RGB colors alongside pure 3000K/6000K white.

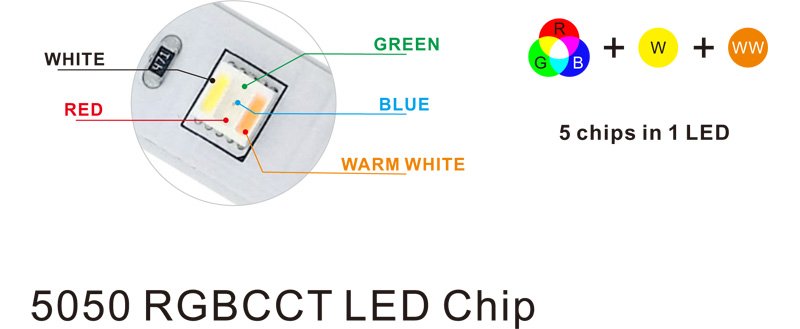

RGBTW / RGBCCT
The ultimate 5-channel RGB+CCT LED solution from our Vietnam factory. It integrates RGB with independent Warm and Cool White channels, delivering fully tunable white light and dynamic color capabilities for premium OEM/ODM wholesale lighting projects.
What are the benefits of RGBX (RGB, RGBW and RGBCCT) LED strip lights?
Dynamic RGB Color Mixing
Access 16+ million vibrant colors with precise dimming. Ideal for architectural accents and immersive commercial environments.
Pure White Illumination with RGBW
Features dedicated white diodes for true illumination quality, eliminating the muddy hues of standard RGB-mixed white lights.
Tunable RGBCCT Flexibility
Seamlessly transition from dynamic colors to productive cool daylight or relaxing warm white within a single LED strip.
Commercial Retail & Hospitality
Create adaptable atmospheres and striking brand environments tailored for hotels, bars, and premium flagship stores.
IP20 to IP68 Waterproof Ratings
Versatile extrusion silicone protection, ranging from dry indoor IP20 applications to permanent IP68 underwater installations.
DMX & Smart Control Ready
Engineered for seamless integration with PWM decoders, DMX512 consoles, and enterprise building management systems.
Application Scenarios

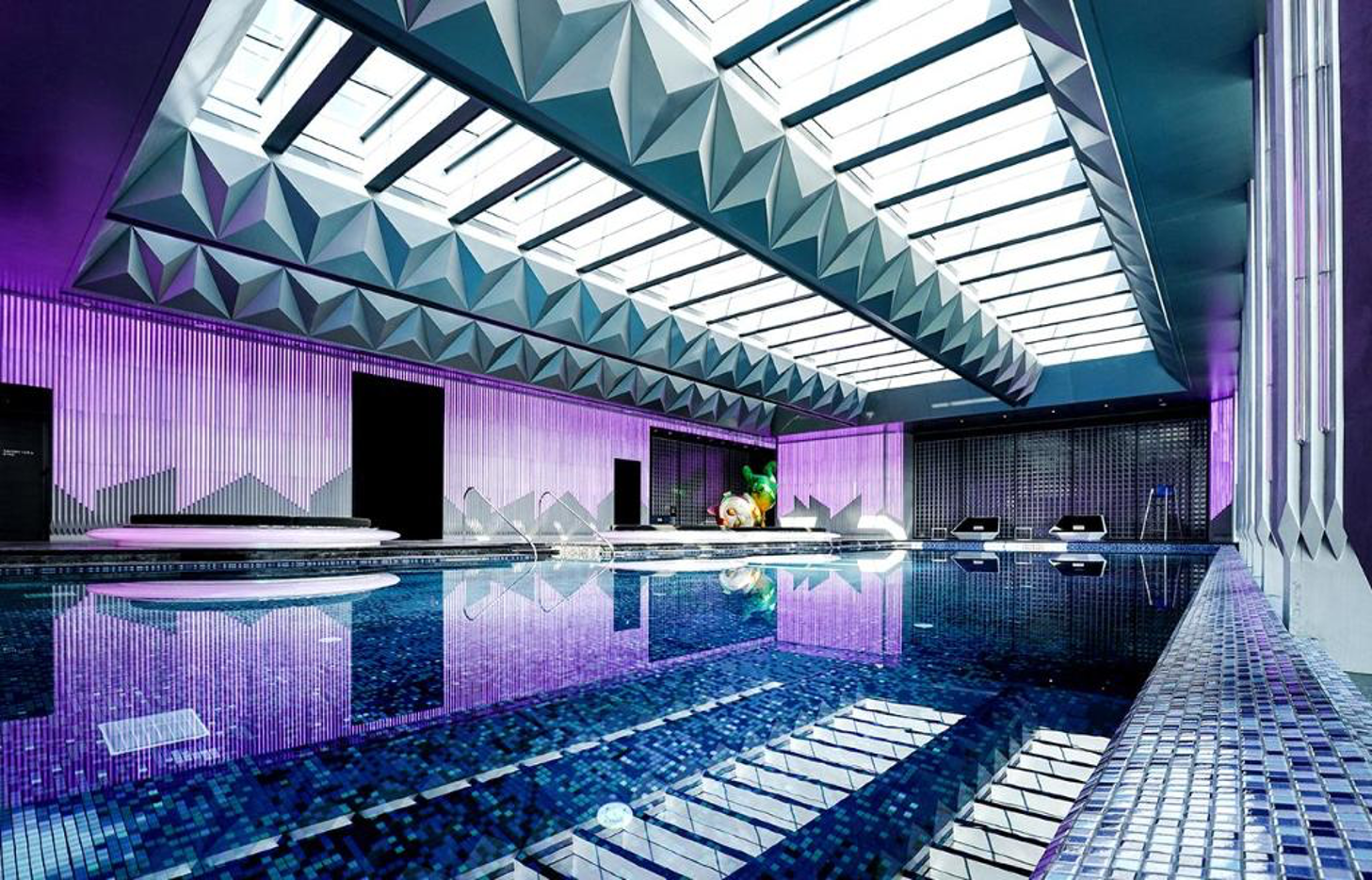

Luxury Hotel

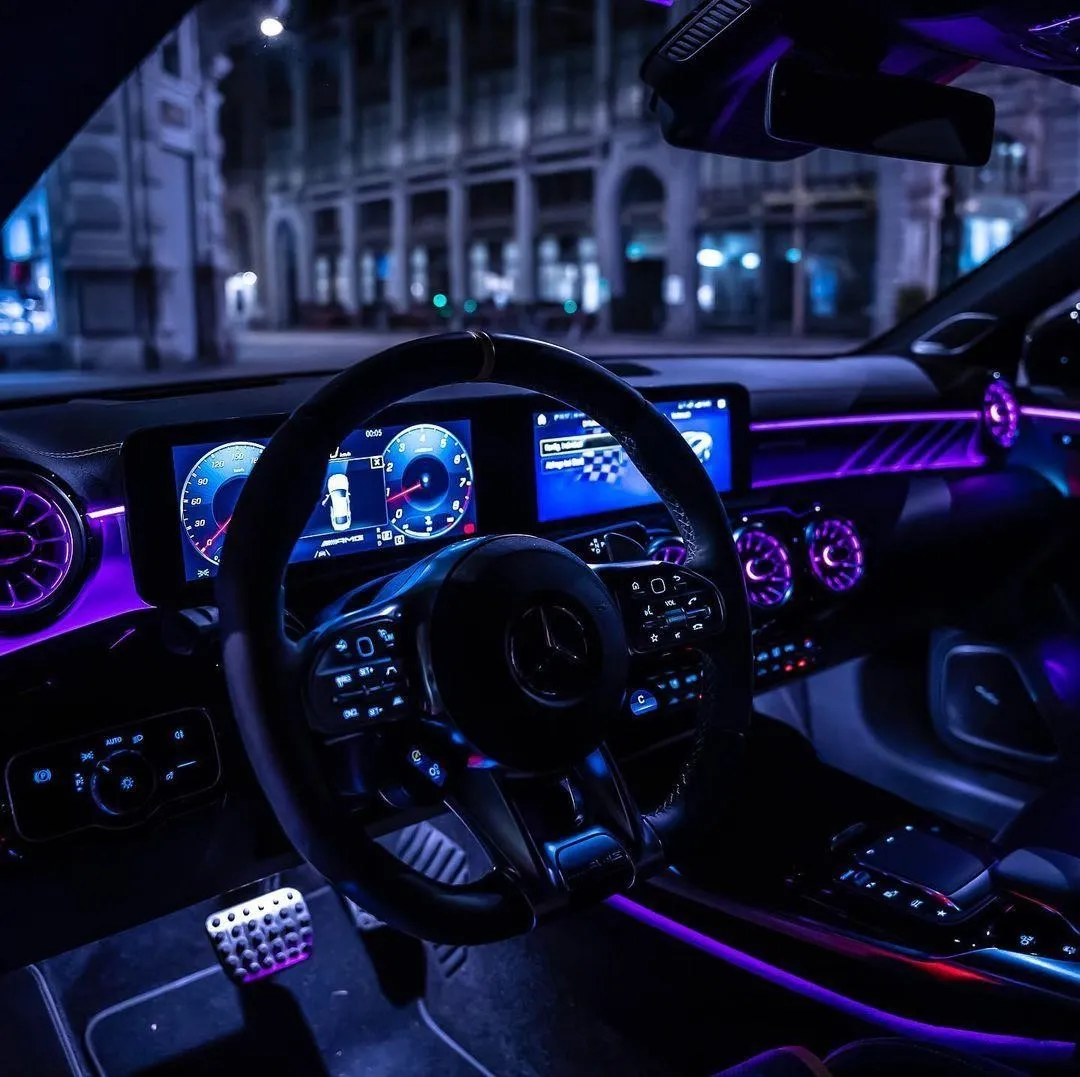

Mercedes-Benz Car Applications
Game Applications
Outdoor Applications

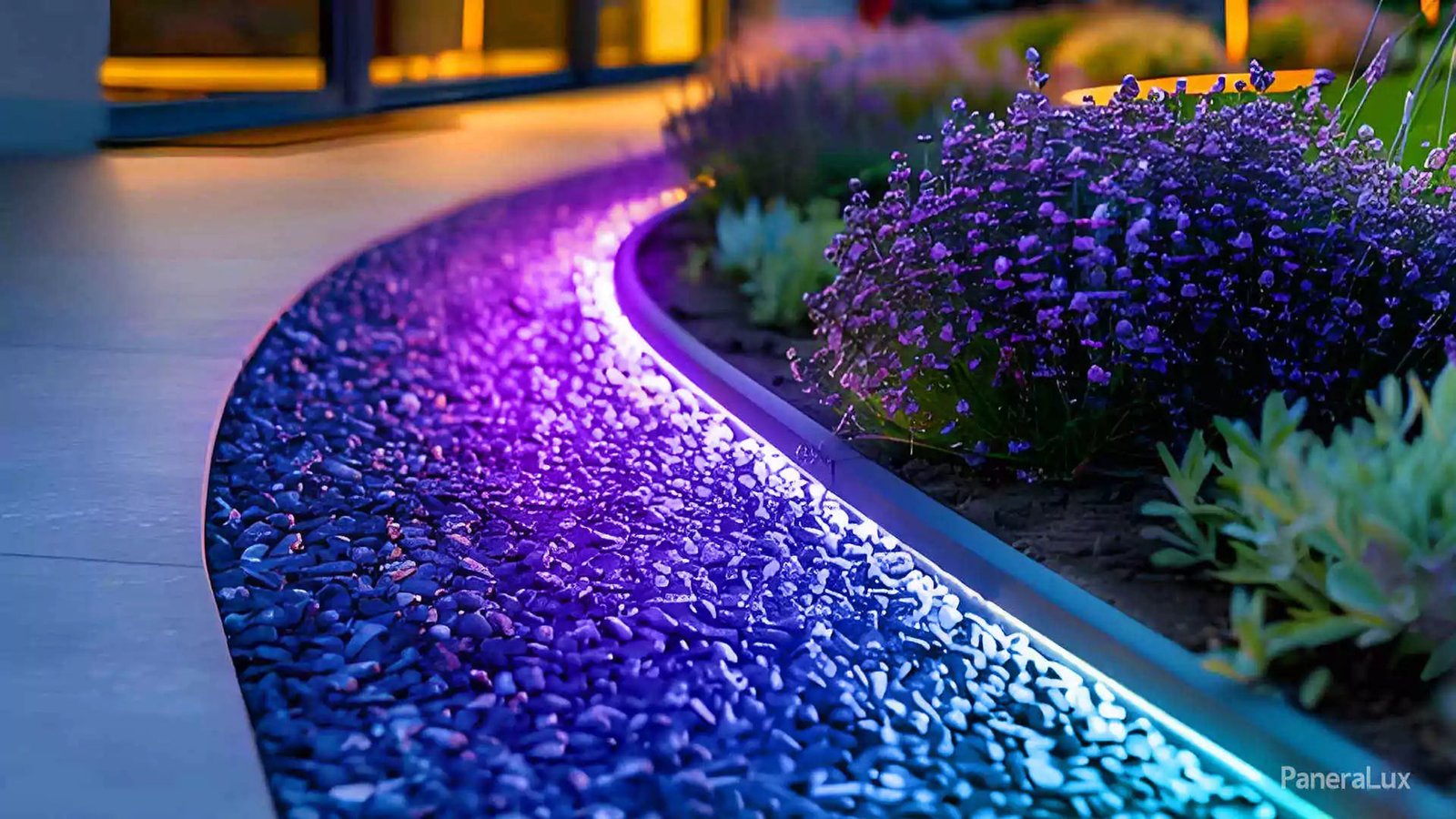

Countryard Applications
Quick Series Overview
Channel Types
3 / 4 / 5 Channels
Voltage Options
5V / 12V / 24V / 36V / 48V
PCB Width Range
5mm to 20mm
IP Ratings
IP20 / IP54 / IP65 / IP67 / IP68
Color Systems
RGB / RGBW / RGBCCT
Tech Availability
SMD & COB High Density
Product Length
Standard 5M / Custom Reels
Manufacturing
OEM / Custom Support
Select Product Series

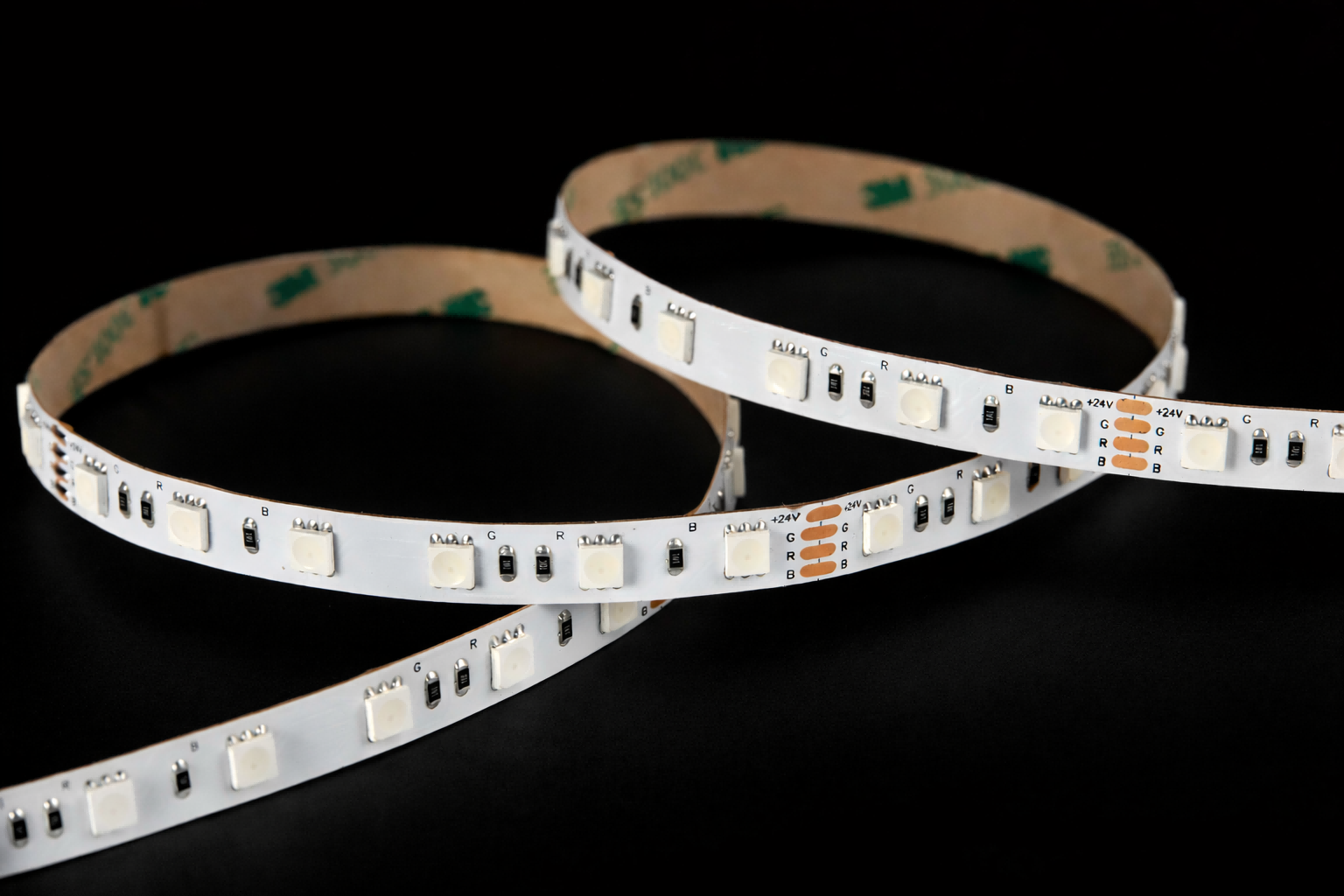

SMD5050 3-IN-1 RGB LED Strip
The industry standard for vibrant, reliable color mixing. Utilizing premium 5050 SMD diodes with integrated Red, Green, and Blue chips in a single package, this series delivers smooth color transitions and high brightness for architectural accents, signage, and entertainment venues.
- • Channel Type: 3 Channels (RGB)
- • LED Diode: High-brightness SMD5050
- • Density Options: 30 / 60 / 120 LEDs/m
- • Voltage: 12V / 24V DC

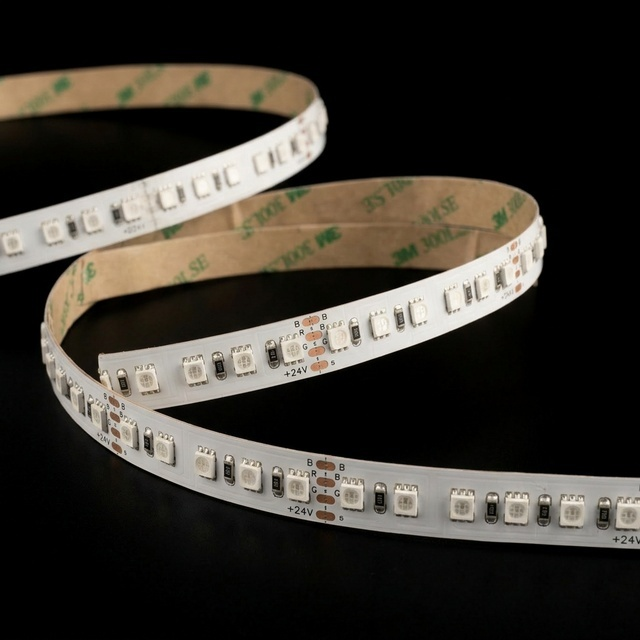

SMD3838 3-IN-1 RGB LED Strip
A more compact alternative to the 5050, the SMD3838 allows for narrower PCB widths and higher density packing. Perfect for slim aluminum profiles and intricate installations where space is at a premium but vibrant RGB color is still required.
- • Channel Type: 3 Channels (RGB)
- • PCB Width: Narrow profile options (down to 5mm/8mm)
- • High Density: Up to 240 LEDs/m for spot-free lighting
- • Excellent for narrow profiles

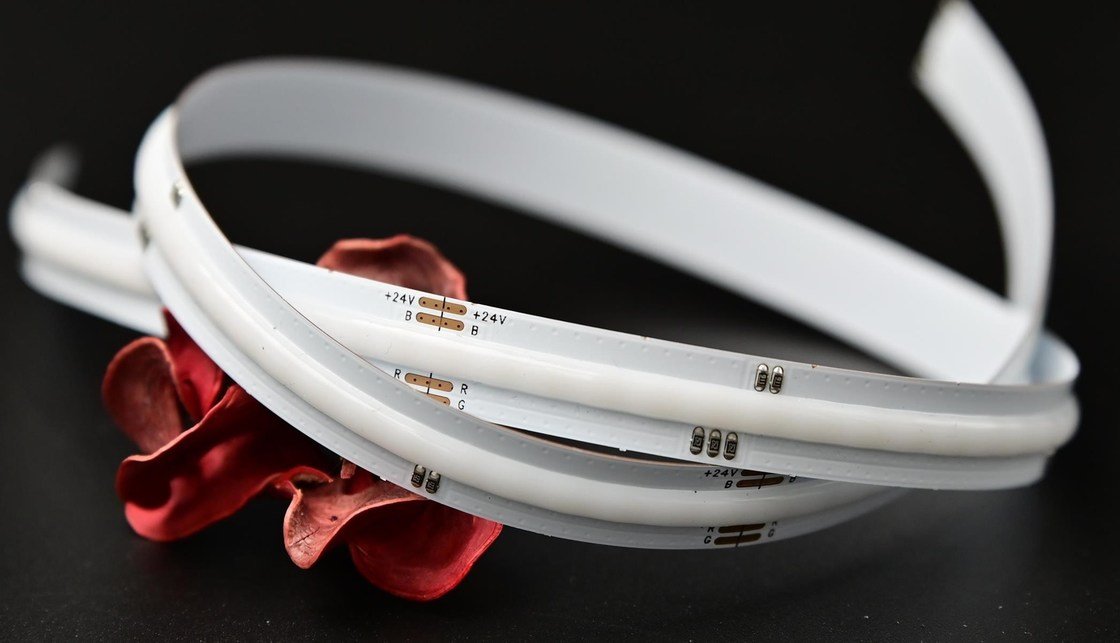

COB RGB LED Strip
Chip-on-Board (COB) technology revolutionizes RGB lighting by eliminating visible LED dots. This series provides a completely continuous, seamless line of colored light, ideal for direct-view applications, reflective surfaces, and ultra-slim linear fixtures.
- • Technology: Chip-on-Board (Dotless)
- • Density: Ultra-high (e.g., 840 chips/m)
- • Beam Angle: 180° wide illumination
- • Perfect for reflective surfaces & direct view

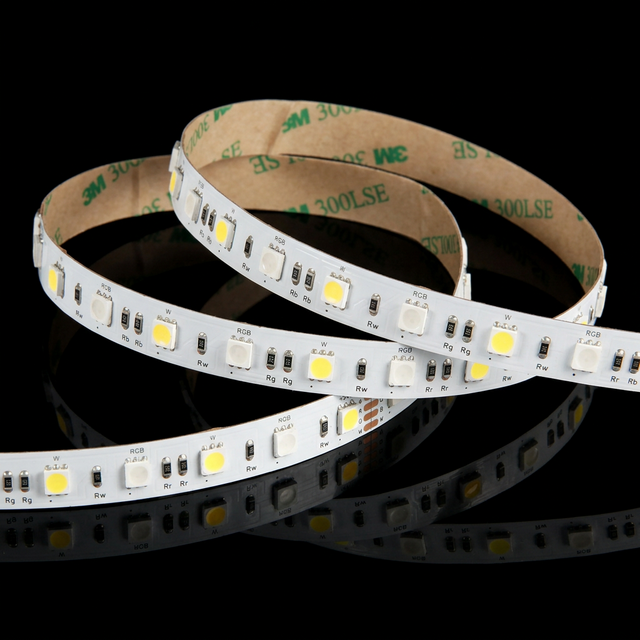

RGB+W Separated LED Strip
A 4-channel solution utilizing alternating RGB diodes and dedicated White diodes along the PCB. This design allows for higher output per specific color and excellent thermal management, providing strong, distinct colors and a powerful, pure white light channel.
- • Channel Type: 4 Channels (RGB + W)
- • Layout: Alternating RGB and White chips
- • White CCT Options: 2700K / 3000K / 4000K / 6000K
- • High brightness for specific color outputs

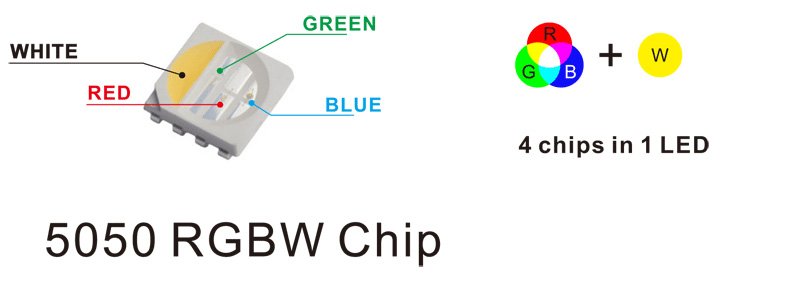

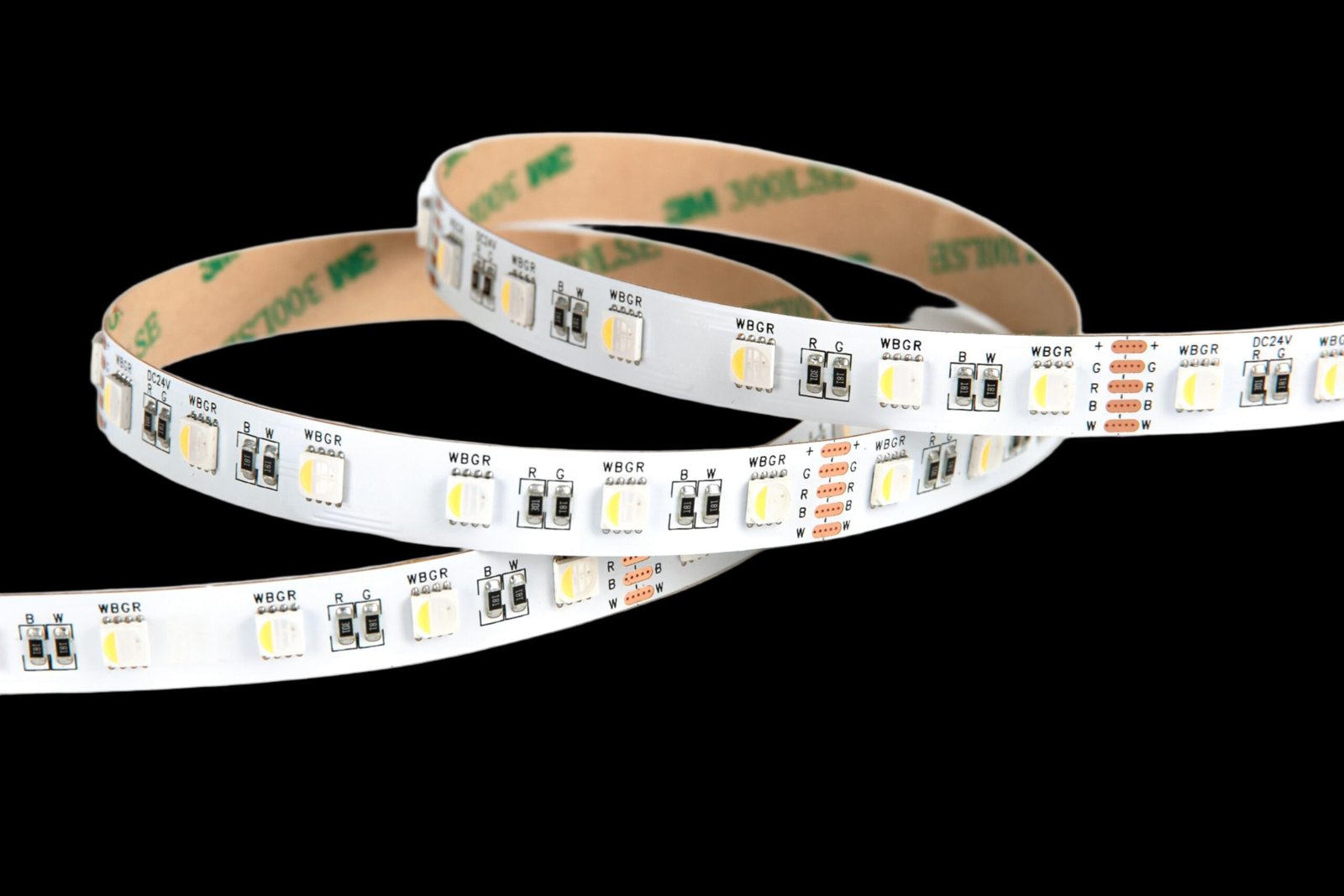

SMD5050 4-IN-1 RGBW LED Strip
Advanced 4-in-1 packaging technology places Red, Green, Blue, and White chips inside a single 5050 diode. This ensures perfect, uniform color mixing directly at the source, eliminating multi-color shadows and creating a beautifully blended output for both vivid colors and pure whites.
- • Channel Type: 4 Channels (RGBW)
- • Diode Tech: 4-in-1 integrated chip
- • Advantage: Perfect color blending, no multi-shadows
- • Ideal for wall washing and cove lighting

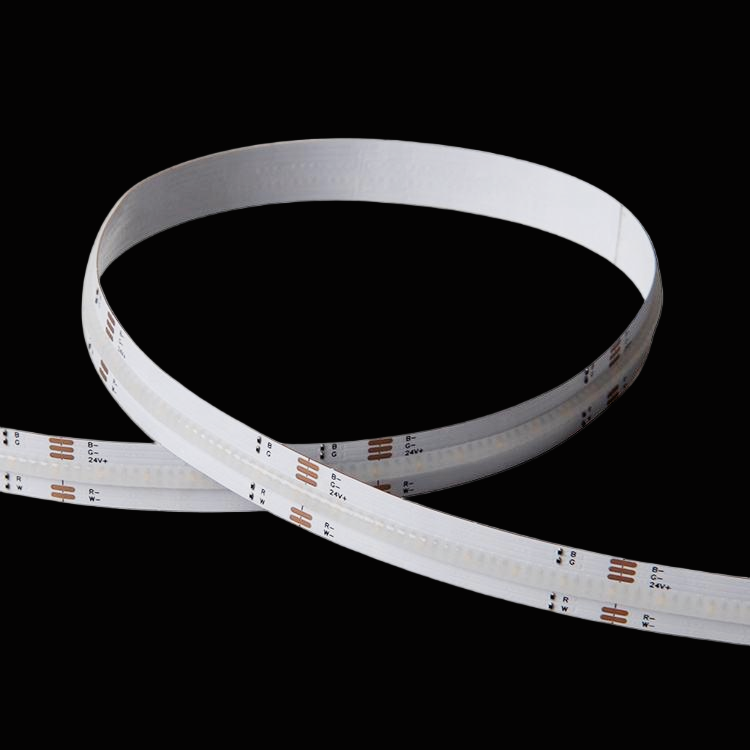

COB RGBW LED Strip
Combining the seamless, dot-free illumination of COB technology with the versatility of 4-channel RGBW. This premium strip offers flawless lines of vibrant color alongside pure, high-CRI white light, representing the pinnacle of architectural linear lighting design.
- • Technology: Dotless COB + 4 Channels
- • White Quality: High CRI >90 for the white channel
- • Aesthetics: Completely seamless linear output
- • Applications: High-end retail, luxury hospitality

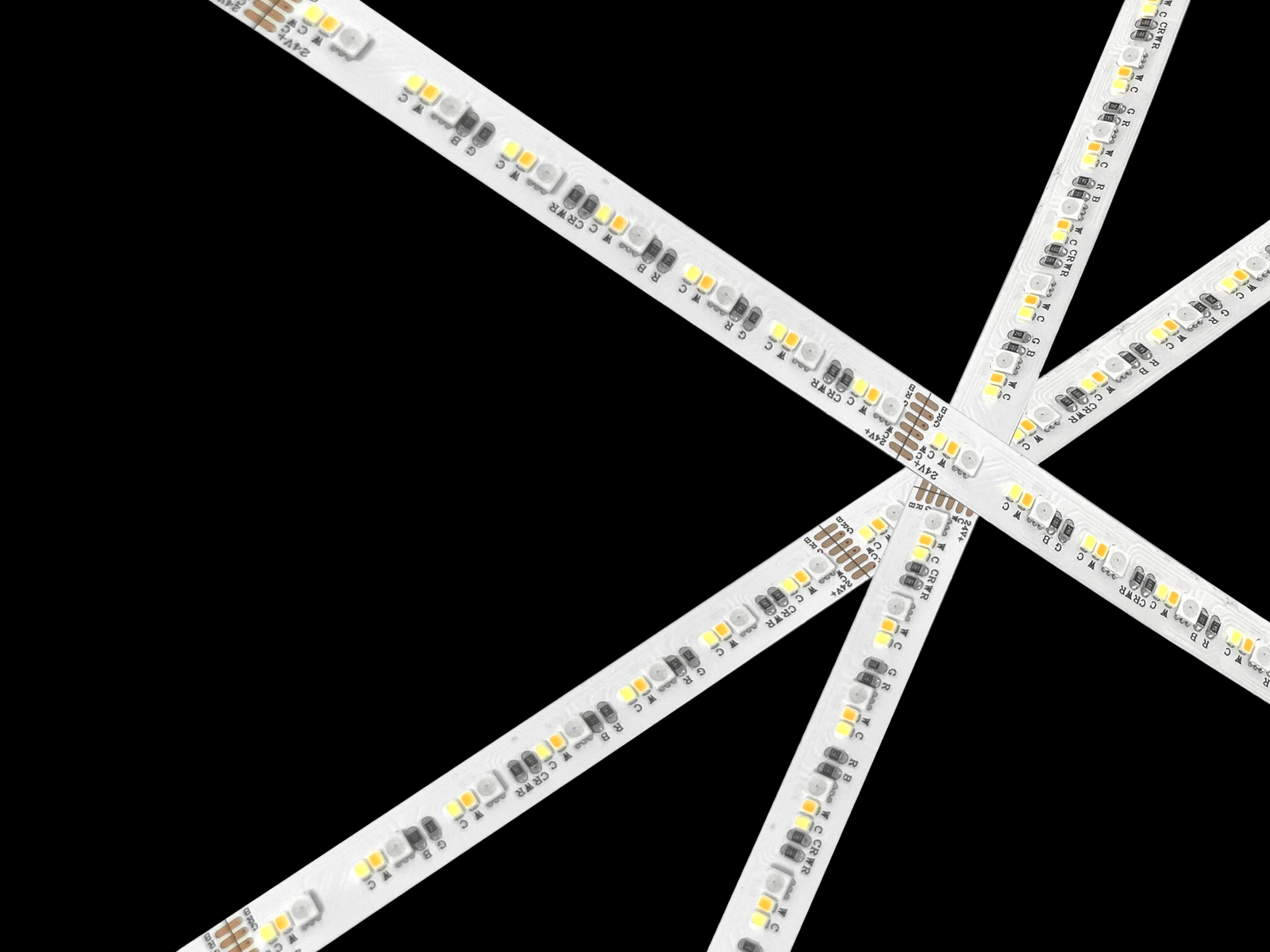

RGB + CCT LED Strip (Separated)
A robust 5-channel solution that alternates RGB diodes with dual-white (Warm + Cool) diodes. This allows for full color spectrum control and independent, highly accurate tunable white (CCT) adjustments from warm 2700K to crisp 6500K daylight.
- • Channel Type: 5 Channels (RGB + WW + CW)
- • Layout: Alternating diodes for high power output
- • CCT Range: Typically 2700K - 6500K tunable
- • Flexibility: Dynamic colors and circadian lighting in one

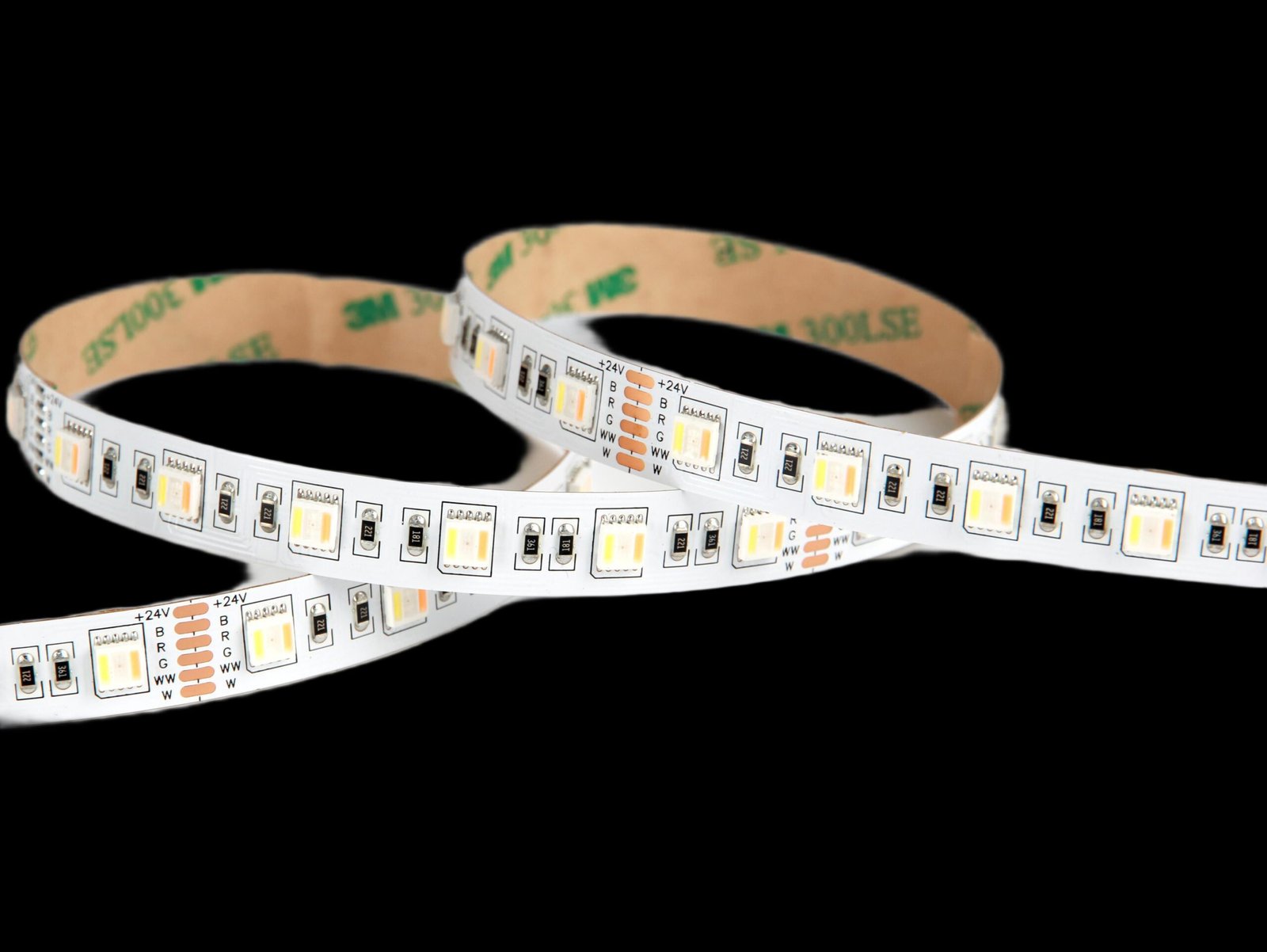

SMD5050 5-IN-1 RGBCCT LED Strip
The ultimate all-in-one diode. By packing Red, Green, Blue, Warm White, and Cool White chips into a single 5050 package, this strip offers unprecedented color and temperature blending directly from a single point source. Maximum versatility for the most demanding lighting projects.
- • Channel Type: 5 Channels (RGBCCT)
- • Diode Tech: 5-in-1 integrated chip
- • Advantage: Ultimate blending, zero color separation
- • Control: Requires 5-channel PWM or DMX decoders
RGBX Control Ecosystem
Unlock the full potential of your multi-channel LED strips with our professional-grade control gear. We supply perfectly matched controllers, remotes, and decoders for 3, 4, and 5-channel systems.
RGB (3 channels) Control System

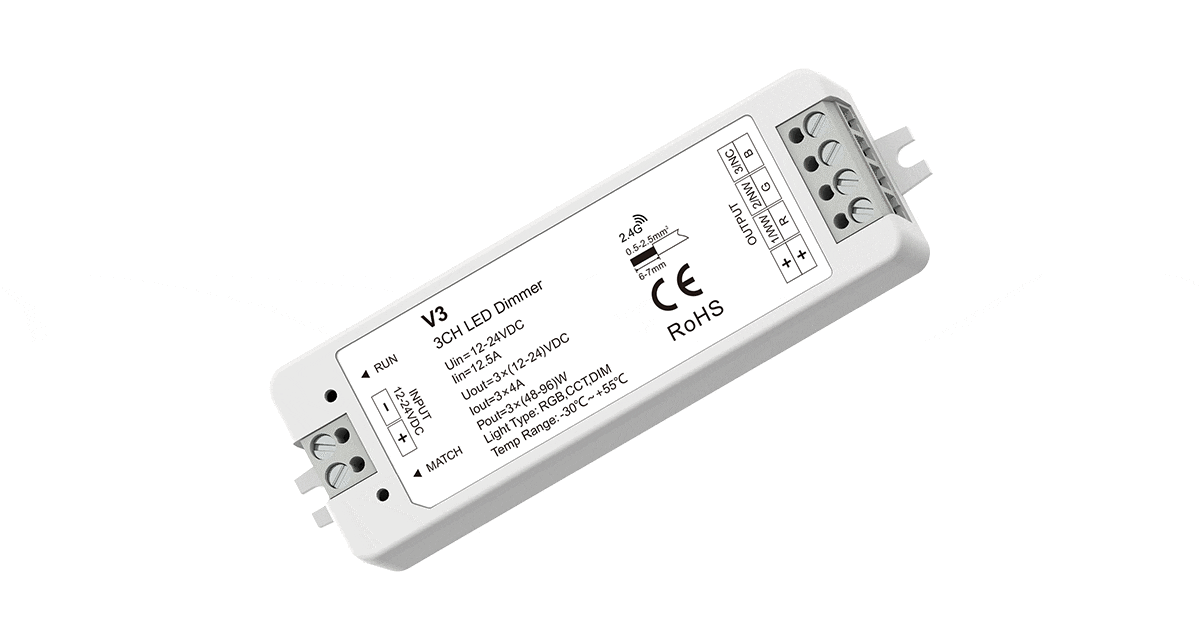

RGB Controller
RGB Remote

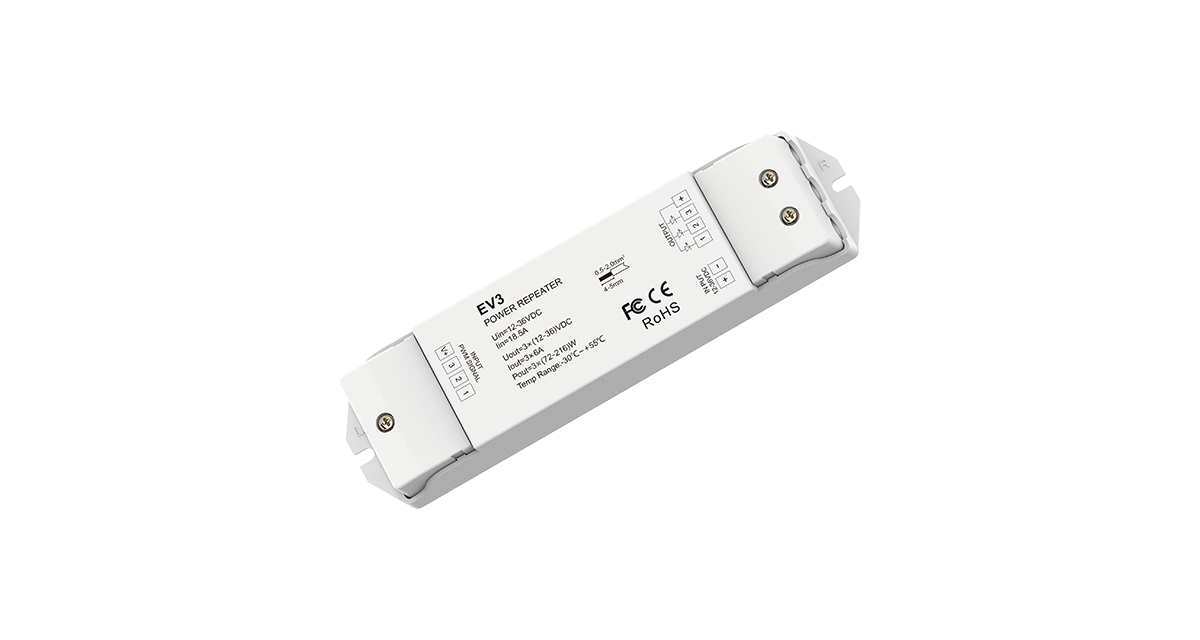

Power Repeater
DMX512 Decoder
RGBW (4 channels) Control System

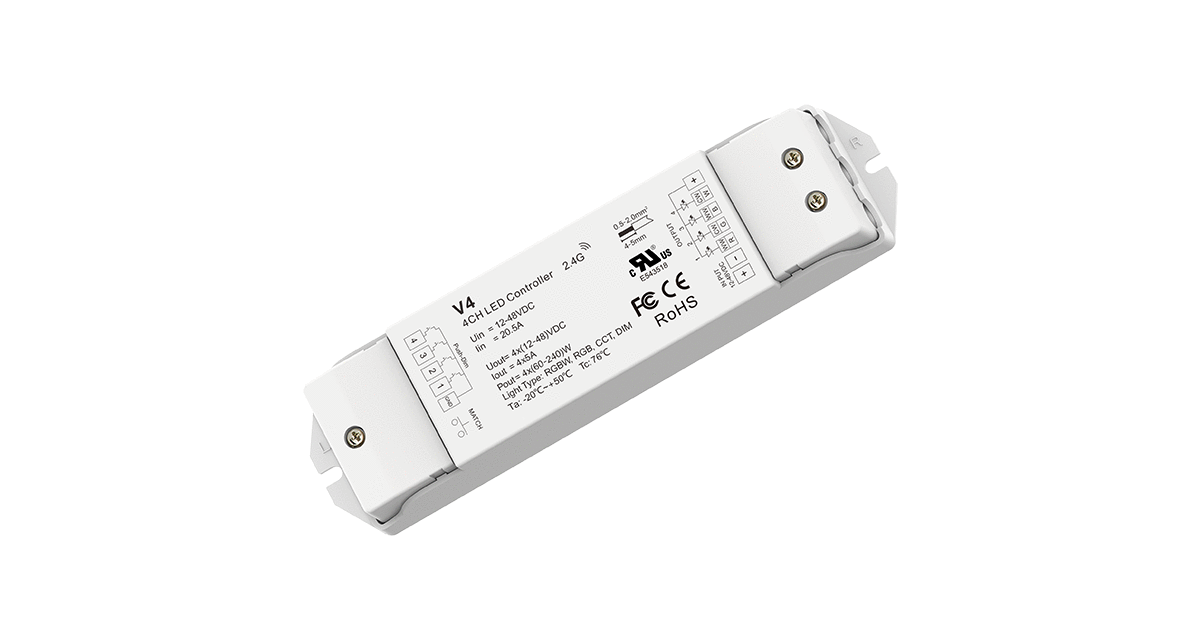

RGBW Controller

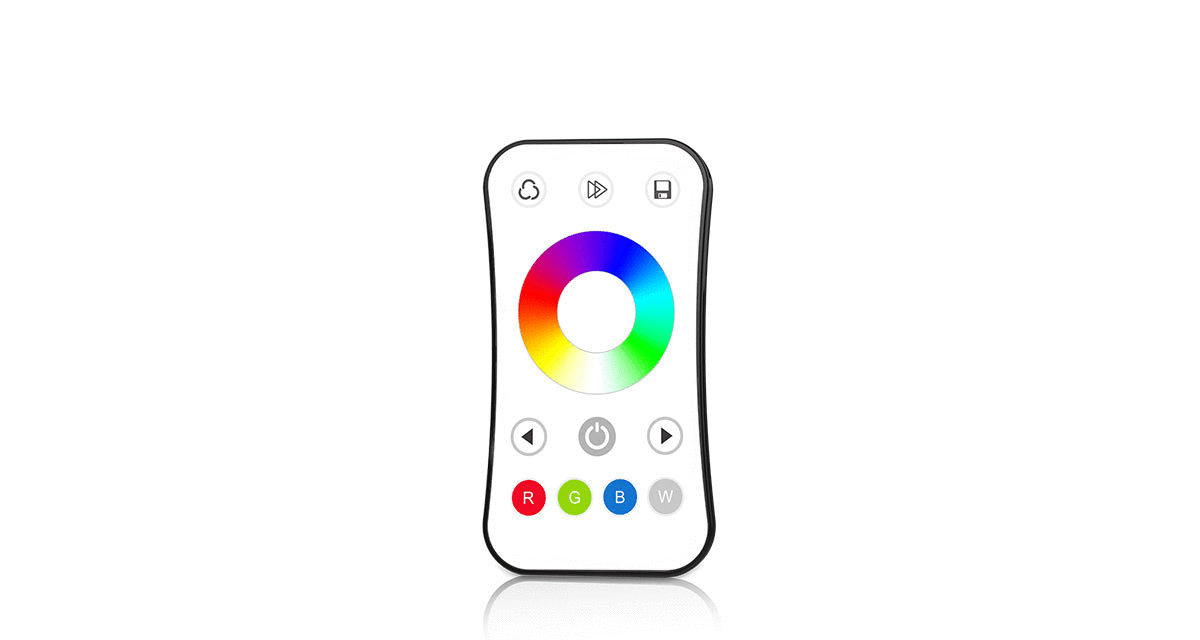

RGBW Remote

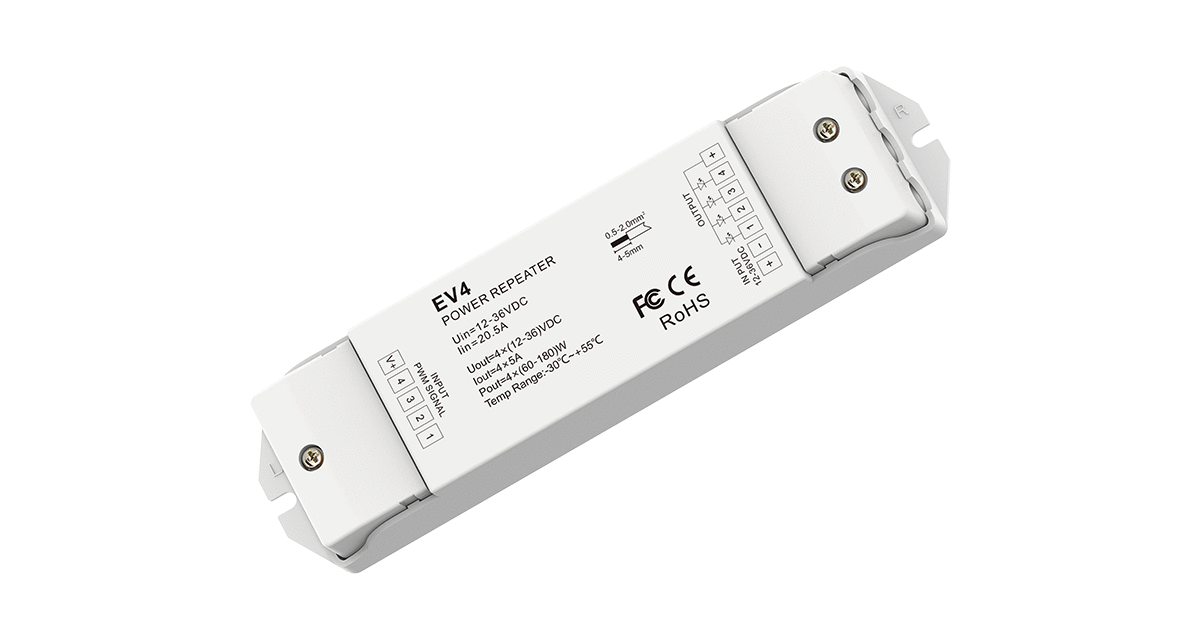

Power Repeater
DMX512 Decoder
RGBCCT (5 channels) Control System

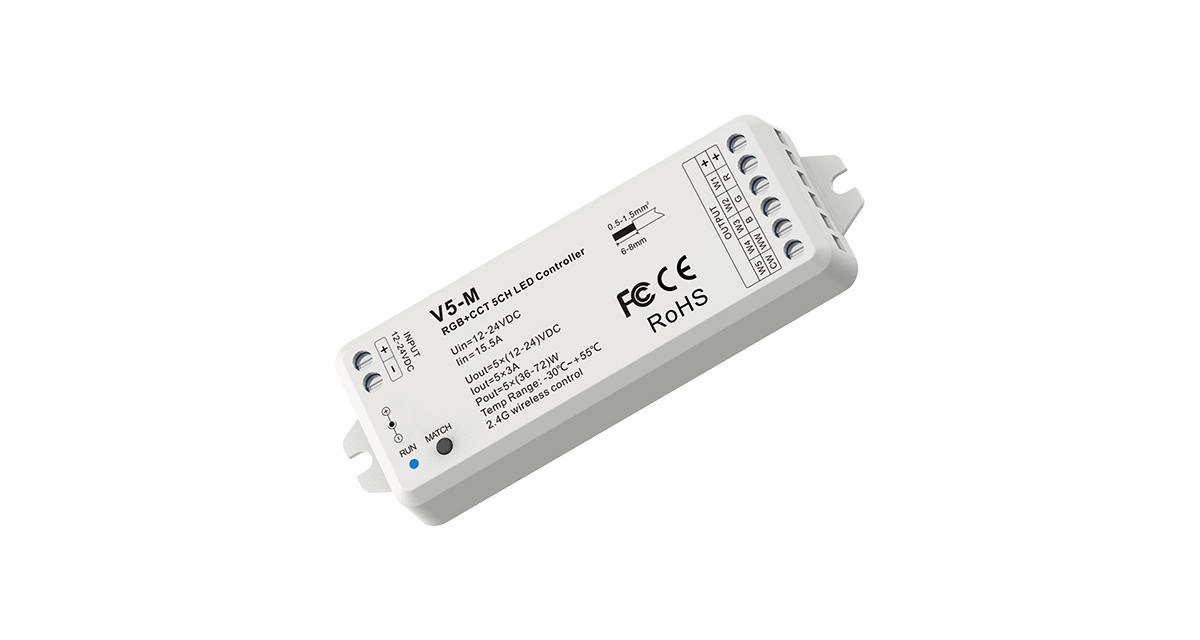

RGBCCT Controller

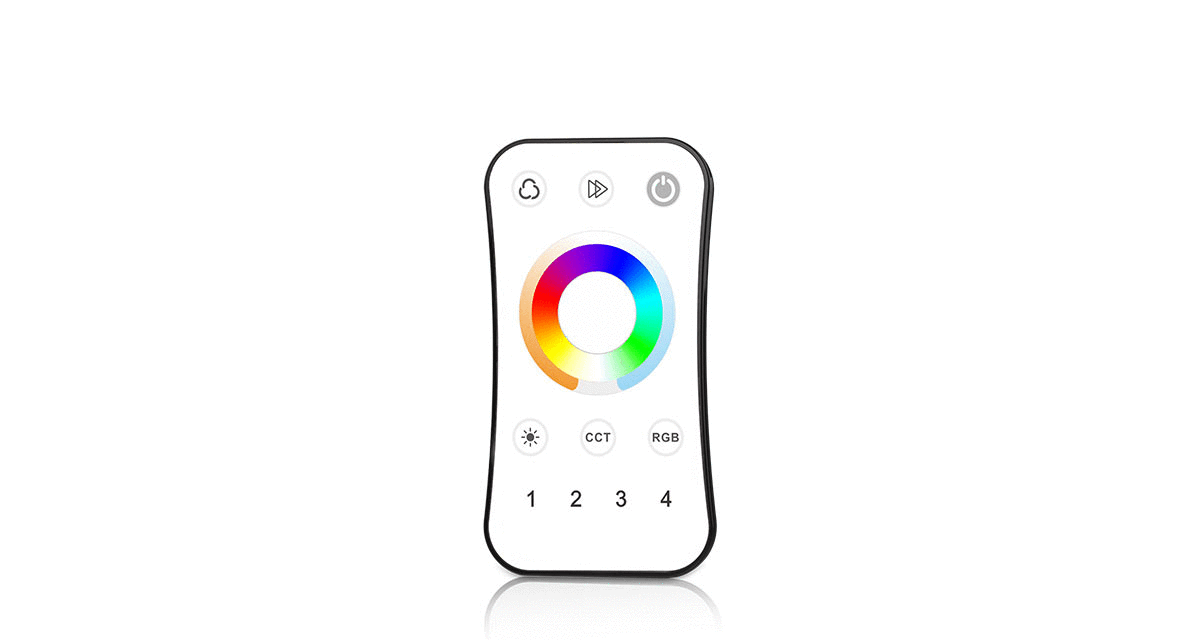

RGBCCT Remote

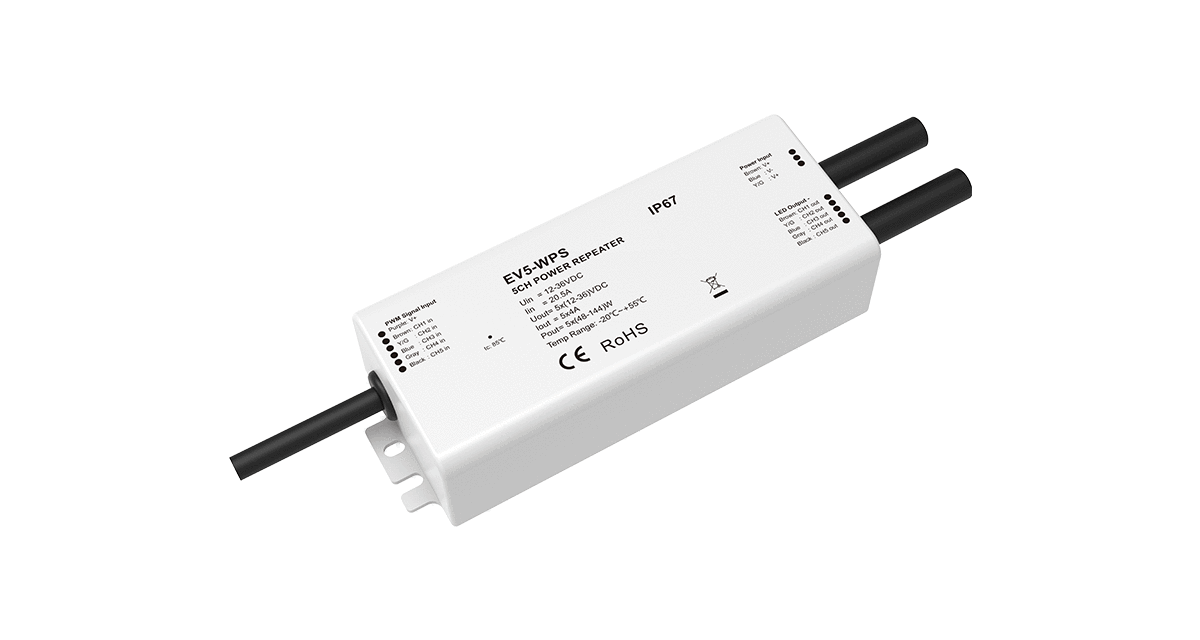

Power Repeater
DMX512 Decoder
Rigorous Product Testing
Every batch of RGBX strips undergoes extensive laboratory testing to ensure color consistency, thermal stability, and long-term reliability.
Integrating Sphere Test
Intergrated Waterproof Test Chamber
Torsion Fatigue Test
Integrating Sphere Test
Global Certifications
Custom My IP Rating
From dry indoor coves to underwater landscape features, we offer multiple extrusion technologies.
- IP20: Bare Board (Indoor dry)
- IP54: Silicone Coating (Damp locations)
- IP65: Silicone Tube (Splash proof)
- IP65H: Heat Shrink (Damp Locations)
- IP65E: Silicone Extrusion (Outdoor facades)
- IP67: Silicone Extrusion (Outdoor rain)
- IP67E: Solid Silicone Extrusion (Outdoor areas)
- IP68: PU/Silicone Filled (Submersible)
Custom My RGBX LED Strip
As a direct manufacturer, Xmart supports deep OEM/ODM customization for your lighting brand.
- • Custom PCB Widths & Copper Thickness (2oz/3oz)
- • Specific White CCT Bins for RGBW/RGBCCT
- • Custom Cut Lengths & Pre-soldered Wires
- • Brand Logo Printing on PCB & Packaging

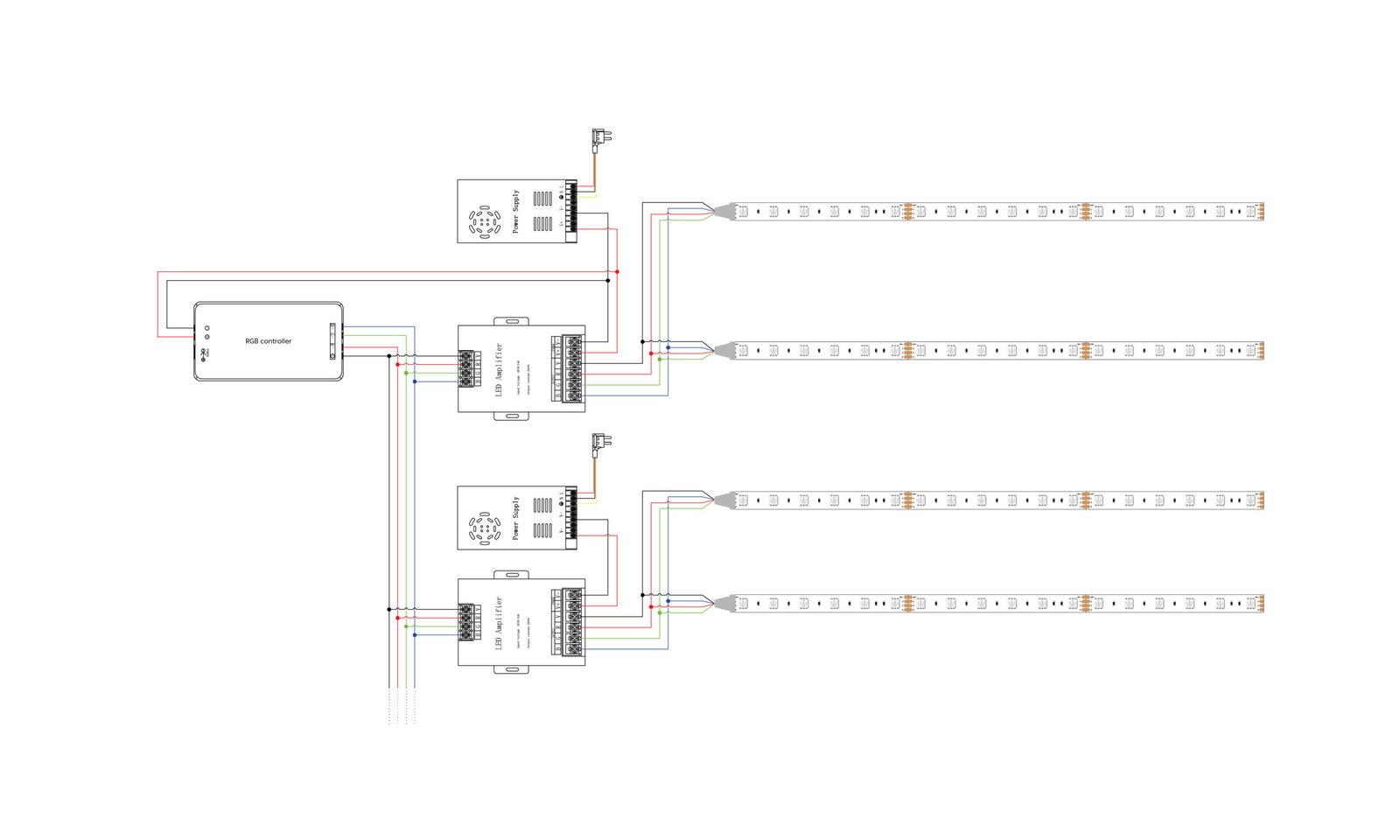

RGBX Connection Diagram Overview
Xmart LED Lighting • Vietnam Factory • OEM/ODM • UL/ETL/CE/CB/RoHS
Proper wiring is crucial for multi-channel strips to prevent voltage drop and ensure accurate color mixing across long runs. Always use appropriate gauge wire (typically 18AWG or thicker for long runs) and ensure your power supply and controller are rated for the total wattage of all channels combined. For runs exceeding 5 meters (12V) or 10 meters (24V), parallel wiring or signal amplifiers are required.
RGB Wiring
Essential multi-channel LED connection guide for wholesale and OEM/ODM lighting projects.
RGBW Wiring
Safe integration schematics for UL, ETL, CE, CB, and RoHS certified power supplies.

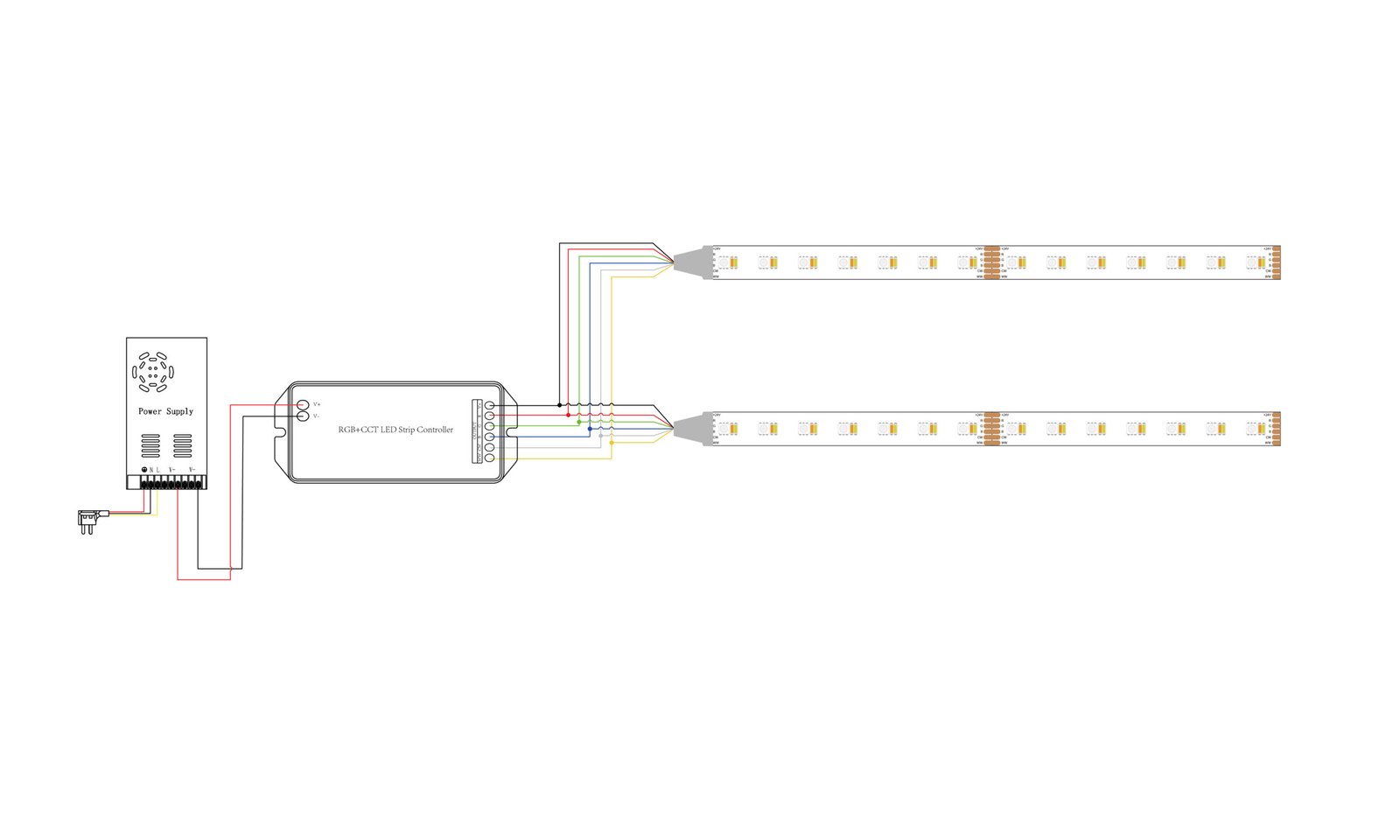

RGBCCT Wiriing
Signal amplifier deployment standards direct from our advanced Vietnam manufacturing facility.
Common Failures for RGBX & Troubleshooting
This is caused by voltage drop. The blue and green channels typically require slightly higher forward voltage than red. At the end of a long run, voltage drops, causing blue/green to dim faster than red, resulting in a color shift (often looking pinkish/yellowish). Solution: Inject power at both ends or use 24V/48V systems.
Check the wiring connections between the controller and the strip. A loose wire on the R, G, B, W, or CCT terminal will cause that entire channel to fail. Also, ensure the controller output port is not damaged.
Usually caused by an underpowered or low-quality power supply, or a controller with a low PWM frequency. Ensure the power supply has at least 20% headroom above the total strip wattage, and use controllers with high-frequency PWM (>2000Hz) for smooth, flicker-free dimming.
Looking for a more reliable RGBX Color Changing LED Strip supply partner?
Direct from our Vietnam manufacturing facility. High volume consistency, rapid prototyping, and full OEM support.
