Flex LED
Wall Washer
A flexible wall washing solution for facades, outdoor surfaces, and projects where rigid wall washer becomes too restrictive.
- Flexible and bendable for more installation freedom
- IP65 waterproof for outdoor use
- Multiple beam angles for different wall wash effects
- Better fit for irregular paths than rigid options
Flexible LED Wall Washer Manufacturer
Buyers don't seek out a flex wall washer just to try something new. They look for it when traditional rigid wall washers create bottlenecks in real-world projects.
When architectural paths aren't perfectly straight, rigid metal structures become too heavy, too long, and too difficult to install seamlessly. Furthermore, the packaging and shipping costs for 1-meter or 2-meter rigid bars eat into project margins. You need a solution that adapts to the surface without sacrificing the professional wall-washing effect.
"A lightweight, outdoor-ready wall washing solution designed to bend around project constraints."

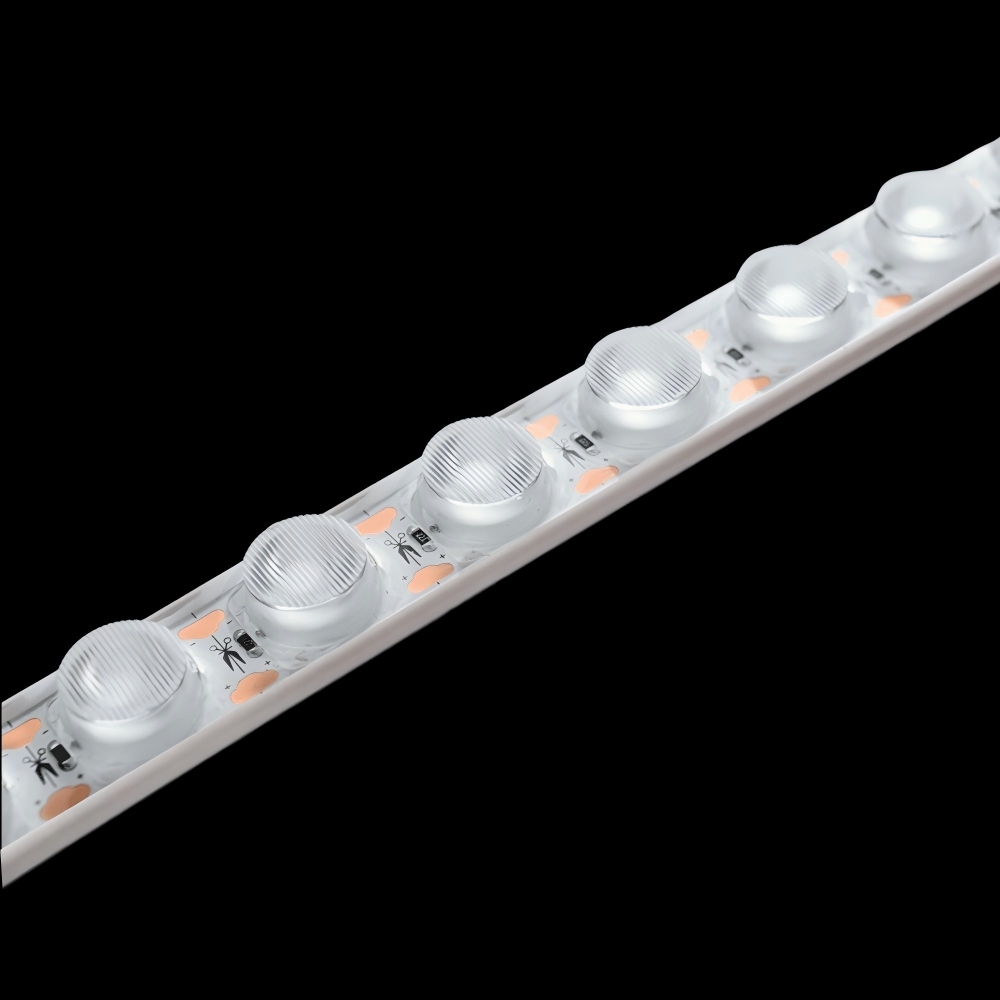

Advanced Flex LED Wall Washers
The ultimate flexible linear luminaire engineered for dynamic outdoor facade illumination. Bendable, durable, and designed for architectural precision.

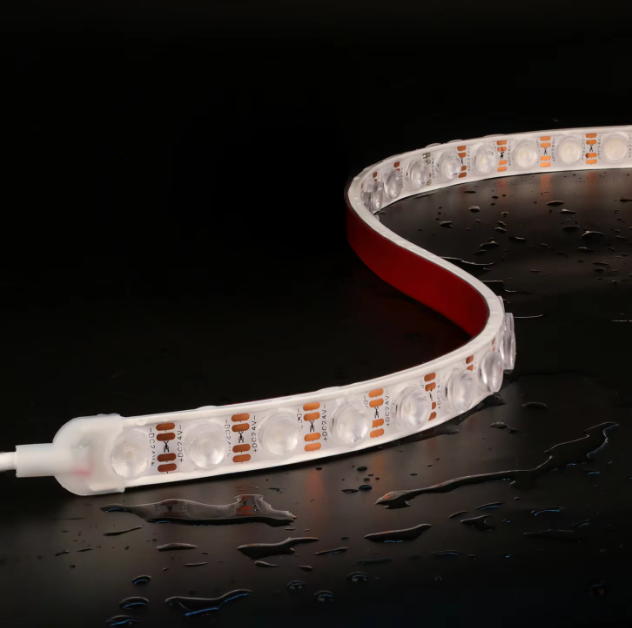

Seamless Architectural Integration
Replaces heavy extruded aluminum with a lightweight, TPU/PU-encased optical solution capable of following curved surfaces and complex edges.
Precision Optical Design
Unlike traditional rigid fixtures, our flexible LED wall washer integrates advanced optical lenses directly into a soft, protective TPU/PU casing.
This innovation delivers high-performance outdoor wall washing with a significantly lighter footprint, reducing shipping costs for global distributors.
Continuous 5M Lighting Runs
Designed for complex geometries, this bendable linear luminaire provides unparalleled installation freedom.
Achieve continuous, shadow-free lighting runs of up to 5 meters. It is the superior alternative for high-end commercial projects demanding flawless aesthetic execution.
Xmart Core Advantages
-
Vietnam Factory Direct Reliable supply chain & cost-effective manufacturing.
-
OEM/ODM LED Solutions Tailored engineering for global lighting brands.
-
Global Certifications UL, ETL, CE, CB, and RoHS compliant.
tenly@xmartlighting.com
+85 18520999956
Why Buyers Choose Flex Instead of Rigid
The strategic advantages when specifying for modern architectural and landscape projects.
Solves Difficult Installations
Better choice when rigid wall washers become too bulky or difficult to mount on delicate facades.
Adapts to Irregular Paths
More useful for lightly curved surfaces, circular columns, and non-linear architectural details.
Reduces Transport Costs
Lighter and rollable, making it significantly easier and cheaper to transport than 1m rigid metal bars.
Outdoor Ready (IP67)
Fully encased in UV-resistant PU/TPU, making it highly reliable for outdoor facade and landscape projects.
Optical Flexibility
Offers multiple beam angles and control choices without changing the physical footprint.
No Structural Constraints
Useful when buyers need professional wall washing without the visual clutter of rigid metal structures.
Application Scenarios
Where flexible installation meets professional outdoor wall washing.
Residential Curtain
Seamless continuous runs for large architectural exteriors.
Landscape Wall Washing
Adapts to curved retaining walls and garden features.

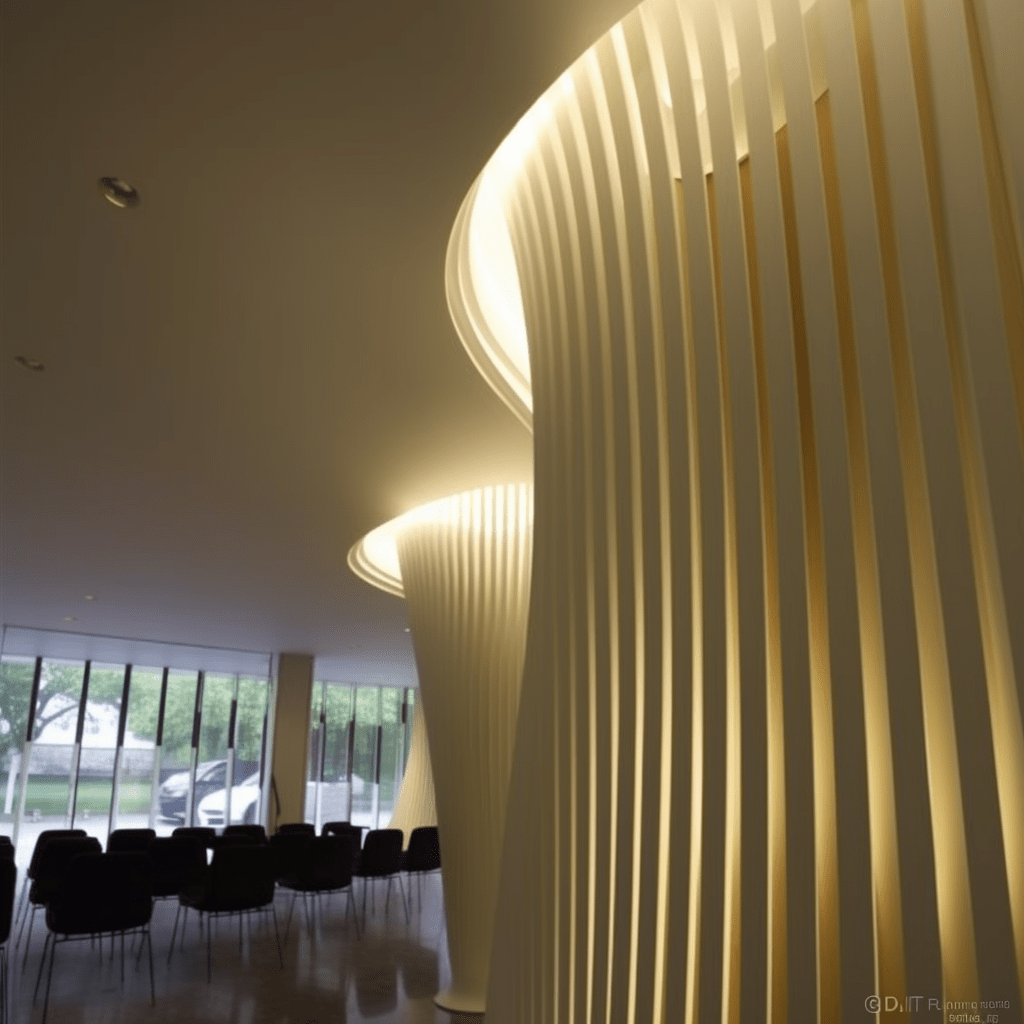

Architectural building
Vibration-resistant and lightweight for structural safety.
Commercial Exterior Lighting
Clean, hidden installation for modern retail spaces.
Architectural Accent Lighting
Highlighting specific textures and materials on walls.
Museum & Art
Close-proximity grazing to reveal surface depth.

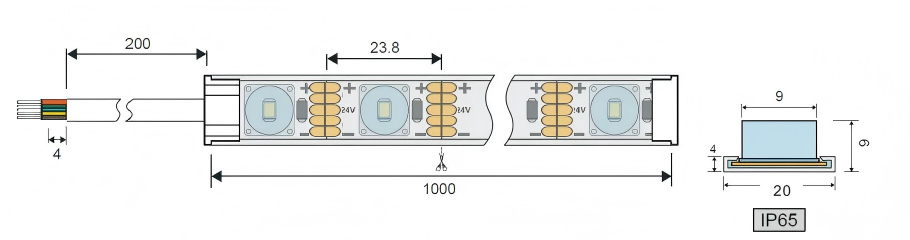

Quick Technical Overview
Essential specifications buyers need to evaluate project feasibility.
Flex LED Wall Washer
Engineered for projects that demand professional wall washing effects without the limitations of rigid metal structures. Ideal for facades, landscapes, bridges, commercial exteriors, and complex installation paths where adaptability is key.
- High CRI Ra>90 for white color
- Up to 120 lm/W efficacy at 4000K
- 3 Years Warranty
Flexible vs Rigid Wall Washer Comparison
An objective look at when to specify flex over traditional rigid fixtures.
Flex LED Wall Washer
- Installation: High flexibility, easily follows curves and irregular shapes.
- Shipping: Rollable packaging, lightweight, significantly lower shipping costs.
- Customization: Cuttable in short increments (e.g., 125mm) for precise project fitting.
- Project Fit: Ideal for modern facades, landscapes, and retrofits without structural limits.
Traditional Rigid Wall Washer
- Installation: Strictly linear, requires flat surfaces or complex bracket engineering for curves.
- Shipping: Long boxes (1m+), heavy metal housing, high freight and handling fees.
- Customization: Fixed lengths (usually 0.5m or 1m), leaving dark spots if dimensions don't match.
- Project Fit: Standard choice for straight, long, heavy-duty applications.
Beam Angle & Light Effect Showcase
Different project surfaces require different optical logic. Which beam angle is suitable for your project?
30°
More focused wall wash for medium-height surfaces.
45°
Balanced spread for common facade use.
60°
Broader, softer wall coverage.
20×45°
Oval spread for directional washing.
10×60°
Asymmetrical beam for specific wall coverage logic.
Color & Control Options
When should buyers choose RGB, tunable white or single color wall washer? It depends on the visual expression and control requirements of the project.
Single Color
2700K – 6500K
Tunable White
Dynamic CCT/ 2700+6500K
RGB
Color changing
RGBW
RGB + Pure White
RGB DMX512
Pixel-level programming control
Installation Accessories
Secure, reliable mounting options designed for outdoor environments.
Mounting Clip
Quick and practical fixing for direct mounting on surfaces.
Aluminum Channel
Cleaner linear finish and more stable installation for straight runs.

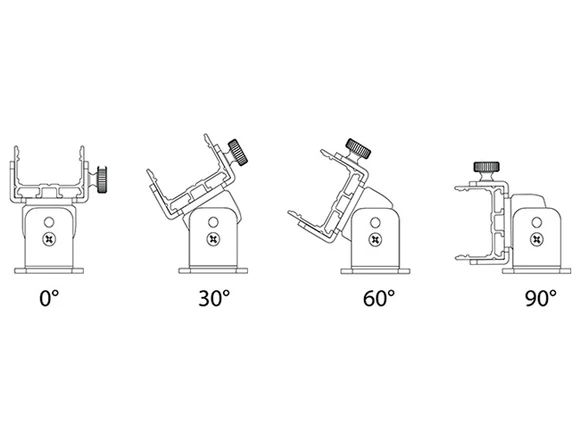

Angle Adjustable Bracket
Useful when buyers need more control of direction and mounting angle.
Wiring Diagrams
Make project planning and installation easier to understand.
Single Color Wiring Diagram
Show basic connection logic between wall washer, driver, and power supply.
Tunable White Wiring Diagram
Includes dual-channel controller integration for CCT adjustment.
RGB Wiring Diagram
Details 4-wire connection logic with standard RGB controllers.
RGBW / DMX Wiring Diagram
Advanced routing for 5-wire systems and DMX512 signal decoding.

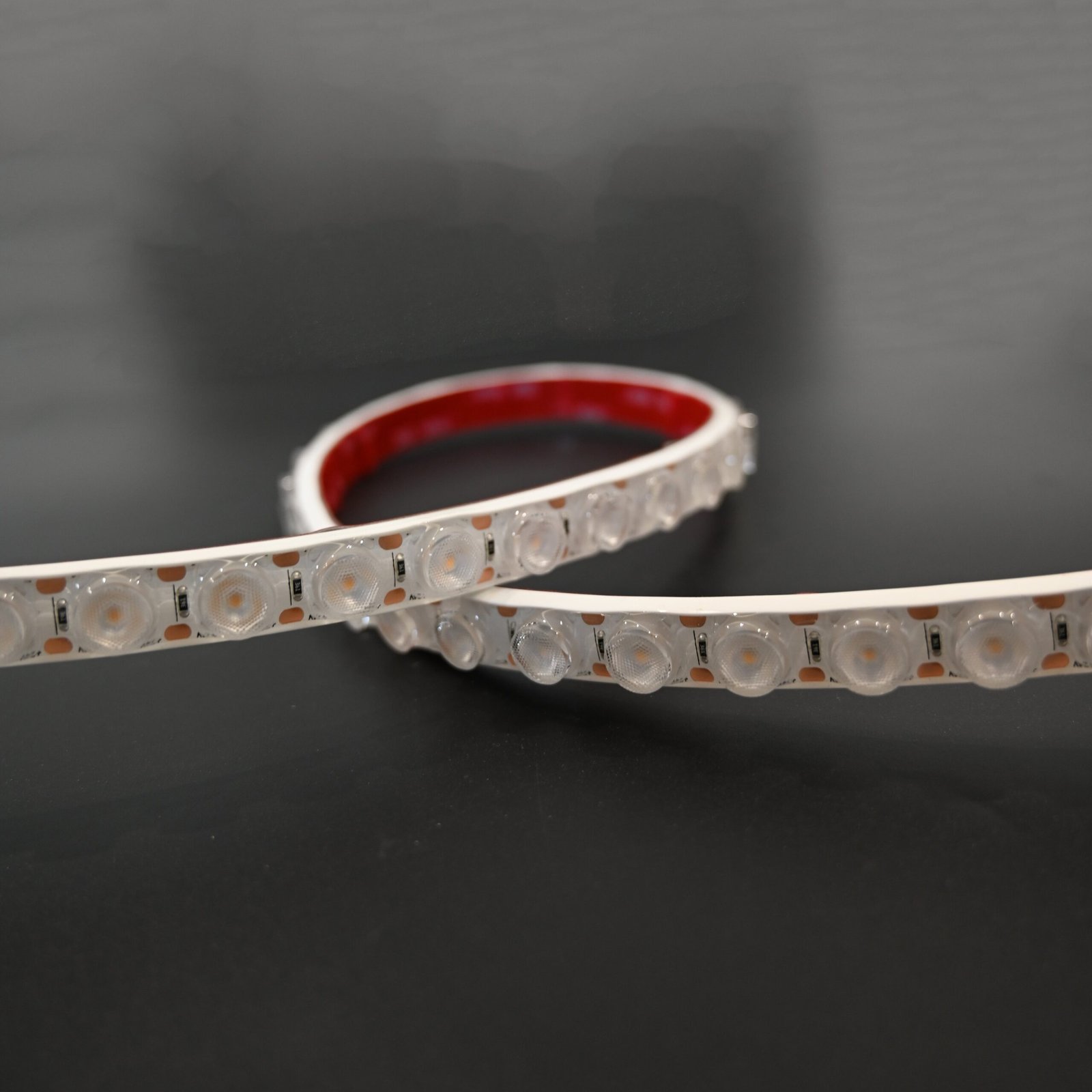

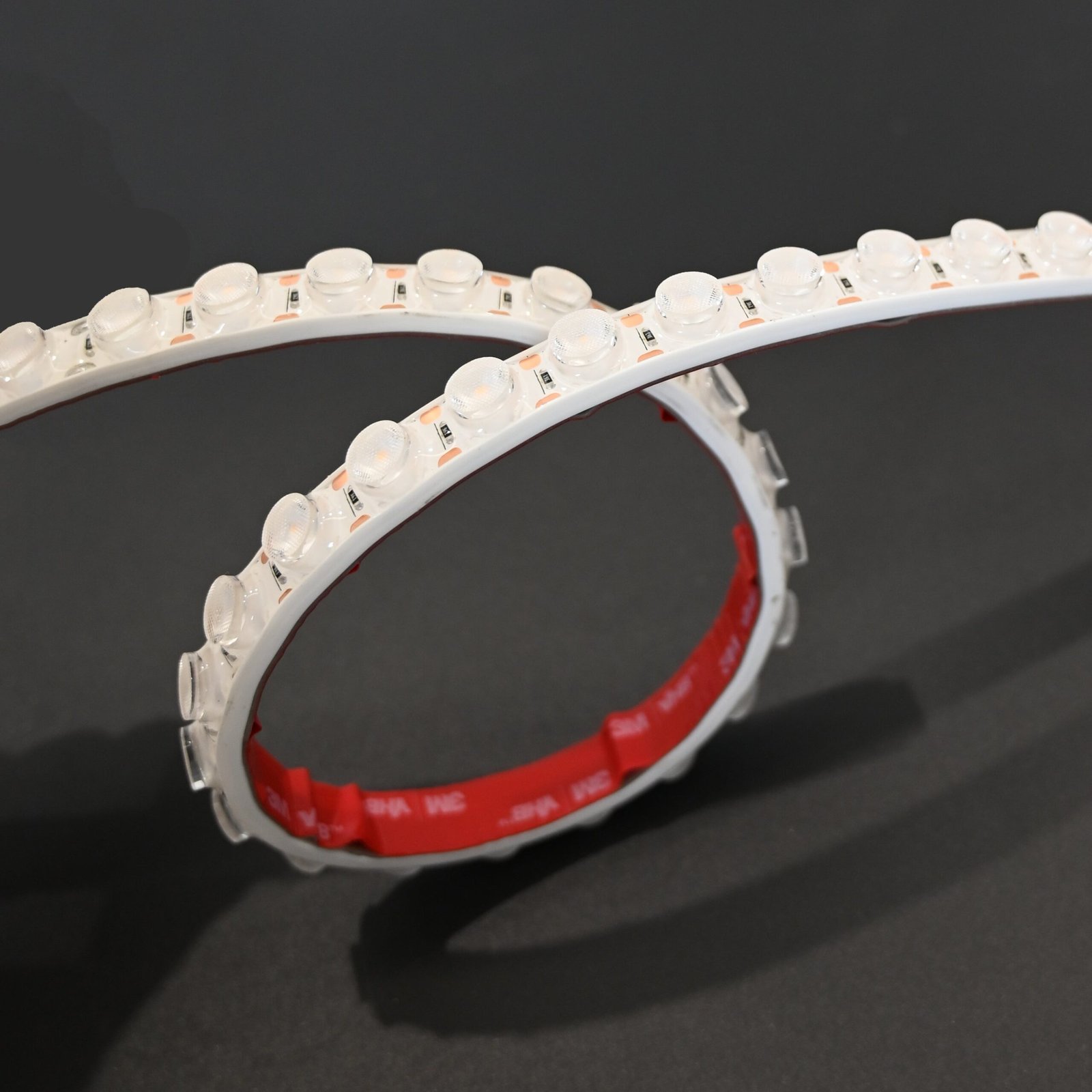

Product Detail Gallery
Specification Download
Access detailed technical datasheets for project planning.
Engineered for
Extreme Environments
Every Xmart LED series undergoes rigorous, multi-dimensional validation far exceeding standard linear lighting tests, ensuring uncompromised stability for your most demanding outdoor projects.
IPX3-6 & IPX8 Waterproof
Tested for continuous exposure to heavy rain and temporary submersion, guaranteeing zero moisture ingress.
UV & Corrosion Resistance
Subjected to intense UV aging and Salt Spray tests, delivering exceptional durability for coastal applications.
Optical Consistency
Integrating Sphere and IES testing verify exact lumen output, color temperature stability, and beam precision.
Frequently Asked Questions
Clear answers for project planning and specification.
A Flex LED Wall Washer is a bendable, linear luminaire encased in TPU or PU. It is designed specifically for outdoor wall washing and facade lighting, offering the professional optical effects of a rigid fixture but with the flexibility to bend around curves and irregular architectural paths.
Unlike rigid wall washers that use heavy, fixed-length aluminum housings, flexible wall washers can adapt to curved surfaces. They are significantly lighter, cheaper to transport (due to rollable packaging), and can be cut to custom lengths, making them much easier to fit into complex project constraints.
Yes. The IP67 Flexible Wall Washer is fully encased in UV-resistant and anti-corrosion silicone/PU/TPU materials, making it highly reliable for outdoor use, including building facades, bridges, and landscape environments.
The best beam angle for a flex led wall washer depends on the wall height and desired effect. Use 30° for taller, focused washing; 45° or 60° for broader, softer coverage on standard facades; and asymmetrical angles (like 115×50°) for specific directional lighting close to the surface.
Depending on project needs, buyers can specify Single Color (2700K-6000K), Tunable White, RGB, RGBW, or RGB DMX512. DMX512 is recommended when pixel-level control and complex dynamic lighting shows are required.
Yes, we support OEM/ODM requirements including custom lengths, specific color temperatures, tailored optical lenses, and custom packaging to meet unique project specifications.
Looking for a more reliable Flex LED Wall Washer solution?
Whether you need technical specifications, custom lengths, or bulk pricing for your next facade project, our team is ready to assist.
