No drivers or cumbersome transformers required. Engineered for long-run linear lighting, enabling rapid installation across expansive indoor and outdoor architectural projects.
Engineered for large-scale commercial integration. As a premier manufacturer, Xmart delivers high-efficiency, transformer-free lighting solutions directly from our advanced production lines. Fully compliant with ETL, CE, CB, and RoHS standards.
Direct 110V-240V compatibility. Zero intermediate transformers required for rapid deployment.
Custom extrusions, specialized lengths, and bulk fulfillment tailored for global lighting brands.
High-grade silicone housing & advanced thermal PCB layout ensuring superior heat dissipation and long-term project safety.
Certified Safe
ETL Listed
High-voltage direct AC mains operation engineered for seamless architectural integration. Eliminating bulky external drivers while maximizing installation flexibility.
Operates directly from standard alternating current. No external AC-to-DC power modules or bulky rectifiers required at the plug end, drastically simplifying high-voltage infrastructure.

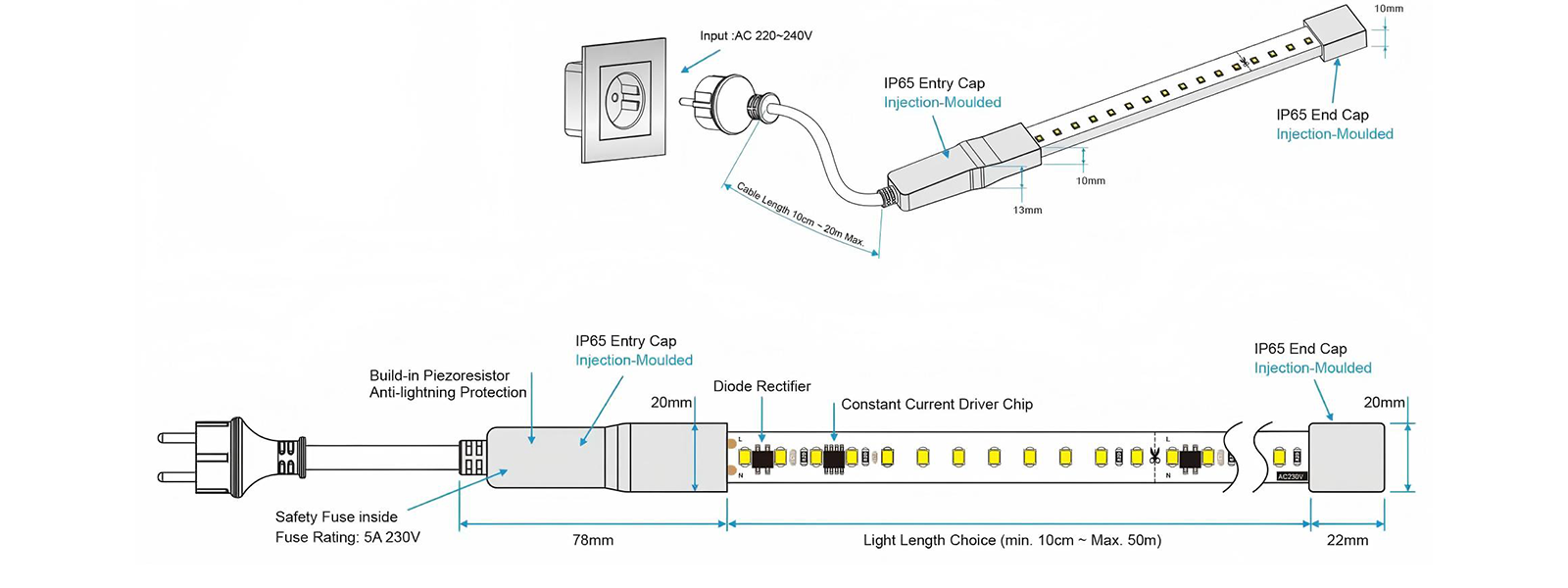

By integrating diode rectifiers onto the PCB, we've engineered a significantly shorter cutting unit—down to just 10cm per cut—offering unmatched precision for complex custom layouts.
Manufactured at our state-of-the-art facility. We guarantee rigorous quality control and high-volume production capabilities tailored for global project demands.
Achieve up to 50 meters of continuous lighting from a single power feed without voltage drop.
Built-in rectifiers on the PCB eliminate the need for bulky external power supplies.
Plug-and-play architecture drastically reduces wiring complexity and labor time on site.

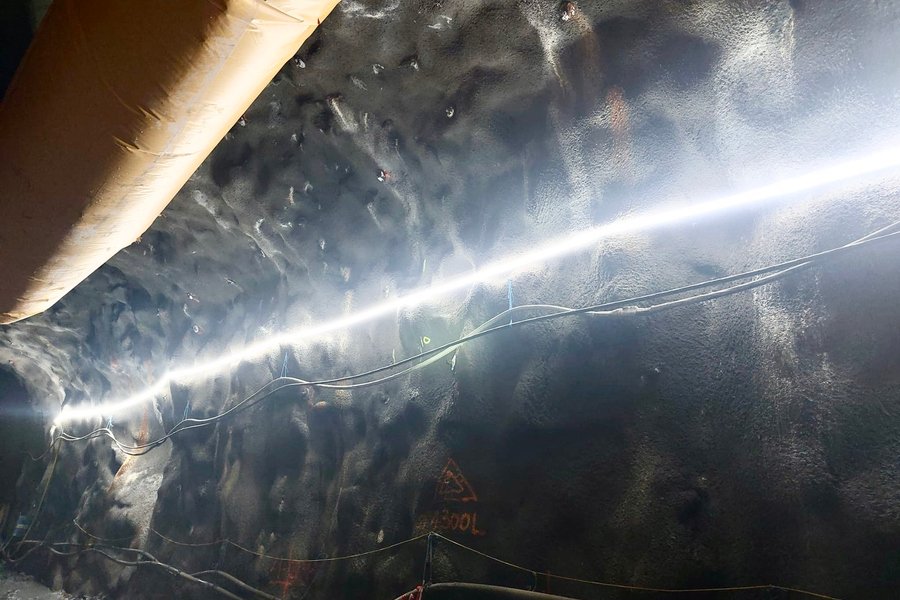

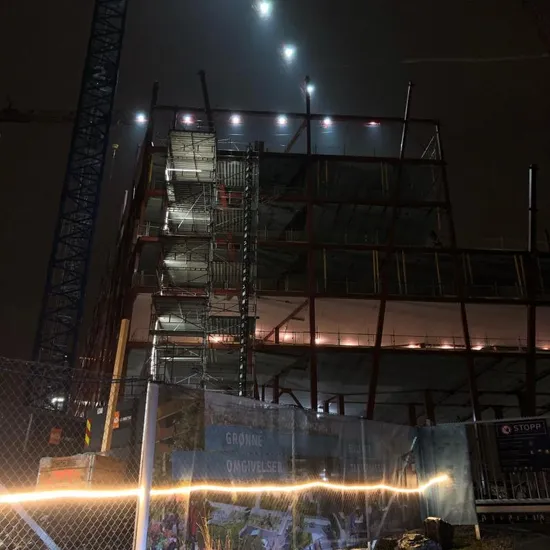

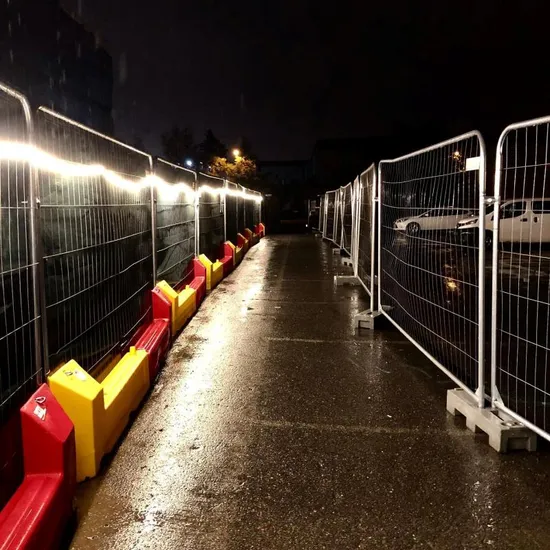

Robust housing and driverless design make it highly reliable for large-scale exterior applications.
Unlike traditional AC strips (0.5m/1m cuts), driverless tech enables precise 10cm cutting lengths.
Fully compatible with professional lighting control systems for seamless architectural integration.
Both operate directly on high-voltage alternating current (110V-240V), allowing for long, continuous runs without voltage drop. However, the architectural difference in how they convert power redefines installation efficiency and lighting performance.

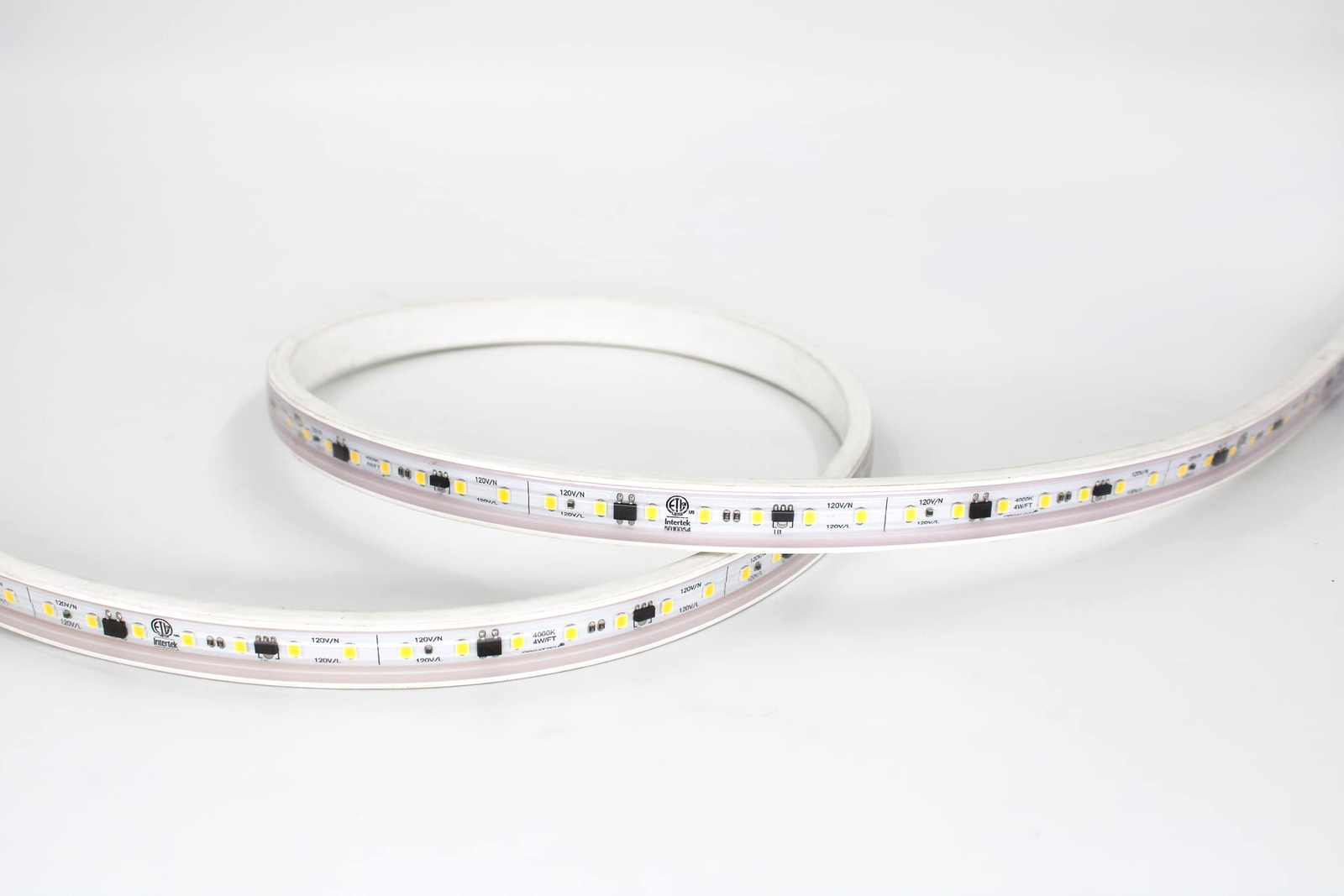

Integrates the AC-to-DC conversion directly onto the PCB utilizing advanced onboard IC components. A true marvel of miniaturization.
Eliminates the bulky, hard-to-conceal power plug.
Allows for absolute precision in architectural lighting.
Bends easily to accommodate complex installation environments.
Seamless, fast, and drastically reduces labor costs.

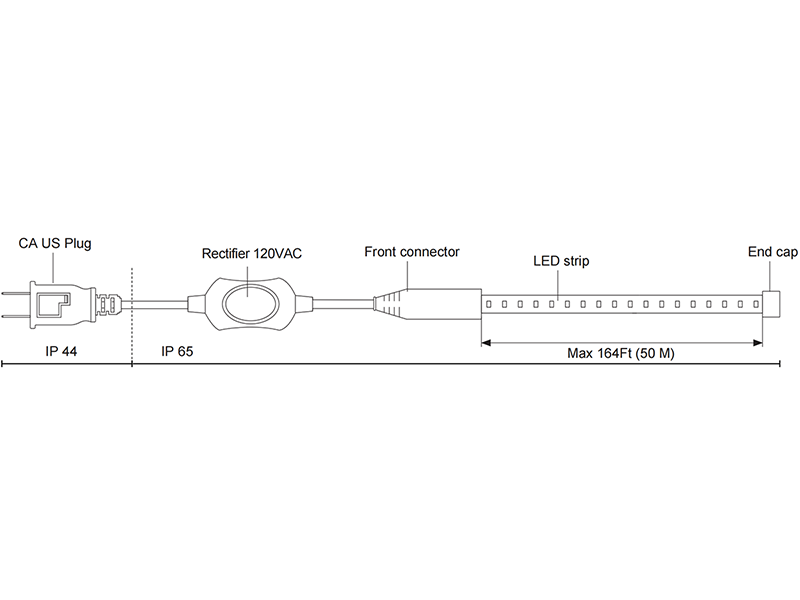

Requires an external rectifier plug to convert AC to DC before the light, creating an inherent bottleneck in modern lighting design.
Difficult to hide in sleek profiles or tight coves.
Limits customization and leaves dark spots at edges.
Stiffer construction makes intricate routing difficult.
Requires careful handling of the external conversion unit.
Manufactured in our Vietnam facility. Backed by UL, ETL, CE, CB, and RoHS certifications for global compliance.
Voltage Type
110V - 240V AC
Max Run Length
50m / Plug-in
Cutting Length
10cm / Cut
Waterproof Option
IP65 Outdoor
Dimming Support
Triac
Housing Material
High-grade Silicone
Protection Design
Anti-lightning
OEM / Custom
Fully Supported

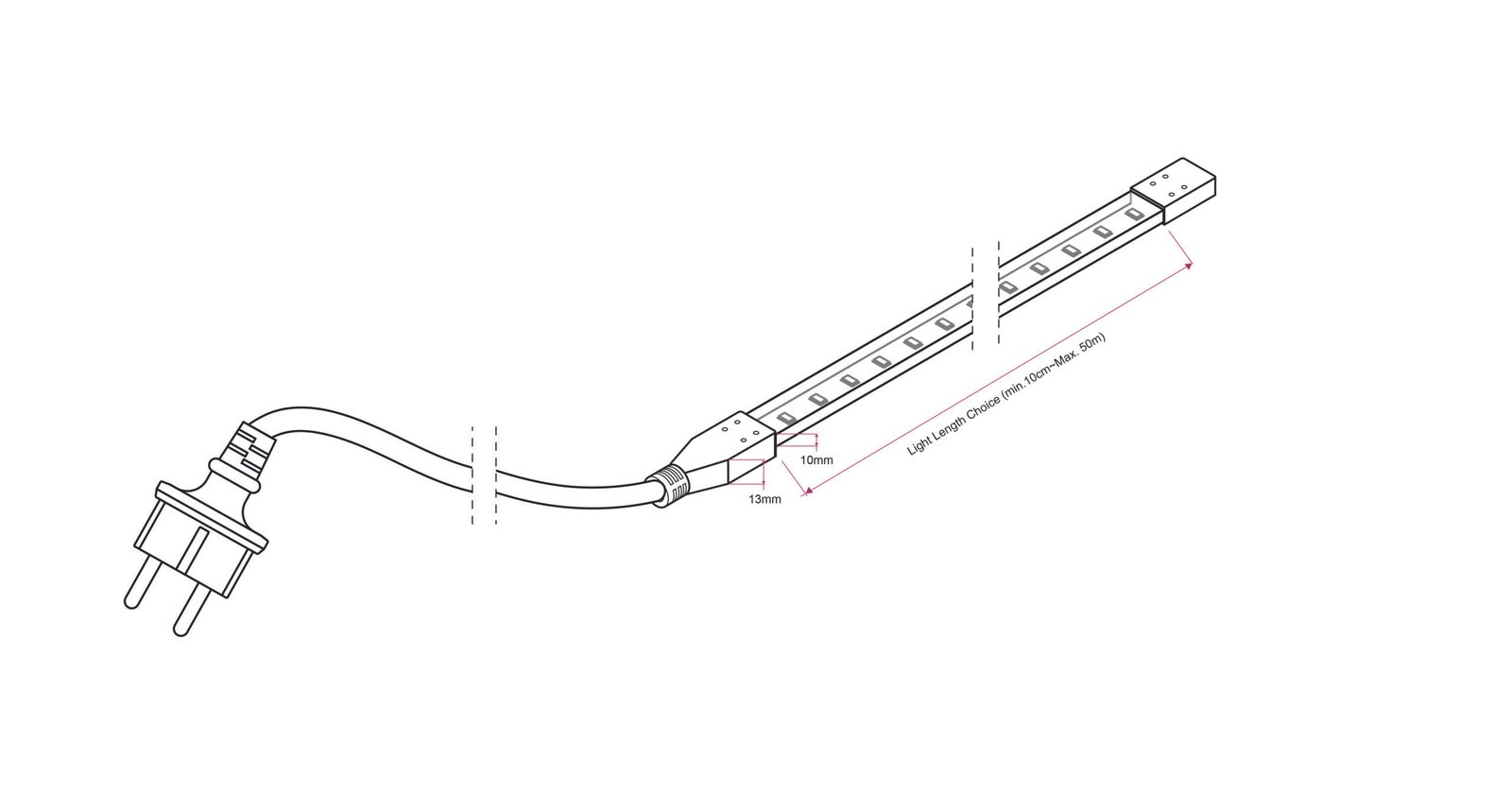

Width: 13mm (Tolerance ±0.5mm)
Height: 6mm (Tolerance ±0.5mm)
Cut Unit: every 10cm
PCB Width: 10mm
Engineered for different environmental demands. Choose the factory-sealed IP65 version for robust outdoor projects, or the DIY IP40 variant for flexible indoor installations.
Factory-molded, injection-sealed connectors designed for harsh environments. Cannot be cut or modified on-site. Custom lengths from 10cm up to 50m must be specified during order.

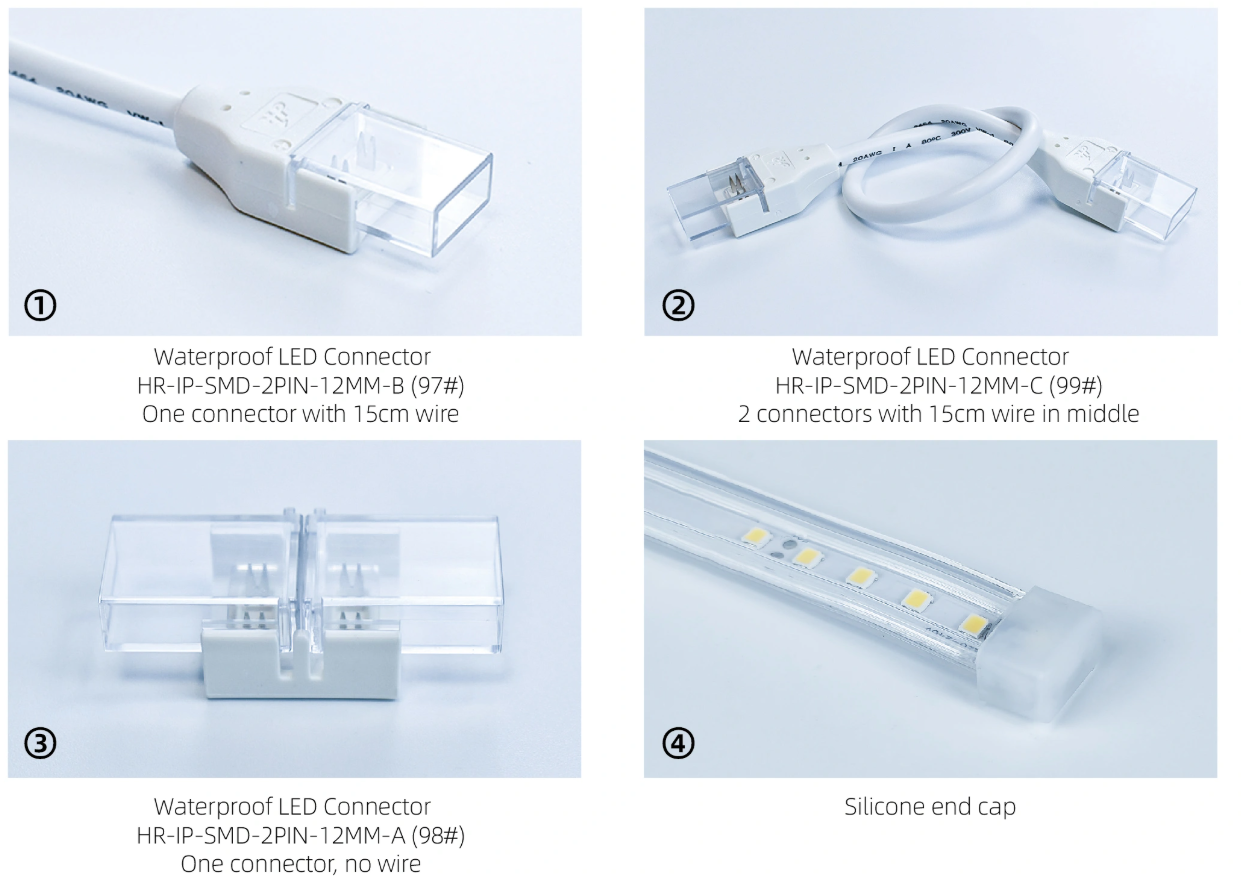

Solder-free, glue-free assembly designed for rapid on-site customization. Allows installers to cut at 10cm intervals and attach connectors manually for precise fitting.
Comprehensive mounting solutions ensuring structural protection and precise project adaptation. Designed to secure high-voltage strips safely in any orientation.

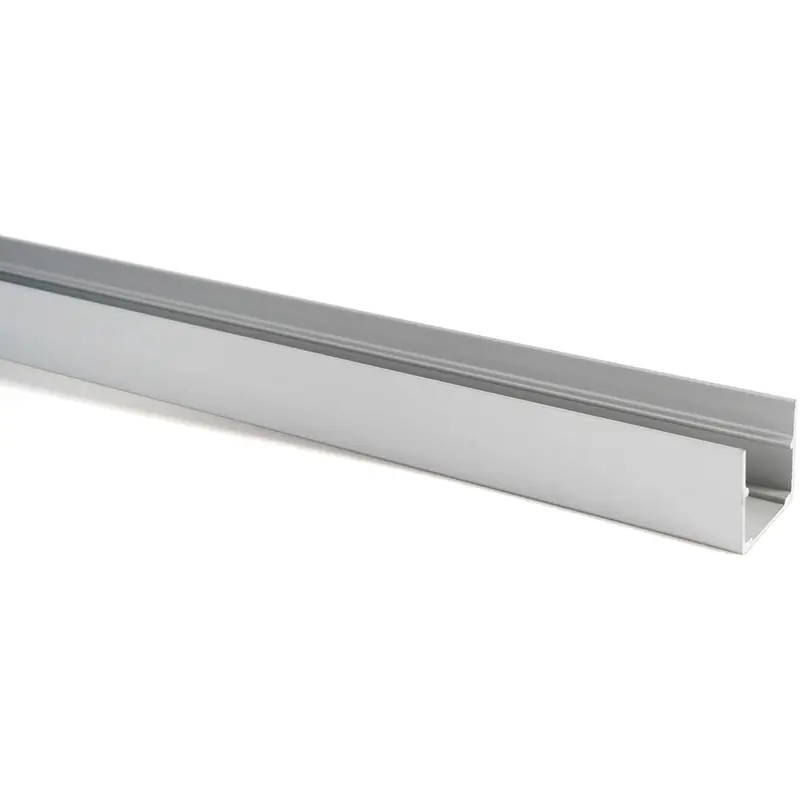

U-shaped rigid PVC profile. Provides perfect straight-line installation, prevents strip sagging, and offers additional mechanical protection against impacts.
Surface Mount
Transparent polycarbonate clips. Designed for curved surfaces or non-linear routing where rigid profiles cannot be used. Screws directly into substrate.
Flexible RoutingOptimized for both large-scale project deployment and retail distribution. Our packaging ensures safe transit and easy handling on-site.

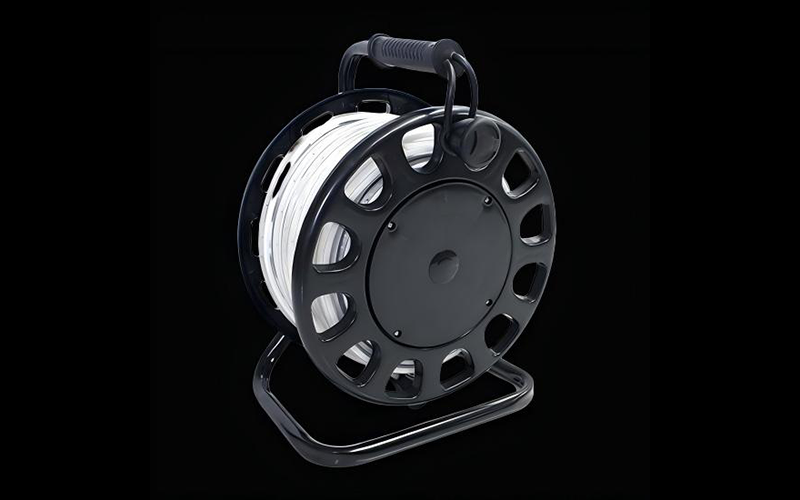

50m continuous roll on industrial plastic reel. Ideal for contractors and large architectural runs.
Shorter lengths (10m/25m) in branded blister packs or color boxes. Ready for shelf display.
PDF Document • 2.4 MB
Step-by-step guide for DIY solderless endcap and plug assembly for indoor IP40 applications.
Certified for Global Markets
Specify your regional grid voltage: 110V, 120V, 220V, 230V, or 240V AC. We customize the PCB rectifiers to match your exact input requirement.
Standard reels are 50m. We can pre-cut and factory-seal custom lengths down to 10cm increments for precise project requirements.
Our standard driverless strip offers an industry-leading 10cm cut unit. Custom cut marks can be engineered for specialized OEM orders.
Choose between factory-molded injection endcaps for ultimate waterproof sealing, or DIY snap-on connectors for field assembly.
Select your preferred control protocol. We provide compatible wiring and component adjustments for DALI, 0-10V, or standard Triac dimming.
IP40 for indoor dry environments (allows DIY cutting), or IP65 PVC extrusion for outdoor weather resistance (factory sealed only).
We support white-label packaging, custom brand printing on the PVC housing, and specific retail blister packs or project reels.

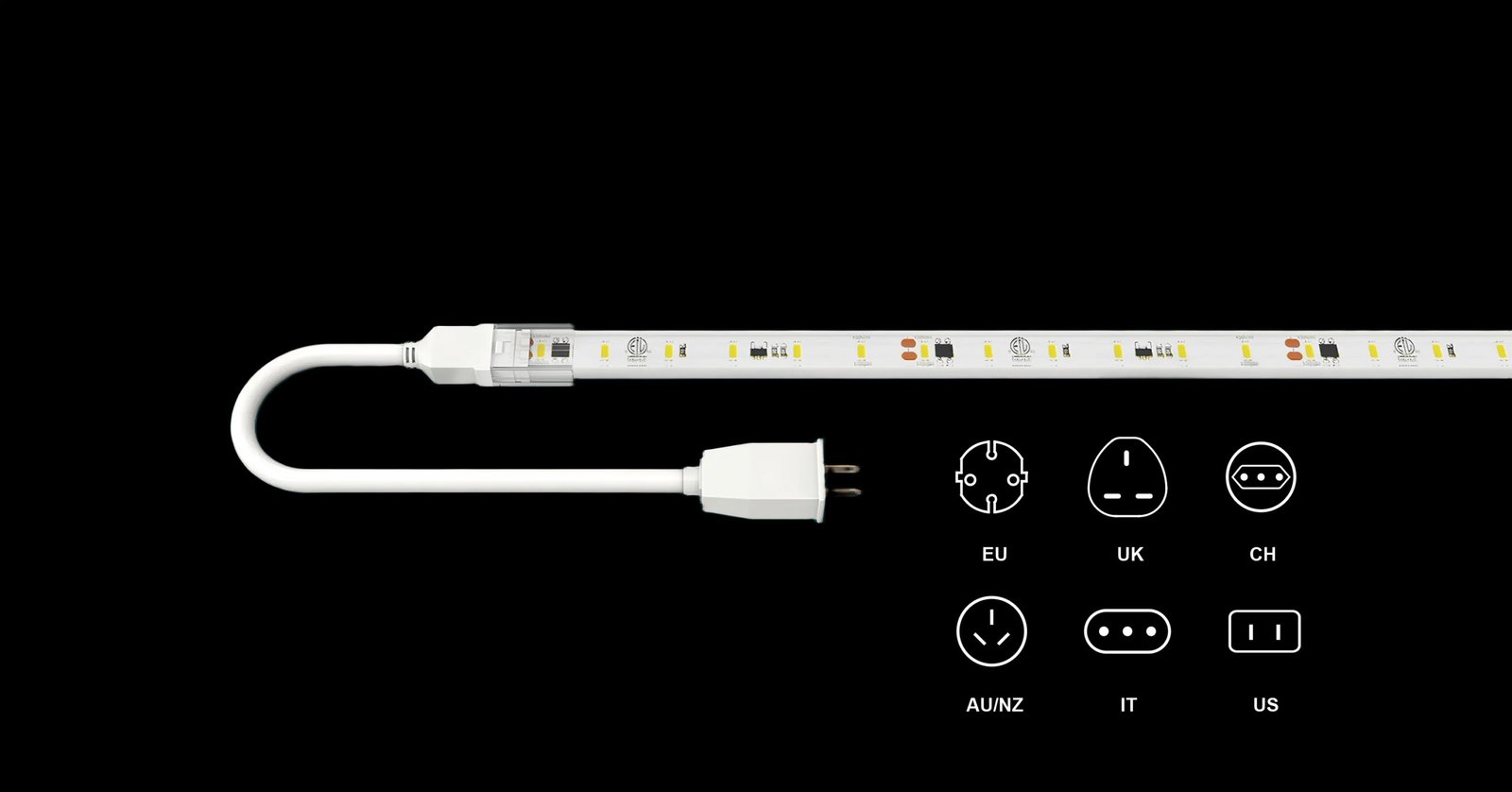

Specify US, EU, UK, or AU standard AC plugs depending on your target market, or bare wires for direct hardwiring into junction boxes.
Direct-to-mains wiring guides and regional plug specifications for safe 110V-240V connection.
Wiring schematics for integrating driverless strips with DALI and 0-10V control panels.
Assembly manuals for IP40 DIY connectors ensuring secure electrical contact without soldering.
Best practices for utilizing rigid PVC tracks and flexible clips for optimal heat dissipation.

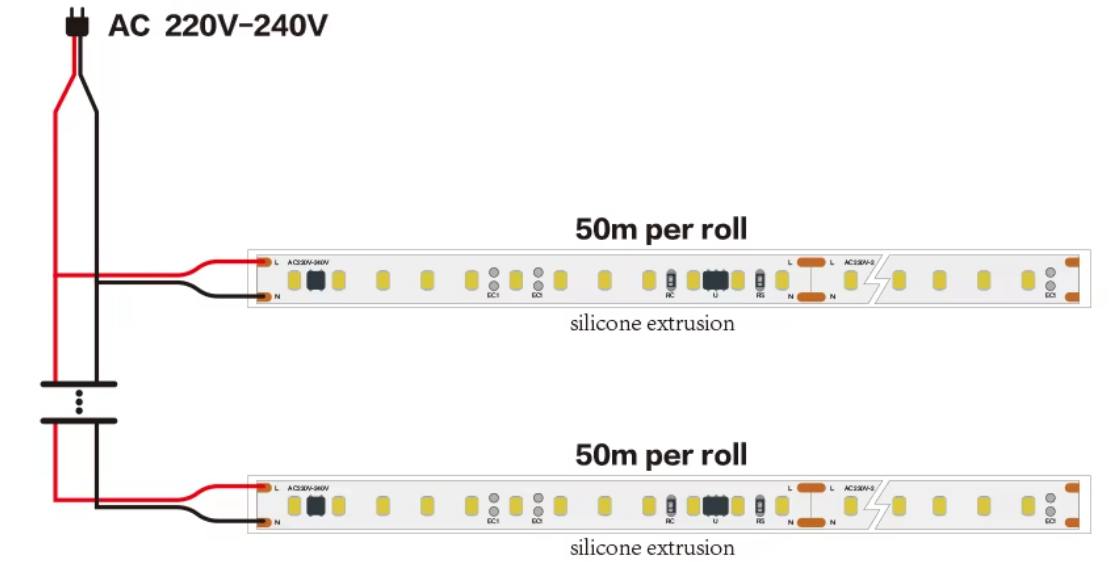

Illustrating one-end long run wiring up to 50m direct to AC mains.
The maximum continuous run length is 50 meters (approx. 164 feet) using just a single plug-in power feed, with no noticeable voltage drop at the end of the line.
Yes, for the indoor IP40 version, you can cut the strip every 10cm exactly at the marked cut lines. However, the outdoor IP65 version is factory-sealed and cannot be cut on-site.
Yes, our driverless AC LED strips are fully dimmable. They support standard DALI, 0–10V, and Triac dimming protocols when paired with compatible control systems.
Contact our Vietnam factory team for OEM pricing, full specification sheets, and bulk order timelines.
