CSP LED
Strip
A high-density, dotless strip lighting solution for projects that need cleaner light lines, better visual uniformity, and a more compact strip design.
- High density LEDs with dotless visual effect
- Better light uniformity for close-view applications
- More compact strip design than traditional packaged LEDs
- Available in Single Color, Tunable White, RGB, RGBW and RGBCCT
CSP LED Strip Manufacturer
Many buyers don't search for CSP LED strips just to chase new technology. They look for it because real-world projects present specific challenges:
- Exposed dotting on standard strips looks too obvious in premium spaces.
- Light lines need to look cleaner and more continuous at closer viewing distances.
- Compact strip size is critical in furniture, retail shelving, and architectural detail lighting.
- Projects require better visual uniformity without stepping into bulky, expensive fixture solutions.
- Color consistency matters across repeat orders for large rollouts.
At Xmart, our Vietnam manufacturing facility produces OEM/ODM CSP solutions designed to solve these exact visual and structural challenges for your clients.
What Is CSP LED Strip?
Understanding the structural advantage behind the visual performance.
The CSP Advantage

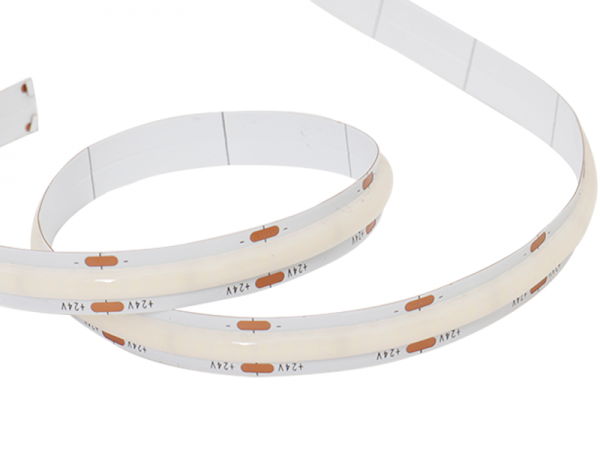

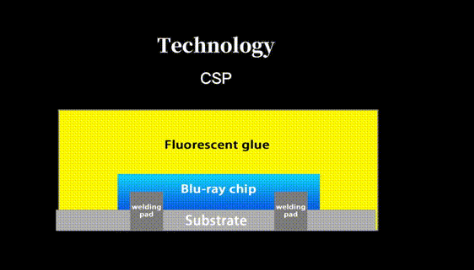

CSP stands for Chip Scale Package. The core value isn't just a new name; it's a revolutionary packaging logic where the package size is nearly identical to the LED chip itself.
By eliminating traditional bulky plastic housings and wire bonds, the strip structure becomes significantly more compact, allowing for a much higher chip density per meter.
-
Professional Upgrade
Unmatched compactness, better visual continuity, and improved thermal behavior compared to standard SMD strips.
-
Flawless Illumination
Ideal for projects requiring a cleaner light line, closer viewing distances, and highly refined detailing.
Why Buyers Choose CSP Instead of Standard SMD Strip
Key project indicators that signal it's time to upgrade to CSP technology.
When Visible Dotting is a Problem
Standard SMD strips leave distinct light spots. CSP's high density eliminates this, creating a smooth, dotless effect essential for premium spaces.
Close-View Applications
If the light source or its reflection is viewed closely (e.g., retail displays, mirror lighting), the visual uniformity of CSP is far superior.
Cleaner Light Lines
Creates a continuous, uninterrupted line of light that integrates flawlessly into architectural reveals and coves without stepping.
Compact & Refined Details
The micro-size of the chip scale package allows the strip to fit into shallower aluminum profiles and tighter furniture grooves.
Color Consistency Matters
Advanced packaging and binning controls ensure that across large rollouts and repeat orders, the color temperature remains stable.
Flexibility Without Bulky Fixtures
Achieve the smooth, diffused look of a rigid linear fixture while maintaining the flexibility and ease of installation of a tape light.
Application Scenarios
Where CSP flexible LED strips deliver the highest value for commercial and residential projects.
Residential Detail Lighting
Coves, under-cabinets, and custom joinery.

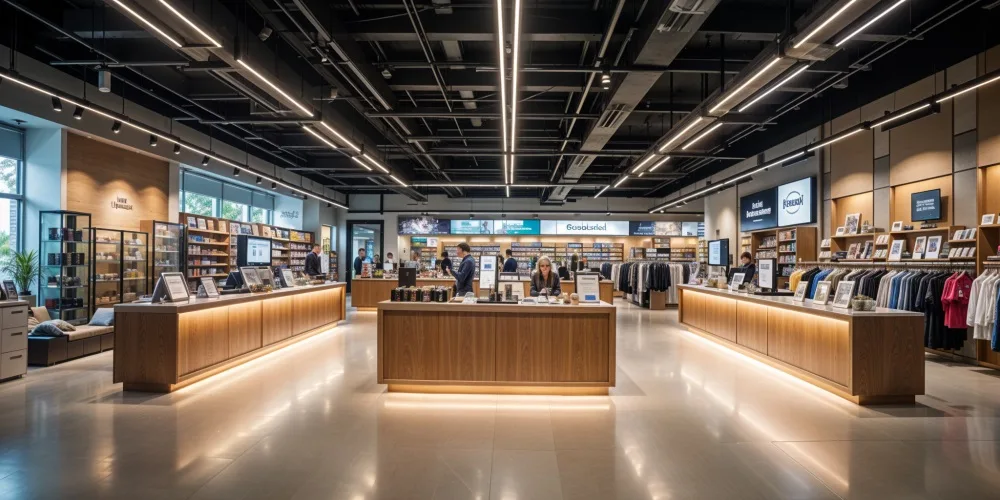

Commercial & Retail Lighting
Premium shelf lighting and display cases.

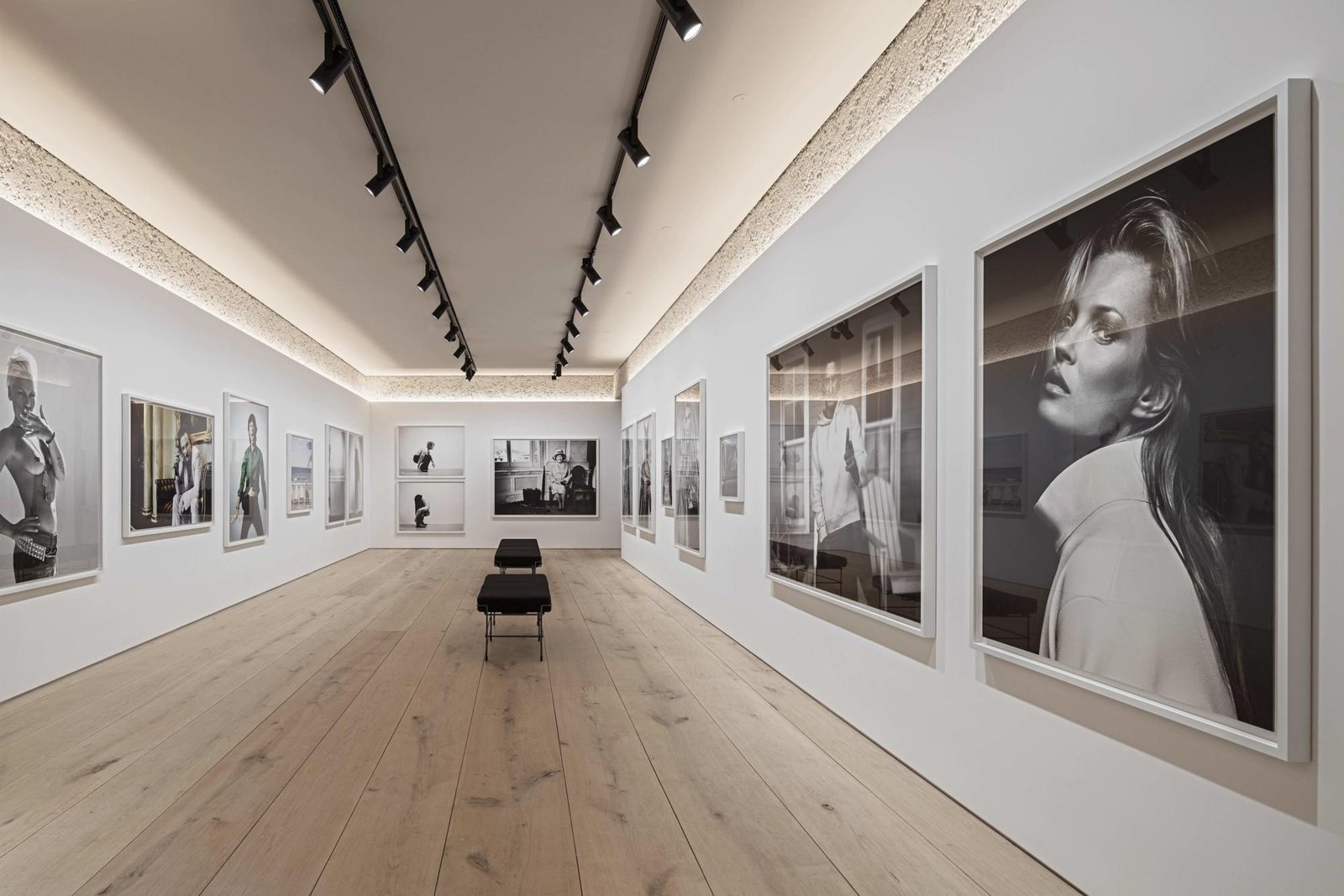

Art Gallery Lighting
Backlighting and shallow profile illumination.
Furniture & Cabinet Lighting
Integrated lighting requiring compact profiles.

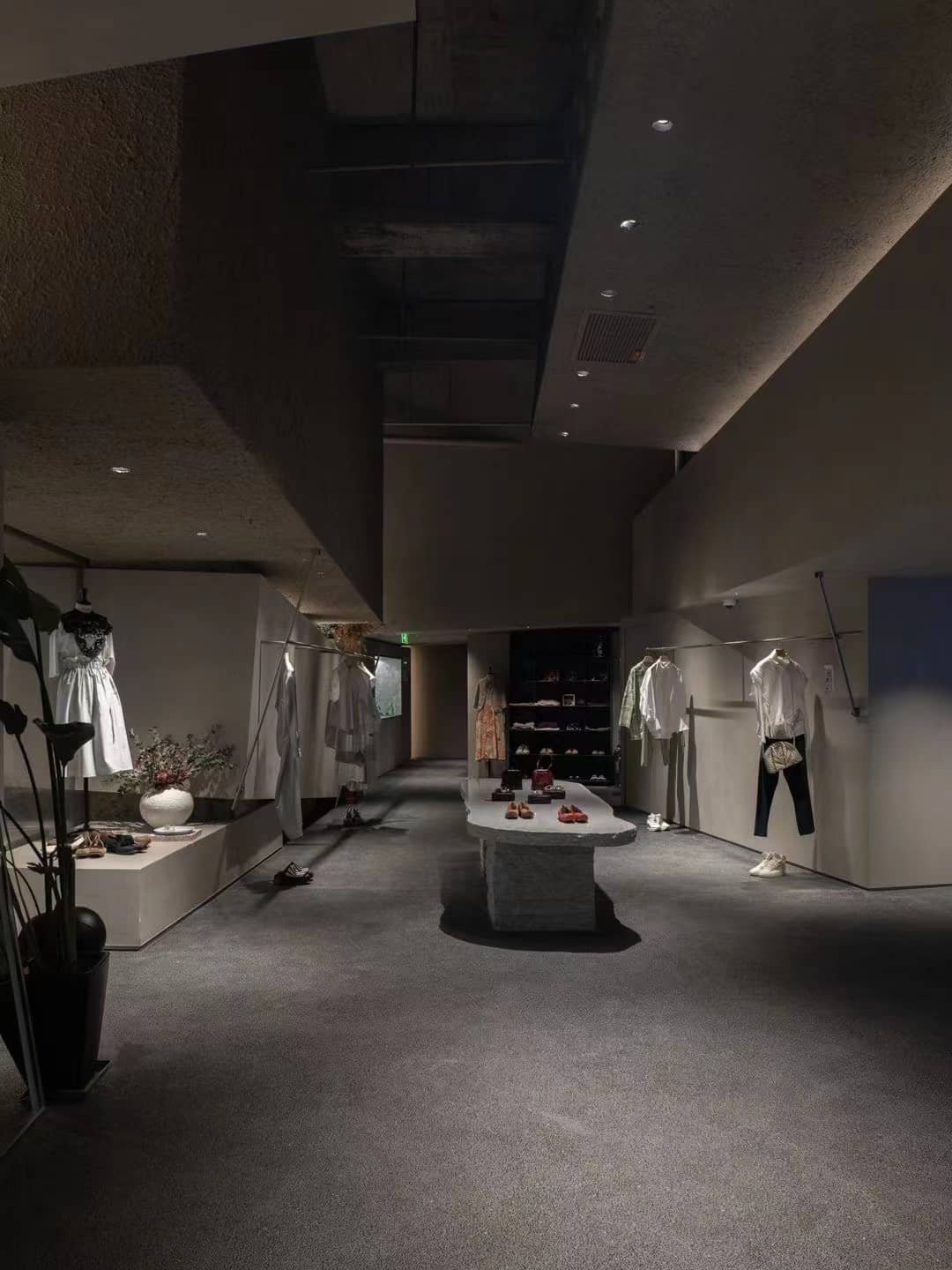

Architectural Detail Lighting
Staircases, handrails, and linear accents.
Decorative Interior Linear
Mood and aesthetic continuous lines.
Quick Technical Overview
| Packaging Logic | Chip Scale Package (no bulky wire bonds or standard plastic frames) |
|---|---|
| Visual Effect | Dotless / No light spots / High Uniformity |
| Chip Density Range | High density (e.g., up to 640 chips/m for Tunable, 840 chips/m for RGB) |
| Color Options | Single Color, Tunable White, RGB, RGBW, RGBCCT |
| Flexibility | Highly flexible, suitable for tight corners and shallow extrusions |
| Color Consistency | Strict binning controls for large-scale commercial rollouts |
| OEM / Custom Support | Custom lengths, wattages, and PCB designs available via our Vietnam factory |
Single Color CSP LED Strip
Designed for projects requiring stable, high-quality white light with a perfectly clean linear effect. Ideal when color accuracy and visual uniformity are paramount.
- CCT Options: 2700K / 3000K / 4000K / 6500K
- Color Rendering: CRI > 90 for true color representation
- Best For: Retail shelf lighting, furniture & cabinet lighting, general architectural detail lighting, residential interior linear accents.

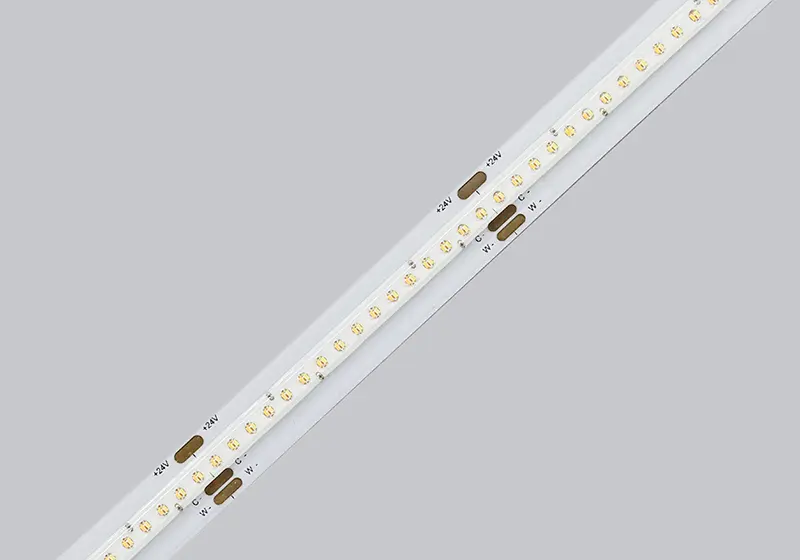

Tunable White CSP LED Strip
The perfect solution for environments that need to transition between warm, inviting atmospheres and crisp, task-oriented lighting, all without visible light spots.
- Density: Up to 640 chips/m for absolutely no light spots
- CCT Range: Smoothly adjustable from 2700K to 6500K
- Best For: Hospitality interior lighting, residential mood lighting, display environments with varying white scenes.

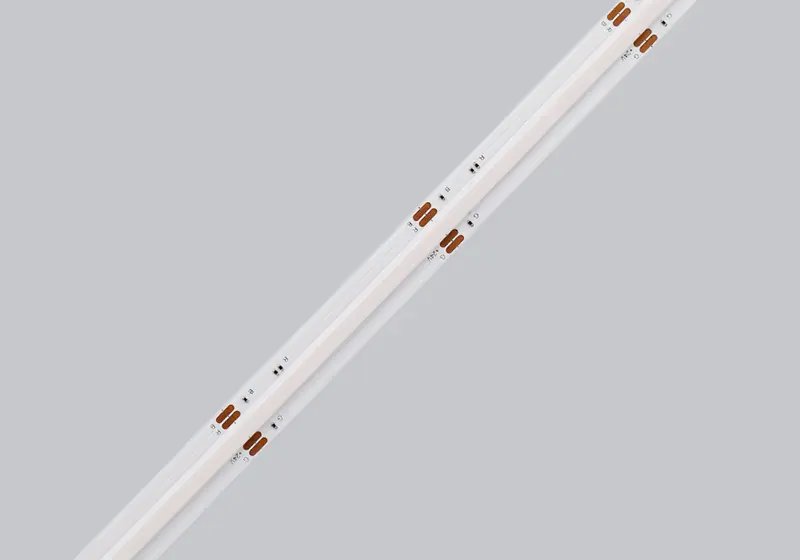

RGB CSP LED Strip
Engineered for dynamic color-changing effects while maintaining a refined, dotless appearance. Brings vibrant illumination to spaces without the harshness of individual LED diodes.
- Density: Up to 840 chips/m for seamless color blending
- Visual: Absolutely no lighting dots, even in shallow profiles
- Best For: Retail display accents, entertainment lighting, decorative architectural features, color-driven interior detailing.

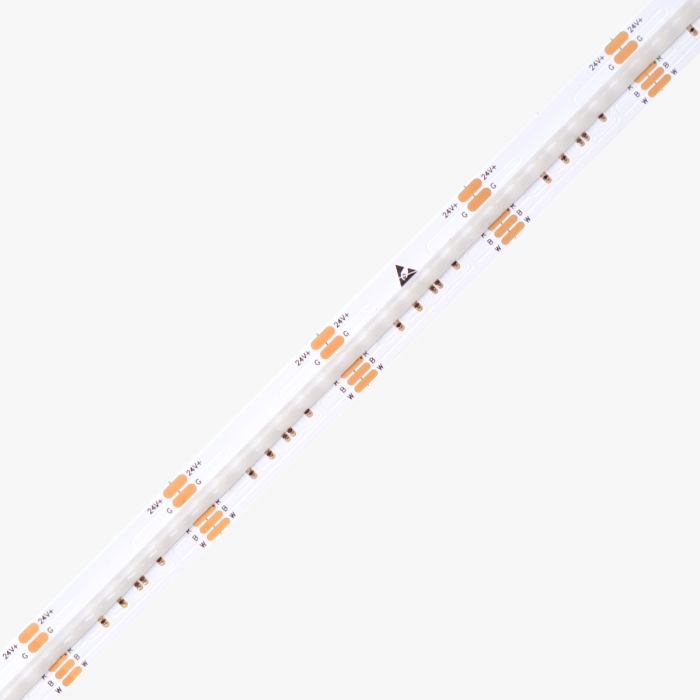

RGBW CSP LED Strip
Combines full RGB color mixing with a dedicated pure white channel. This offers a superior, usable white light compared to mixing RGB, making it highly versatile for dual-purpose spaces.
- Channels: 4-channel control (Red, Green, Blue, White)
- Advantage: Provides true, functional white light alongside vibrant colors
- Best For: Premium retail, mixed ambiance + functional lighting, hospitality projects, spaces needing both decoration and task light.

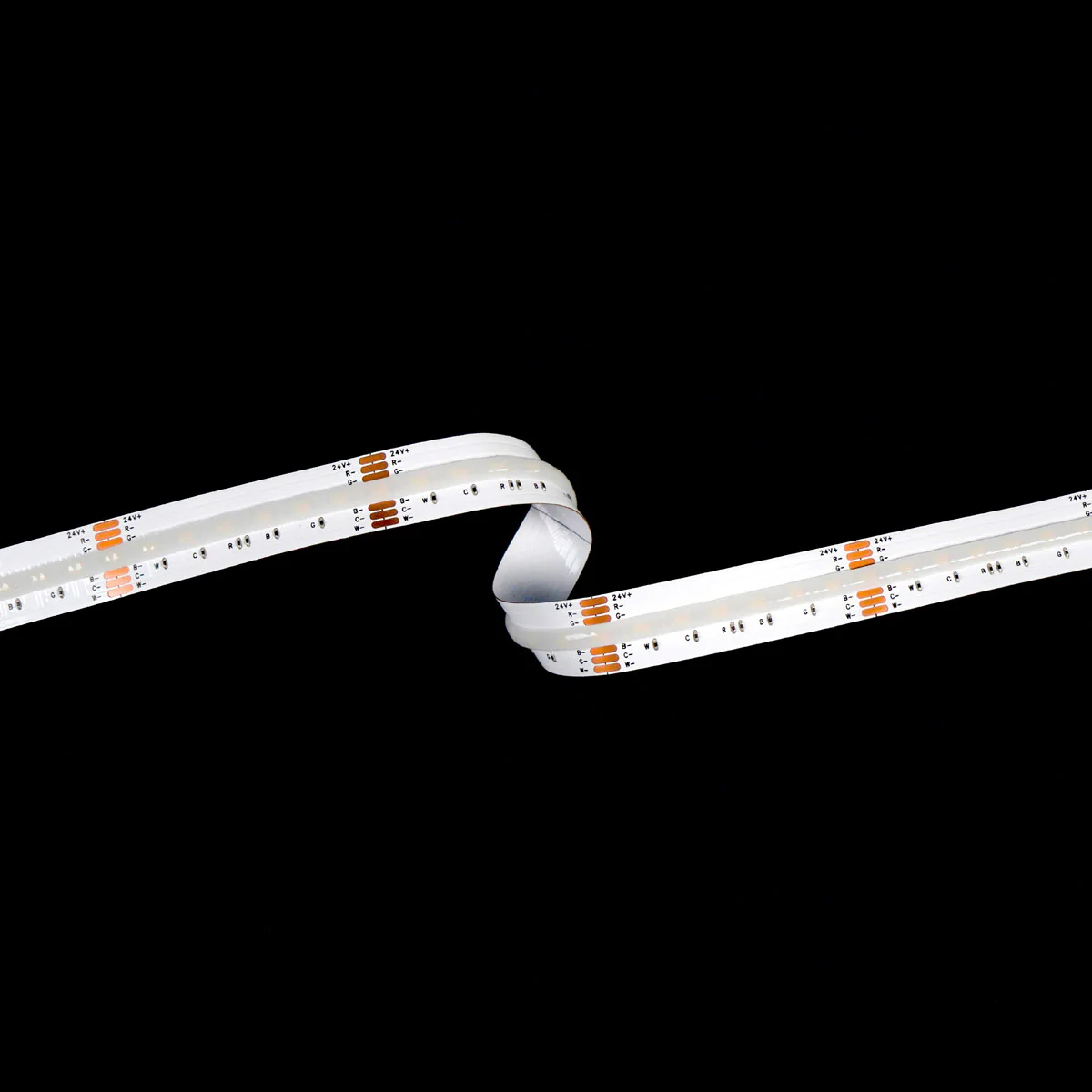

RGBCCT CSP LED Strip
The ultimate all-in-one flexible lighting solution. Fusing RGB color capabilities with a fully tunable white spectrum (warm to cool), delivering maximum scene flexibility.
- Capability: RGB + Tunable White (2700K-6500K) in one strip
- Integration: Advanced 5-channel control for complex lighting systems
- Best For: Mood + task hybrid lighting, advanced residential projects, hospitality and event spaces requiring total control.
How Buyers Usually Choose the Right CSP Series
A quick decision matrix for your upcoming projects.
Single Color
Choose when the goal is stable, high-CRI white light for functional or display areas.
Tunable White
Choose when the project needs adjustable white scenes (e.g., morning to evening transitions).
RGB
Choose when the primary focus is vibrant, color-changing visual effects.
RGBW
Choose when both dynamic color and a pure, usable white light channel are important.
RGBCCT
Choose when the project demands the widest scene flexibility, combining RGB and Tunable White.
Why Dotless / High Density Matters
In modern architectural and retail design, the light should be seen, not the fixture. Visible LED dots instantly reduce the perceived quality of a space, making custom joinery or premium displays look cheap.
High density matters in close-view linear lighting because the distance between the light source and the illuminated surface (or the viewer's eye) is minimal. Standard strips require deep aluminum profiles with thick milky diffusers to blend the light, which takes up valuable space.
A dotless CSP LED strip creates a cleaner, continuous light line right out of the box. This visual continuity is why upgrading to CSP is often non-negotiable for retail shelving, custom furniture, and refined architectural detailing where space is tight and aesthetics are critical.
CSP vs COB vs SMD LED Strip
Understanding the core differences helps buyers specify the right product. Visual effect, flexibility, and application fit matter more than just headline metrics.

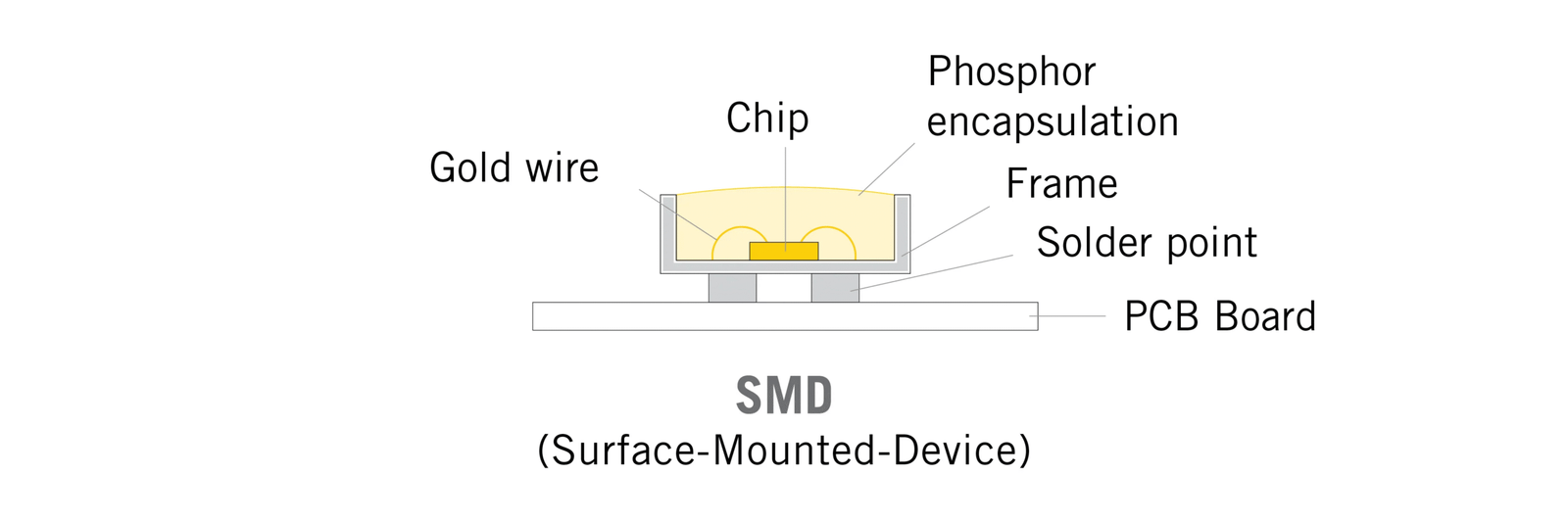

Standard SMD
- Dot Visibility Visible dots without deep profiles
- Flexibility Standard
- Application Fit Indirect lighting, coves, long runs
- Color Options All variants
CSP
- Dot Visibility Dotless / Extremely High Uniformity
- Flexibility Excellent, compact size
- Application Fit Close-view, premium retail, detailed joinery
- Color Options Single, Tunable, RGB, RGBW, RGBCCT

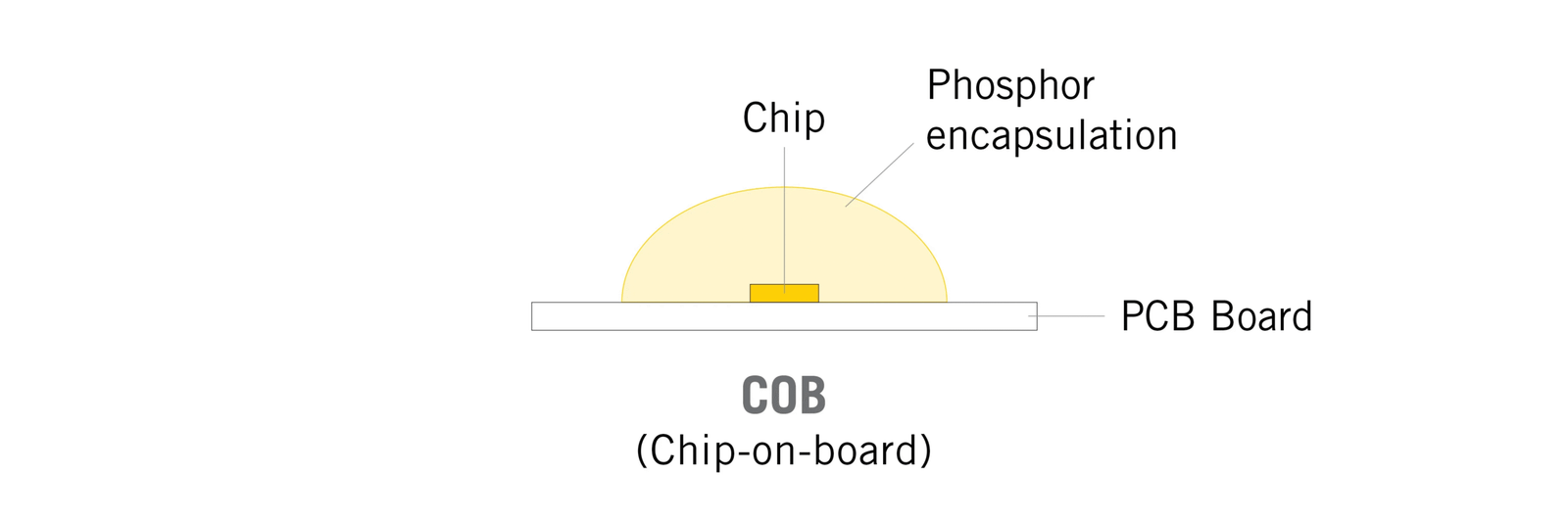

COB
- Dot Visibility Continuous phosphor line (Dotless)
- Flexibility Good, but phosphor layer can be stiffer
- Application Fit Direct continuous lighting
- Color Options Single, Tunable, RGB (growing options)

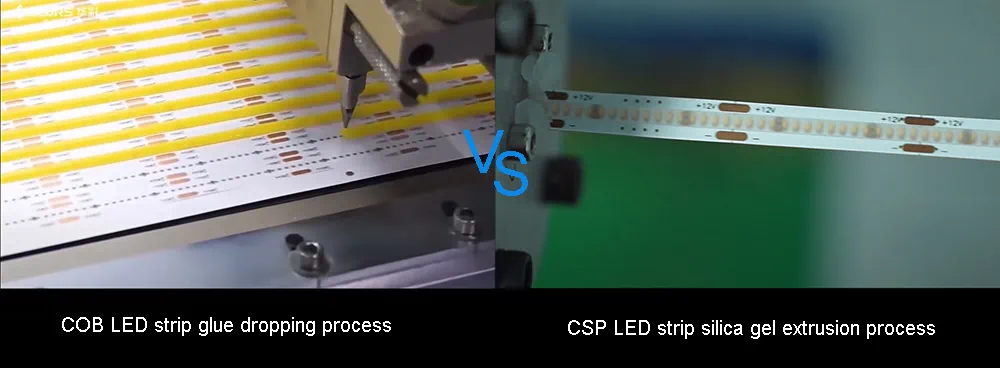

While COB provides a continuous phosphor line, CSP achieves a similar dotless effect through high-density discrete chips, often offering better long-term reliability by avoiding continuous phosphor stress during bending, and providing wider options in multi-color formats.

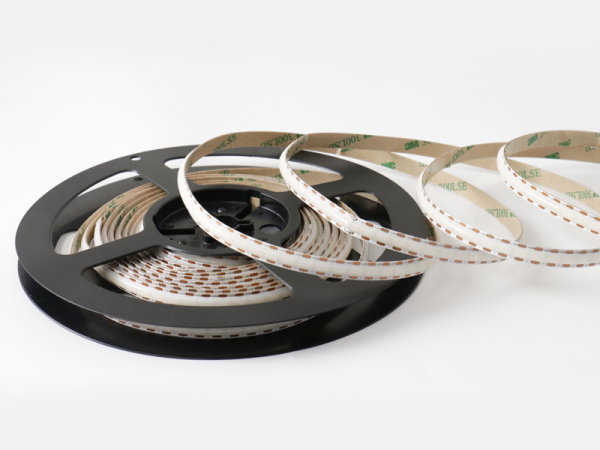

Product Detail Gallery
Download Resources
Access comprehensive data for project specification.
Product Testing Logic
Our CSP products undergo rigorous lab validation.
- Integrating Sphere & IES Lab
- Temperature & Humidity Chambers
- UV Weathering & Salt Spray
- IPX Waterproof Testing
- Tensile, Drop & Transport Vibration
Certification Confidence
Manufactured in our Vietnam facility to global standards.
Compliant with:
Frequently Asked Questions
Quick answers regarding CSP flexible LED strips.
CSP stands for Chip Scale Package. It is an advanced LED strip where the packaging is almost the same size as the LED chip itself, eliminating bulky wire bonds. This allows for extremely high chip density, resulting in a dotless, highly uniform light line.
Buyers choose CSP over standard SMD when visible dotting is a problem. CSP offers a cleaner light line, better visual uniformity for close-view applications, and a more compact design that fits into shallower profiles and tighter architectural details.
While both achieve a dotless effect, COB uses a continuous line of phosphor poured over chips, whereas CSP uses densely packed individual micro-packaged chips. CSP often provides better structural reliability during bending (no continuous phosphor layer to crack) and offers more versatile multi-color (RGBW/RGBCCT) options.
Use Single Color for stable white light, Tunable White for adjustable atmospheres, RGB for pure color effects, RGBW when both color and functional white are needed, and RGBCCT for the ultimate combination of full color and tunable white scene control.
Yes. Because of its high density and lack of visible diodes, CSP is ideal for retail shelving, under-cabinet lighting, and display cases where the light source or its reflection is viewed closely.
Absolutely. As a manufacturer with a dedicated Vietnam factory, Xmart provides full OEM/ODM support, including custom lengths, specific wattages, customized PCB designs, and specialized packaging for your brand.
Looking for a more reliable CSP LED Strip solution?
Connect with our engineering team to request full specifications, IES files, or to discuss custom manufacturing for your upcoming projects.
