Flexible LED
Panel
A cuttable, foldable backlighting solution for light boxes, signage, displays, feature walls and projects where rigid backlight modules become too limiting.
- Cuttable in both directions for custom layouts
- Foldable around edges and adjoining surfaces
- Plug-and-play sheet-to-sheet connection
- High-density layout for more uniform backlighting
- Available in Single Color, Tunable White, RGBW and Pixel options
Flexible LED Panel Manufacturer
Sourcing a backlighting solution isn't just about finding a light source; it's about solving real installation challenges. In complex light box, signage, retail counter, or translucent panel projects, rigid backlight modules often become a bottleneck.
Module layouts lack flexibility. Irregular sizes are difficult to accommodate without leaving dark corners. Shallow cavities struggle to achieve uniform diffusion. And site installation often requires extensive rework to make standard sizes fit custom dimensions.
We focus on providing a solution that adapts to the project, not the other way around. Our flexible backlighting systems are designed to simplify the installation process while ensuring premium light quality across any surface shape.
What Is
Flexible LED Panel?

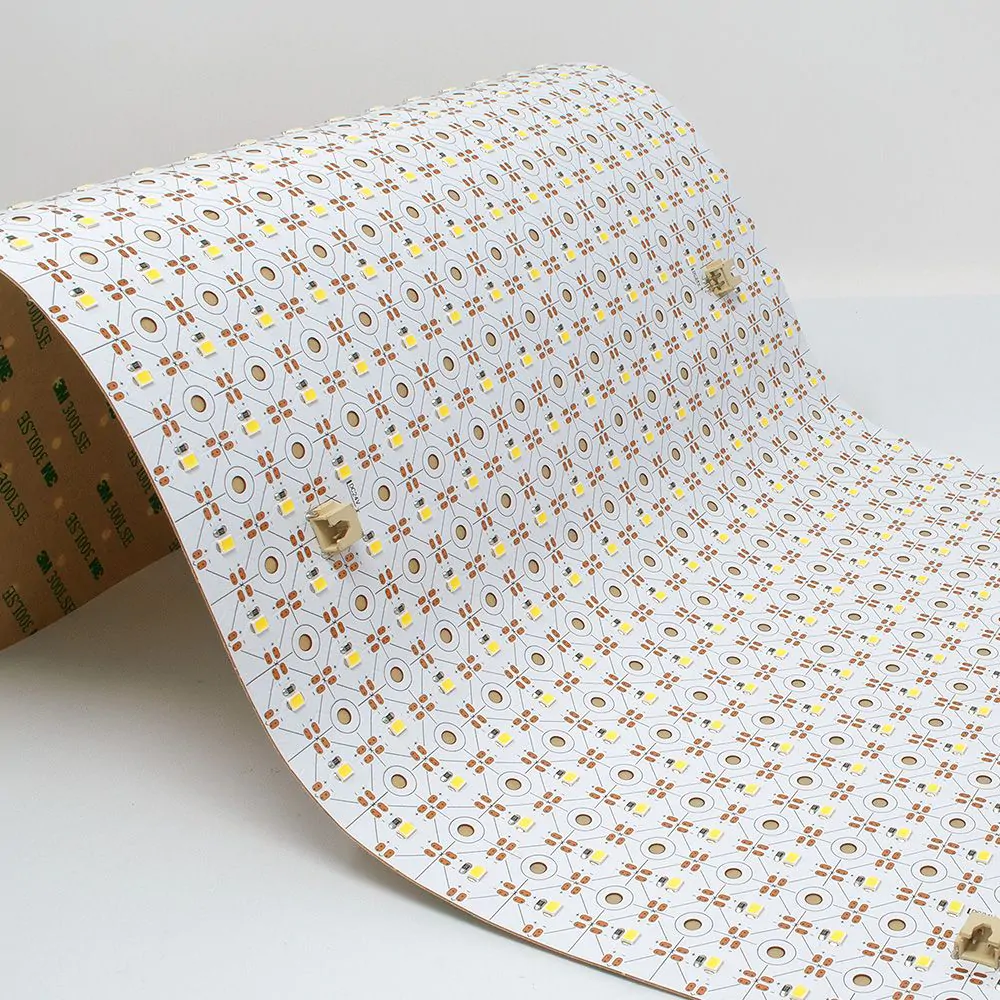

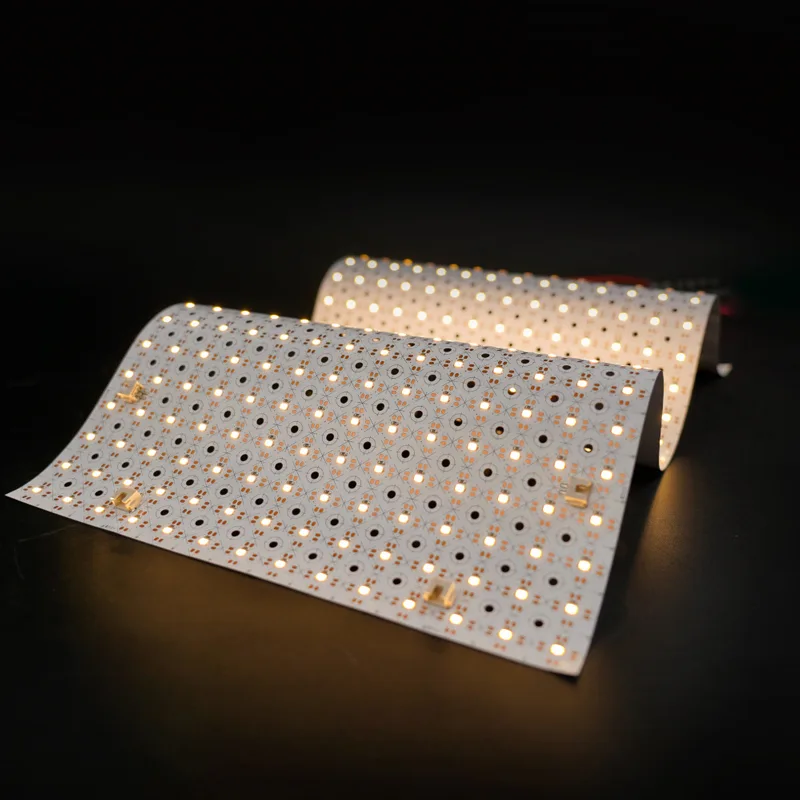

Engineered for uncompromising adaptability, the Flexible LED Panel (or LED Sheet) is a highly versatile lighting matrix designed specifically for complex and demanding backlighting applications.
Unlike traditional rigid modules, its core architecture allows for seamless Cutting, Folding, and Connecting. This makes irregular, shallow-cavity, and intricate structural designs effortless to execute.
Featuring on-board connectors and a high-density LED layout, it delivers flawless, close-proximity illumination—making it the definitive choice for premium retail displays, custom translucent materials, and architectural feature walls.
Direct From
Vietnam Factory
Why Buyers Choose LED Sheet Instead of Rigid Backlight Modules
When standard modules restrict design, flexible panels offer the control needed for premium results.
Better for Irregular Areas
Easily conforms to non-rectangular shapes, curves, and custom dimensions where rigid bars leave unlit gaps.
Ideal for Limited Depth
More useful when cavity depth is severely limited, allowing for ultra-slim light box designs.
Reduces Hotspots
High-density layout helps reduce hotspots in close-proximity backlighting, ensuring smooth diffusion.
Site-Ready Adaptability
Easier to cut, fold, and connect directly on site without needing factory re-manufacturing for slight dimensional changes.
Premium Applications
Better suited for high-end feature walls, complex light boxes, and detailed retail builds requiring flawless execution.
Faster Installation
More practical when projects demand fast fitting, plug-and-play connections, and cleaner overall backlight results.
Application Scenarios
Delivering uniform backlighting, shallow depth fit, and easy integration for demanding environments.

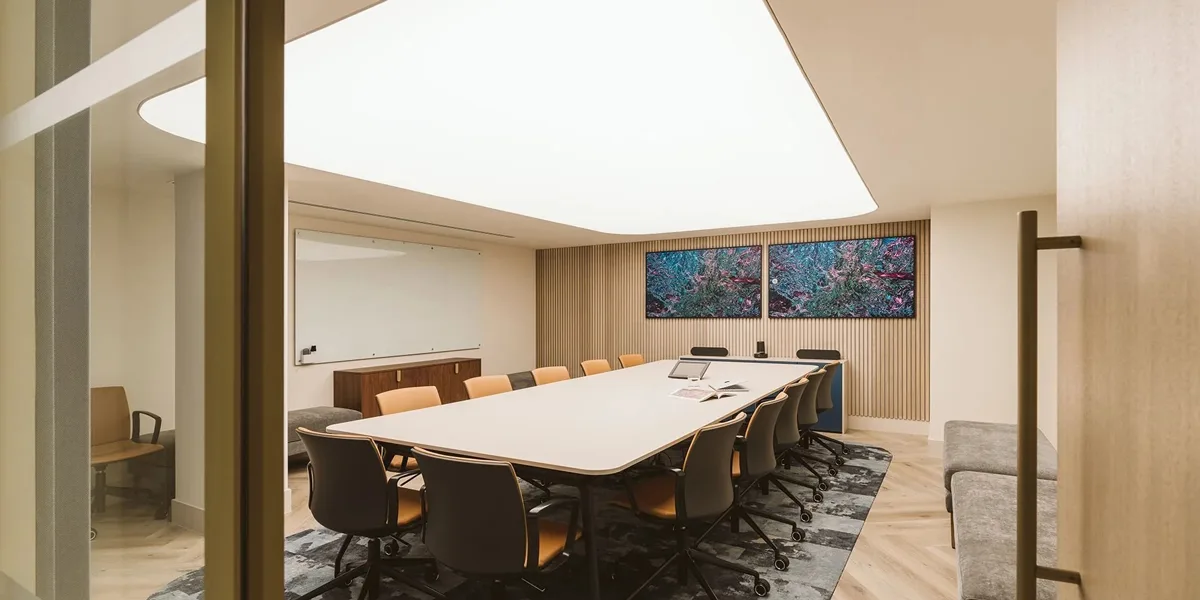

Light Box Backlighting
Ultra-slim profiles with perfectly even diffusion.

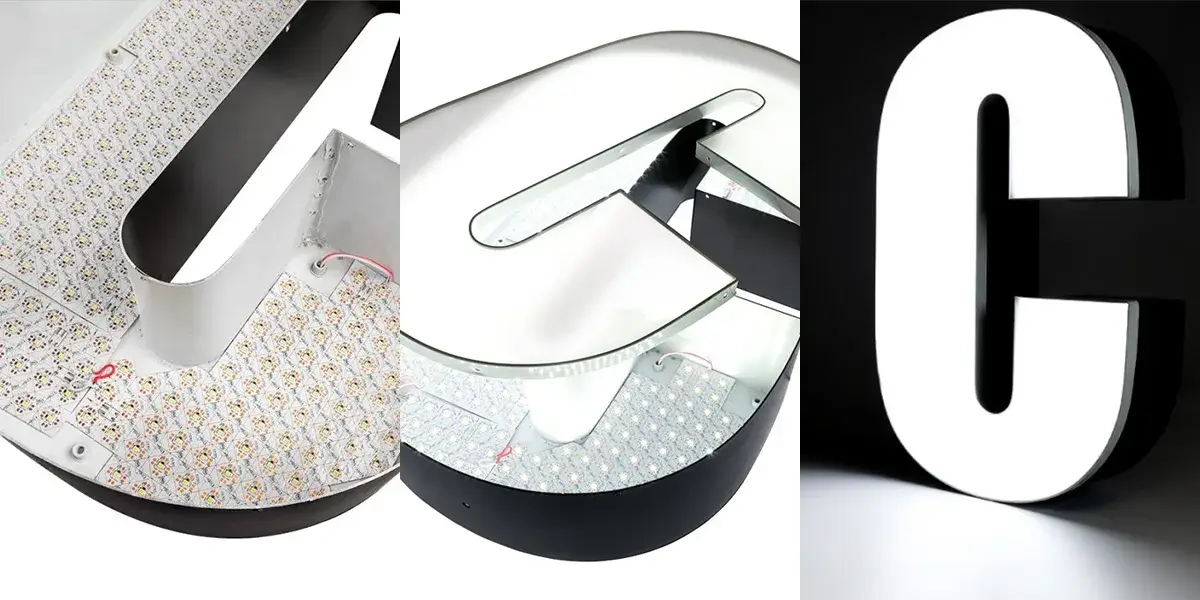

Signage Backlighting
Adapts to complex letterforms and logos seamlessly.

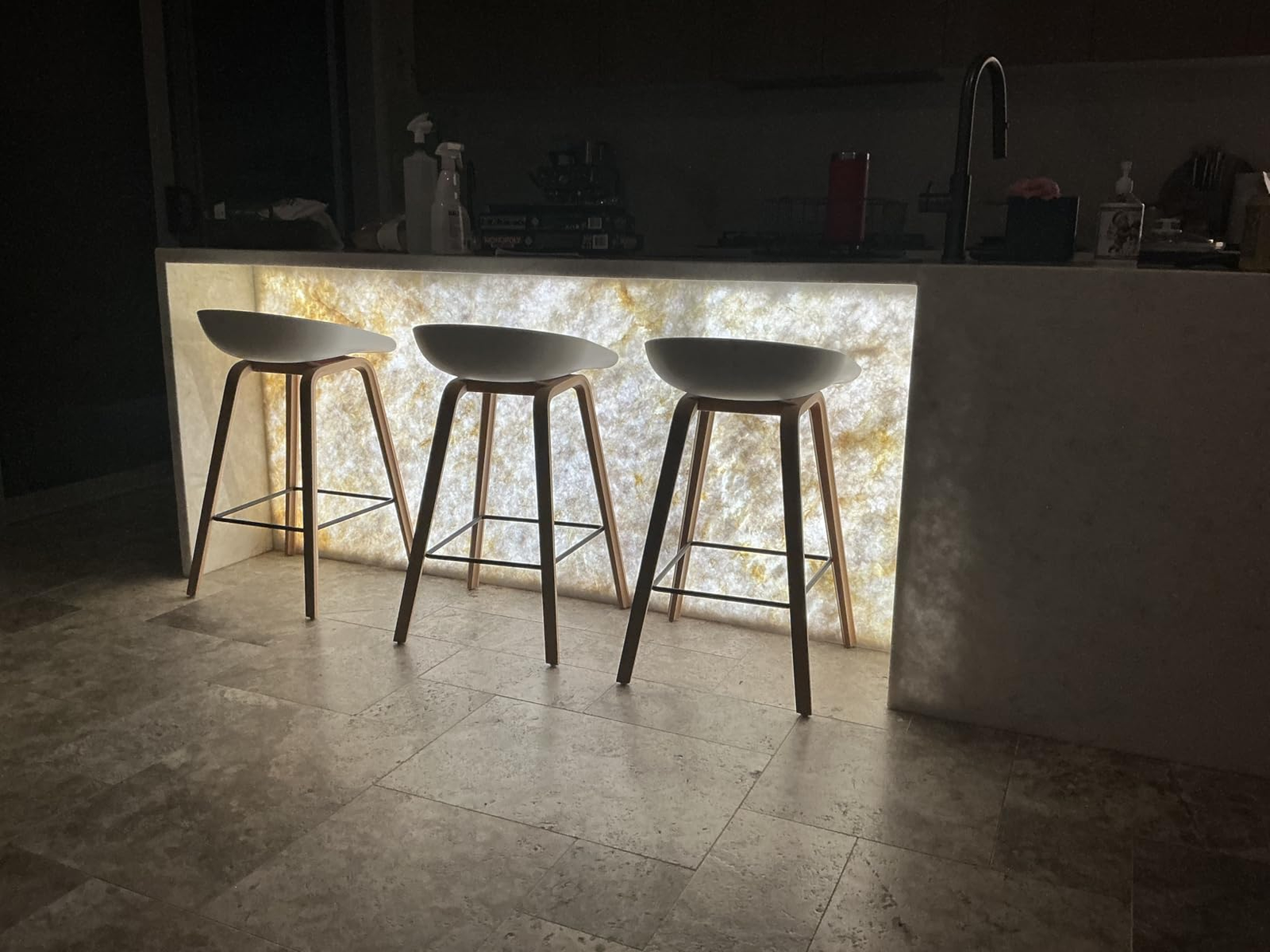

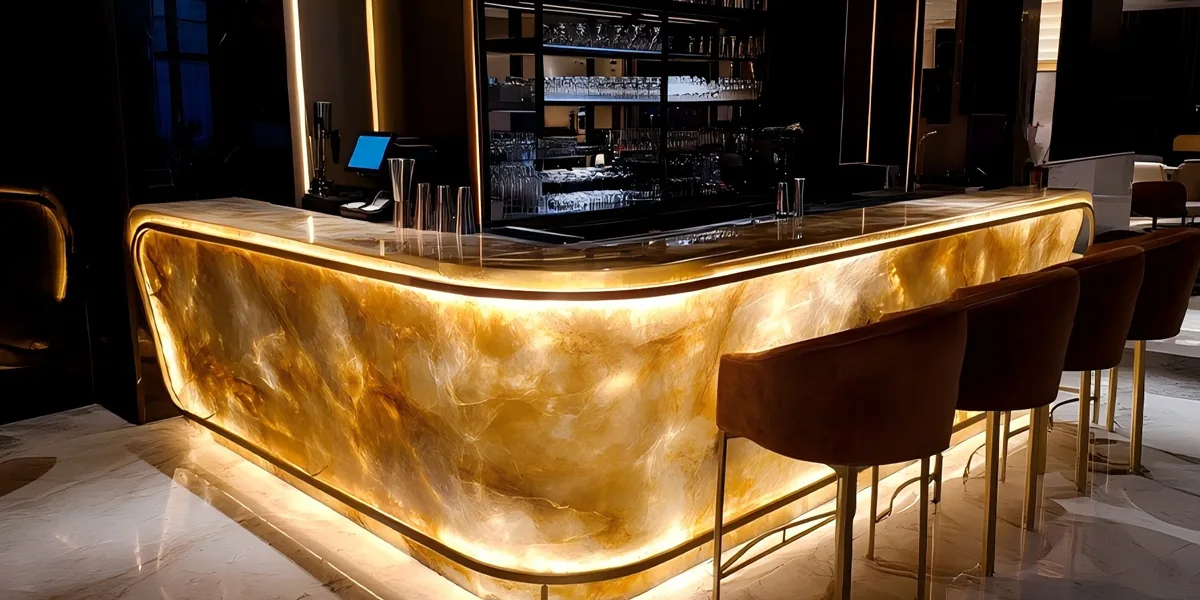

Bar Counter & Display
Enhances product visibility without bulky fixtures.
Residential Counter
Large-scale uniform illumination for architectural elements.

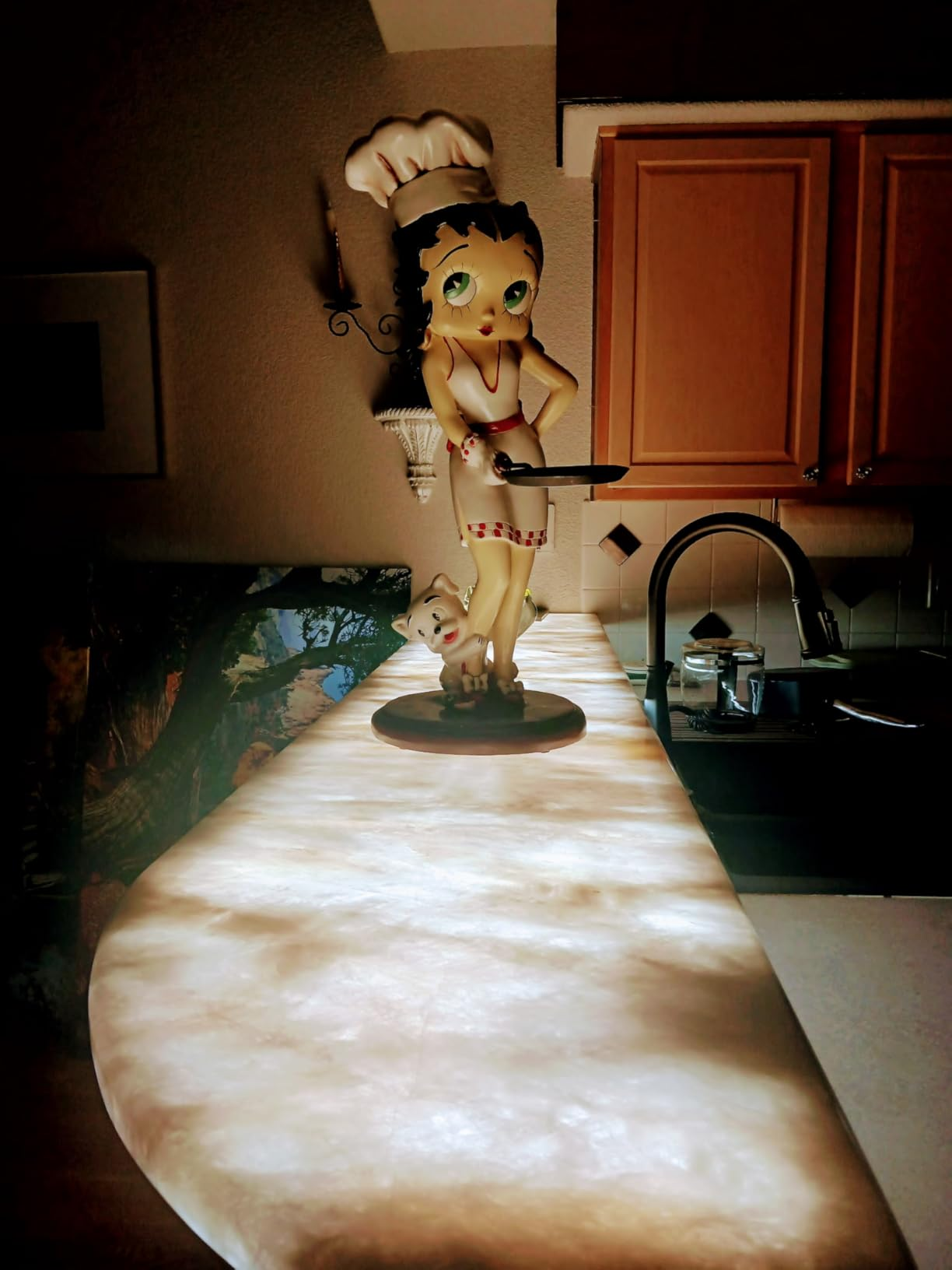

Cabinet Backlighting
Clean, bright interiors for premium shelving.

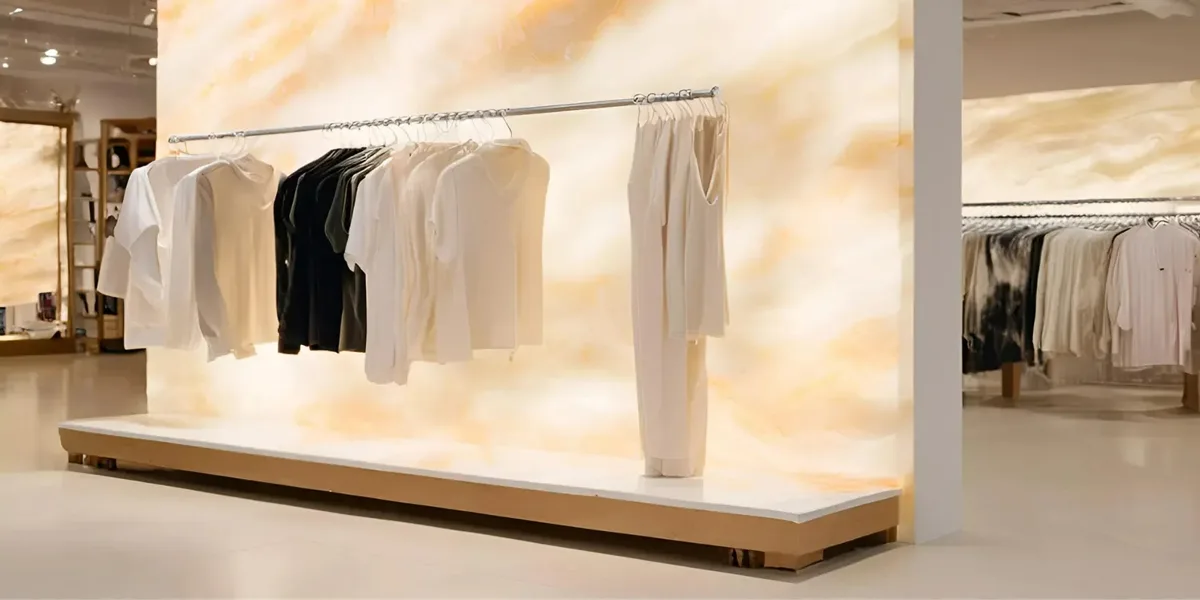

Translucent Material
Backlights stone, onyx, and acrylic with zero shadowing.

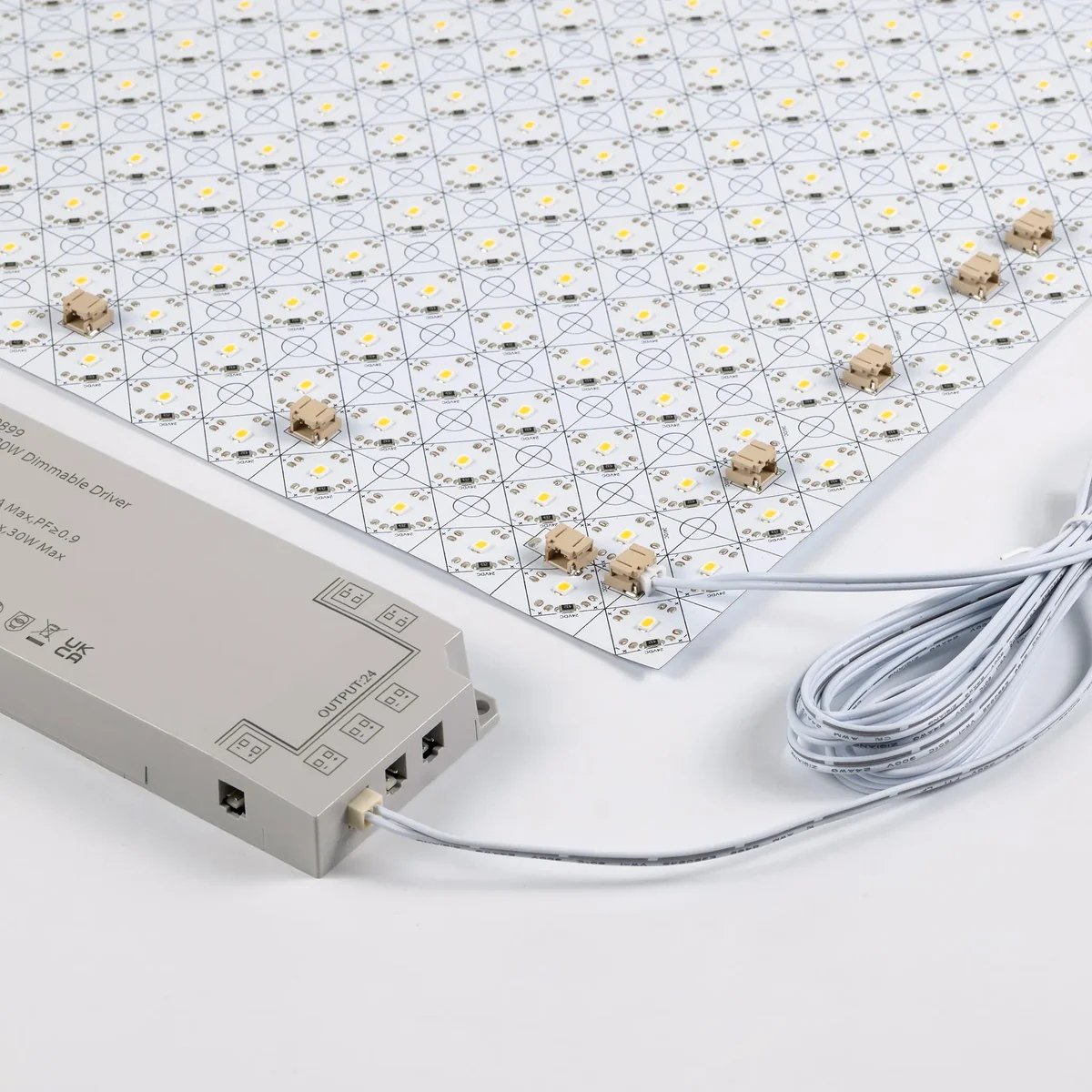

Quick Technical Overview
Essential specifications designed for professional integration and scalable project deployment.
- Standard Sheet Size
- 503.5 × 235 mm
- Voltage
- 24VDC
- Cut Logic
- Cuttable in both horizontal and vertical directions
- Fold Logic
- Foldable over edges and adjoining surfaces
- Connection Type
- On-board plug-and-play connectors
- Typical Backlighting Distance
- Close-proximity capable (as low as 9.5 mm space)
- Series Options
- Single Color, Tunable White, RGBW, SPI Pixel, DMX512 Pixel
- OEM / Custom Support
- Available for specific dimensions, wattage, and wiring

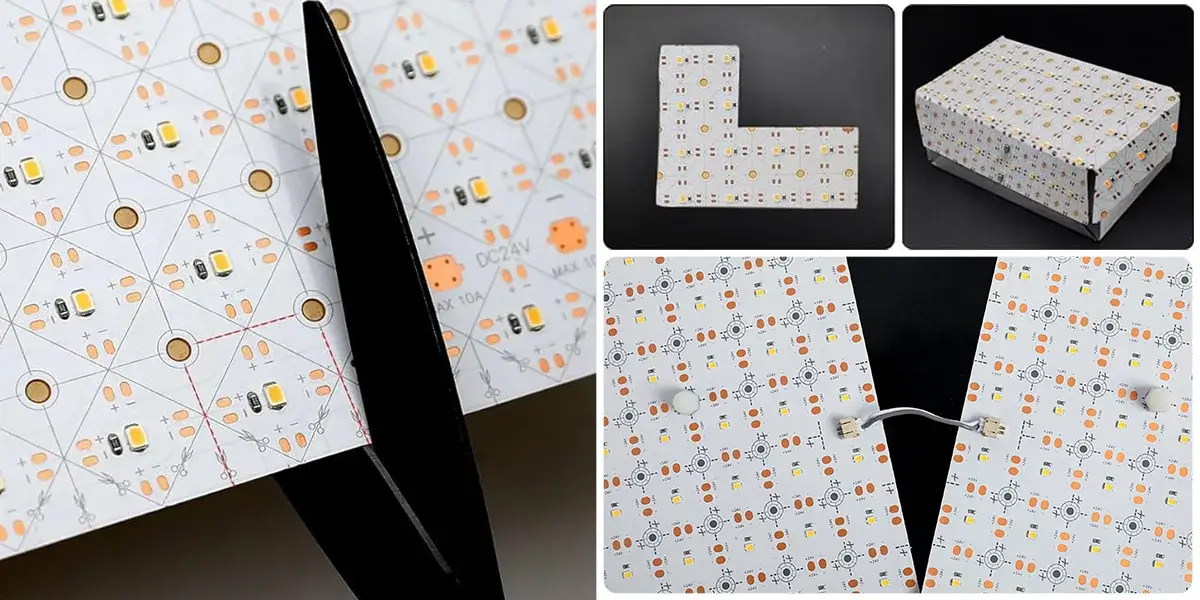

Core Capabilities: Cut, Fold, Connect
The fundamental features that make flexible panels superior for custom installations.
Cut
Cut the panel to fit exact project dimensions. Remove a single LED or a specific group when navigating around structural obstacles or precise signage boundaries.

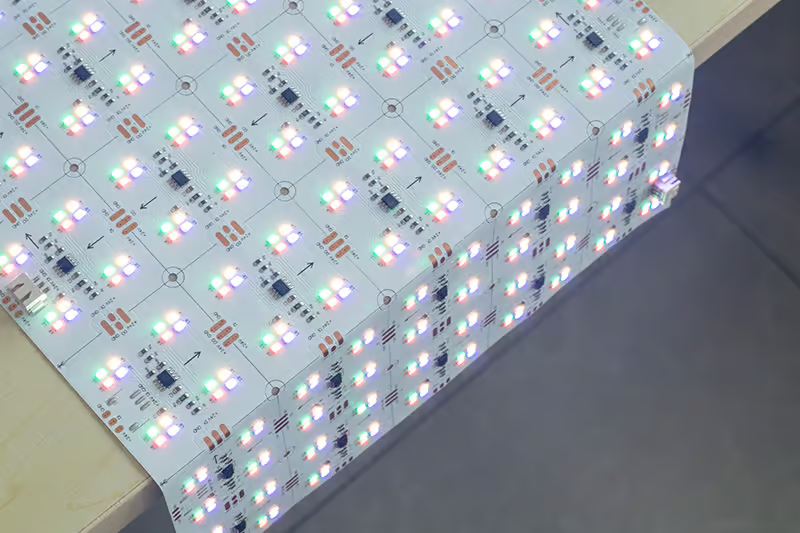

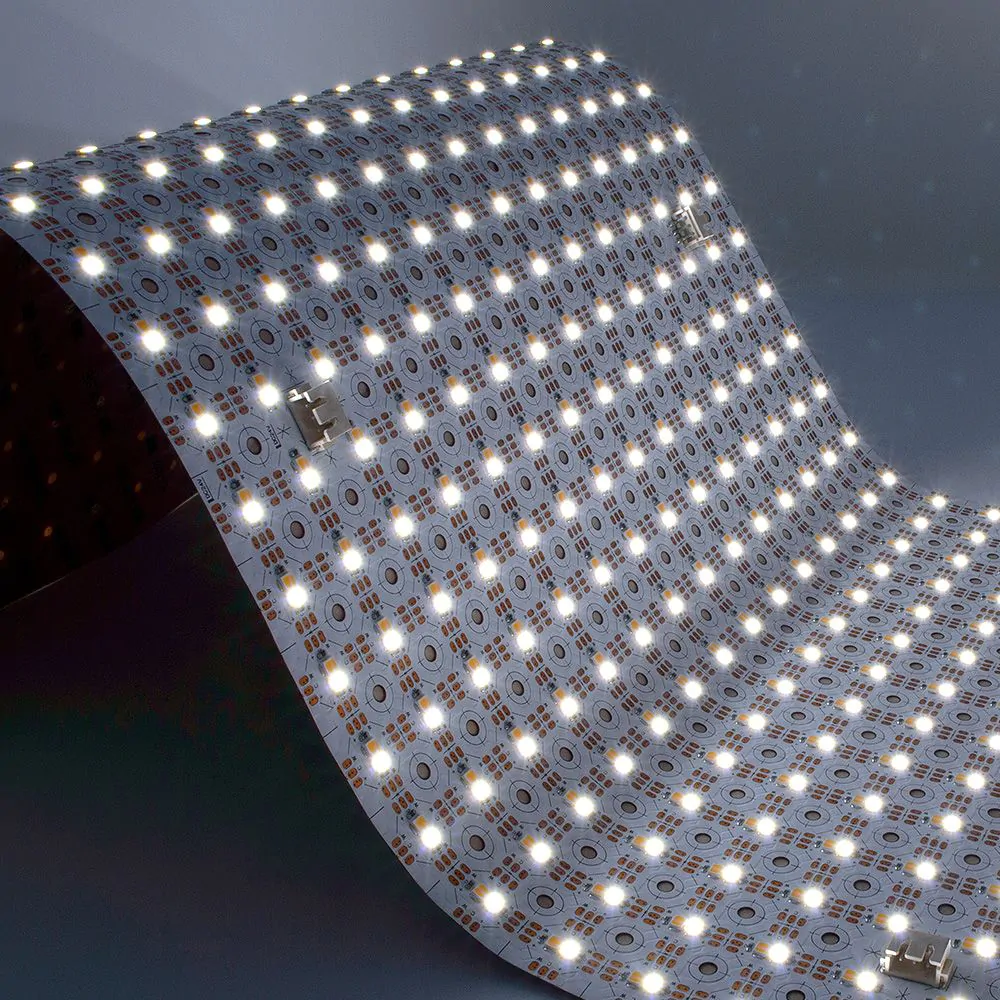

Fold
Fold the panel around 90-degree edges, columns, or adjoining surfaces to maintain continuous, unbroken backlighting without needing separate modules.

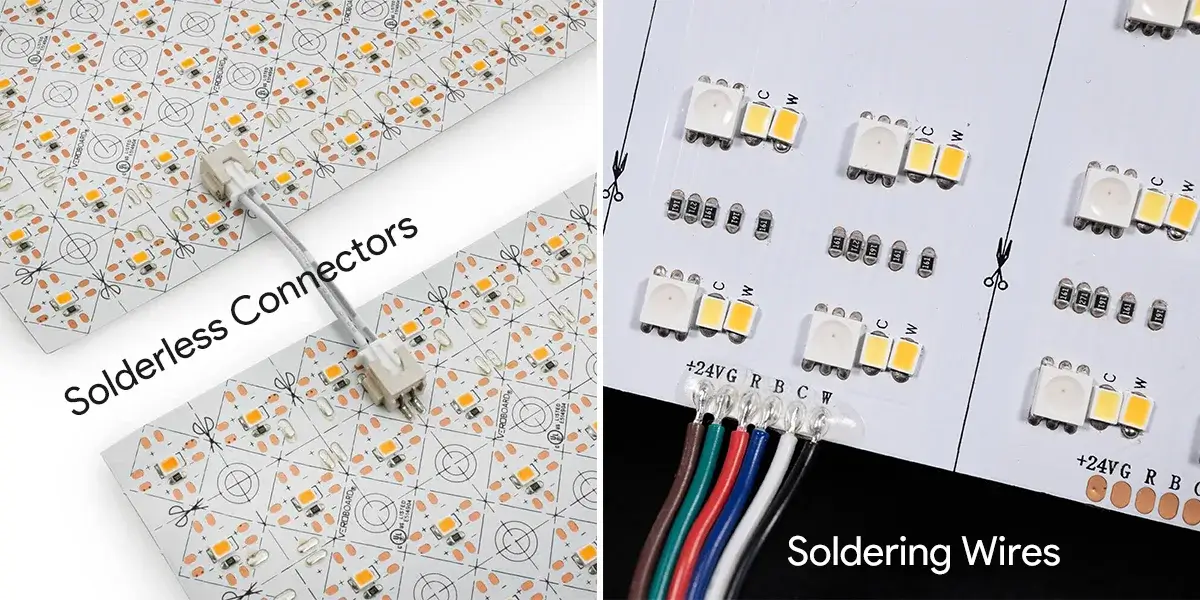

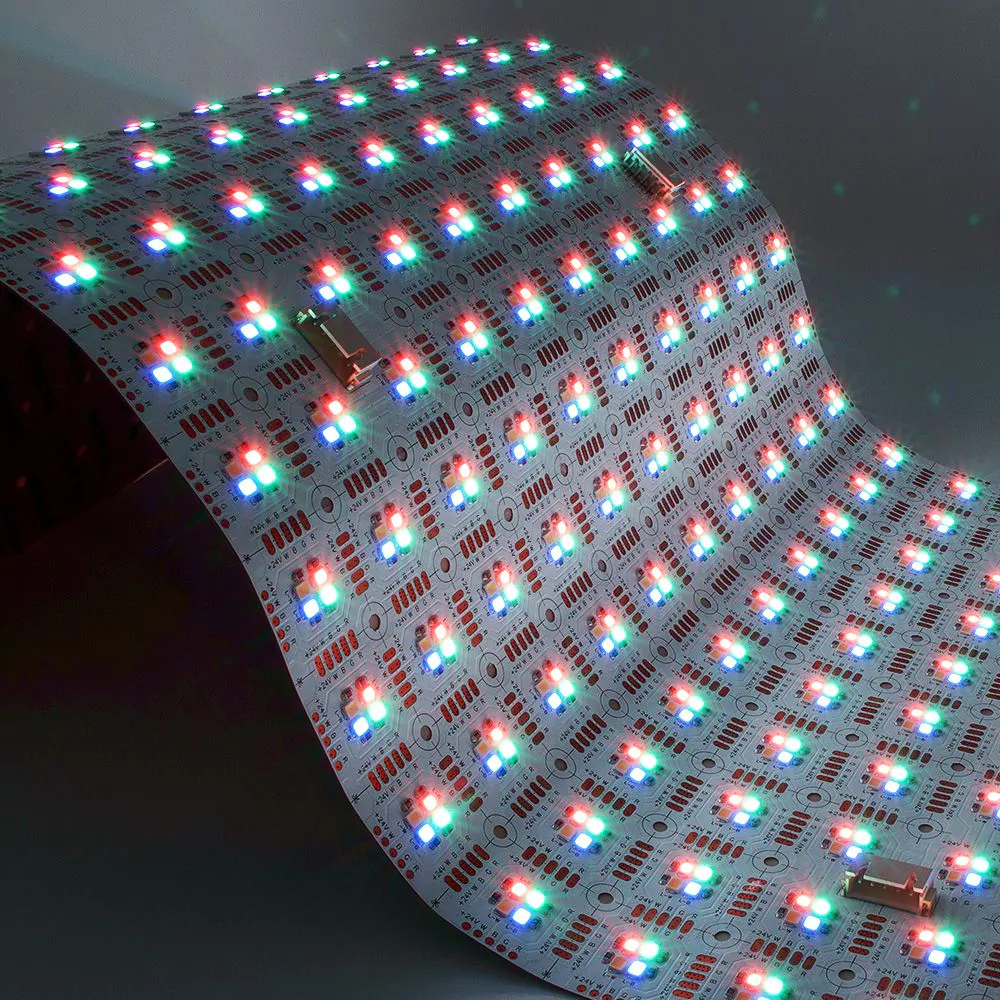

Connect
Use on-board plug-and-play connectors to link sheets cleanly and securely across large areas, eliminating complicated, time-consuming site wiring.
Flexible LED Panel Series
Five specialized series designed to meet exact project requirements, from static white to advanced pixel mapping.
How to Choose the Right Series

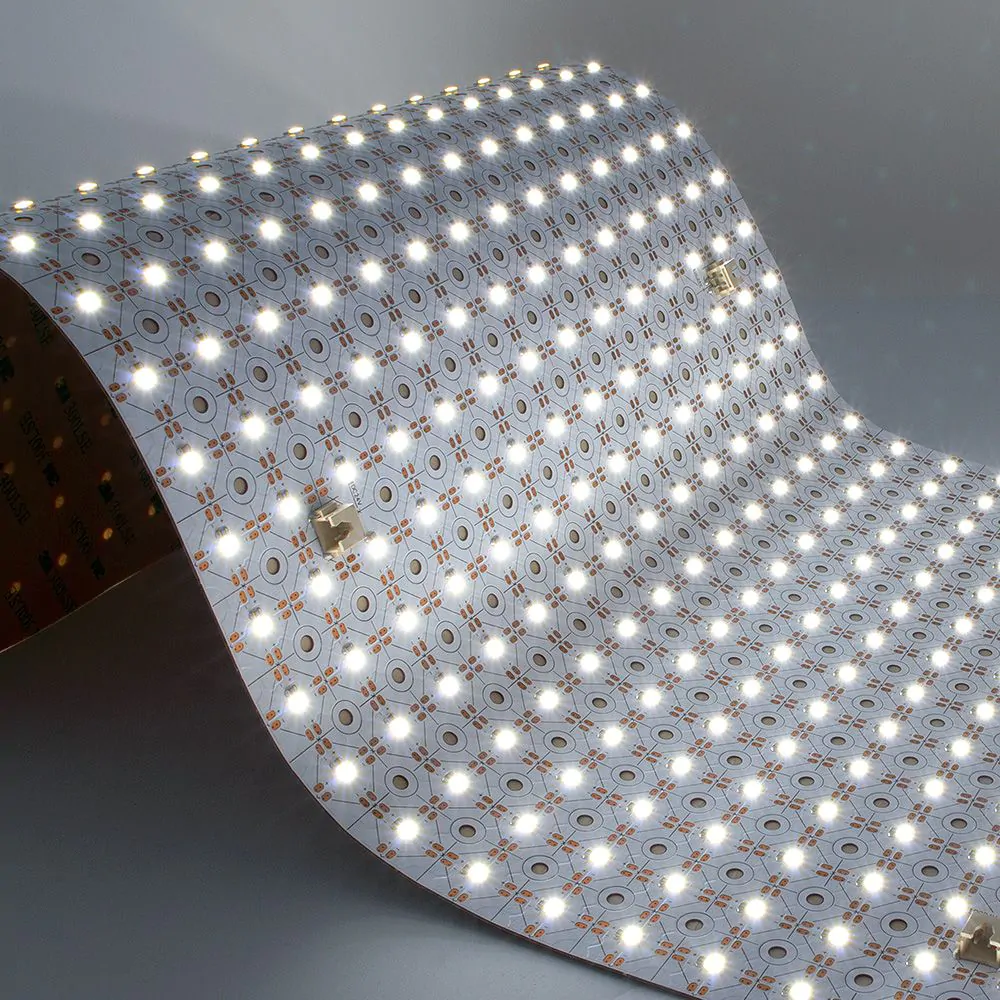

Single Color
Choose when the goal is clean, static white backlighting.

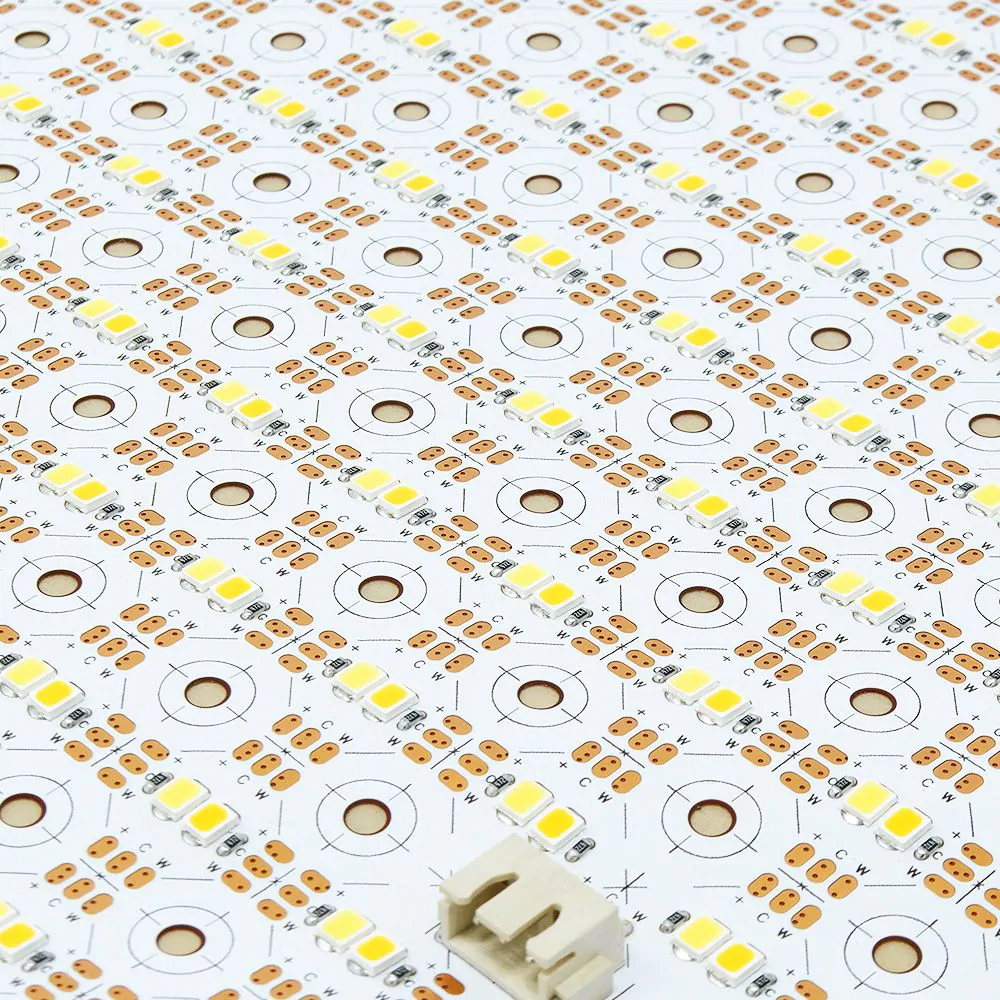

Tunable White
Choose when the project needs adjustable white scenes.
RGBW
Choose when both color and practical white are important.

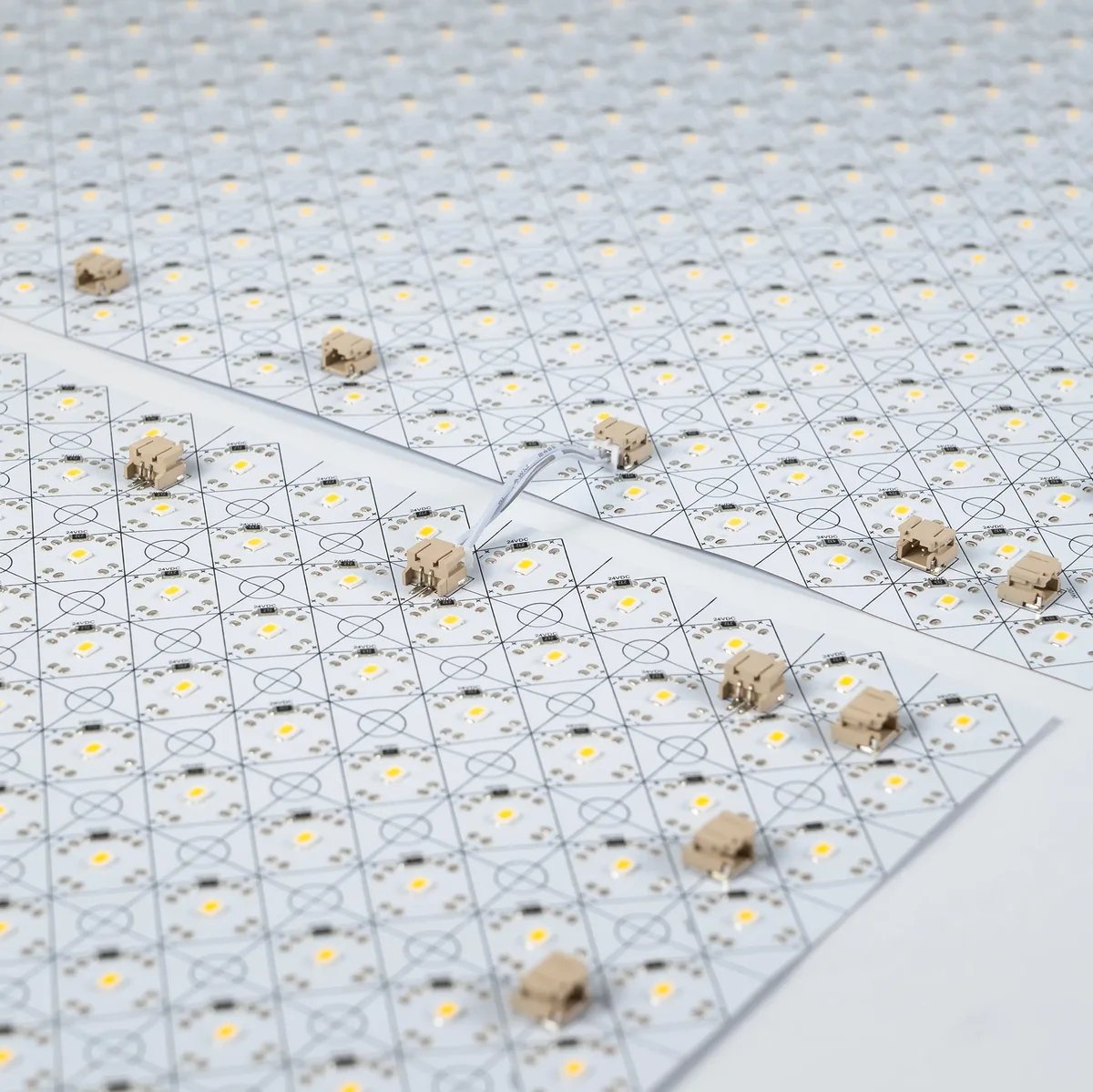

SPI Pixel
Choose for smaller programmable dynamic projects.

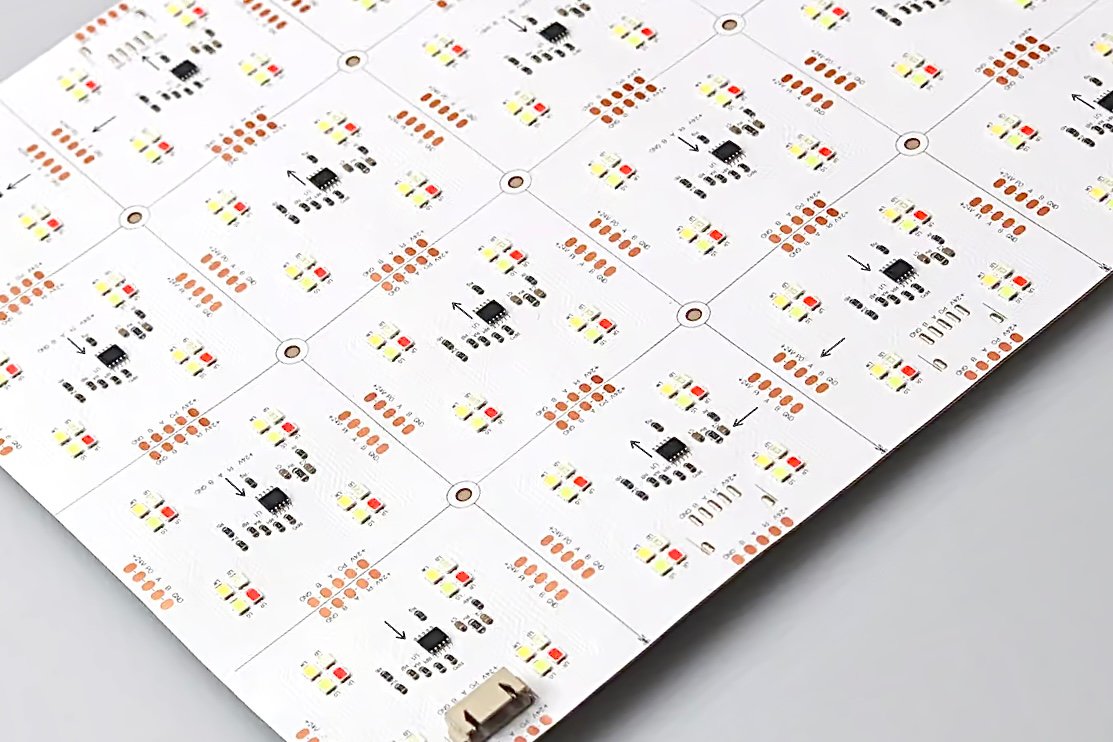

DMX512 Pixel
Choose for larger projects with stricter control requirements.
Free-Cut Flexible LED Panel for Custom Shapes
Can a Flexible LED Panel be cut freely? Yes. Use pre-marked cut lines to create custom lighting layouts for light boxes, irregular spaces, internal cutouts, and bespoke backlighting designs — without treating the panel like a fixed-size board. Discover the ultimate Cut-to-Shape LED Panel that adapts to your project's unique geometry.

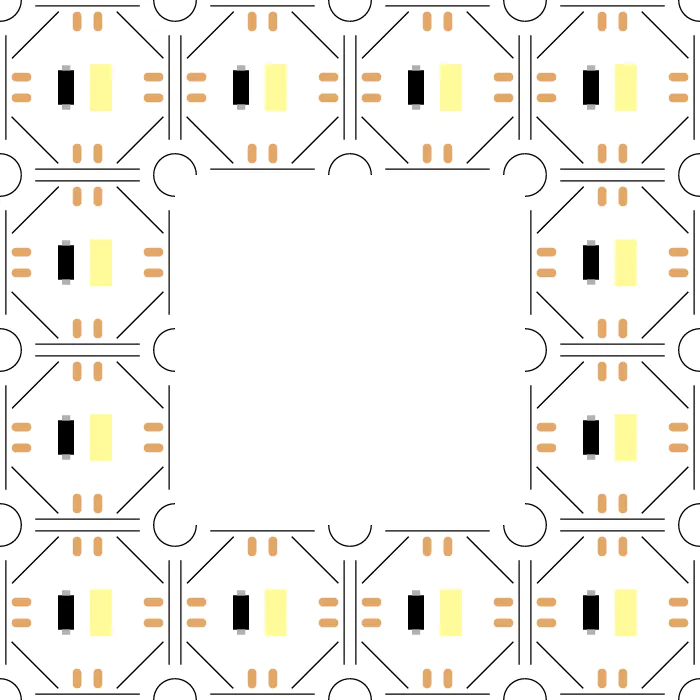

Internal Cutouts
Cut around sockets, pipes or structural obstacles while keeping the surrounding panel perfectly illuminated. Essential for precise flexible LED panel internal cutouts.

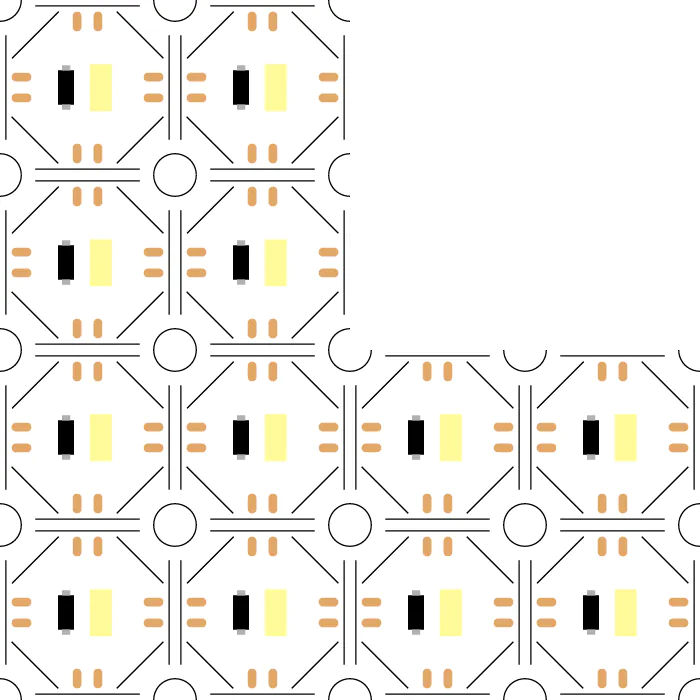

Bespoke Geometry
What shapes can it be cut into? Trim the sheet into custom outlines such as L-shapes, stepped edges or tailored backlight layouts. A true DIY LED Panel.

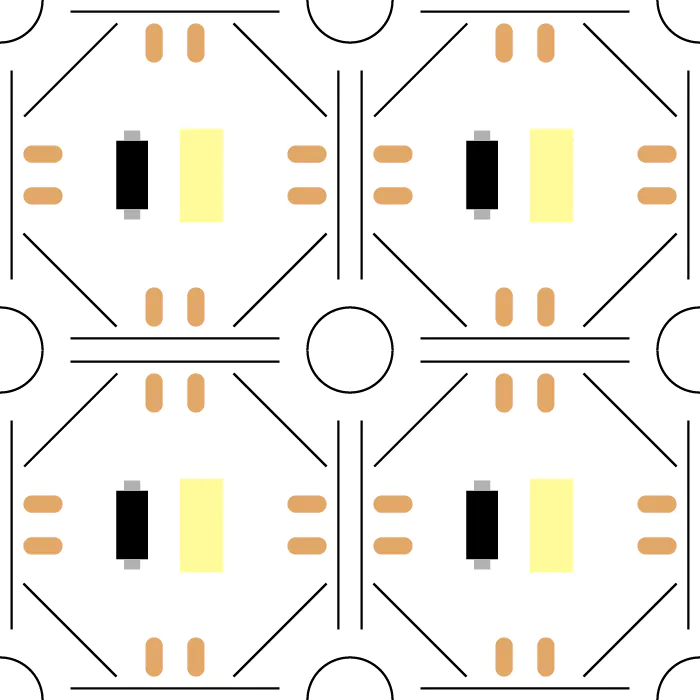

Matrix Reliability
How do you cut it without breaking the circuit? The circuit matrix helps maintain lighting continuity when cuts follow the correct routing logic.
Cutting Logic: Maintaining Electrical Continuity
Which cutting patterns are supported? To ensure your cuttable LED panel for irregular backlighting functions flawlessly, cuts must follow the pre-set routing logic.
Supported Cutting Patterns

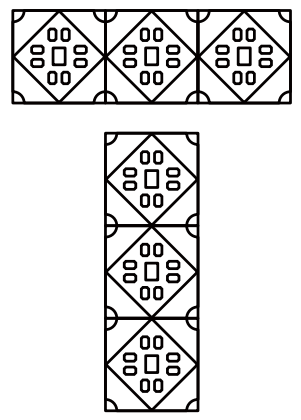

Straight Line
Best for standard rectangular layouts, linear trimming, and fitting into traditional Flexible LED Sheet for Light Box frames.

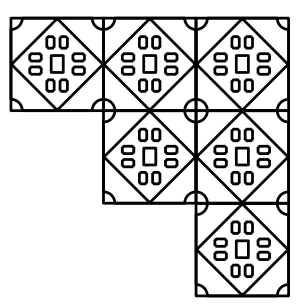

Stepped Diagonal Line
Useful when routing around corners, pillars, or irregular structures where strict 90-degree angles are required.

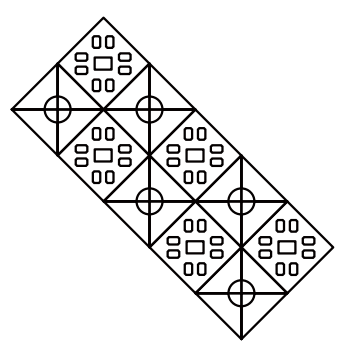

Smooth Diagonal Line
Suitable for angled custom layouts while preserving electrical continuity across the matrix grid.
Unsupported Cutting Pattern

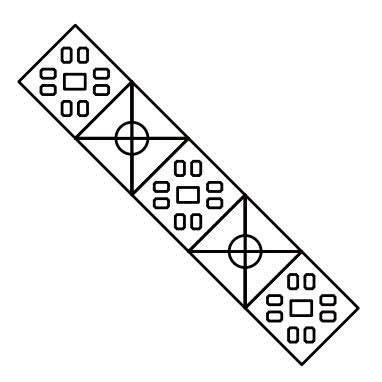

Single Diagonal Line
A single uninterrupted diagonal cut that ignores the pre-marked grid can break the electrical routing path. This causes dead zones and should be strictly avoided to ensure your Free Cut LED Panel operates correctly.

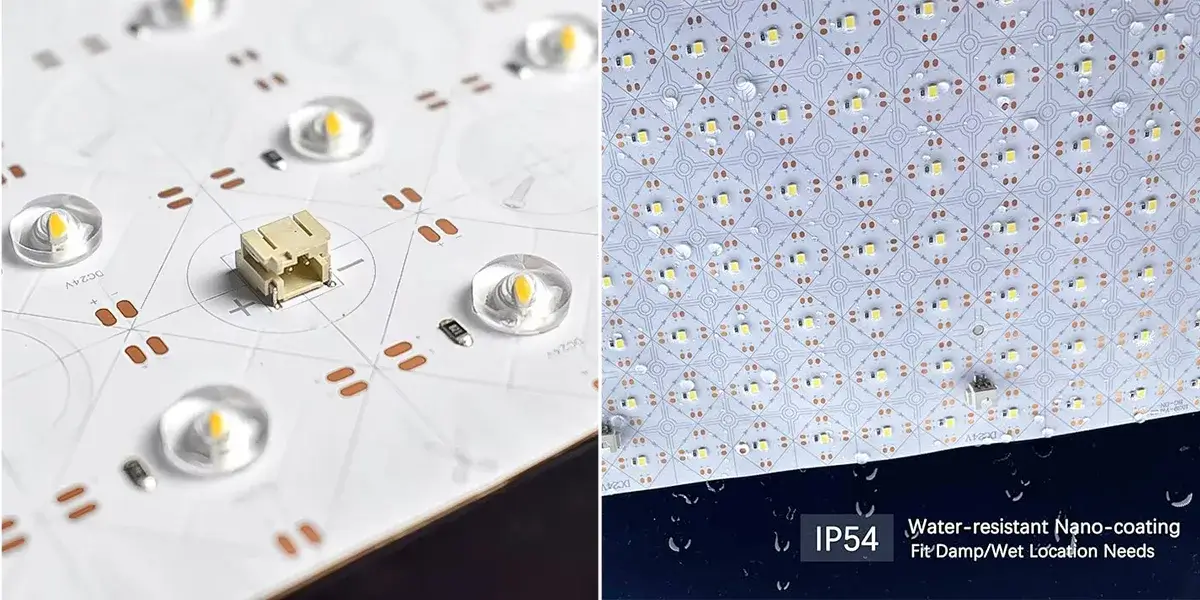

Product Detail Gallery
Wiring & Connection Logic
Precision power and signal distribution architectures engineered for seamless integration, minimal voltage drop, and advanced commercial control requirements.

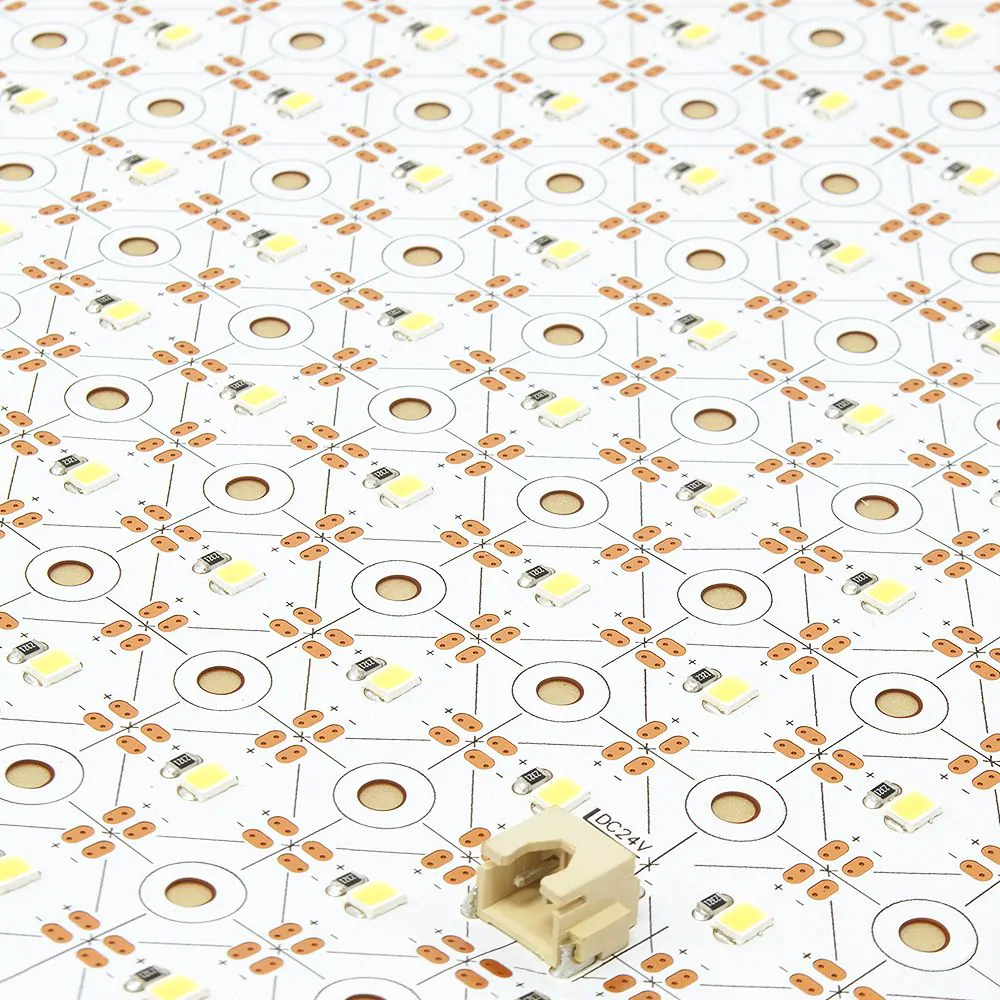

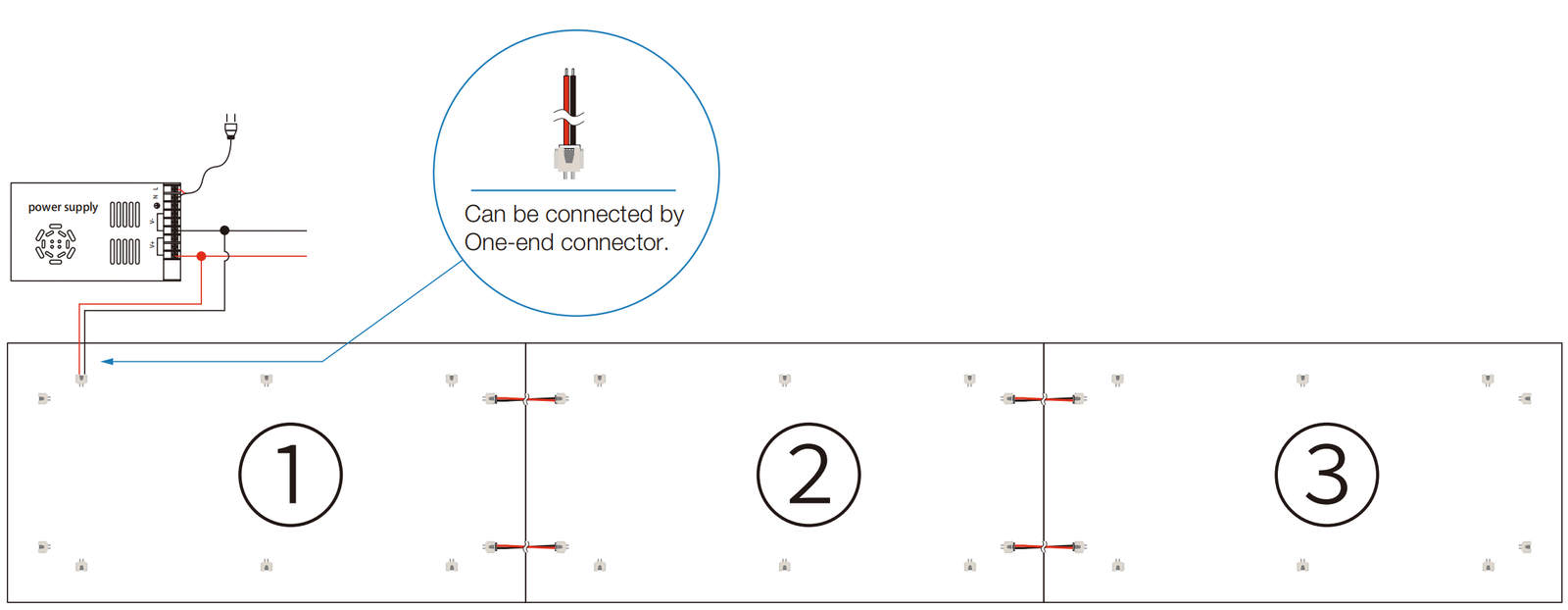

Single Color
Simple 2-wire (V+, V-) power distribution engineered for high-efficiency direct sheet-to-sheet linking. Optimized for minimal voltage drop across extended commercial runs.

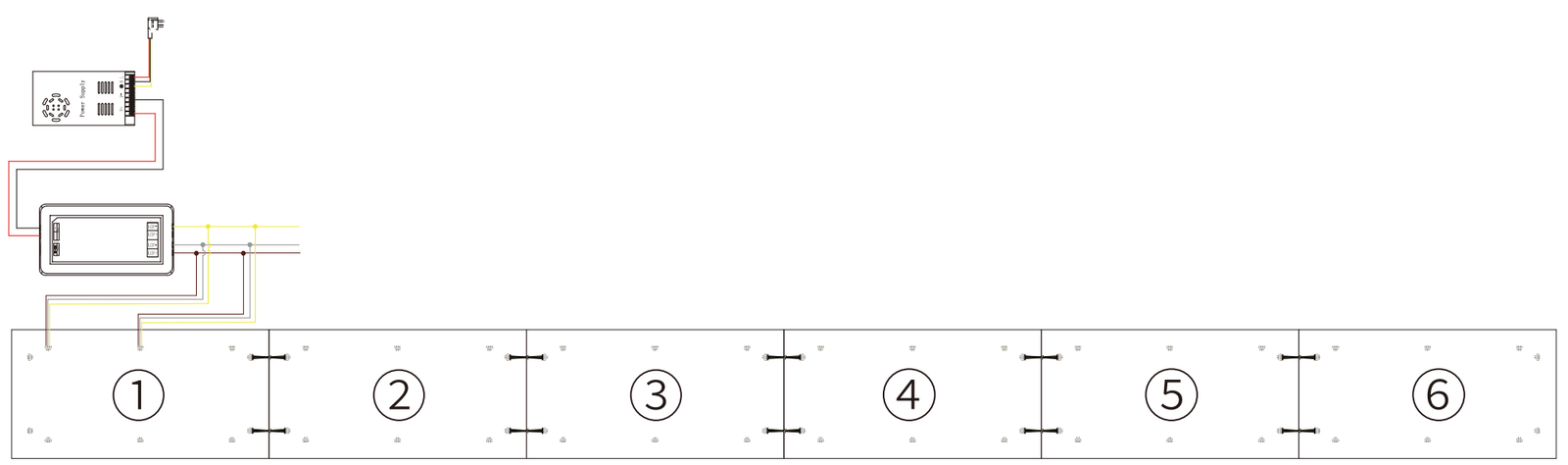

Tunable White
3-wire setup managing warm and cool channels alongside common power. Delivers precise CCT blending for human-centric lighting environments.

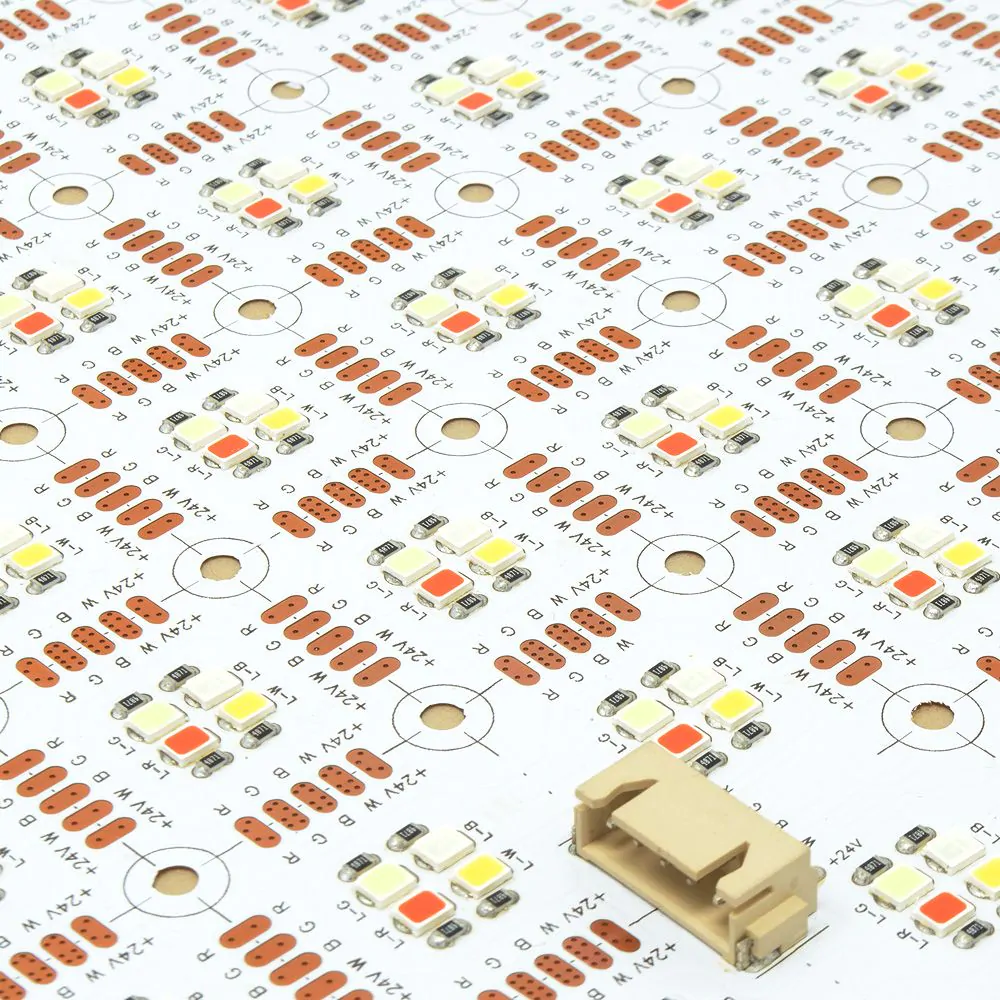

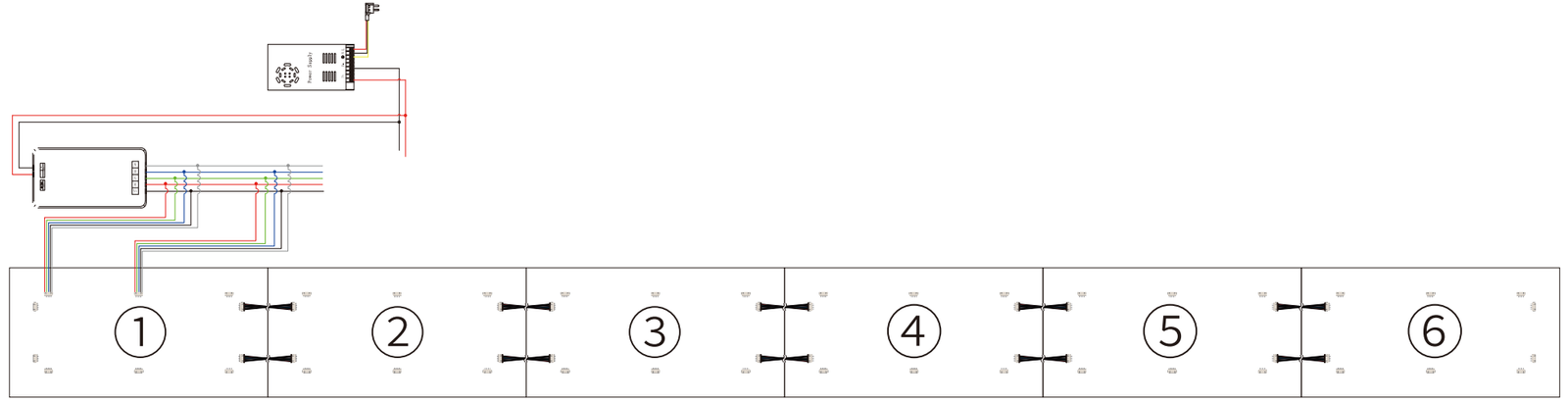

RGBW
5-wire connection integrating 4 distinct color channels and power input for infinite color rendering possibilities and dynamic architectural scenes.
SPI Pixel
Power + Data line architecture. Requires sequential signal flow through connected sheets for high-resolution dynamic pixel mapping and animations.
DMX512 Pixel
Power + DMX Data (A/B). Parallel signal logic ensuring robust stability, auto-addressing, and zero signal degradation for large-scale deployments.
Technical Documentation
- Static White Specification
- Tunable White Specification
- RGBW Specification
- SPI Pixel Specification
- DMX512 Pixel Specification
- Spectrum Test Report
- IES Report
Reliability & Testing
Ensuring uniformity stability, connector reliability, and durability for global deployment.
Integrating Sphere
Uniformity Stability
TempHumi Chamber
Environmental Stress
UV Weathering
UV Resistance
Salt Spray
Corrosion Resistance
Tensile Test
Connector Reliability
Vibration Testing
Transport Durability
Frequently Asked Questions
A Flexible LED Panel (or LED sheet) is a cuttable, foldable backlighting solution designed for projects where standard rigid modules are too restrictive. It allows for custom shaping around edges and curves while maintaining a high-density LED array for uniform light.
Unlike rigid modules that come in fixed lengths and cannot bend, LED sheets can be cut to exact dimensions, folded over 90-degree edges, and connected via on-board plug-and-play connectors. They are significantly better for irregular backlight areas and limited cavity depths.
Thanks to the high-density LED layout, our flexible panels can achieve uniform, hotspot-free backlighting with a cavity depth as shallow as 9.5mm, making them ideal for ultra-slim light boxes and feature walls.
Choose Single Color for static white backlighting. Select Tunable White if you need adjustable color temperatures. Opt for RGBW for decorative color plus practical white. Use SPI Pixel for dynamic, programmable effects, and DMX512 Pixel for large-scale projects requiring highly stable, professional control systems.
Yes. The panels are designed for site adaptability. They can be cut in both horizontal and vertical directions to fit custom dimensions and folded around structural elements without damaging the circuit.
Absolutely. We support custom dimensions, specific wattage requirements, custom LED spacing, and tailored wiring configurations for OEM and ODM procurement partners.
